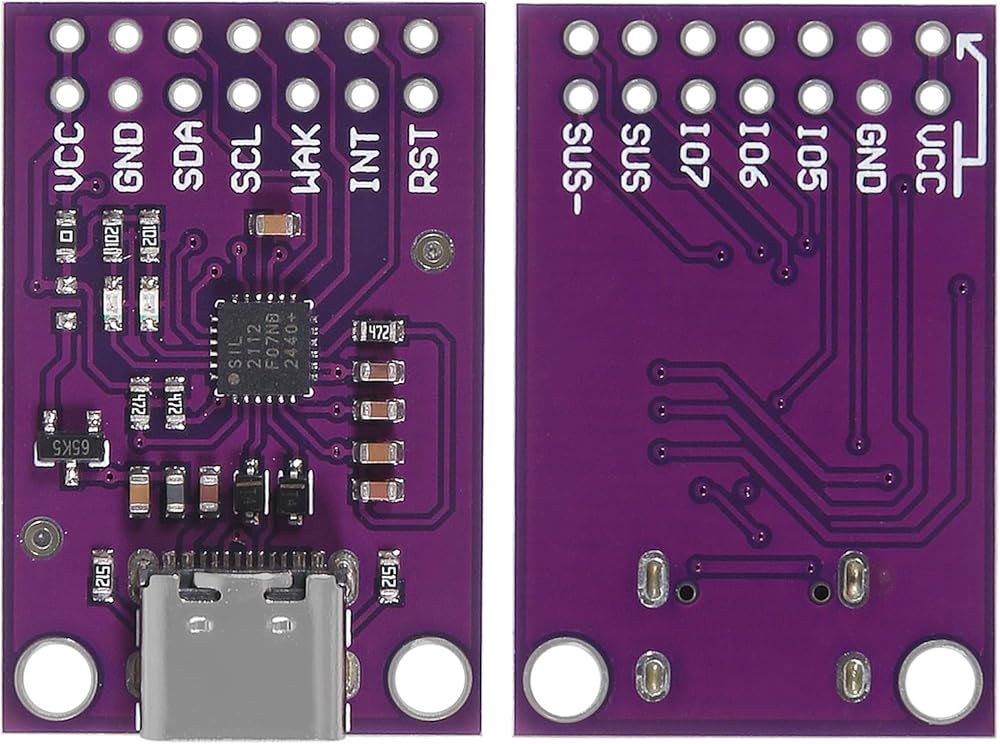

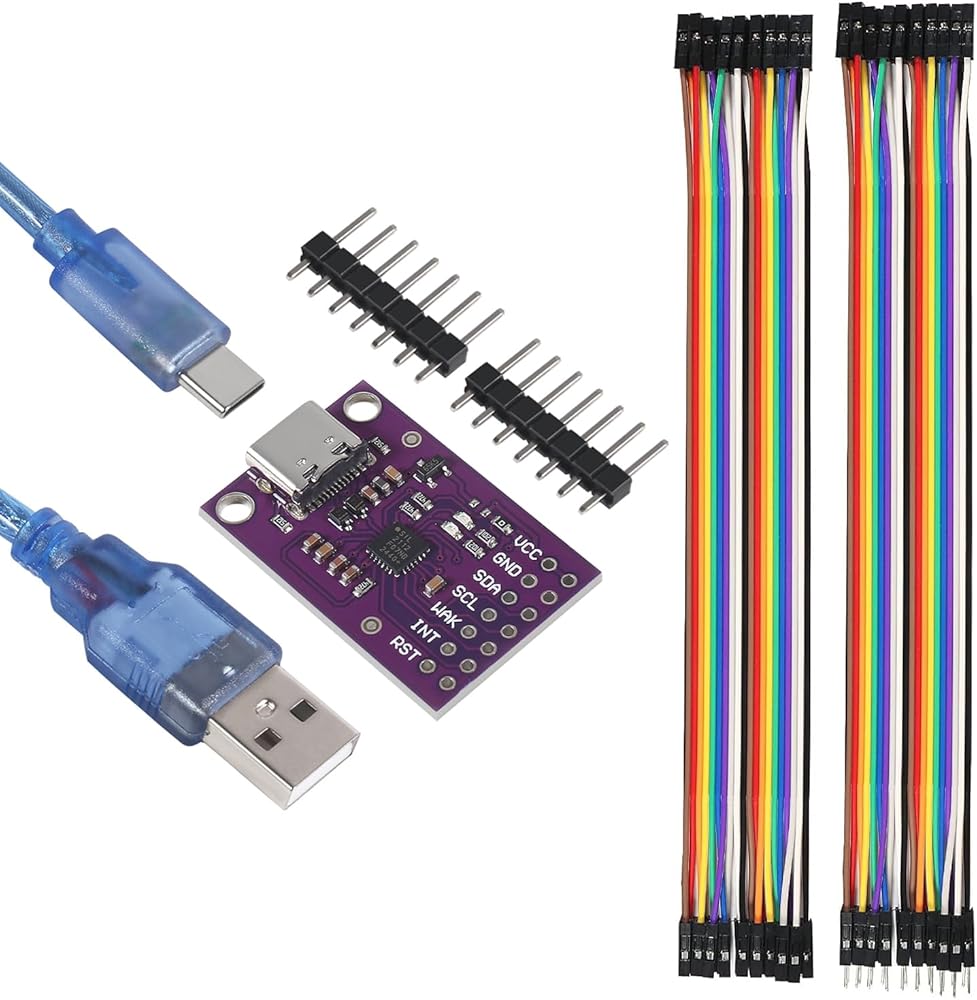

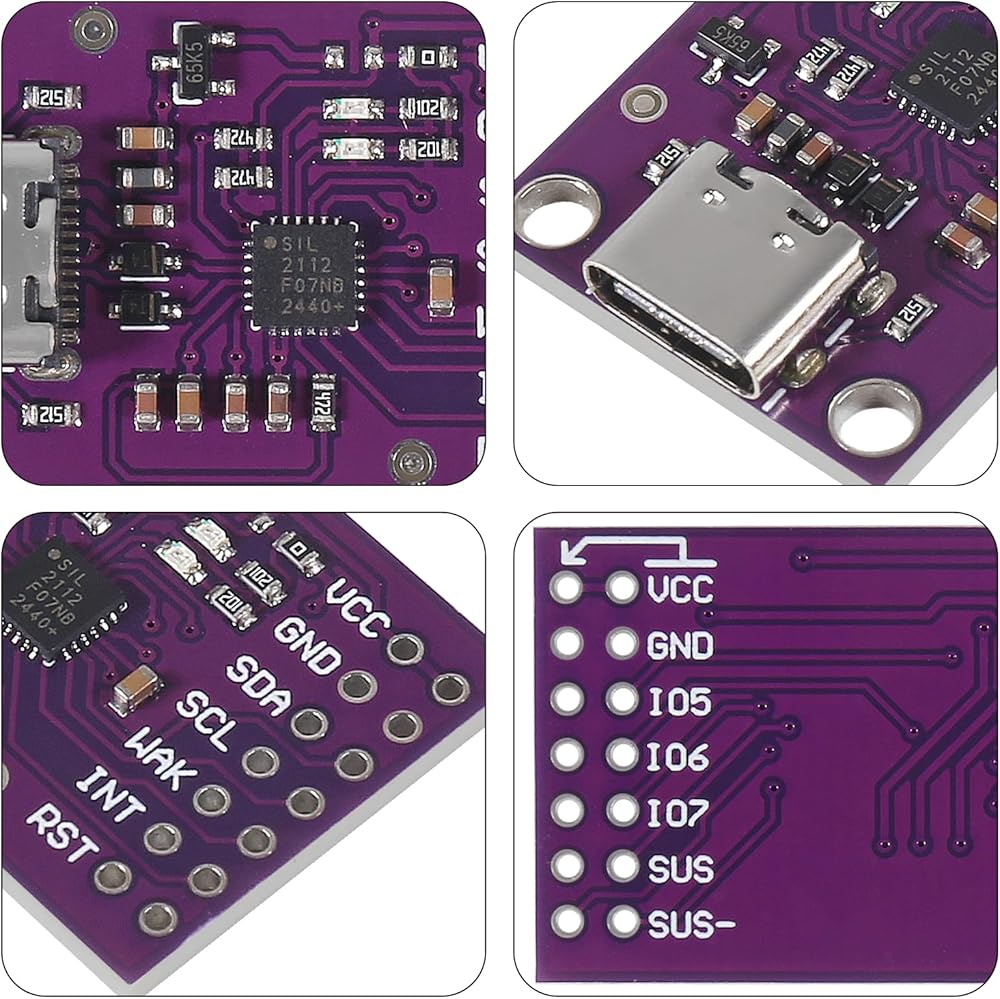

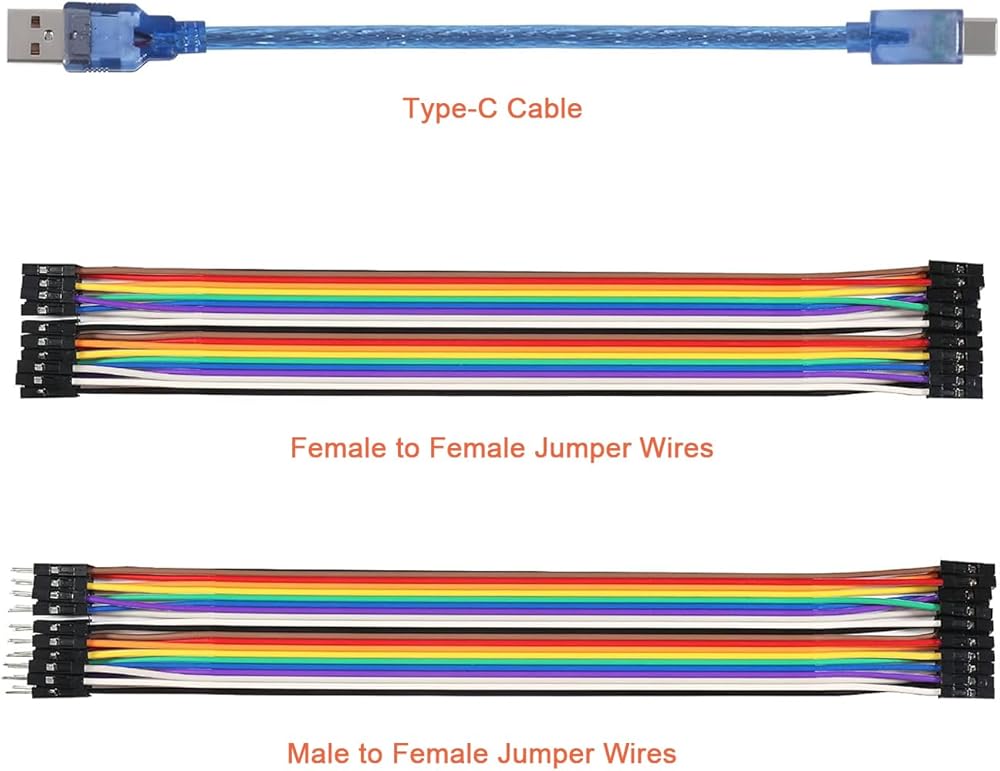

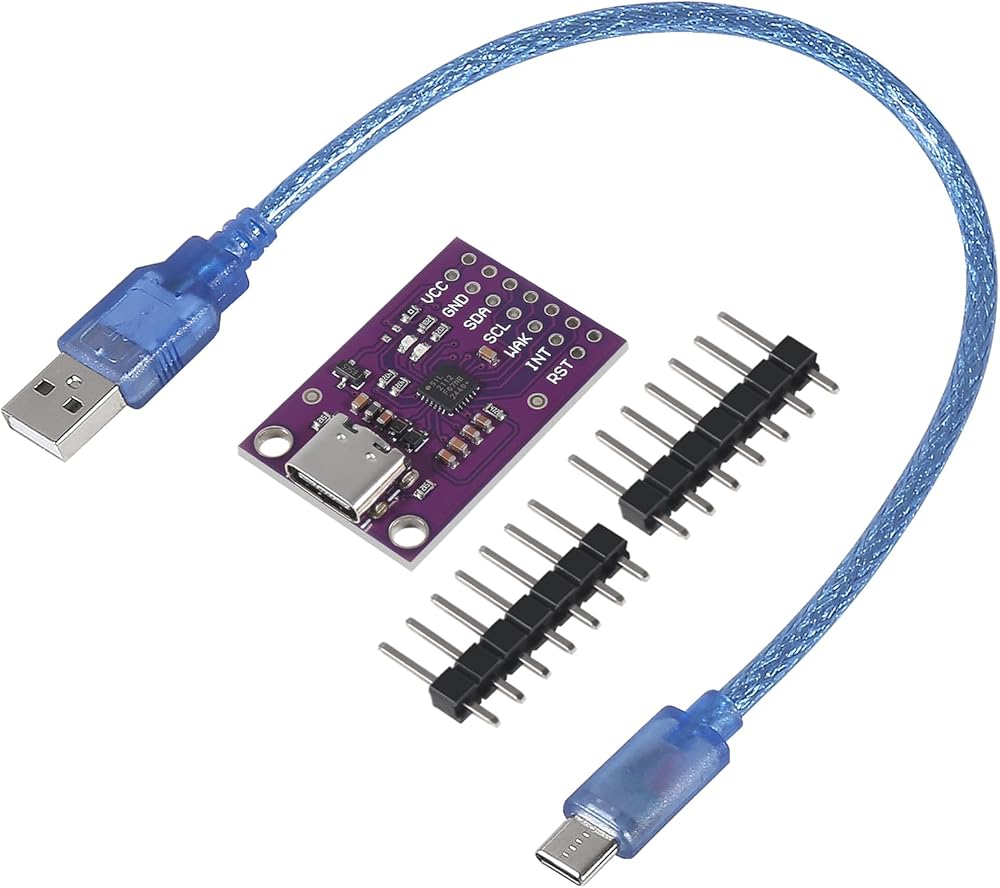

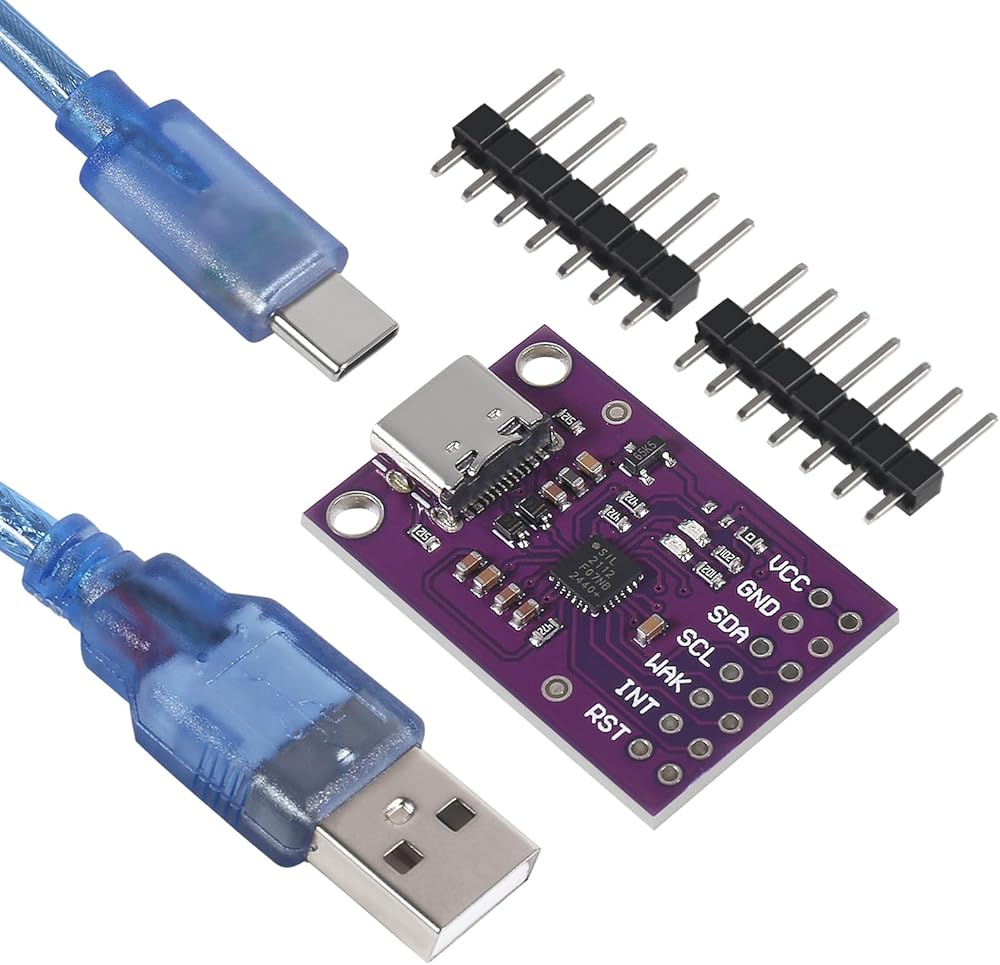

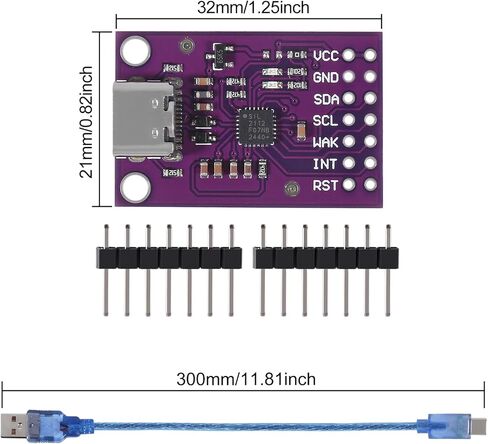

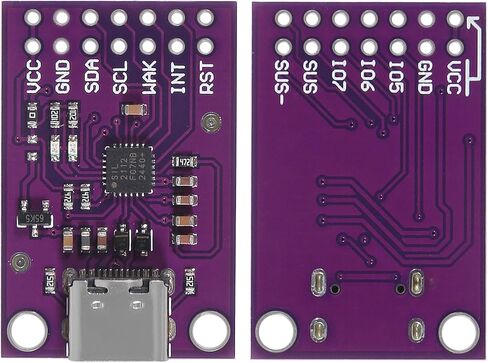

1PCS CP2112 Adapter Type-C MCU-2112 Debug Board USB to SMBus I2C Communication Module with USB C Cable with Dupont Cable

SAR 47
Brand
ALMOCN
Weight
19 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

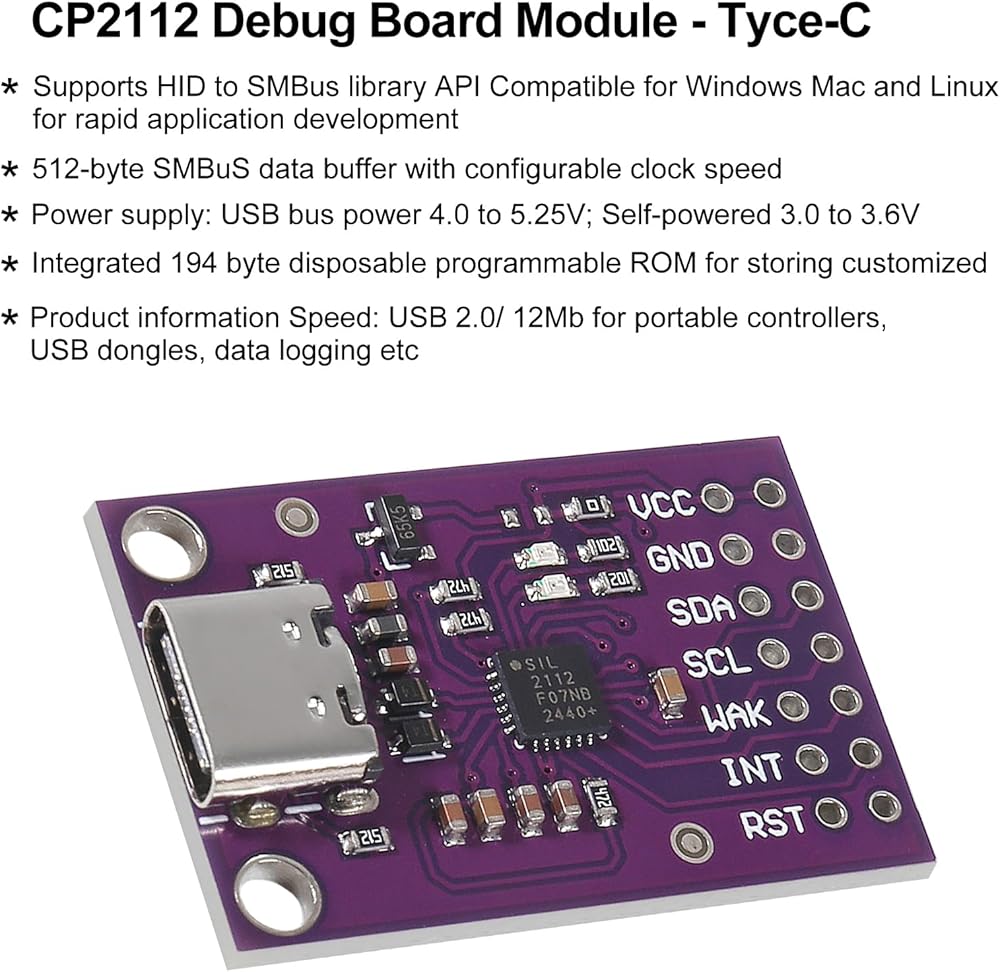

  • The CP2112's highly integrated USB-to-SMBus bridge controller integrates a USB 2.0 full-speed function controller, a USB transceiver oscillator and eight GPIO pins.
  • 8 GPIOs can be configured as input/output and open-drain/push-pull outputs, clock output can be configured for external devices from 48MHz to 94kHz, LED can be toggled during SMBus read/write
  • All customization and configuration options can be selected through a simple GUI-based configurator.
  • Standard HID-class devices do not require the development of complex firmware and drivers. The CP2112 device enables fast USB connection with less development effort.
  • CP2112 TPYC-C module is used in portable controllers, USB dongles, data recording, etc.

Description

Parameters:
USB bus power supply: 4.0 to 5.25V
Self-powered: 3.0 to 3.6V
Input/output voltage: 1.8V to VDD
Working ambient temperature: -40°C-85°C
On-chip power-on reset circuit, on-chip voltage regulator: 3.45V output
Comply with USB specification 2.0 standard; full speed (12Mbps)
USB suspend status via SUSPEND and/SUSPEND pins.
Integrated 194-byte single-use programmable ROM for storing customizable product information.
512-byte SMBus data buffer, configurable clock speed device address 7 bit value is the slave address of CP2112.

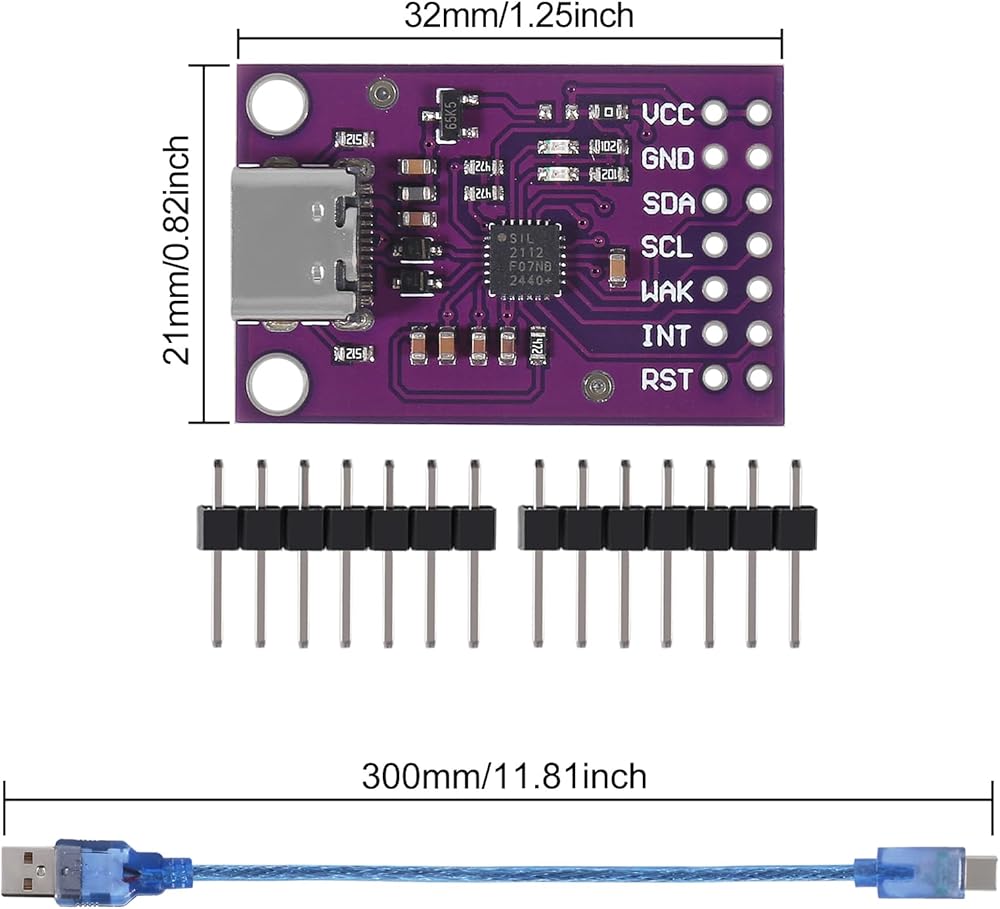

Packaging includes:
1 x CP2112 debug board
