2PCS USB 3.0 Male to Female Connector, Panel Mount USB3.0 A Extender Adapter 5GBps High-Speed Data Transfer Charging

SAR 89
Brand
ANMBEST
Weight
69 g
– 1 +

Special Features

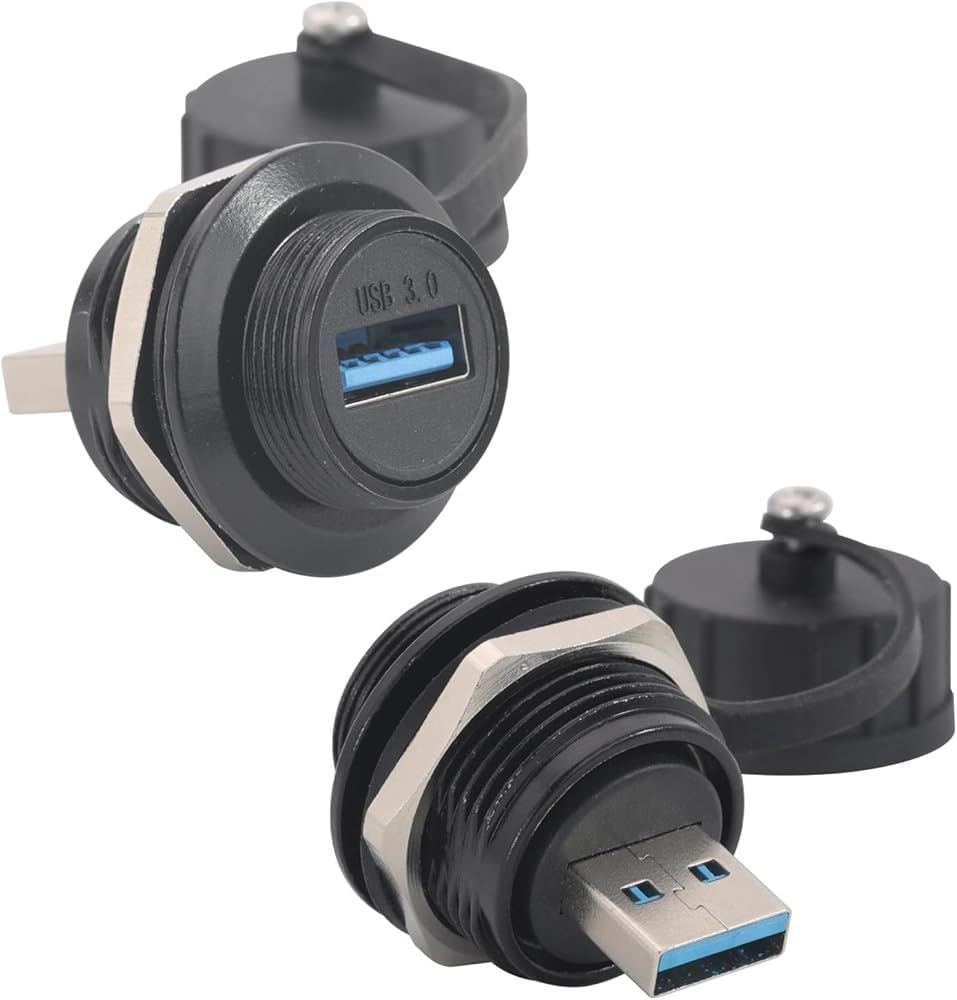

  • The USB3.0 panel mount connector is a device that allows for the extension of a USB cable through a panel or surface by providing a USB connector that can be mounted onto the panel or enclosure.Providing a secure, permanent, and clean-looking USB port extension for various applications, from industrial control boxes to custom PC builds.
  • DURABLE: This USB3.0 connector is made of Zinc diecast (ZnAl4Cu1), features a robust metal flange nut and high-strength housing for a rock-solid, permanent mount on panels,flame retardant, UV resistant, and anti-aging.

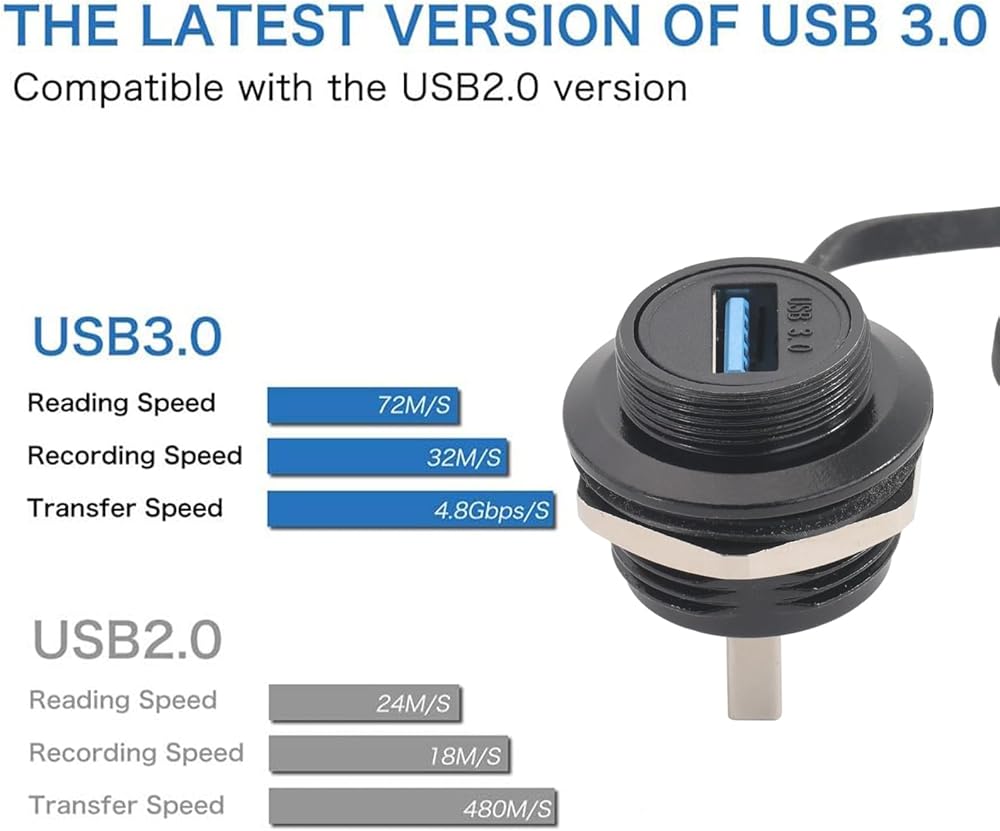

  • Independent USB3.0 socket design, It supports high-speed data transfer rates up to 5 Gbps and is backward compatible with USB 2.0 and 1.1 devices.Ensure quick file transfers, smooth peripheral operation, and stable charging for your connected devices.
  • Perfect for integrating a USB port into computers, servers, CNC machines, 3D printers, car dashboards, marine panels, kiosks, and DIY projects. Eliminates the hassle of reaching behind devices to plug in USB drives, cables, or dongles.

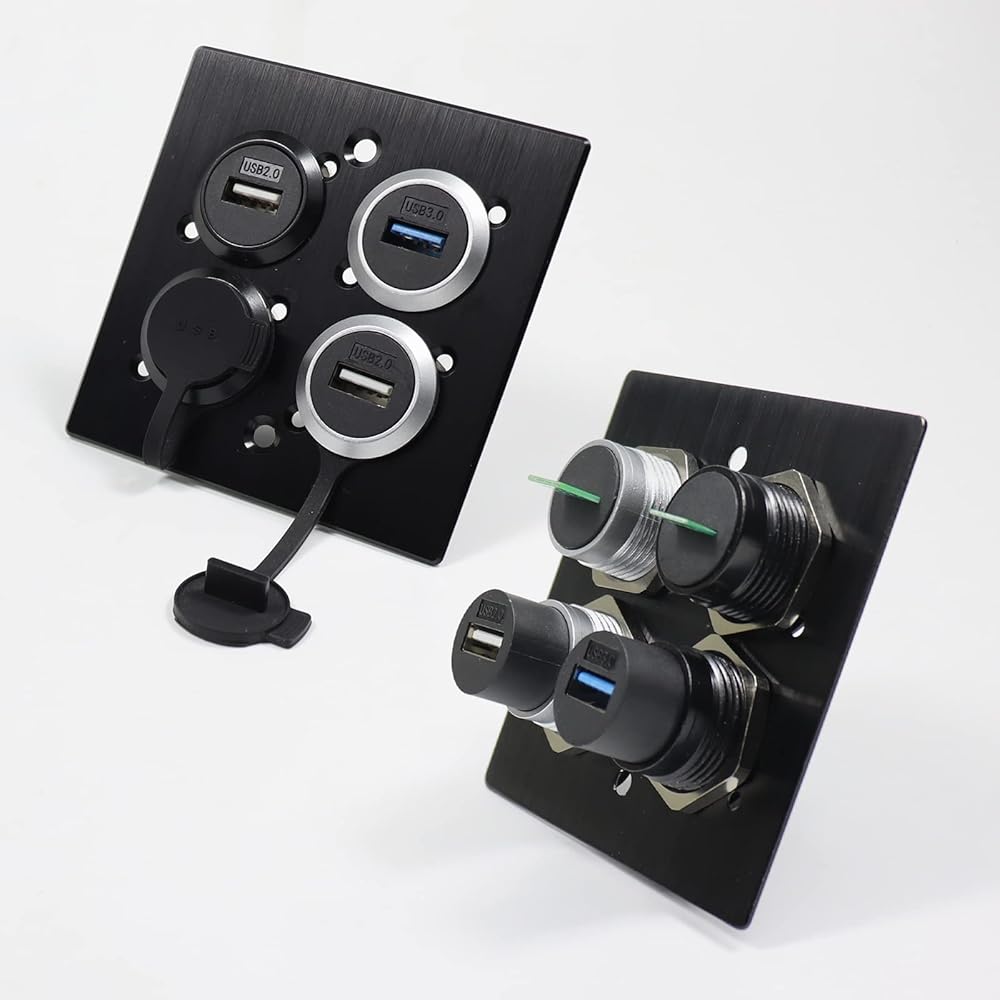

  • Standard O-Series Connector for Panel-Mount Installations, simply cut a φ24.5mm through hole on the board surface and fix the mounting with nut, USB female to female field installable coupler, no soldering, no installation tools, just plug the standard USB head directly for quick installation.

Description

The USB3.0 panel mount connector is a type of USB port that can be mounted onto a panel or enclosure, providing easy access for connecting USB devices. It supports high-speed data transfer rates up to 5 Gbps and is backward compatible with USB 2.0 and 1.1 devices.
Technical Specifications:
Waterproof rating: None (without waterproof cover), IP68 (with waterproof cover)

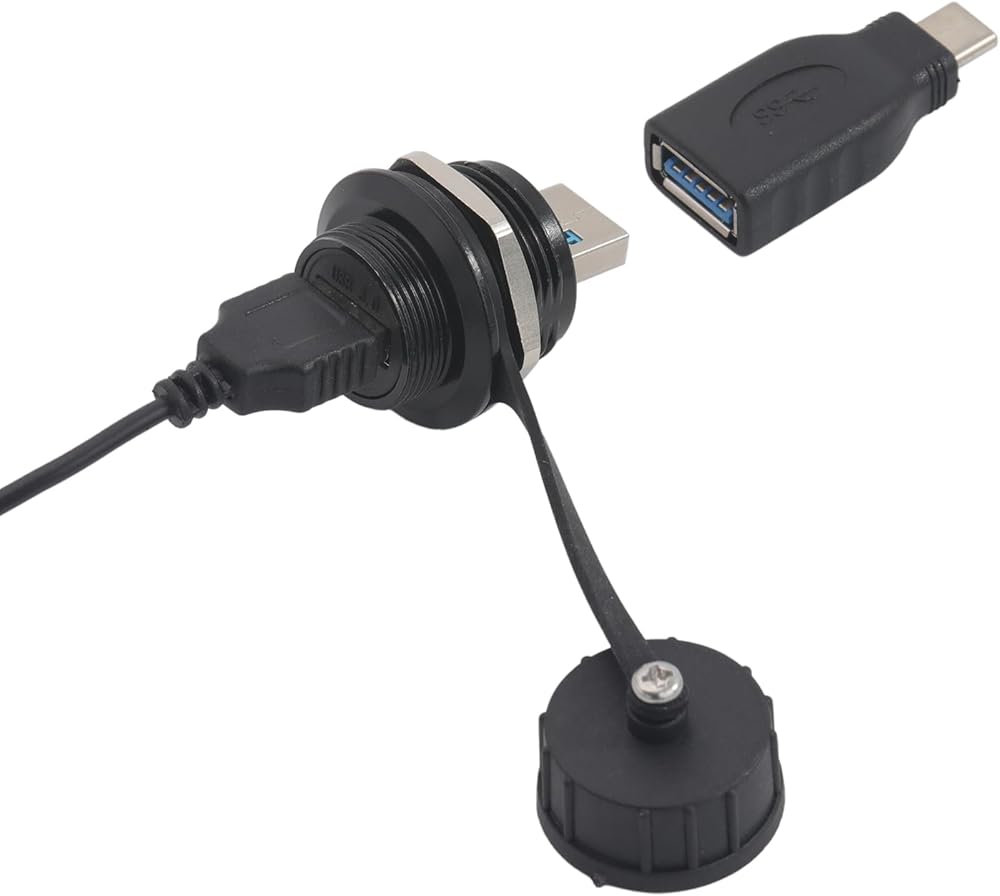

Connection type: USB3.0 Male to Female Extension Connector
Transmission speed: up to 5.0Gbps
Electrical parameters:
Rated current: 0.5A
Rated voltage: 50V
Insulation resistance: ＞500MΩ
Dielectric strength: DC1000V
Contact resistance: ＜10mΩ
Material:
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: black electrophoretic paint

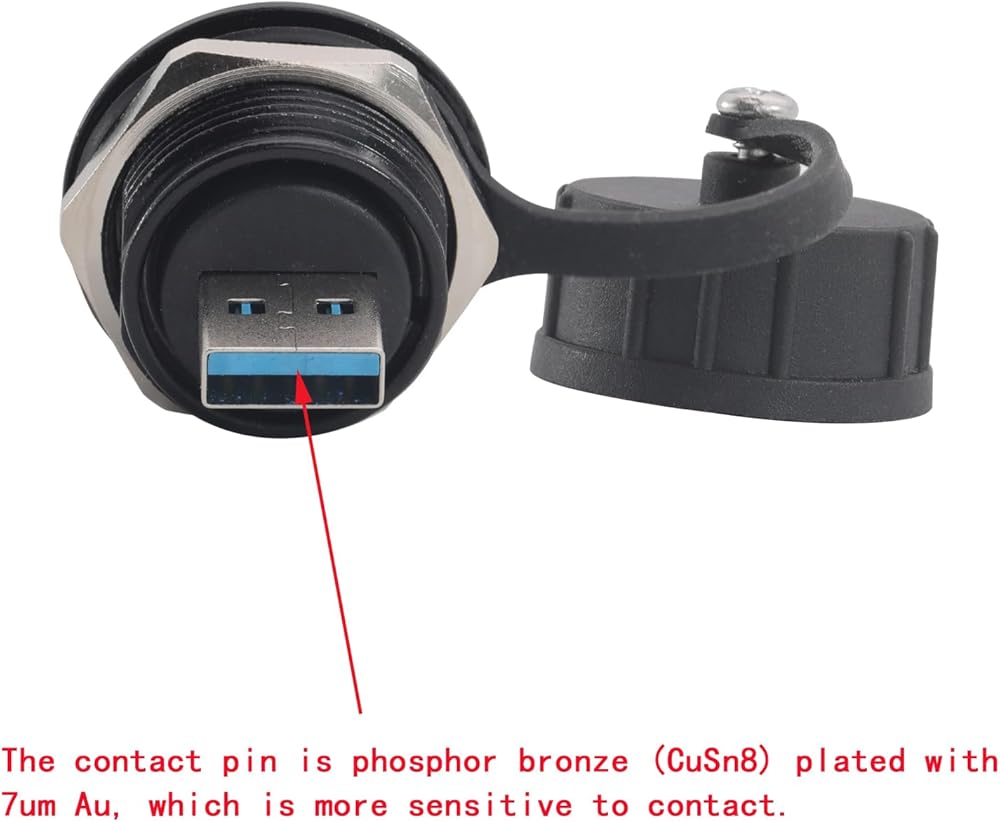

Contact material: Bronze (CuSn8)
Contact pin gold plating: 7µm Au over Ni plating
Insulator material: PBTP 15% GR
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40～120Celsius
Storage temperature: -25～85Celsius
Atmospheric pressure: 86～106kPa
Relative humidity: ≤90% RH
Mechanical parameters:
Insertion pressure: less than 10N
Withdrawal pressure: less than 10N
Service life: more than 1000 times
Installation panel thickness: min 2.0mm-max 10mm
Base shape: O type
NOTE: The shielded industrial panel mount bulkhead includes a water/dust cap, that with characters of fire safety, compression, anti-explosion and anti-deformation, meets IP68 Water Protection. It is not waterproof without water/dust cap.
Package includes:
2 x Panel Mounting USB3.0 Male to Female Extension Connector
