General information
Type CPU / Microprocessor
Market segment Desktop
Family A8-Series
Model number ? A8-5500
CPU part numbers AD5500OKA44HJ is an OEM/tray microprocessor
AD5500OKHJBOX is a boxed microprocessor with fan and heatsink
Frequency ? 3200 MHz
Turbo frequency 3700 MHz

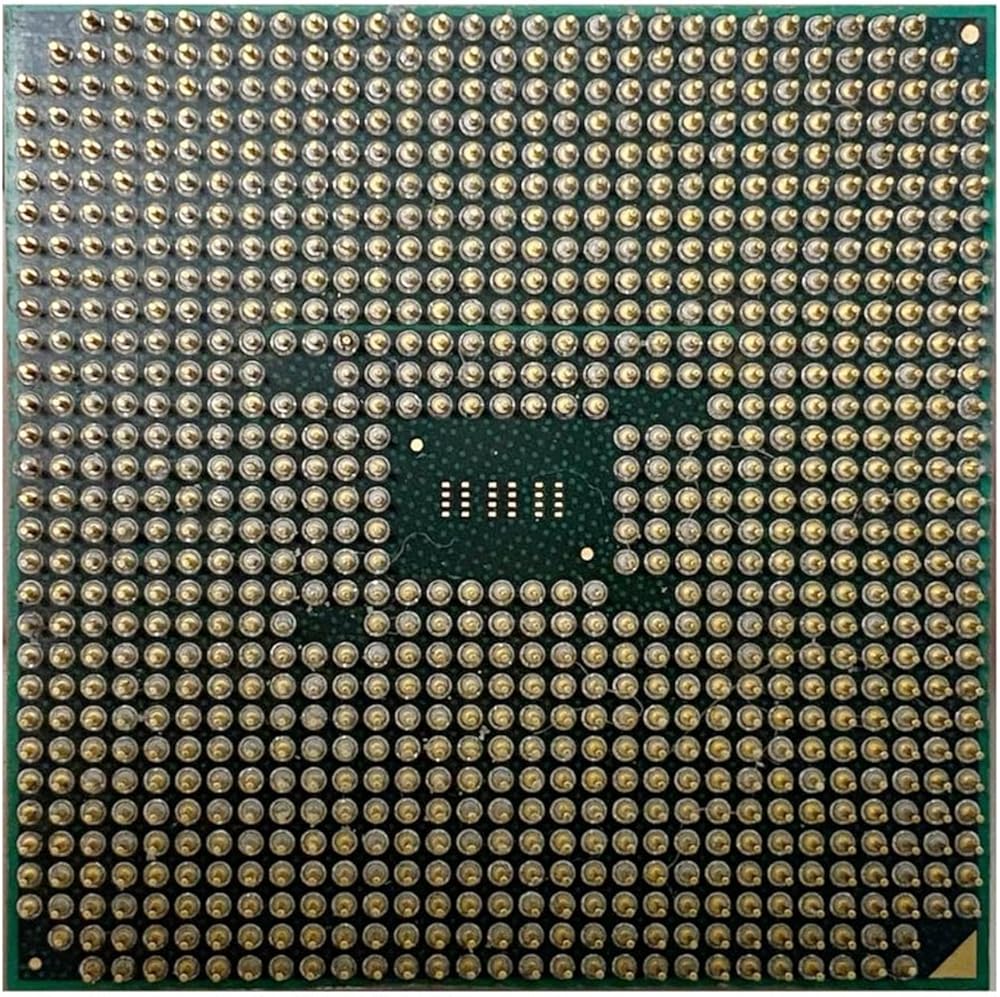

Package 904-pin organic lidded micro Pin Grid Array (UOF904)
Socket Socket FM2
Size 1.57" x 1.57" / 4cm x 4cm
Weight 1.4oz / 39g (CPU)
9.6oz / 273.2g (box)
Fan/heatsink Z7LH01R201
Architecture / Microarchitecture
Microarchitecture Piledriver
Platform Virgo
Processor c ? Trinity
c stepping ? TN-A1
CPUID 610F01
Manufacturing process 0.032 micron
1303 million transistors
Die size 246mm2
Data width 64 bit
The number of CPU cores 4
The number of threads 4
Floating Point Unit Integrated (shared between two cores in each module)
Level 1 cache size ? 2 x 64 KB 2-way set associative shared instruction caches
4 x 16 KB 4-way set associative data caches
Level 2 cache size ? 2 x 2 MB 16-way set associative shared exclusive caches
Level 3 cache size None
Cache latency 3 (L1 cache)
Multiprocessing Uniprocessor
Features MMX instructions
Extensions to MMX
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ?
SSE4a ?
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
BMI1 / Bit Manipulation instructions 1
F16C / 16-bit Floating-Point conversion instructions
FMA3 / 3-operand Fused Multiply-Add instructions
FMA4 / 4-operand Fused Multiply-Add instructions
TBM / Trailing Bit Manipulation instructions
XOP / eXtended Operations instructions
EVP / Enhanced a Protection ?
Turbo c 3.0 technology
Low power features c C1, C1E, C6 and CC6 states
Package S3, S4 and S5 states
PowerNow!
Integrated peripherals / components
Integrated graphics GPU Type: Radeon HD 7560D
Shader cores: 256
Base frequency (MHz): 760
Memory controller The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-1866
Maximum memory bandwidth (GB/s): 29.9
Other peripherals PCI Express 2.0
Unified Video Decoder 3.2 ?
Electrical / Thermal parameters
V c ? 0.825V - 1.475V
Maximum operating temperature ? 71.3°C
Thermal Design Power ? 65 Watt
