General information
Type CPU / Microprocessor
Market segment Desktop
Family A 64 X2
Model number ? 5200+
CPU part numbers ADO5200IAA5DO is an OEM/tray microprocessor
ADO5200DOBOX is a boxed microprocessor with fan and heatsink
Stepping codes CAAEG CAAFG CAAIG CAAWG NAA9G NAAEG NAAFG NAAHG NAAIG NAAWG
Frequency ? 5200+ (rated)
2700 MHz (real)
Bus speed ? One 1000 MHz 16-bit HyperTransport link (2 GT/s)
Clock multiplier ? 13.5

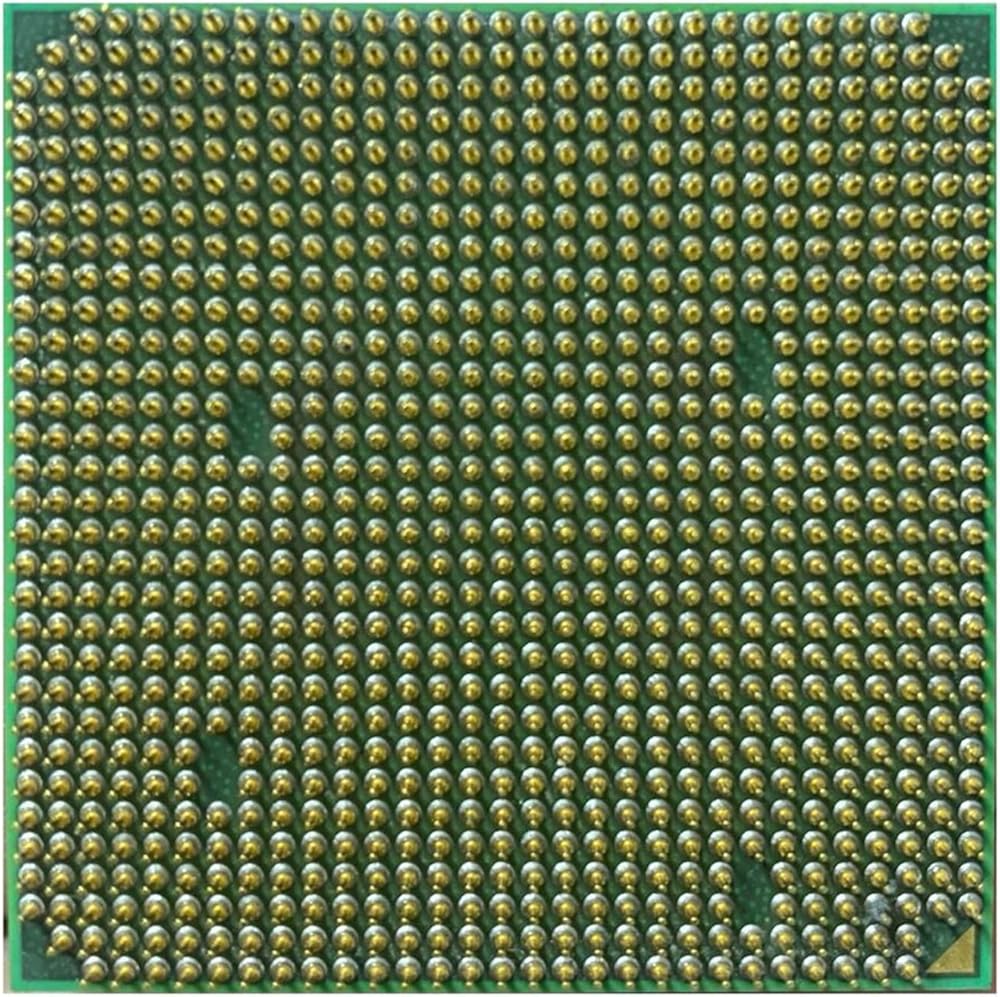

Package 940-pin organic microPGA
Socket Socket AM2
End-of-Life date Last order date is end of 4th quarter 2008
Architecture / Microarchitecture
Microarchitecture K8
Platform Cartwheel
Processor c ? Brisbane
c stepping ? G2
Manufacturing process 0.065 micron silicon-on-insulator (SOI) technology
221 million transistors
Data width 64 bit
The number of CPU cores 2
The number of threads 2
Floating Point Unit Integrated
Level 1 cache size ? 2 x 64 KB 2-way set associative instruction caches
2 x 64 KB 2-way set associative data caches
Level 2 cache size ? 2 x 512 KB exclusive 16-way set associative caches
Physical memory 1 TB
Virtual memory 256 TB
Multiprocessing Uniprocessor
Extensions and Technologies MMX instructions
Extensions to MMX
3DNow! technology
Extensions to 3DNow!
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
Low power features Cool'n'Quiet technology
Halt state
Stop Grant state ?
Integrated peripherals / components
Integrated graphics None
Memory controller The number of controllers: 1
Memory channels: 2
Supported memory: DDR2-800
Maximum memory bandwidth (GB/s): 12.8
Other peripherals HyperTransport 2.0 technology
Electrical / Thermal parameters
V c ? 1.325V / 1.35V / 1.375V
Maximum operating temperature ? 55°C - 68°C
Thermal Design Power ? 65 Watt
