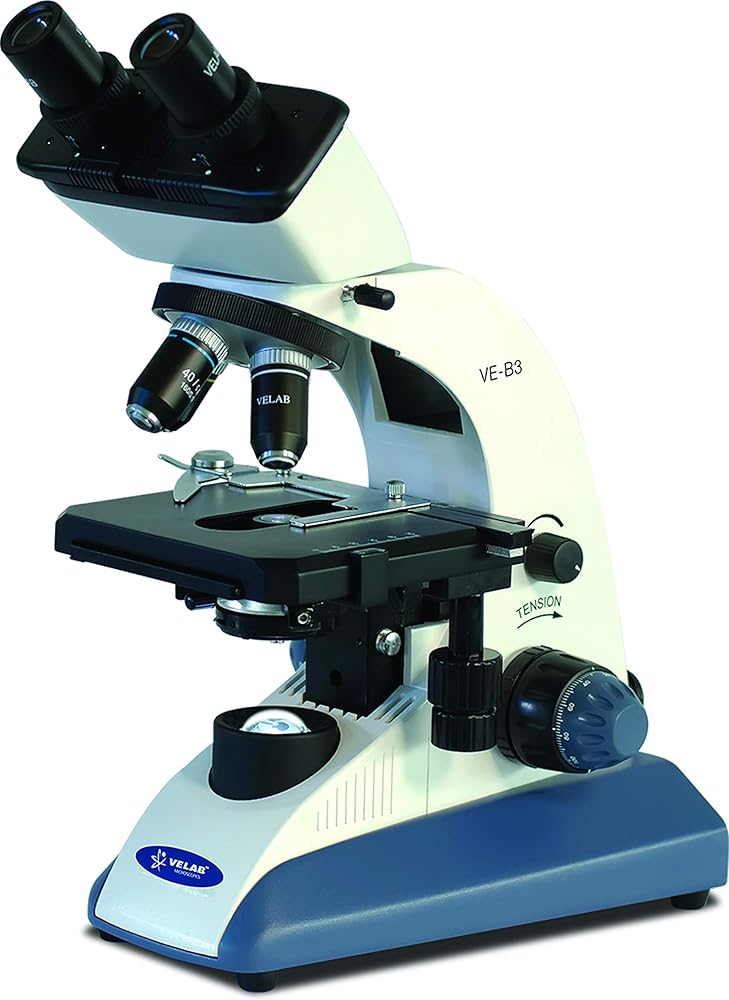

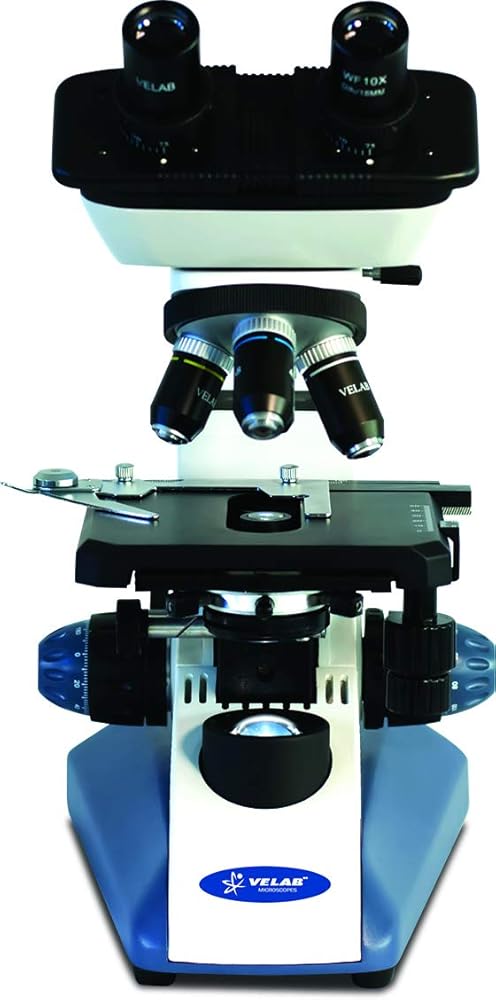

Equipped with diopter adjustment in both eyepieces and Sliding binocular head, the VE-B3 can satisfy all kind of basic techniques. It complies with the necessary characteristics for routine work in clinical laboratories. "

SPECIFIACTIONS

EYEPIECES:WF 10X/18 mm with diopter adjustment on both eyepieces. HEAD:Sliding binocular head, 45° inclined and 360° rotatable, with interpupillary distance adjustment between 50 - 75 mm / 1.96” - 2.95”.
NOSEPIECE:Quadruple nosepiece with anti-slip grip and click-stops.
OBJECTIVES:4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, anti-slip grip and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE:Two-Layer stage with X-Y coaxial movement, 5.51” x 5.19”, vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER:Abbe, N.A. 1.25 with height adjustment.
DIAPHRAGM:Iris with filter holder.
FOCUSING:Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION:LED with intensity control.
WEIGHT:16.88 lb / 7.65 kg.
DIMENSIONS:10.04” x 12.99” x 16.34” / 255 x 329 x 415 mm
POWER SUPPLY:Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.

ACCESSORIES INCLUDED
AC/DC adapter.
Adapter cable reel device.
Blue filter.
Dust cover.
Immersion oil..

WARRANTY
10-years limited warranty."
