General information
Type
CPU / Microprocessor
Market segment
Mobile
Family
c i5 Mobile
CPU part number

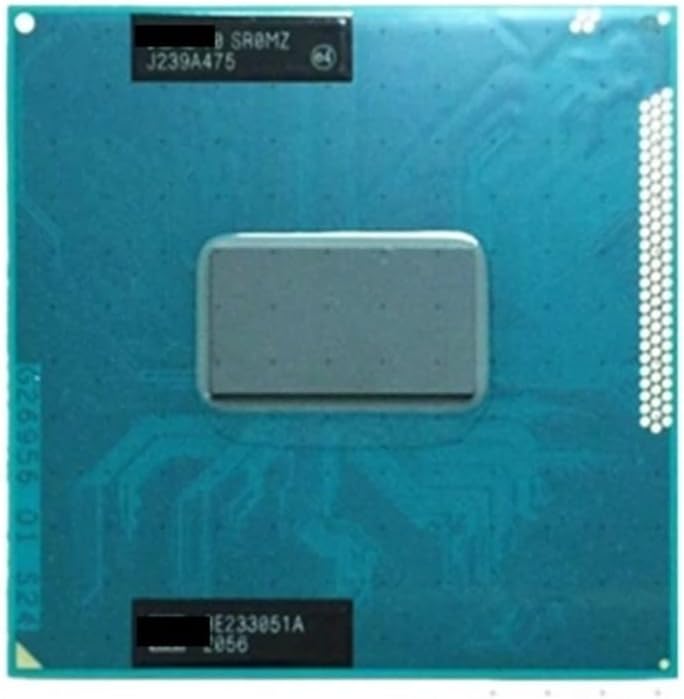

AW8063801032301is an OEM/tray microprocessor
Frequency?
2500 MHz
Maximum turbo frequency
3100 MHz (1 c)
2900 MHz (2 cores)
Clock multiplier?
25
Package
988-pin micro-PGA (rPGA988B)
S-spec numbers
Part number
ES/QS processors
Architecture / Microarchitecture
Microarchitecture
Ivy Bridge
Processor c?
Ivy Bridge
c steppings?
L0 (QC4S)
L1 (QC97, SR0MZ)
CPUID
306A9 (SR0MZ)
Manufacturing process
0.022 micron
Data width
64 bit
The number of CPU cores
2
The number of threads
4
Floating Point Unit
Integrated
Level 1 cache size?
2 x 32 KB 8-way set associative instruction caches
2 x 32 KB 8-way set associative data caches
Level 2 cache size?
2 x 256 KB 8-way set associative caches
Level 3 cache size
3 MB 12-way set associative shared cache
Physical memory
32 GB
Multiprocessing
Not supported
Extensions and Technologies
MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4?
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
F16C / 16-bit Floating-Point conversion instructions
EM64T / Extended Memory 64 technology / I 64?
NX / XD / Execute disable bit?
HT / Hyper-Threading technology?
TBT 2.0 / Turbo Boost technology 2.0?
VT-x / Virtualization technology?
Low power features
Enhanced / technology?
Integrated peripherals / components
Integrated graphics
GPU Type: HD 4000
Graphics tier: GT2
Microarchitecture: Gen 7
Execution units: 16
Base frequency (MHz): 650
Maximum frequency (MHz): 1100
The number of supported displays: 3
Memory controller
The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-1333, DDR3-1600, DDR3L-1333, DDR3L-1600, DDR3L-RS 1333, DDR3L-RS 1600
Maximum memory bandwidth (GB/s): 25.6
Other peripherals
Direct Media Interface 2.0
PCI Express 3.0 interface
Electrical / Thermal parameters
Maximum operating temperature?
105°C
Thermal Design Power?
35 Watt
