General information
Type
CPU / Microprocessor
Market segment
Server
Family
E3-1200 v2
CPU part numbers
CM8063701098602 is an OEM/tray microprocessor

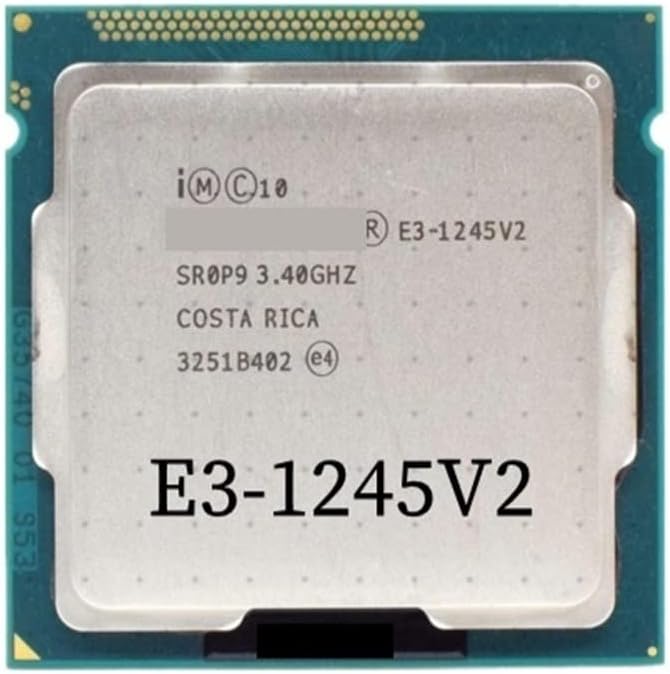

BX80637E31245V2 is a boxed microprocessor
Frequency ?
3400 MHz
Maximum turbo frequency
3800 MHz (1 or 2 cores)
3700 MHz (3 cores)
3600 MHz (4 cores)
Clock multiplier ?
34
Package
1155-land Flip-Chip Land Grid Array (FCLGA 1155)
S-spec numbers
Part number
ES/QS processors
Architecture / Microarchitecture
Microarchitecture
Ivy Bridge
Platform
Carlow
Processor c ?
Ivy Bridge-H2
c steppings ?
E0 (QBZJ)
E1 (SR0P9)
CPUID
306A9 (SR0P9)
Manufacturing process
0.022 micron High-K metal gate process
Data width
64 bit
The number of CPU cores
4
The number of threads
8
Floating Point Unit
Integrated
Level 1 cache size ?
4 x 32 KB 8-way set associative instruction caches
4 x 32 KB 8-way set associative data caches
Level 2 cache size ?
4 x 256 KB 8-way set associative caches
Level 3 cache size
8 MB 16-way set associative shared cache
Physical memory
32 GB
Multiprocessing
Uniprocessor
Features
MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ?
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
F16C / 16-bit Floating-Point conversion instructions
EM64T / Extended Memory 64 technology / I 64 ?
NX / XD / Execute disable bit ?
VT-x / Virtualization technology ?
VT-d / Virtualization for directed I/O
TBT 2.0 / Turbo Boost technology 2.0 ?
TXT / Trusted Execution technology
HT / Hyper-Threading technology ?
Low power features
Enhanced / technology ?
Integrated peripherals / components
Integrated graphics
GPU Type: HD P4000
Microarchitecture: Gen 7
Base frequency (MHz): 650
Maximum frequency (MHz): 1250
The number of supported displays: 3
Memory controller
The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-1333, DDR3-1600
Maximum memory bandwidth (GB/s): 25.6
ECC supported: Yes
Other peripherals
Direct Media Interface 2.0
PCI Express 3.0 interface
Electrical / Thermal parameters
Thermal Design Power ?
77 Watt
