Type
CPU / Microprocessor
Market segment
Desktop
Family
A10-Series
CPU part numbers

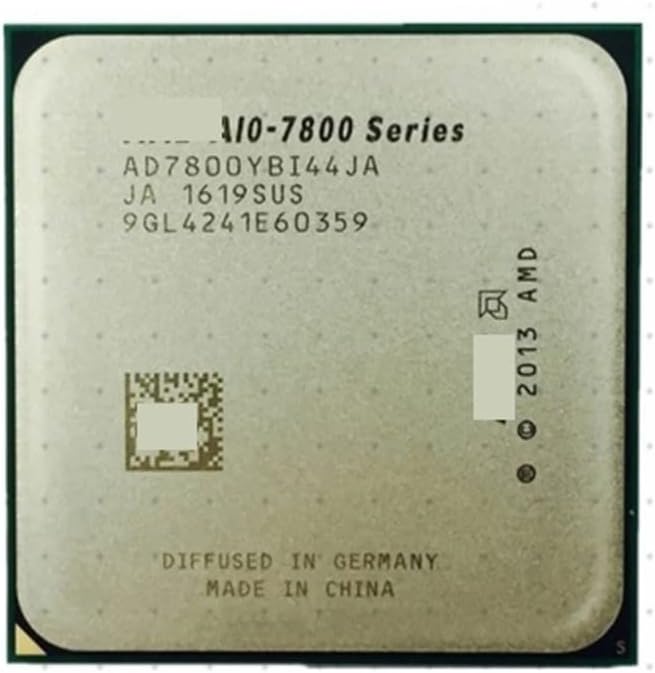

AD7800YBI44JA is an OEM/tray microprocessor
AD7800YBJABOX is a boxed microprocessor with fan and heatsink
Frequency ?
3500 MHz
Turbo frequency
3900 MHz
Boosted P states [1]
#1: 3900 MHz, 1.3V
#2: 3800 MHz, 1.275V
#3: 3600 MHz, 1.175V
Package
906-pin lidded micro-PGA package
Architecture / Microarchitecture
Microarchitecture
Steamroller
Processor c ?
Kaveri
c stepping ?
KV-A1
CPUID
630F01
Manufacturing process
0.028 micron SHP
2.41 billion transistors
Die size
245mm2
Data width
64 bit
The number of CPU cores
4
The number of threads
4
Floating Point Unit
Integrated
Level 1 cache size ?
2 x 96 KB 3-way set associative shared instruction caches
4 x 16 KB 4-way set associative data caches
Level 2 cache size ?
2 x 2 MB 16-way set associative shared caches
Level 3 cache size
None
Multiprocessing
Uniprocessor
Features
MMX instructions
Extensions to MMX
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ?
SSE4a ?
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
BMI1 / Bit Manipulation instructions 1
F16C / 16-bit Floating-Point conversion instructions
FMA3 / 3-operand Fused Multiply-Add instructions
FMA4 / 4-operand Fused Multiply-Add instructions
TBM / Trailing Bit Manipulation instructions
XOP / eXtended Operations instructions
AMD64 / A 64-bit technology ?
AMD-V / A Virtualization technology
EVP / Enhanced a Protection ?
Turbo c 3.0 technology
Low power features
PowerNow!
C1, CC6 and PC6 states
Package S3, S5 and S5 states
Low power P states [1]
#1: 3000 MHz, 0.8V
#2: 2500 MHz, 0.6V
#3: 1900 MHz, 0.425V
#4: 1400 MHz, 0.35V
Integrated peripherals / components
Integrated graphics
GPU Type: Radeon R7 series
Shader cores: 512
Base frequency (MHz): 720
The number of supported displays: 4
Memory controller
The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-2133
DIMMs per channel: 2
Maximum memory bandwidth (GB/s): 34.1
Other peripherals
PCI Express 3.0
Unified Video Decoder 4.0 ?
Video Coding Engine 2.0 ?
TrueAudio accelerator
Electrical / Thermal parameters
Maximum operating temperature ?
71.3°C
Thermal Design Power ?
65 Watt
