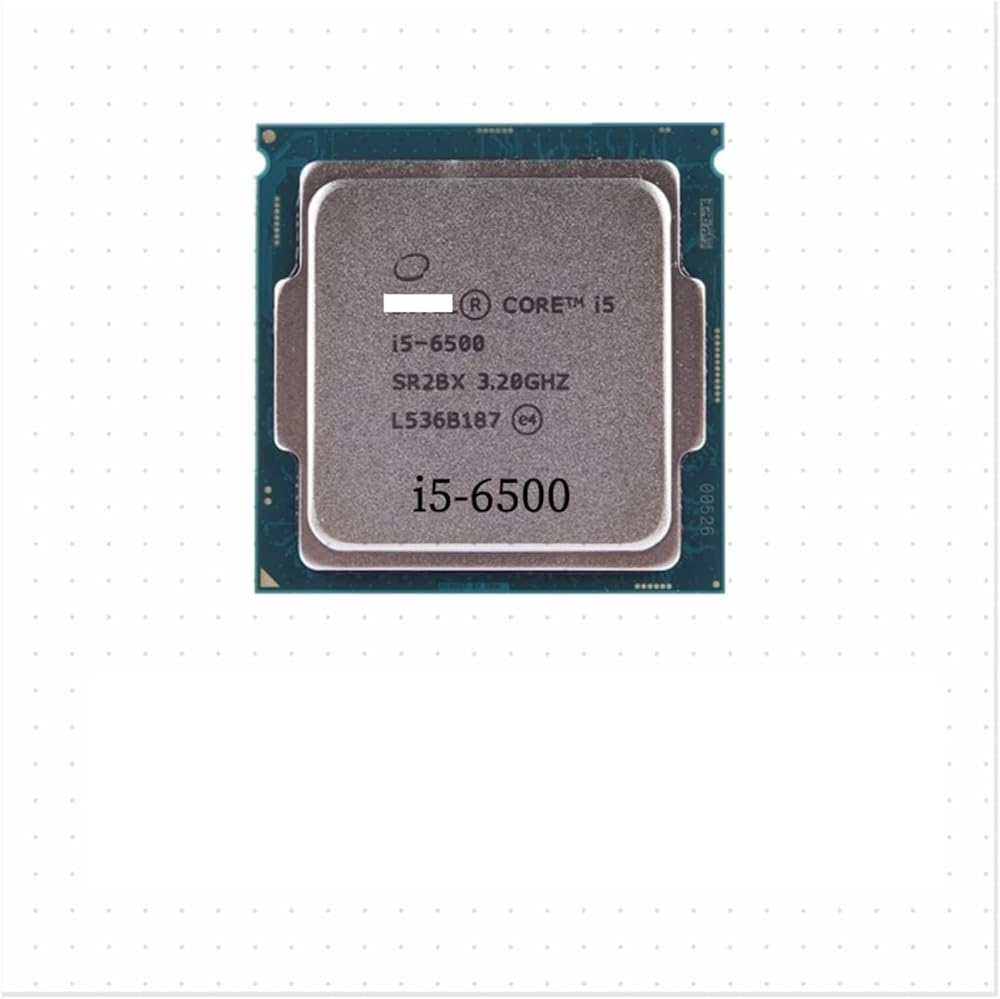

c i5-6500 specifications
General information
Type
CPU / Microprocessor
Market segment
Desktop
Family
Model number ?
i5-6500
CPU part numbers
CM8066201920404 is an OEM/tray microprocessor
BX80662I56500 is a boxed processor with fan and heatsink (English version)
BXC80662I56500 is a boxed processor with fan and heatsink (Chinese version)
Frequency ?
3200 MHz
Maximum turbo frequency
3600 MHz (1 c)
3500 MHz (2 cores)
3400 MHz (3 cores)
3300 MHz (4 cores)
Bus speed ?
8 GT/s
Clock multiplier ?
32
Package
1151-land Flip-Chip Land Grid Array
S-spec numbers
Part number
ES/QS processors
Production processors
QJEF
SR2BX
SR2L6
BX80662I56500
+
+
BXC80662I56500
+
+
CM8066201920404
+
+
Unknown
+
Architecture / Microarchitecture
Microarchitecture
Skylake
Processor c ?
Skylake-S
c stepping ?
R0 (SR2BX, SR2L6)
CPUID
506E3 (SR2BX, SR2L6)
Manufacturing process
0.014 micron
Data width
64 bit
The number of CPU cores
4
The number of threads
4
Floating Point Unit
Integrated
Level 1 cache size ?
4 x 32 KB 8-way set associative instruction caches
4 x 32 KB 8-way set associative data caches
Level 2 cache size ?
4 x 256 KB 4-way set associative caches
Level 3 cache size
6 MB 12-way set associative shared cache
Physical memory
64 GB
Multiprocessing
Uniprocessor
Extensions and Technologies
MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ?
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
AVX2 / Advanced Vector Extensions 2.0
BMI / BMI1 + BMI2 / Bit Manipulation instructions
F16C / 16-bit Floating-Point conversion instructions
FMA3 / 3-operand Fused Multiply-Add instructions
EM64T / Extended Memory 64 technology / I 64 ?
NX / XD / Execute disable bit ?
VT-x / Virtualization technology ?
VT-d / Virtualization for directed I/O
TBT 2.0 / Turbo Boost technology 2.0 ?
TXT / Trusted Execution technology
TSX / Transactional Synchronization Extensions
MPX / Memory Protection Extensions
SGX / Software Guard Extensions
SMAP / Supervisor Mode Access Prevention
SMEP / Secure Mode Execution Protection
Low power features
Enhanced / technology ?
Integrated peripherals / components
Display controller
3 displays
Integrated graphics
GPU Type: HD 530
Graphics tier: GT2
Microarchitecture: Gen 9
Execution units: 24
Base frequency (MHz): 350
Maximum frequency (MHz): 1050
Memory controller
The number of controllers: 1
Memory channels: 2
Supported memory: DDR3L-1333, DDR3L-1600, DDR4-1866, DDR4-2133
DIMMs per channel: 2
Maximum memory bandwidth (GB/s): 34.1
Other peripherals
Direct Media Interface 3.0
Electrical / Thermal parameters
Thermal Design Power ?
65 Watt
