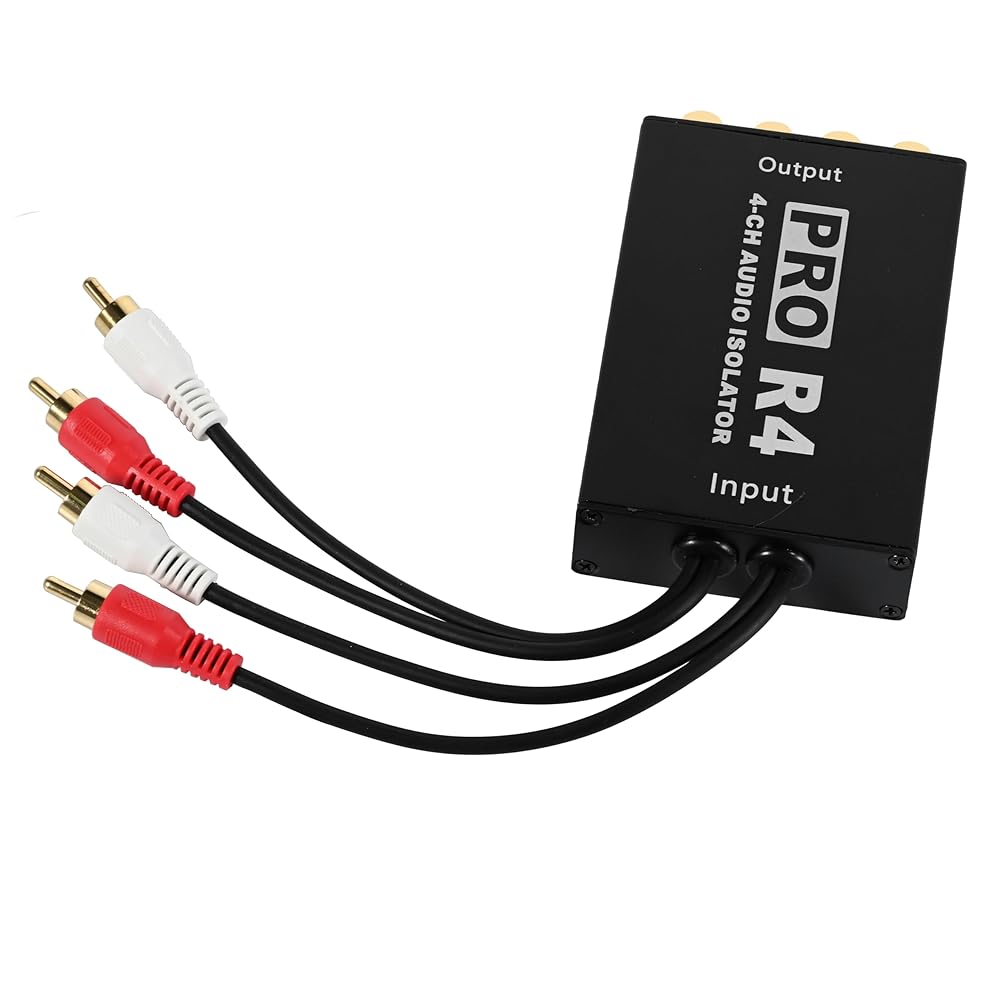

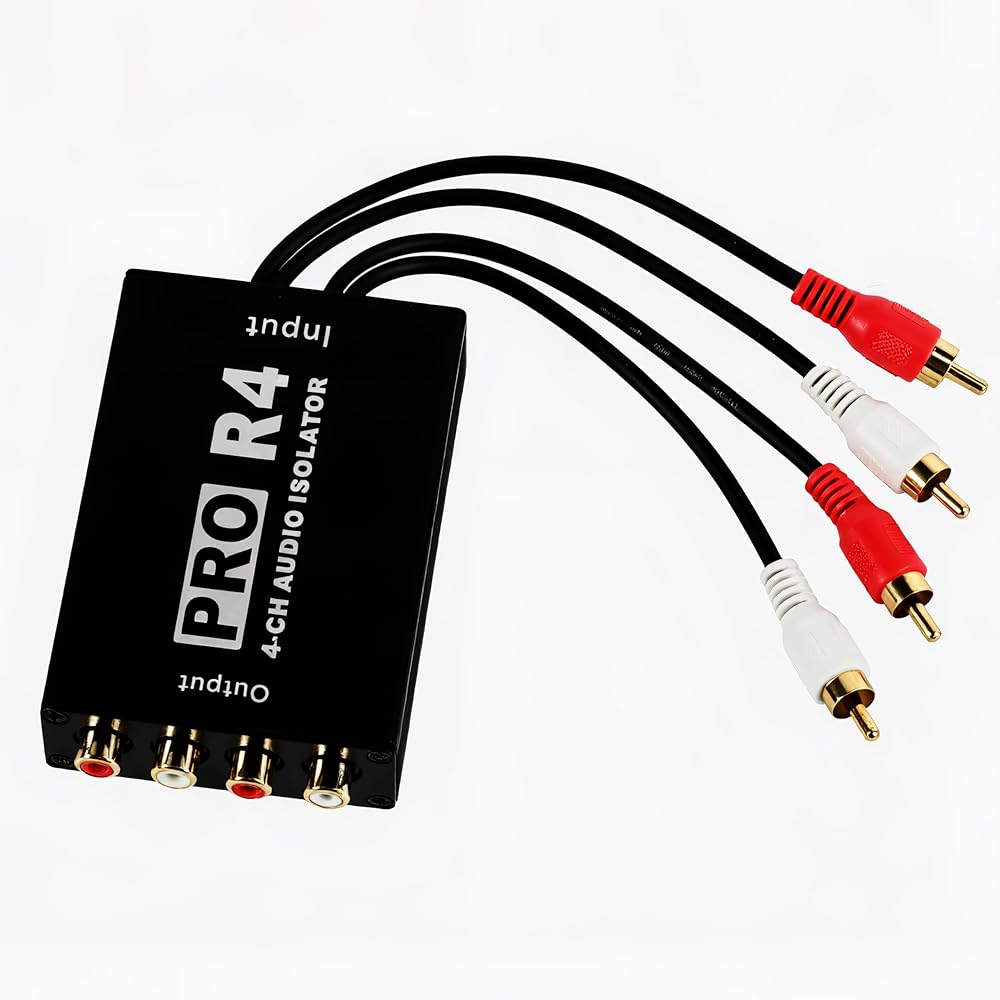

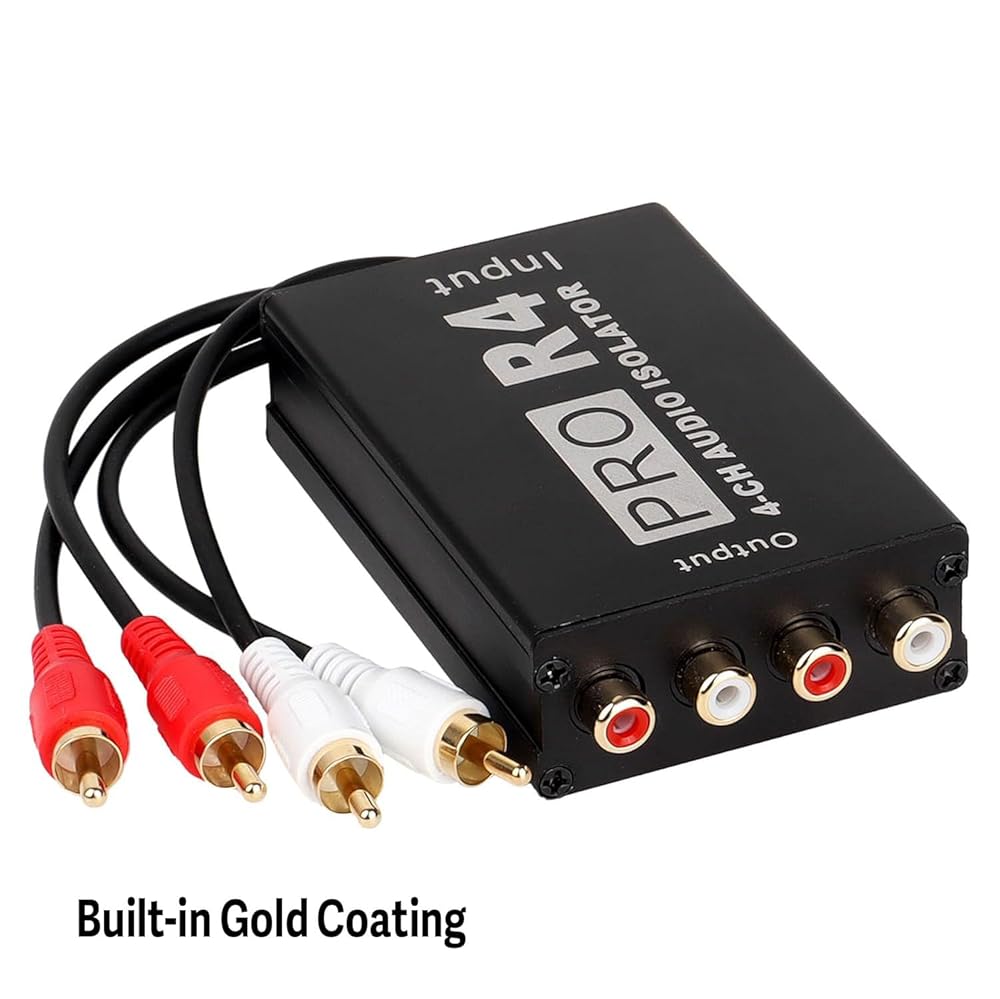

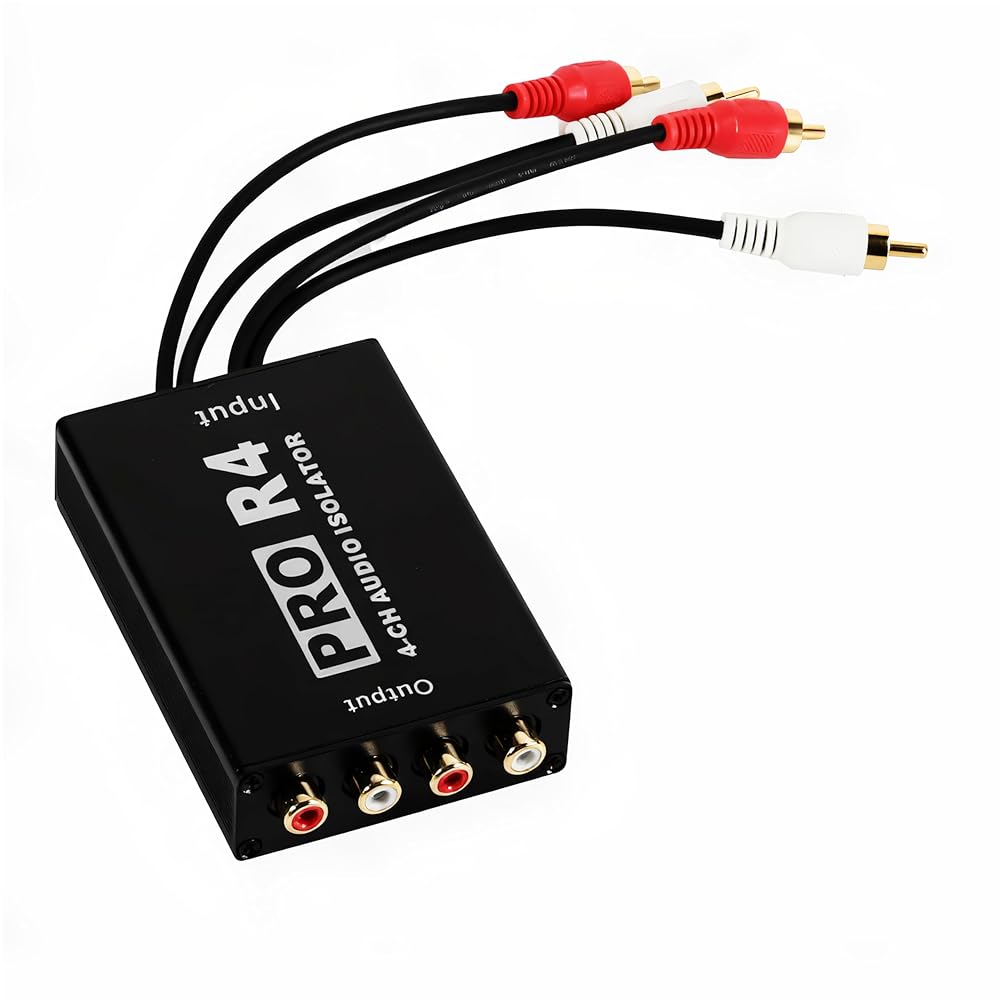

4-channel Audio Isolator/RCA Noise Filter/Hum Eliminator

Applications
Ensure safe transmission between systems and protect equipment from being burned out by ground voltage differences.

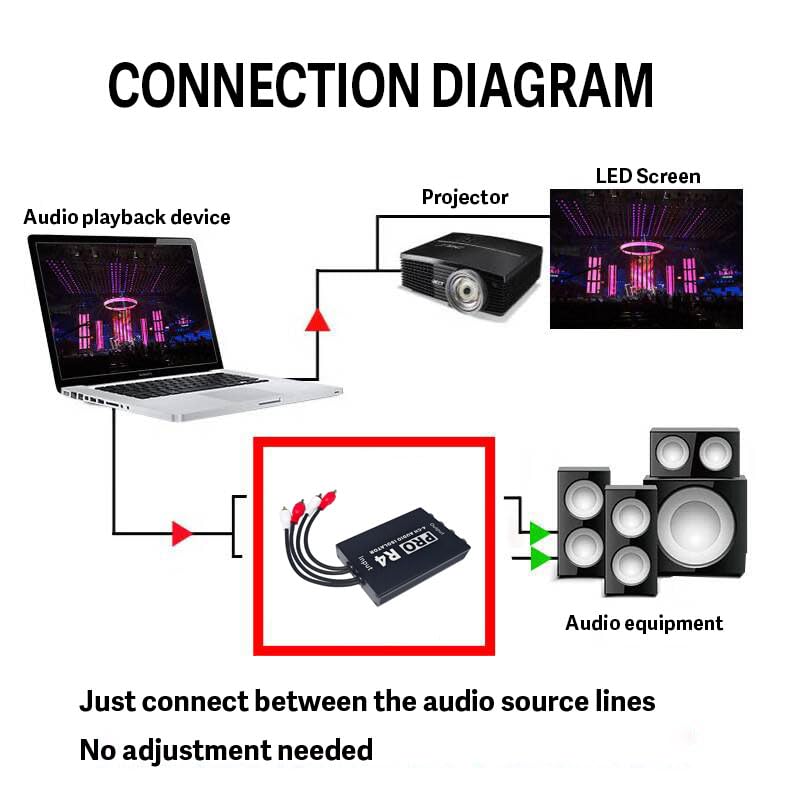

Eliminate the current noise interference generated when connecting a car audio system/server projection/LED to a mixer.
Improve the sound quality by removing glitches and digital artifacts, and purify the sound.
Eliminate the current noise caused by impedance mismatch between devices.
Eliminate the current noise between simultaneous interpretation equipment and the mixer.

Product Specifications
Product Type: Multiple channel configurations are available, supporting 4-channel input isolation and 4-channel output.
Input Output Isolation: It has an isolation withstand voltage of over 300Vp-p.
Multi channel Isolation Noise Suppressor Characteristics
Insertion loss of the device is less than 0.5dB
Return loss is greater than 18dB.
Input level range is from 0.5Vp-p to 3Vp-p.
It provides analog ground loop isolation and noise suppression.
Frequency Response: 20Hz - 20kHz, with an error within ±0.2dB (referenced to 1kHz).
Common mode Rejection: Greater than 68dB@1kHz.
Stereo Channel Isolation: 62dB.
Input Impedance: 600Ω.

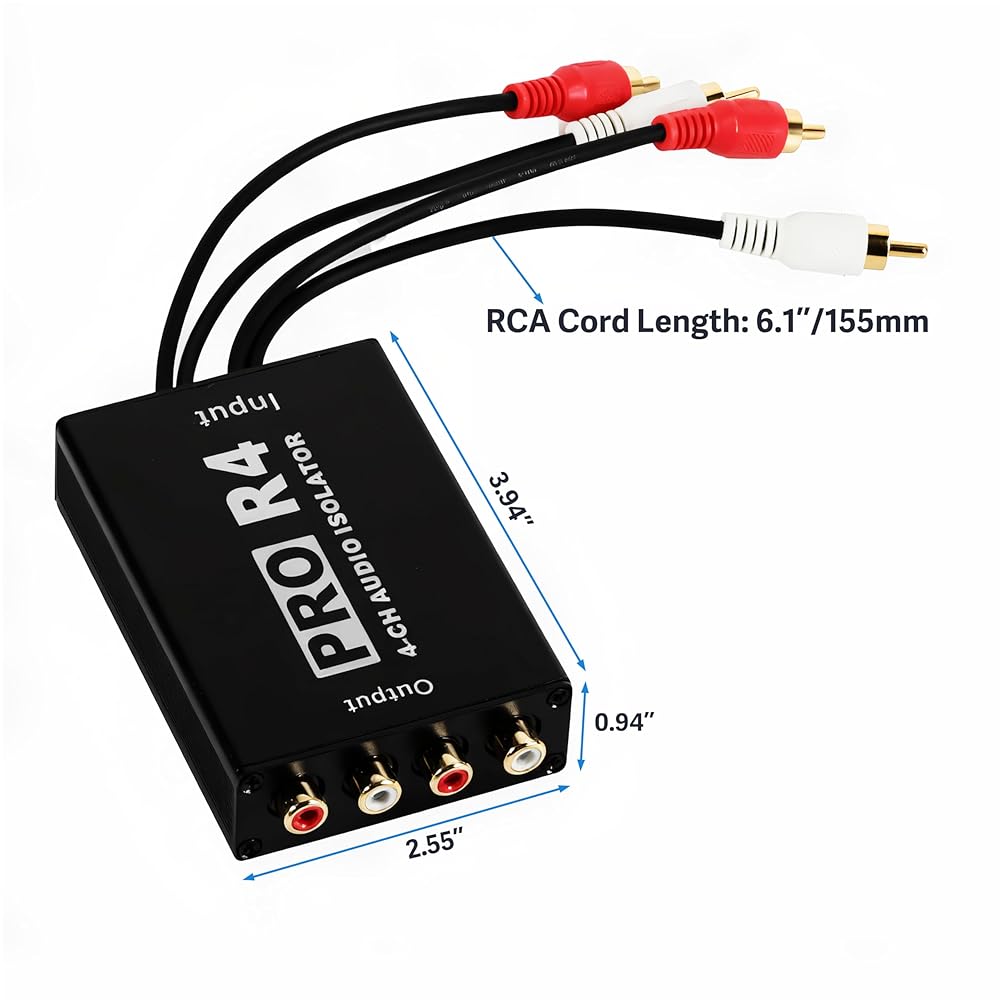

Input Interface: 4 channel RCA with cable interface (cable length: 14cm).
Output Impedance: 600Ω.
Output Interface: 4 channel RCA female interface.
Rated Loss: Less than 0.5dB (referenced to 1kHz, 1Vrms).
Insulation Resistance: 100MΩ at DC1000V.
Isolation Voltage: AC 50Hz-60Hz, 0V-1500V.
Maximum Input Level: +6dBu.

Product Features
Low background noise, free of 50Hz AC noise and high frequency interference, with high quality sound.
Point to point unbalanced audio transmission, allowing input and output selection from the front or rear panel.
Strong anti common mode interference ability, with a CMRR greater than 60dB.
Plug and play, no need for operating system or software installation and debugging.
No TCP/IP settings required.
No power supply or driver needed.
Isolated and filtered audio transmission, with a maximum distance of 450-600 meters.
User friendly design, with low requirements for the installation environment.
Built-in transient, surge suppression, and anti-static protection circuits.
Can work around the clock with stable and reliable performance.
