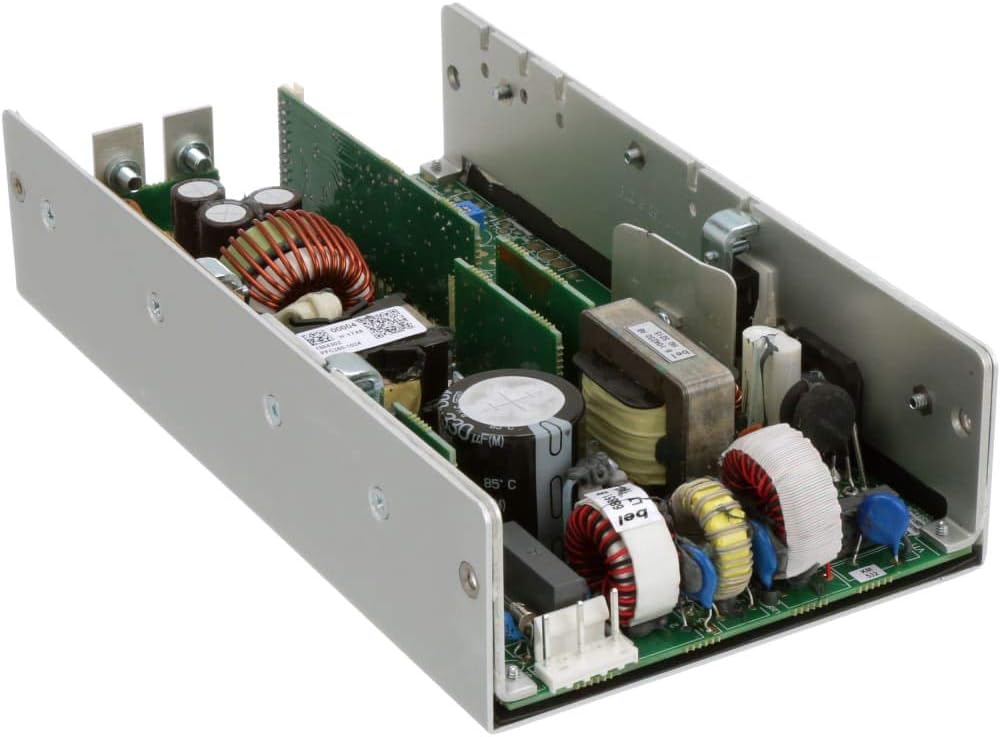

The PerFormanCe Power PFC250 Series combines Power FactorCorrection with wide-range outputs to meet the requirements ofdata communications and industrial controls.The PFC250-4530G andPFC250-4350G provide high current +3.3 V and +5 V on a singleplatform to support mixed-mode,high-speed digital circuitry.Bel Power Solutions unique dual-converter architecture combineshigh reliability with exceptional regulation.All models feature remotesense on outputs V1 and V2 to provide independent compensation ofoutput cable losses.Other standard features include independentcurrent sharing on V1 and V2,thermal shutdown,and remote inhibit.Airflow of 300 linear feet per minute is required to deliver the fullpower density of 3.0 watts per cubic inch.The PerFormanCe Power PFC250 meets international safetyrequirements and is CE Marked to the Low Voltage Directive.PFC250 AC-DC Series Switching Power SuppliesActive Power Factor Correction meets EN61000-3-2 Dual main outputs provide 3.3V and 5V for mixed-mode applications Single-wire current sense on outputs V1 and V2 Remote sense on outputs V1 and V2 Overtemperature,overload,and overvoltage protection Available with metric or SAE mountings Isolated V3 and V4 can be used as positive or negative outputs MTBF greater than 200,000 hoursActive Power Factor Correction Meets EN61000-3-2Dual Main Outputs Provide 3.3 V and 5 V for Mixed Mode ApplicationsSingle Wire Current Sense on Outputs V1 and V2Remote Sense on Outputs V1 and V2CE Marked to Low Voltage DirectiveOvertemperature,Overload and Overvoltage ProtectionIsolated V3 and V4 Can Be Used as Positive or Negative OutputsGreater than 200,000 Hours MTBFSize: 8.50" 4.75" 2.00"Size with Fan Option: 10.0" 4.75" 2.5"
-Load Regulation-0.8%
Mounting Type-Panel Mount
Number of Outputs-1 Output
Operation-PFC
Power,Output-252 W
Primary Type-AC-DC
Product Header-PFC250 AC-DC Series Power Supply
