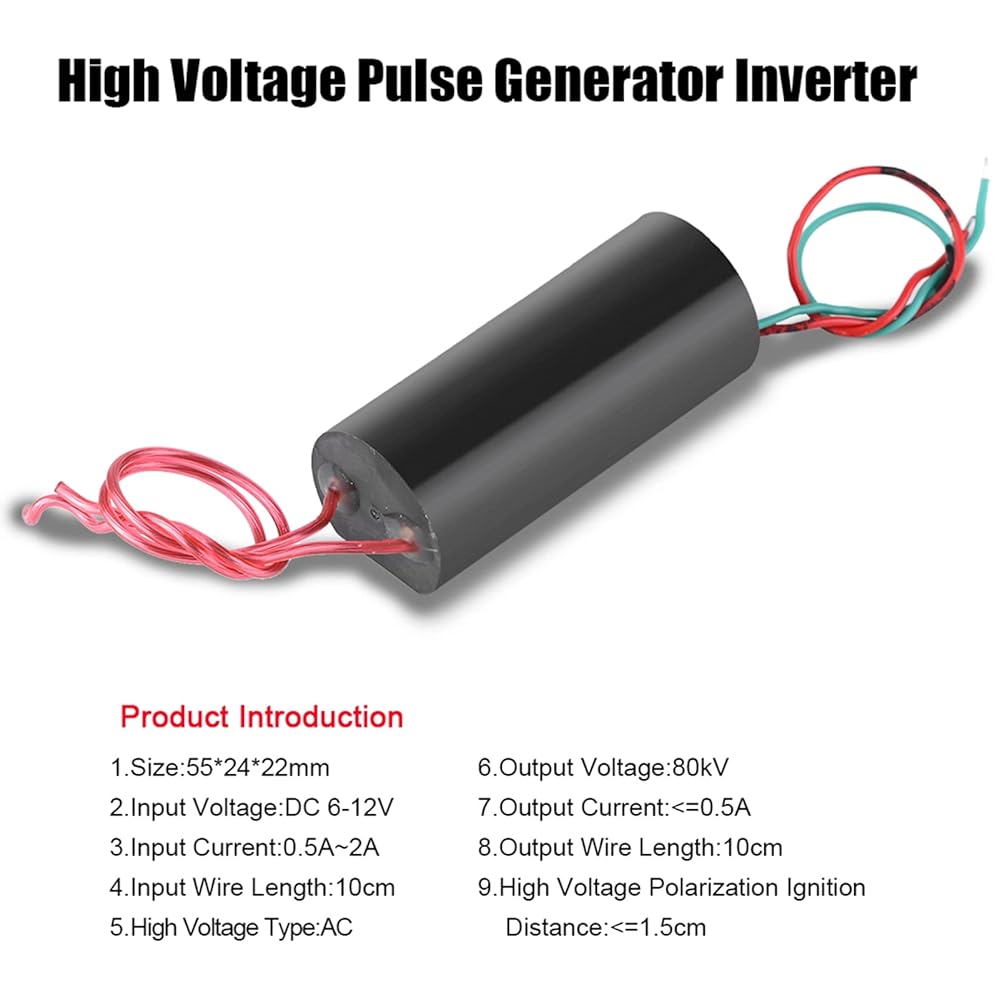

Specification:
Features:
High temperature arc igniter, with 6-12v high power, ignite cigarette & paper, can work for 20 seconds continuously, and high frequency, good quality, easy to use.
It can be used as high voltage source for high school science experiment, electronic instrument, negative ion generator and little science.
It can generate high temperature and high frequency arc, can easily ignite combustible.
According to the coil principle, the module outputs high voltage pulse current, small volume and high efficiency.
The peripheral circuit is simple (simply connect the switch, Install the battery), the discharge is violent.
Specifications:
Size: Approx. 65 x 24 x 22mm / 2.6 x 0.9 x 0.9in
Input voltage: 6V-12V
Input Current: 0.5A-2A(depending on the input voltage)
Input line length: about 10cm/3.94inch
High Voltage type: DC type
Output voltage: about 80KV (please pay attention tosafety when used)
Output current: 0.5A
Output line length: about 10cm/3.94inch
High voltage poles ignition distance: ?1.5cm(1.5cm ismaximum distance, 1cm is better)
Note:
1.Input the power of 6-12v, output two levels of terminal can produce1.5cm length high temperature arc, ignition paper,single high voltage line can also discharge of any metal body,working without a crack sound.
2.On the input power: 3.7-v lithium battery can be used in series, such as battery, idle cell phone battery (toremove the board, recommended capacity 2000mAh) or Nimh battery pack
