Wide Input Voltage Range: 5.5-60V DC
- Multiple Output Options: 3.3V, 5V, 9V, 12V, 15V, 24V (Adjustable)
- High Output Current: Up to 5A
- Low Output Ripple: - High Conversion Efficiency: Up to 90% (Vin=12V, Vout=5V, Iout=1A)

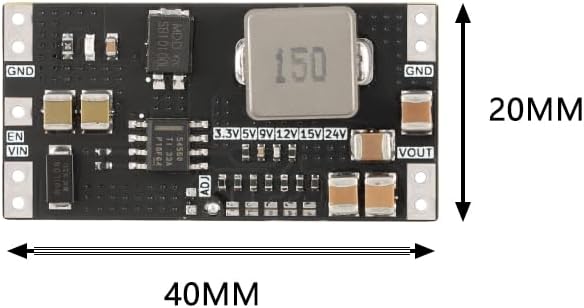

- Compact Size: 40.0 x 20.0 x 5.5 mm
- Operating Temperature: -25°C to 125°C
- Enable Interface: Control the module's operation with a simple high/low signal
- LED Indicator: Red LED for output status

Applications:
- Power Supply for Electronics Projects: Ideal for DIY projects, for arduino, Raspberry Pi, and other microcontroller-based systems.
- Industrial Automation: Suitable for powering sensors, actuators, and control systems in industrial environments.
- Automotive Applications: Can be used in automotive electronics, such as GPS trackers, dashcams, and other in-vehicle devices.
- Renewable Energy Systems: Perfect for solar and wind power systems, providing stable and efficient power conversion.

Technical Specifications:
- Module Type: Step-down switch power supply
- Input Voltage: DC 5.5-60V
- Output Voltage: DC 3.3/5/9/12/15/24V (Adjustable)
- Output Current: 5A (Maximum)
- Input/Output Voltage Difference: >2V
- Static Current: 1mA
- Output Ripple: - Conversion Efficiency: 90% (Vin=12V, Vout=5V, Iout=1A; higher output power may decrease efficiency)
- Switching Frequency: 600KHz
- Module Heating: Higher input voltage and load may reduce efficiency and increase heating

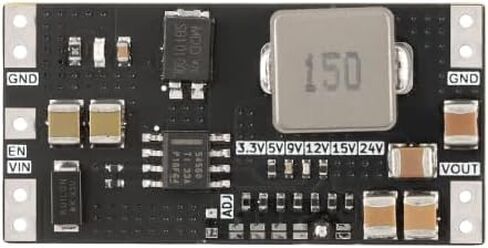

Interface Details:
- VIN: Positive power input (5.5-60V)
- GND: Common ground for input and output
- VOUT: Positive power output (3.3/5/9/12/15/24V, Adjustable)
- EN: Enable pin (High or floating to enable, Low to disable)
- Voltage Jumper Pad: Short circuit to select the desired output voltage
