ESP32-H2-DevKitM WiFi+Bluetooth H2 Series Thread/Zigbee/BLE ESP32-H2 ESP32-H2-DevKitM-1-N4 ESP32-H2-MINI-1
ESP32-H2-MINI is equipped with ESP32-H2 chip, integrated 2.4GHz receiver compatible with low-power Bluetooth and IEEE 802.15.4 technology, supports Bluetooth 5 (LE), Bluetooth mesh, Zigbee, Thread, Matter and other protocols, suitable for various low-power IoT application scenarios
After connecting the development board to a USB power source, this indicator light will light up. Power conversion input 5V, output 3.3V, single-chip USB to UART bridge, can provide up to 3Mbps transmission rate
Can be used as a power interface for development boards or as a communication interface, communicating with the ESP32-H2 chip through an onboard USB to UART bridge
The USB Type-C interface of ESP32-H2 chip supports USB 2.0 full speed mode, with a maximum data transfer rate of 12Mbps (note: this interface does not support 480Mbps high-speed transfer mode)

وصف

DESCRIBE

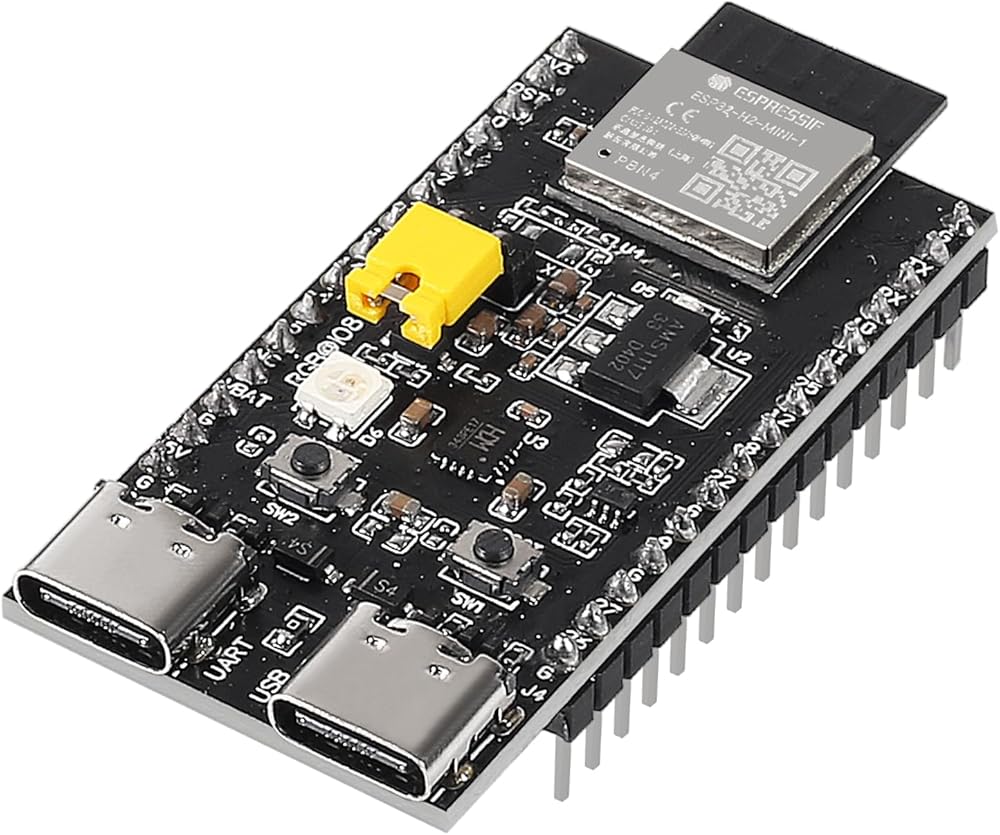

ESP32-H2-DevKitM-1 is an entry-level development board based on Bluetooth@ Low Energy
and IEEE 802. 15.4 combo module ESP32-H2-MINI-1 or ESP32-H2-MINI-1U.

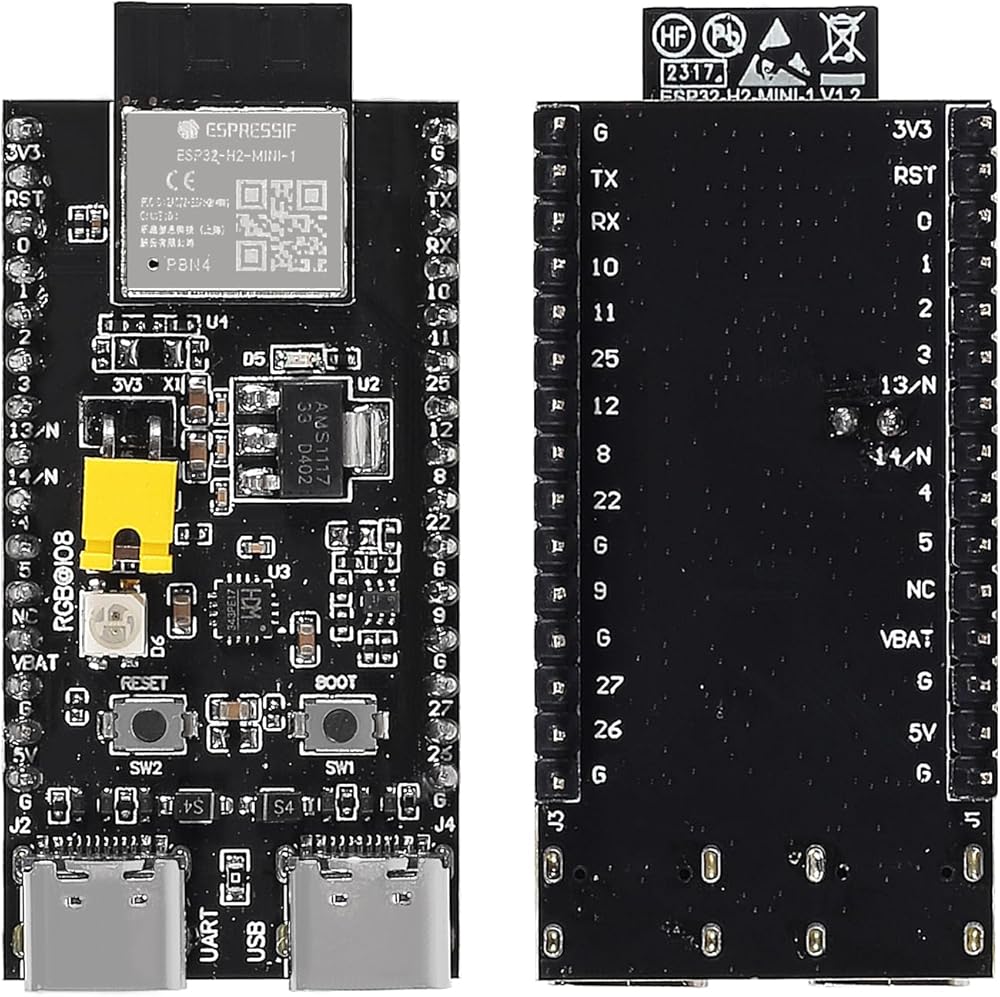

Most of the l/O pins on the ESP32-H2-MINI-1/1U module are broken out to the pin headers on
both sides of this board for easy interfacing. Developers can either connect peripherals
with jumper wires or mount ESP32-H2-DevKitM-1 on a breadboard.
ESP32-H2-DevKitM-1
POWER SUPPLY OPTIONS
There are three mutually exclusive ways to provide power to the board:
USB Type-C to UART port, default power supply
5V and GND pin headers
3V3 and GND pin headers
Shipping List：

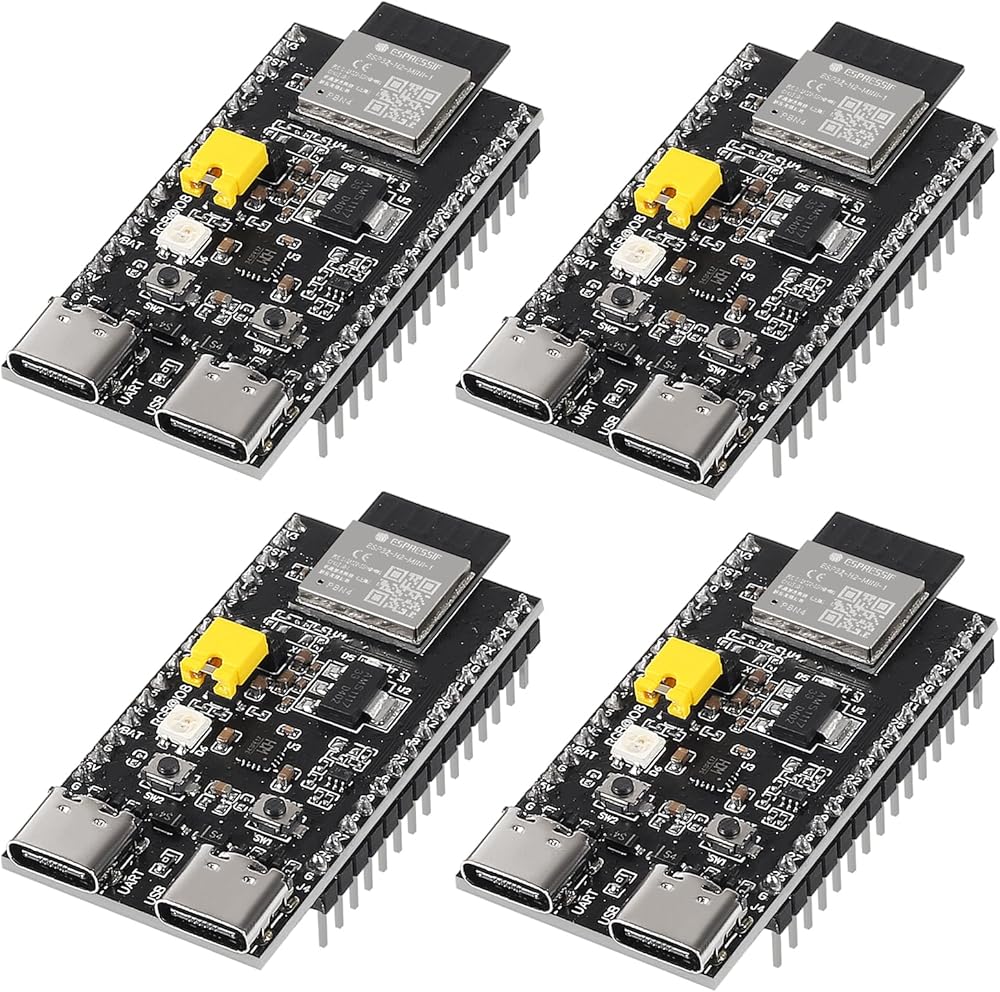

4 X ESP32-H2-DevKitM-1-N4 ESP32-H2 Core Board
