General information
Type
CPU / Microprocessor
Market segment
Desktop
Family
c i3
Model number ?

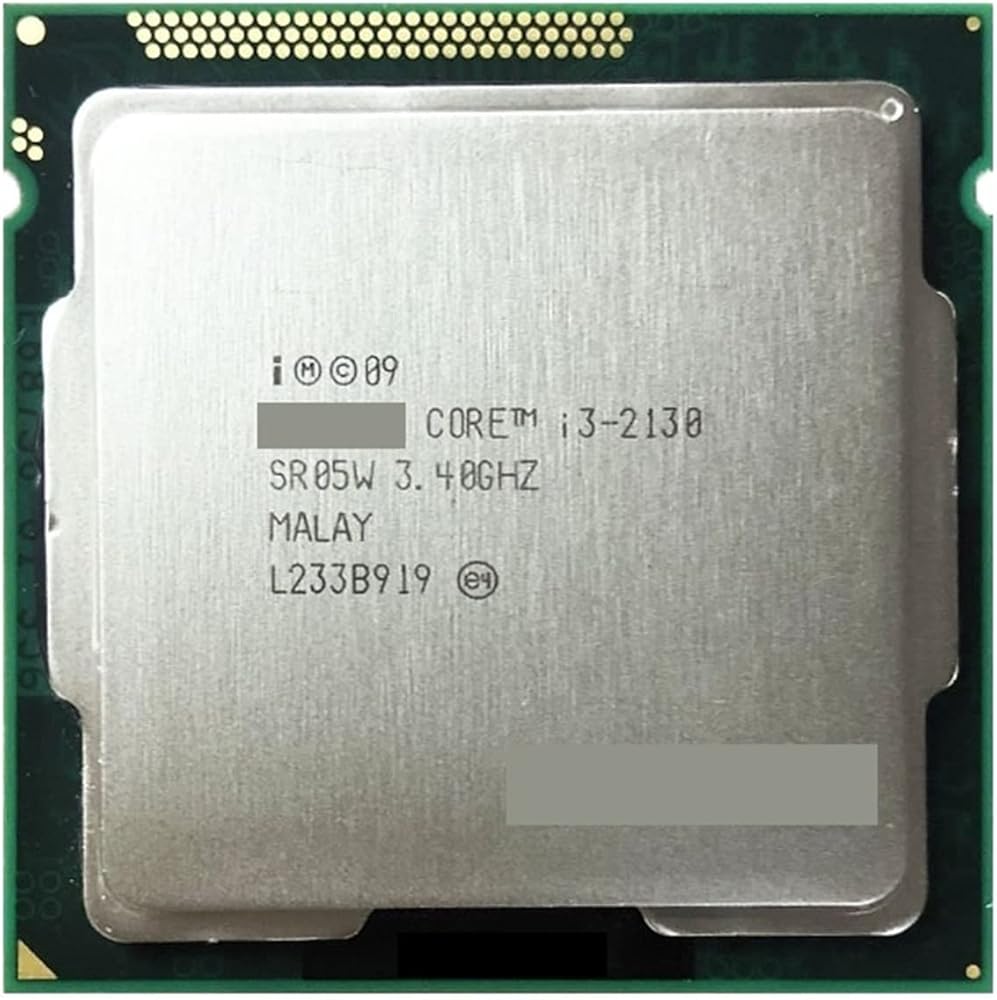

i3-2130
CPU part numbers
CM8062301043904 is an OEM/tray microprocessor
CM806230104395 is an OEM/tray microprocessor
BX80623I32130 is a boxed processor with fan and heatsink (English version)
BXC80623I32130 is a boxed processor with fan and heatsink (Chinese version)
Frequency ?
3400 MHz
Clock multiplier ?
34
Package
1155-land Flip-Chip Land Grid Array
Socket
Socket 1155 / H2 / LGA1155
Size
1.48" x 1.48" / 3.75cm x 3.75cm
Weight
1oz / 27g (CPU)
11.3oz / 321.1g (box)
Fan/heatsink
E97379-001
S-spec numbers
Part number
ES/QS processors
Architecture / Microarchitecture
Microarchitecture
Sandy Bridge
Processor c ?
Sandy Bridge
c stepping ?
Q0 (Q1FH, SR05W)
Manufacturing process
0.032 micron High-K metal gate process
Data width
64 bit
The number of CPU cores
2
The number of threads
4
Floating Point Unit
Integrated
Level 1 cache size ?
2 x 32 KB instruction caches
2 x 32 KB data caches
Level 2 cache size ?
2 x 256 KB
Level 3 cache size
3 MB shared cache
Physical memory
32 GB
Multiprocessing
Uniprocessor
Features
MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ?
AVX / Advanced Vector Extensions
EM64T / Extended Memory 64 technology / I 64 ?
NX / XD / Execute disable bit ?
HT / Hyper-Threading technology ?
VT-x / Virtualization technology ?
Low power features
Enhanced / technology ?
Integrated peripherals / components
Integrated graphics
GPU Type: HD 2000
Microarchitecture: Gen 6
Execution units: 6
Base frequency (MHz): 850
Maximum frequency (MHz): 1100
The number of supported displays: 2
Memory controller
The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-1066, DDR3-1333
Maximum memory bandwidth (GB/s): 21.3
Other peripherals
Direct Media Interface 2.0
PCI Express 2.0 interface
Electrical / Thermal parameters
Maximum operating temperature ?
69.1°C
Thermal Design Power ?
65 Watt
