Compatible with Kenwood Radio Wiring Harness: 22pin stereo wire harness fits for kenwood car stereo DDX512 DNX5120 DNX512EX KEN22-21, please know this wiring cable does not work for vehicle with amplified system

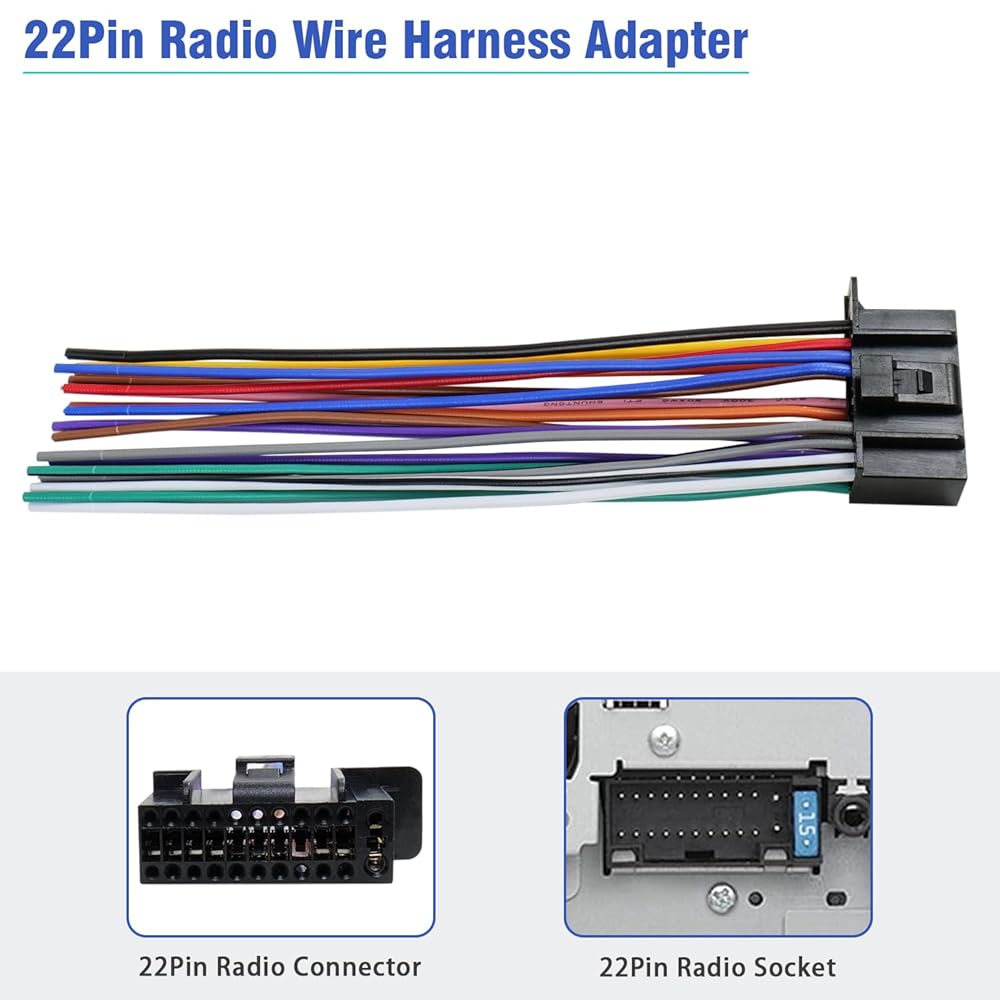

22Pin Car Stereo Connector for Kenwood: Standard 22 pin car radio plug, fits in your aftermarket car audio video receiver, retains 18pcs wires to connect with your factory head unit system

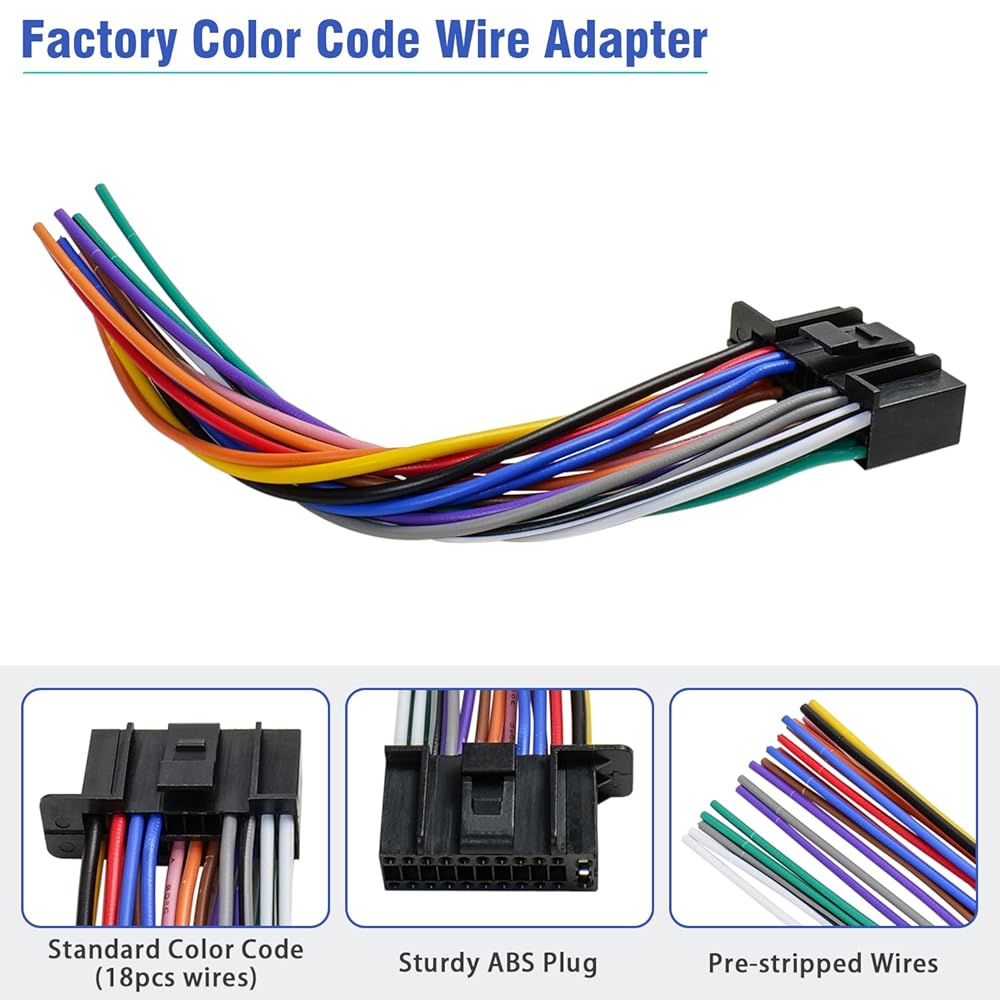

Factory Color Code Radio Harness: Easy to connect with the replaced car stereo, please kindly check your head unit with 22pin socket or not, if it is 16-pin, this wire adapter will not work
Aftermarket Radio Wire Harness with Butts: Provided wiring harness butts for a simple and quick installation by crimp the butt connectors (not heat shrink tube type), pre-stripped car stereo cables
Package List: 1x22-Pin stereo wire harness adapter, 1x20PCS butt connectors

وصف

Product Package

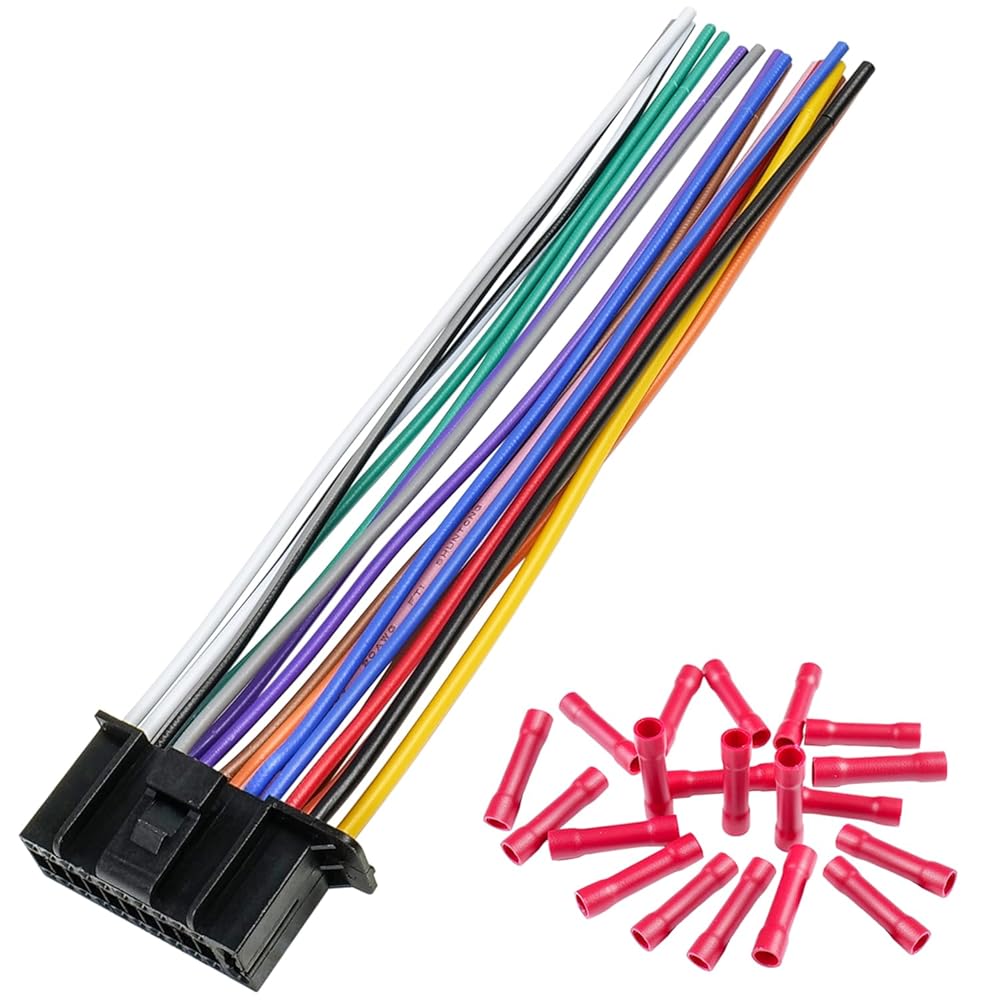

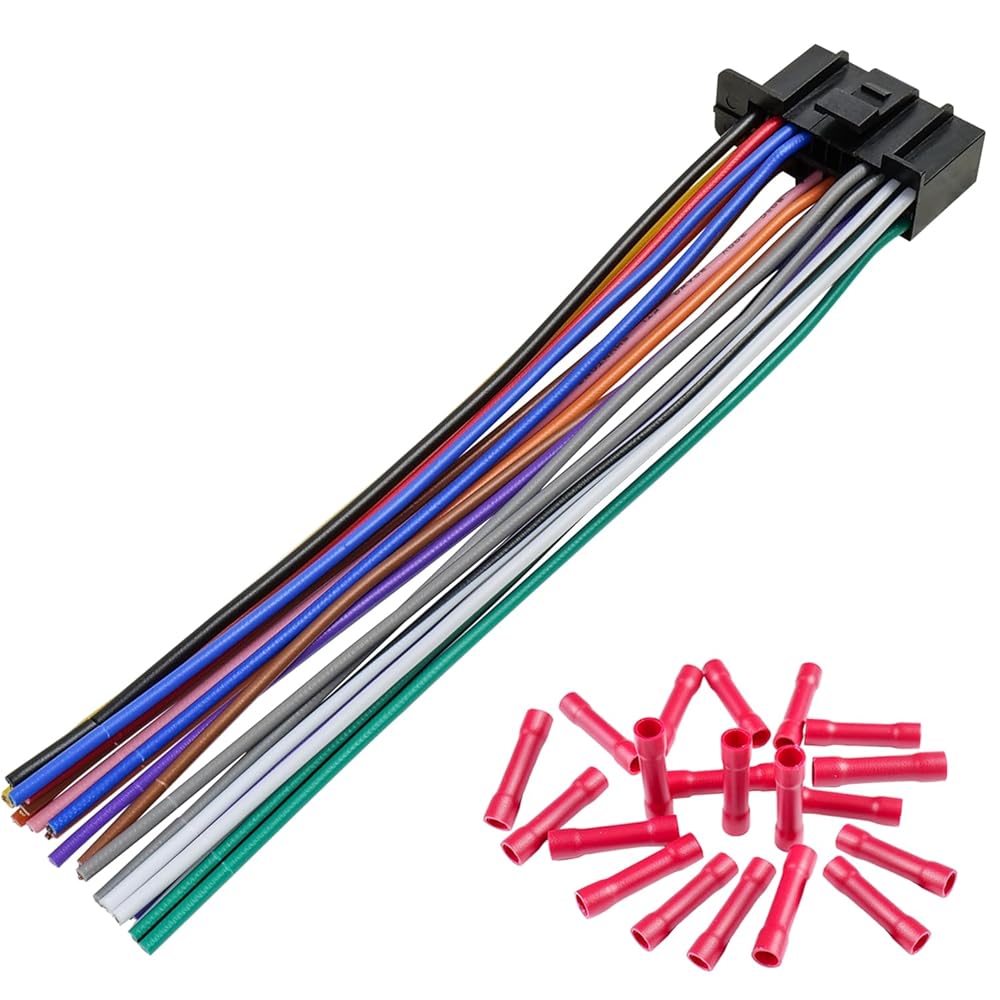

1 x 22Pin Radio Harness Adapter
20 x Butt Connectors

Stereo Harness Fits for Models

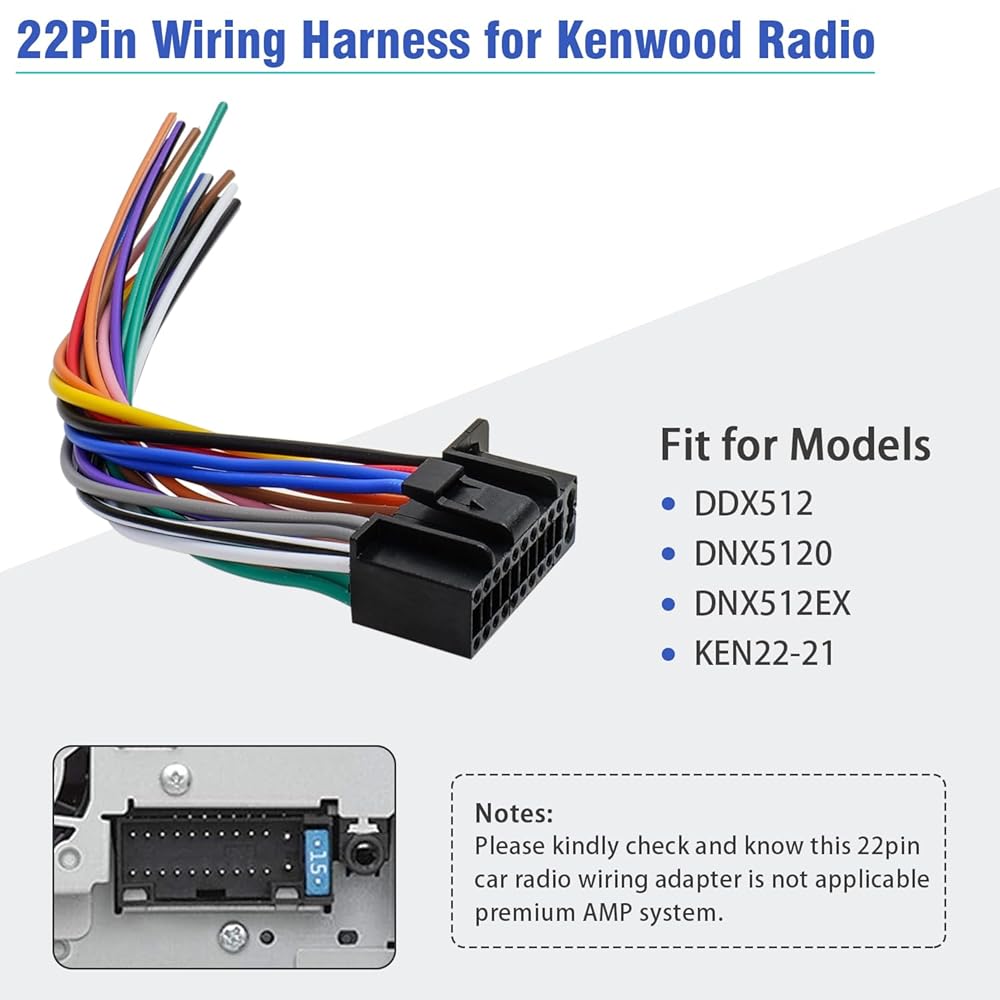

Compatible with Kenwood DDX512
Compatible with Kenwood DNX5120
Compatible with Kenwood DNX512EX
Compatible with Kenwood KEN22-21

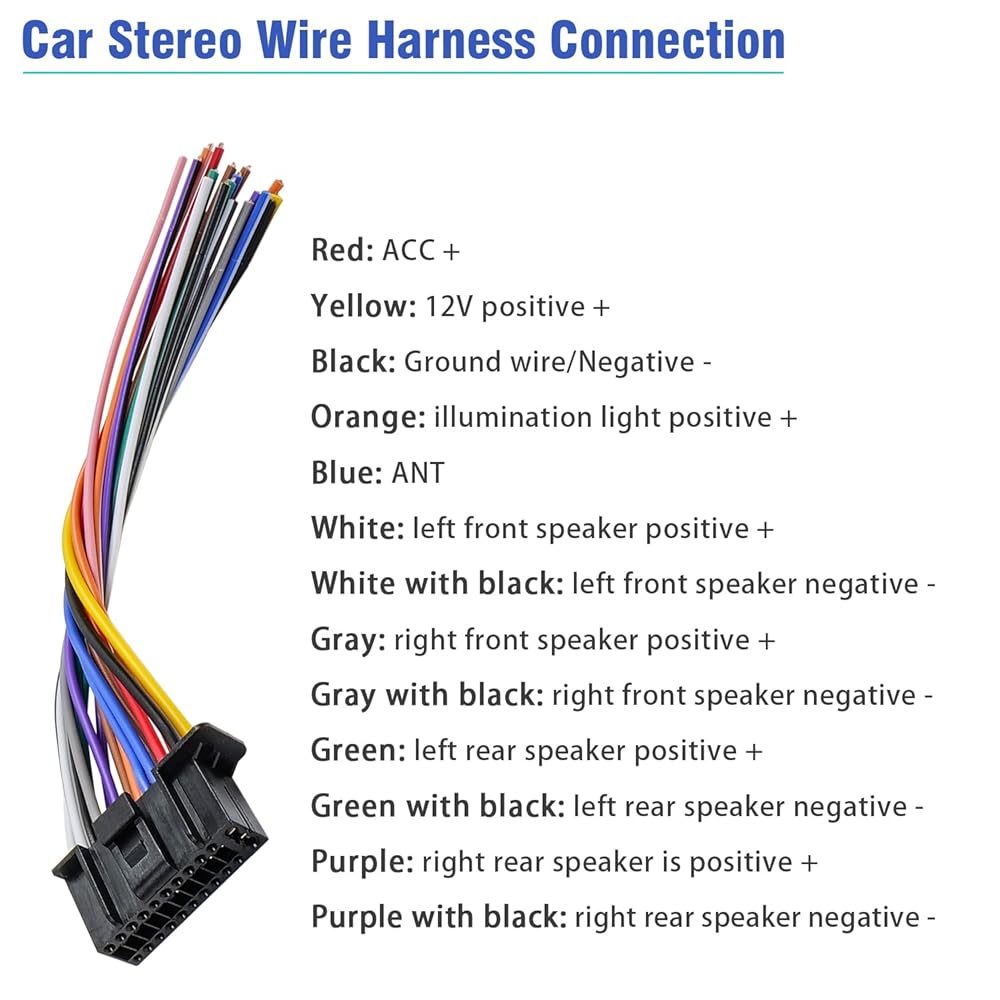

Wiring Connection for Kenwood Radio
Red: to Ignition Switch or ACC +12V
Yellow: to Power Supply +12V
Black: to GND Ground Wire B-
Blue: to ANT, Auto Antenna Power
Orange: to Illumination wire
Green: Left Rear Speaker +
Green and Black: Left Rear Speaker -
White: Left Front Speaker +
Gray and Black: Right Front Speaker -
White and Black: Left Front Speaker -
Gray: Right Front Speaker +
Purple: Right Rear Speaker +
Purple and Black: Right Rear Speaker -

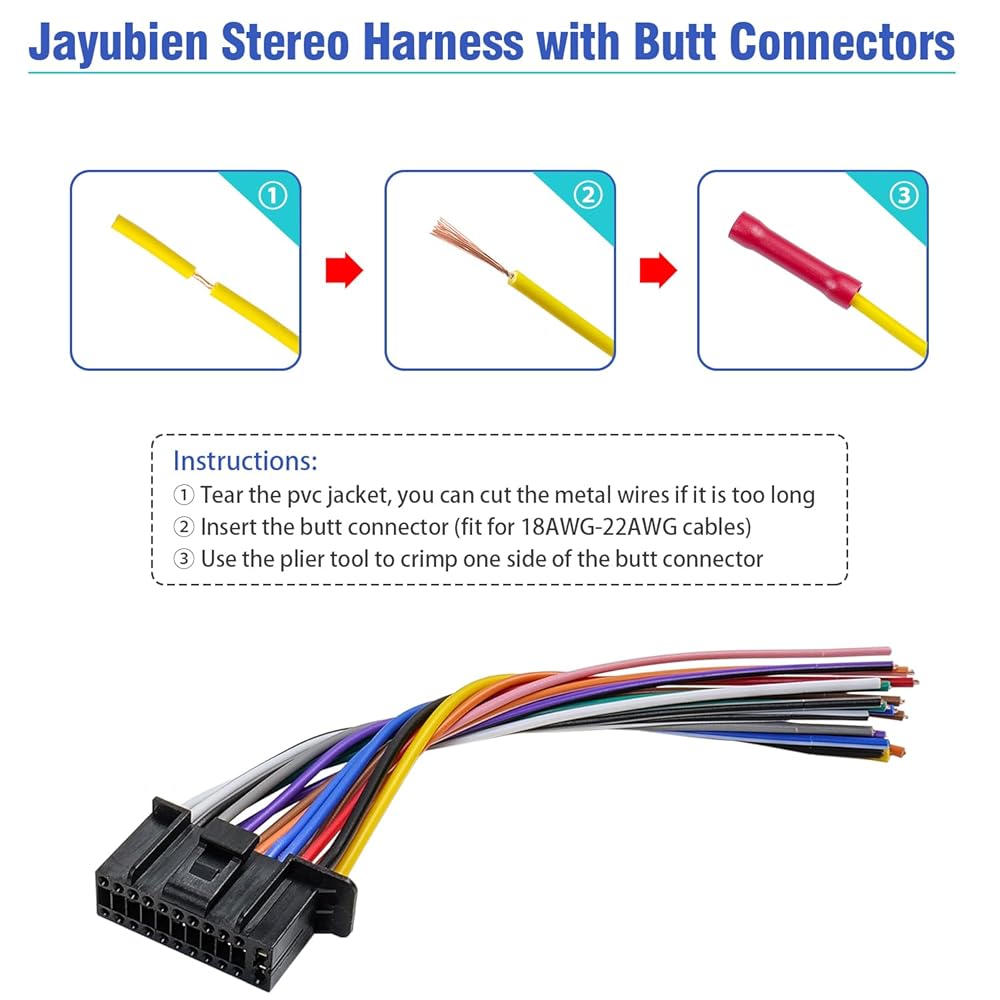

How to Use the Butt Connectors
A.Tear the pvc jacket, you can cut the wires if it is too long
B. Insert the butt connector, fits for 18AWG-22AWG cables
C. Use the plier tool to crimp one side of the butt connector
