1.Features
Convenient hardware design: the aluminum alloy USB flash drive shell is easy to carry and effectively prevents static electricity and falling and touching. The interface definition is directly labeled on the shell, which is convenient for users to quickly identify and connect. Equipped with standard USB interface, can be directly connected to the computer USB port.
Rich power supply function: support 5V power output, and the output I/O ports are protected, can provide 5V/3.3V dual power supply, 5V maximum output 500mA, 3.3V maximum output 300mA, can be convenient for the target board power supply to adapt to the different voltage requirements of the device. On-board 500mA self-recovery fuse can effectively prevent the harm caused by short-circuit to protect the computer motherboard and other devices.
Powerful debugging function: support full-speed operation, single-step debugging, breakpoint debugging and other debugging methods, you can view the IO status, variable data, etc., to help developers quickly locate and solve problems.

2. Specifications
Model No.: ST-LINK V2 STM8/STM32 Emulator Programmer stlink downloader line burner debugger

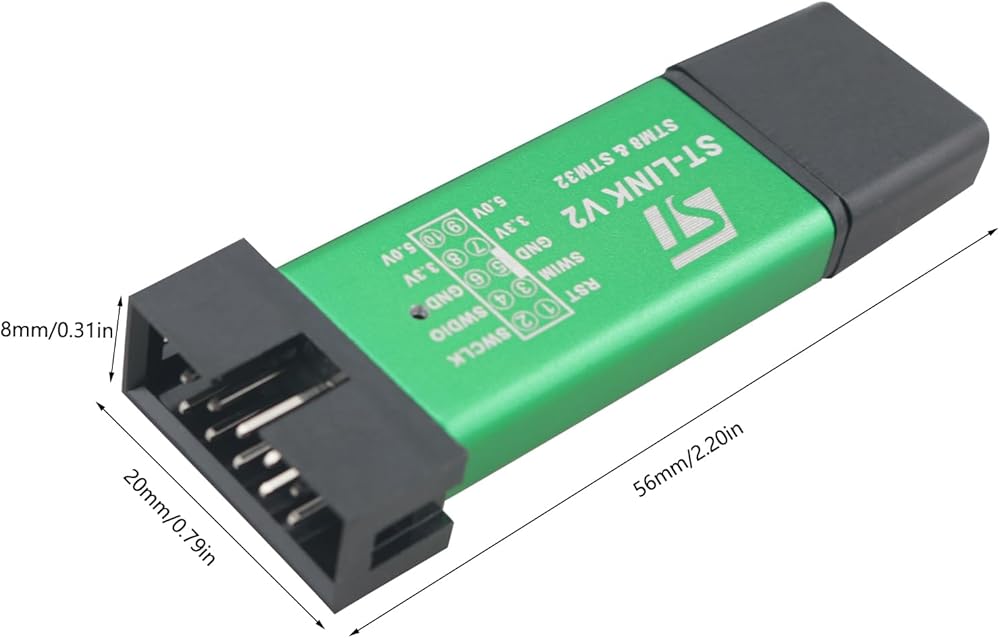

Product Size:Length 56mm/2.20in, Width 20mm/0.79in, Height 8mm/0.31in

3.Package contains

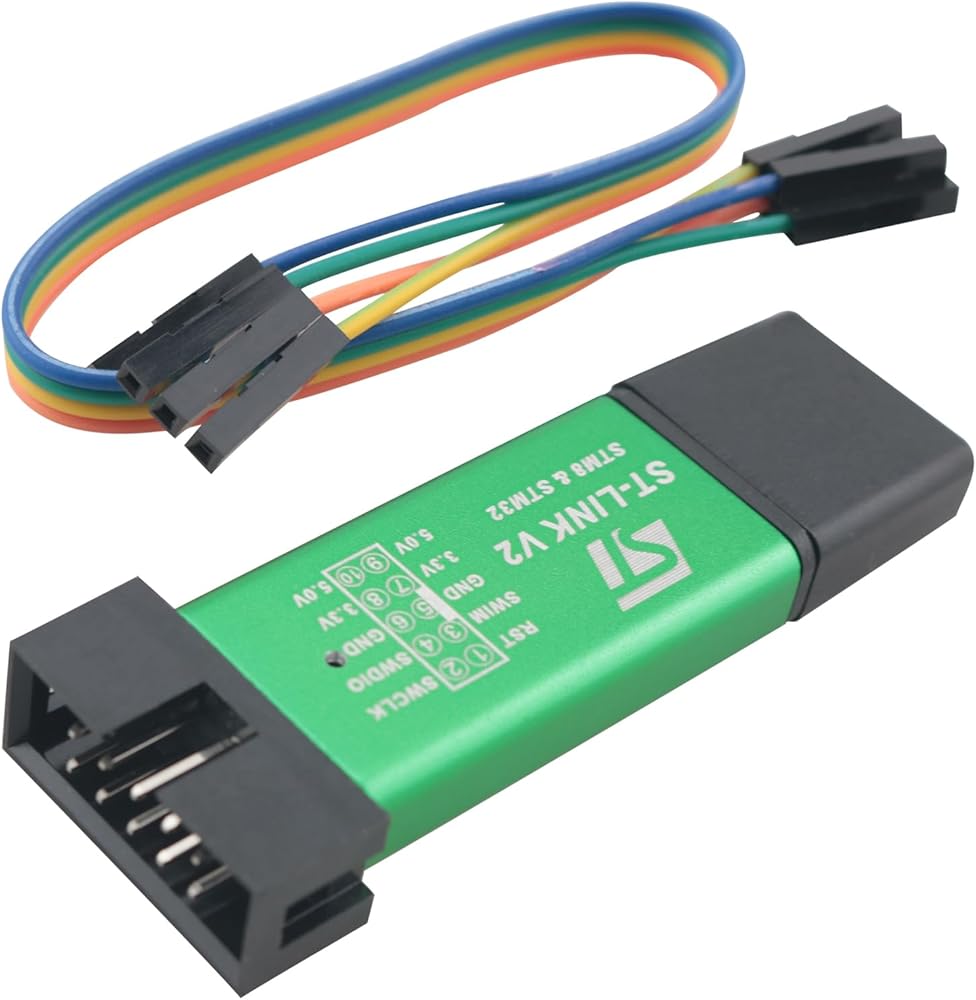

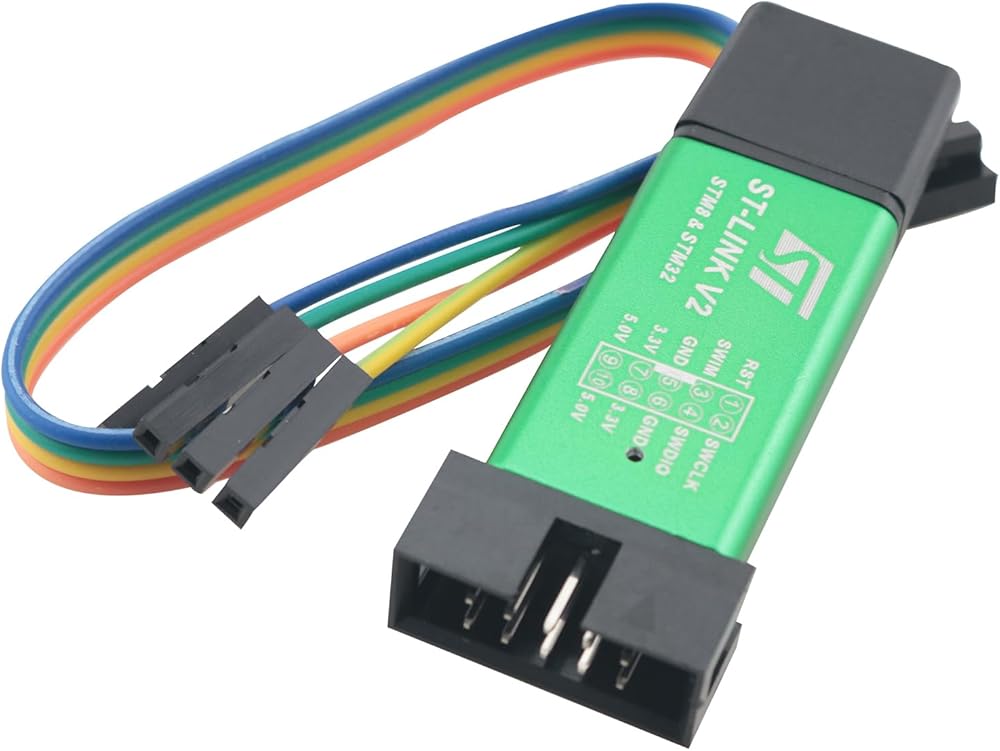

an ST-LINK V2 emulator programmer, 4 DuPont cables

4.Tips

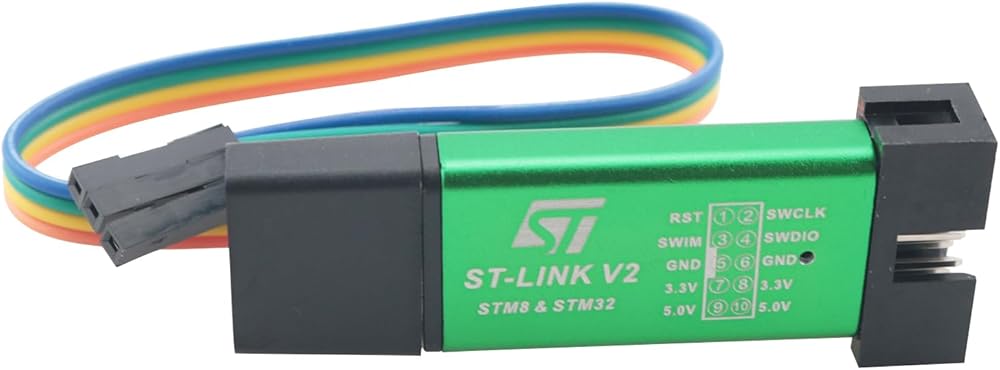

When connecting the ST-LINK V2 to the target board, make sure the interface is firmly connected to avoid communication failure due to poor contact. At the same time, be careful not to connect the pins in the wrong order, especially when using the DuPont cable, you can refer to the interface definition labeled on the ST-LINK V2 case for connection.
