Note: Only one of the 3 outputs could be used at a time, you cannot use all of them simultaneously

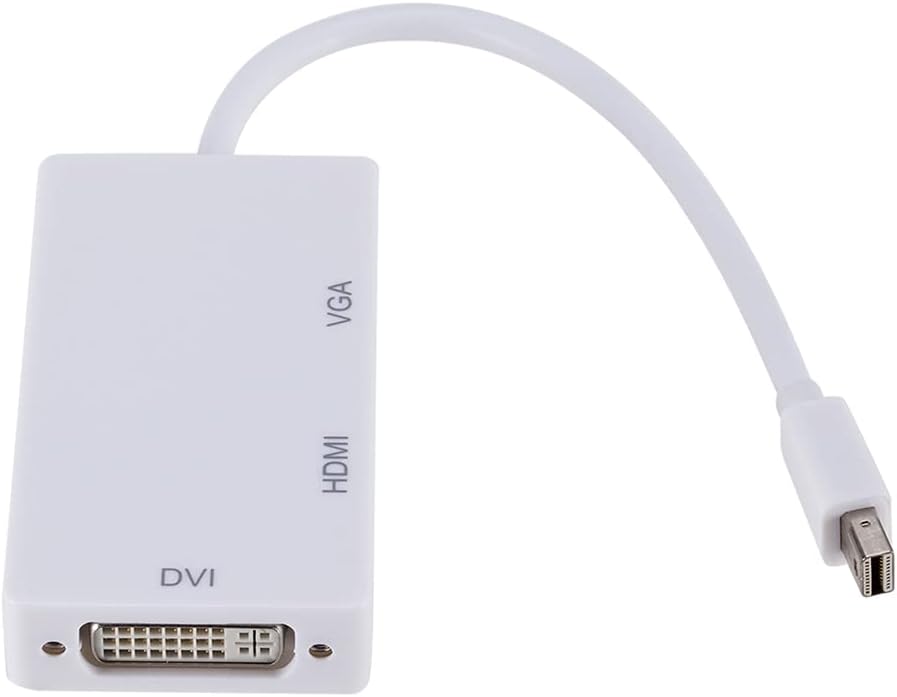

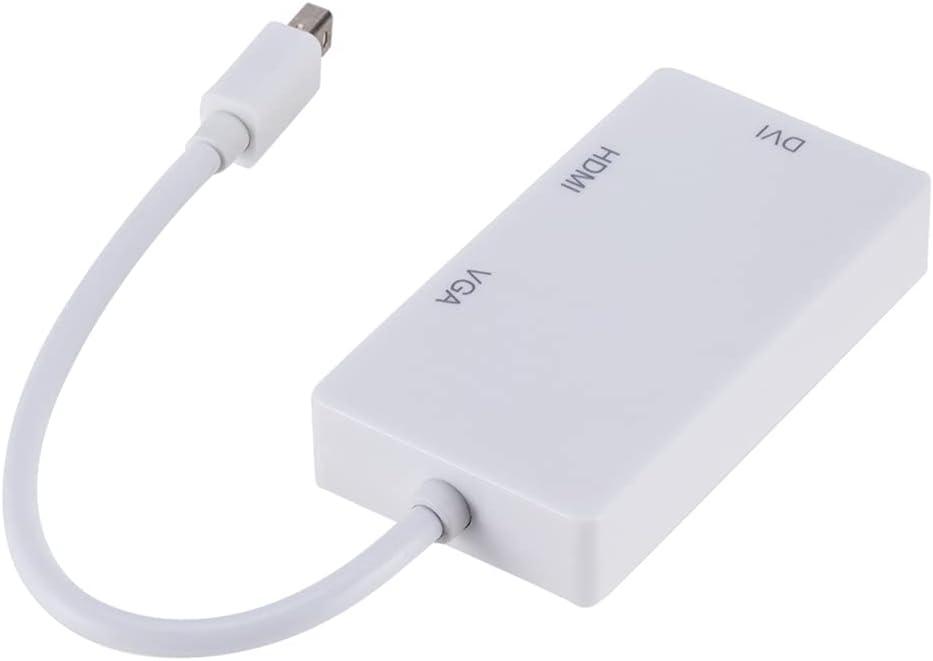

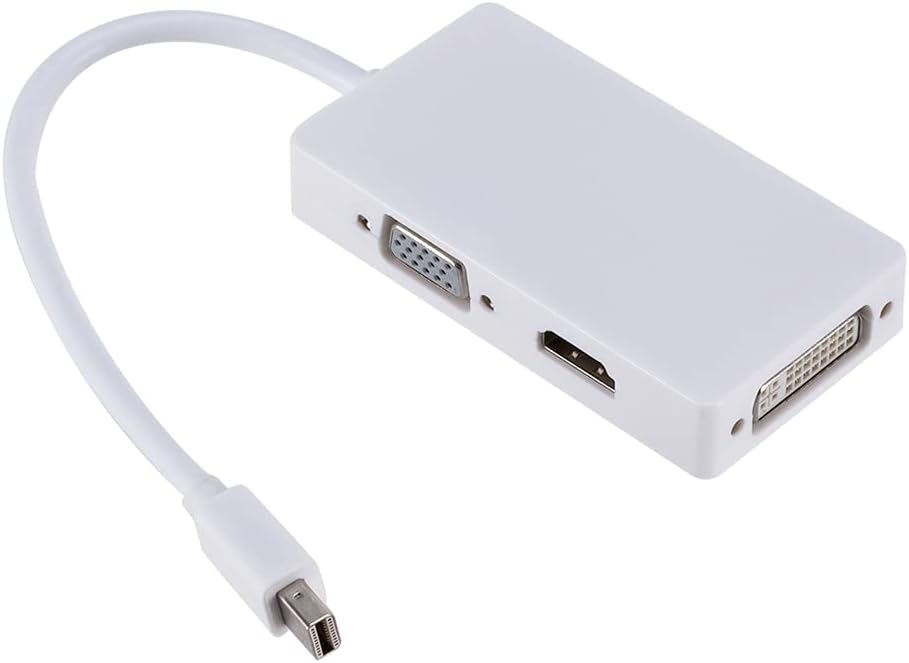

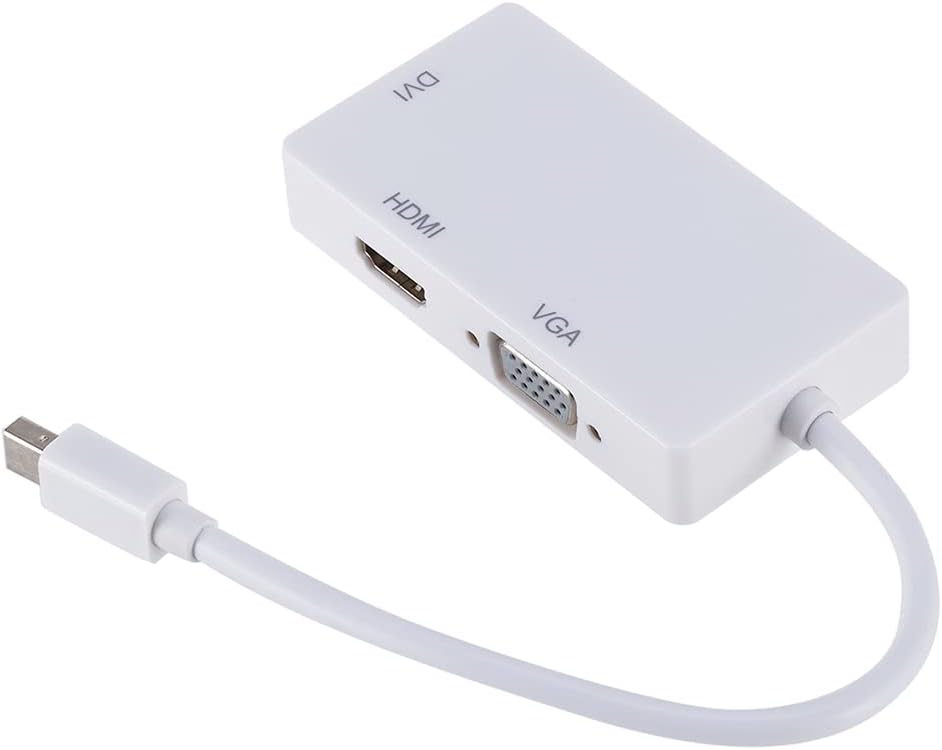

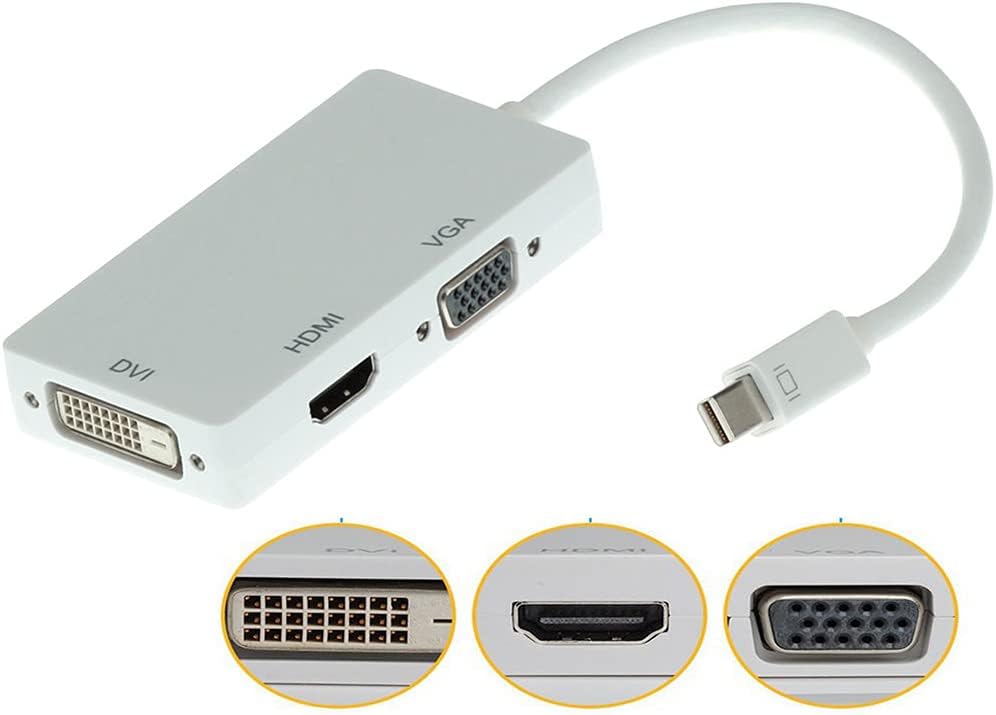

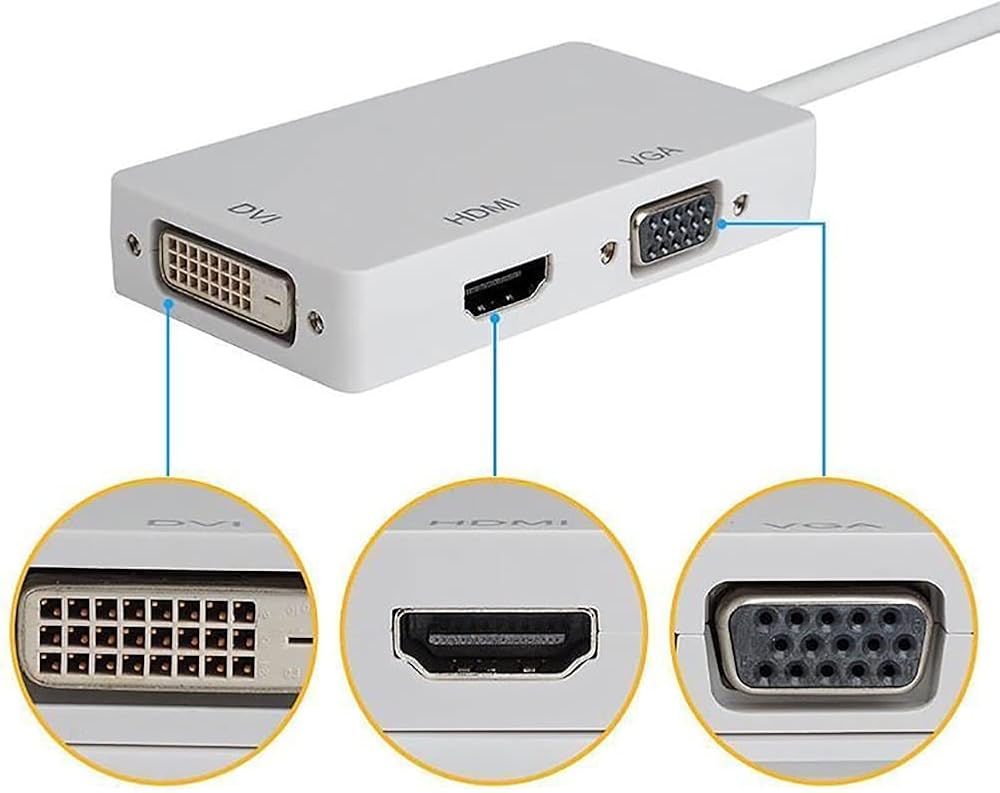

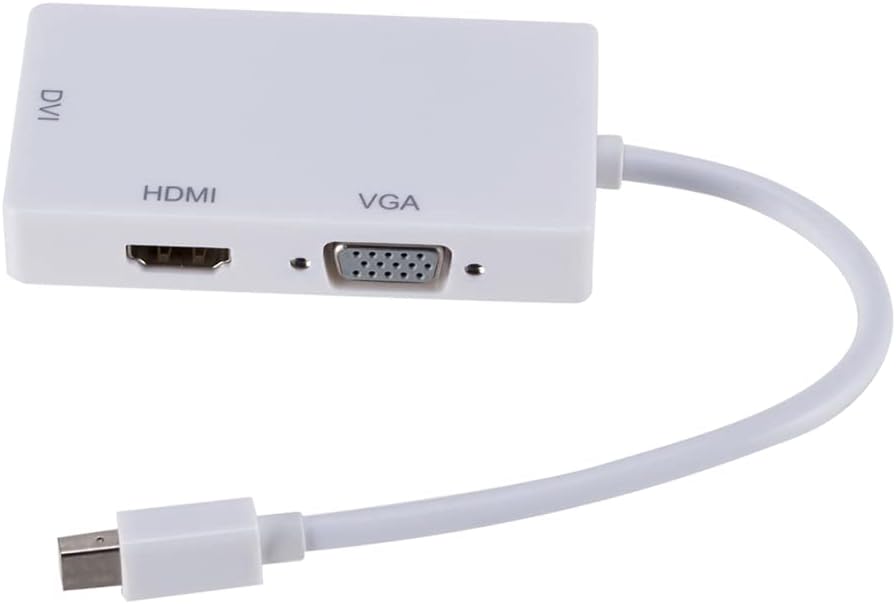

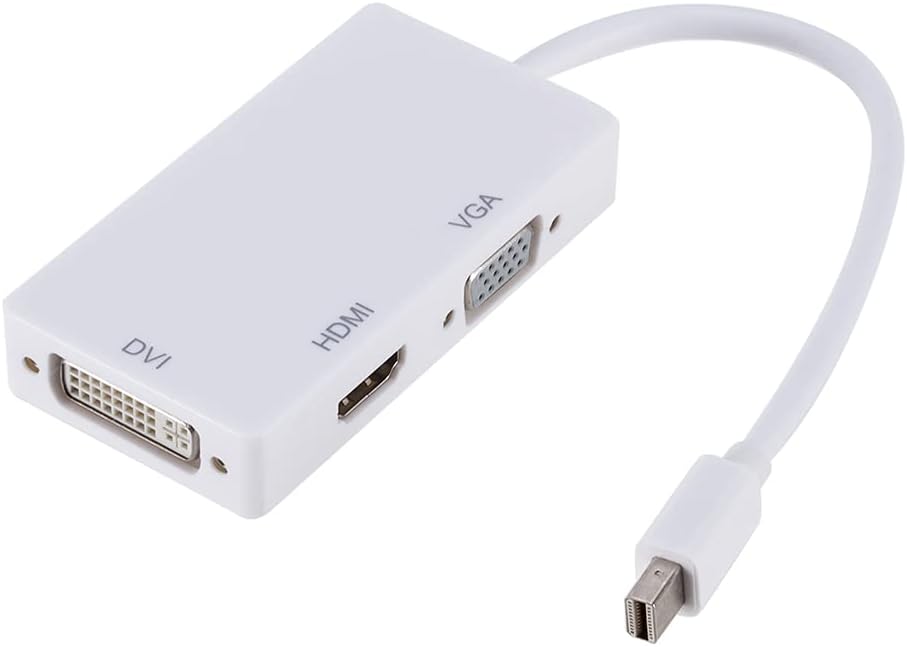

This product with three output ports, and you can choose one of them to use at a time as you demand, the functions of the port as followings:
1. DVI output, connect the DVI devices using a DVI cable
2. HDMI output, connect the HDMI devices using a HDMI cable
3. VGA output, connect the VGA devices using a VGA cable.
Specification:
Input Signal: Mini Display Port 1.1a
Output Video: HDMI/DVI/VGA
Input: Mini Display Port Male 20pin
Output: HDMI Female Type A 19pin
Connector: DVI Female (24+1) VGA Female 15Pin
Vertical Frequency Range: 50/60Hz
Video Amplifier Bandwidth: 2.25Gbps/225MHz
HDMI/DVI/VGA:480i/480p, 576p, 720p, 1080i/1080p
External Power Supply: No external power needed
Power consumption (Max): 700mW
The Length of the cable: 28cm
Color: Black or white
Package weight: 1.9 oz/54g
Compatible models:
Book Air, Book Pro, and mini with thunderbolt ports since 2011 are all supported.
Book Air, Book Pro, and mini or PC with mini display port are also supported.
Package include:
1* Adapter
