About PA120

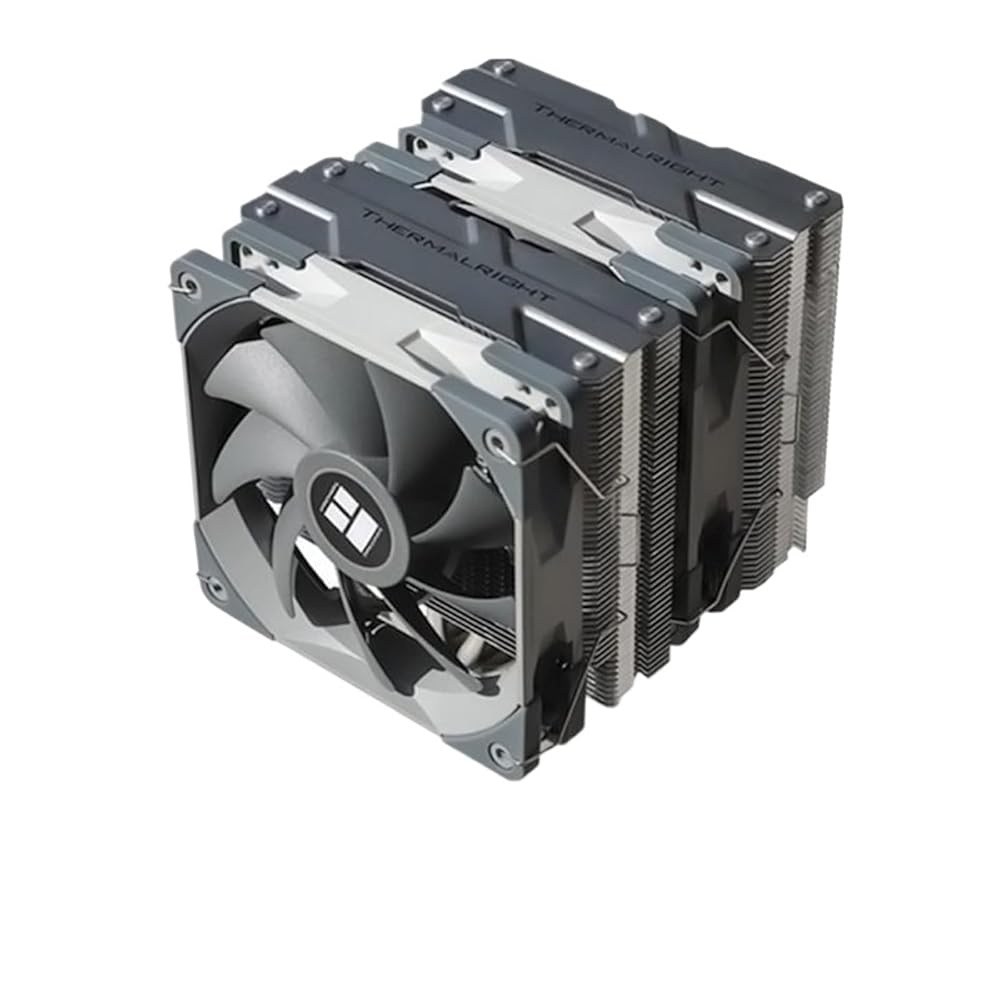

Product specification PA120 ;
CPU Cooler dimensions: 125(L)x135(W)x157(H)mm (4.92x5.31x6.18 inch);
heat sink material: aluminum, CPU cooler is equipped with metal fasteners of & platform to achieve better installation double tower cooling is stronger
2 PWM FansTL-C12;
Standard size PWM fan:120x120x25mm (4.72x4.72x0.98 inches);
fan speed (RPM):1500rpm±10%;
power port: 4pin; Voltage:12V; Air flow:66.17CFM(MAX);
Noise Level25.6dB(A), leave room for memory-chip(RAM), so that installation of ice cooler cpu is unrestricted
AGHP technique6×6mm heat pipes apply AGHP technique, Solve the Inverse effect caused by vertical / horizontal orientation,6 pure copper sintered heat pipes & PWM fan Pure copper baseFull electroplating reflow welding process When CPU cooler works, match with ultra-silent airflow fans, aim to extreme CPU cooling performance
Compatibility
The CPU cooler Socket supports: :115X/1200/2011/2066/1700/17XX :AM4:AM5;
For different CPU socket platforms, corresponding mounting plate or fastener parts are provided
==========
Model Number : PA120
Cooler Type : Tower
Heatpipes : 6
Supported CPU : LGA 1150,LGA 1151,LGA 1155,LGA 1156,LGA1200,LGA 1700,LGA 2066,Socket AM5,AM4
TDP : 245W
Fan Speed : 0 - 1500rpm
Power Interface : 4PIN
Lines : 6 lines
Fan Life : 100000 hrs
Blade Quantity : 9
Bearing : Fluid Bearing
Noise : 26dBA
Fan Size : 120mm
