مميزات خاصة

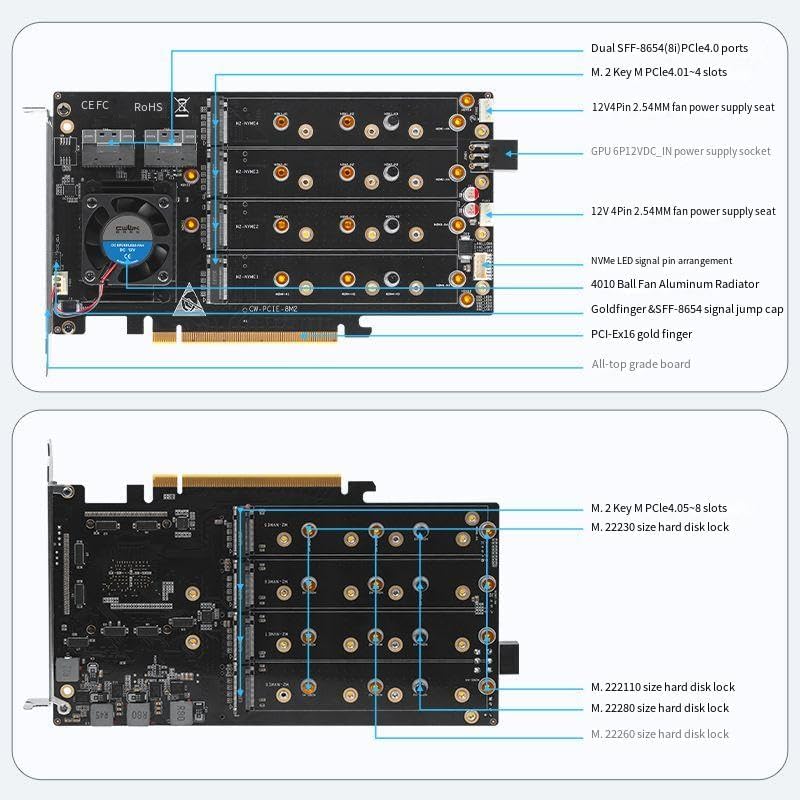

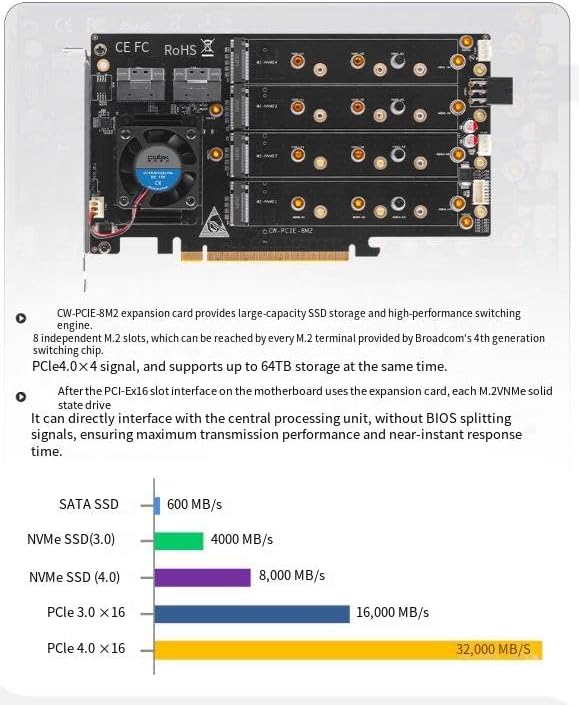

CW-PCIE-8M2 expansion card provides large-capacity SSD storage and high-performance switching engine. 8 independent M.2 slots, which can be reached by every M.2 terminal provided by Broadcom's 4th generation switching chip. PCle4.0×4 signal, and supports up to 64TB storage at the same time.
After the PCI-Ex16 slot interface on the motherboard uses the expansion card, each M.2VNMe solid state drive It can directly interface with the central processing unit, without BIOS splitting signals, ensuring maximum transmission

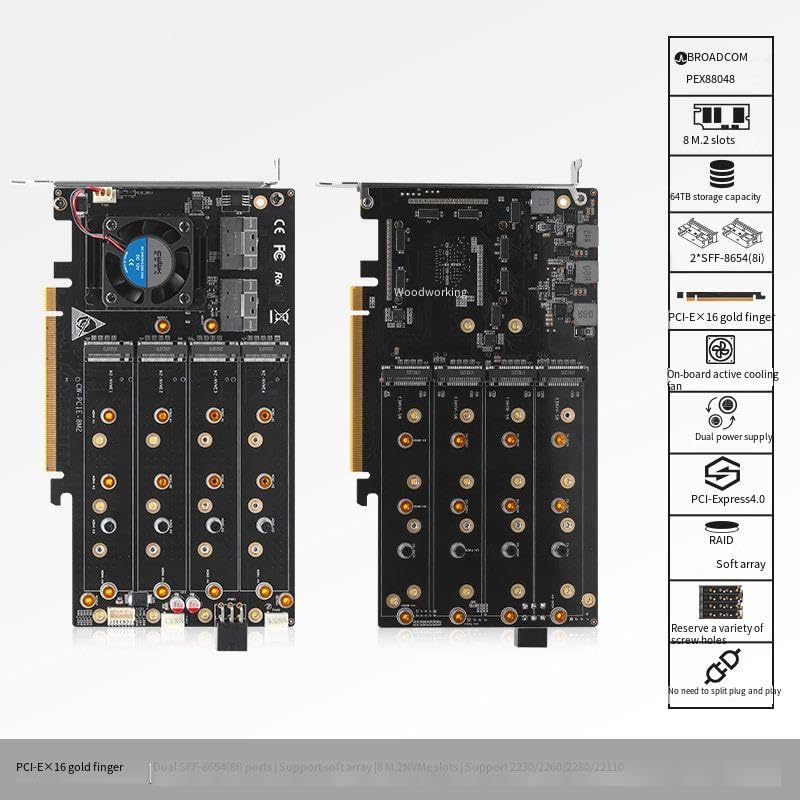

Main control chip:Broadcom PEX88048；
M. 2-inch: 2230/2260/2280/22110 M.2NVMe SSD；

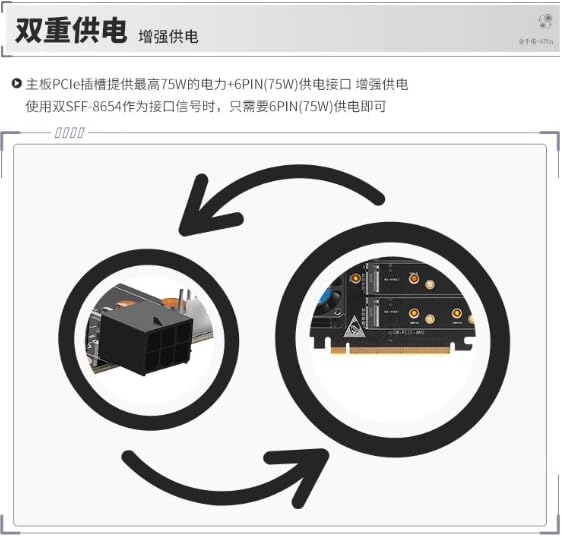

Dual power supply：GPU 12V6Pin/PCI-E Gold Finger supply.

وصف

hardware configuration

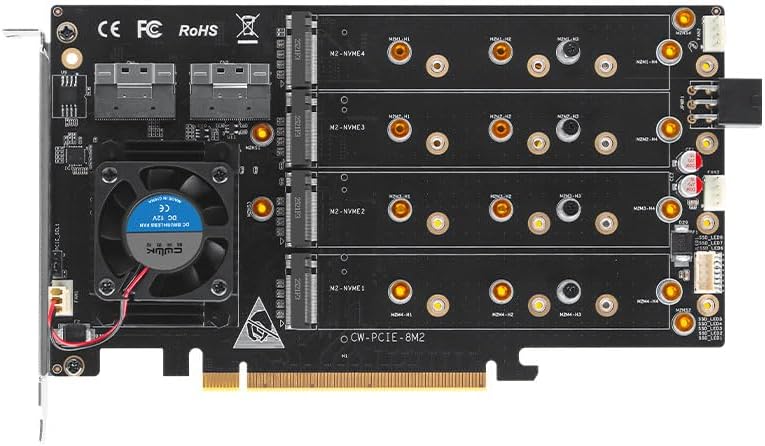

Product model:CW-PCIE-8M.2
Main control chip:Broadcom PEX88048
DMA channels:48
Bus type:PCI-Express4.0x16

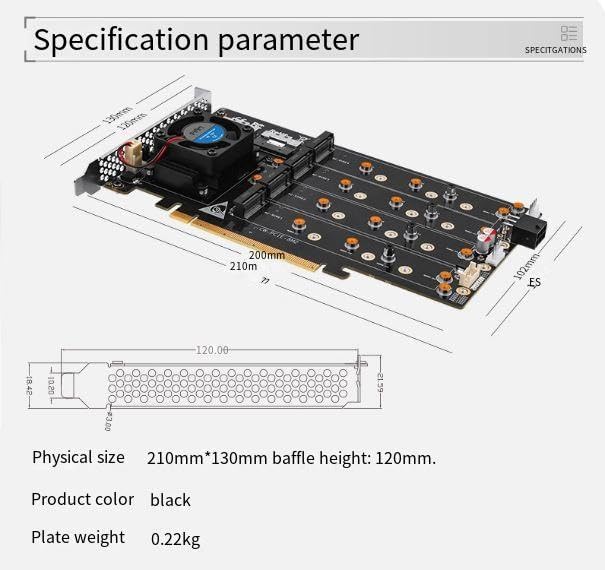

External specifications:Full-height card
Working voltage: PCI-e: 12v, 3.3v.
Interface type: PCI-E×16 Goldfinger /2*SFF-8654(8i)
Transmission rate: 32G (total rate)
M. 2 Quantity: 8
M.2 Speed: PCle4.0(NVMe)×4/×2
M. 2-inch: 2230/2260/2280/22110 M.2NVMe SSD.
Electric: GPU 12V6Pin/PCI-E Gold Finger supply
No-load power consumption of 21W

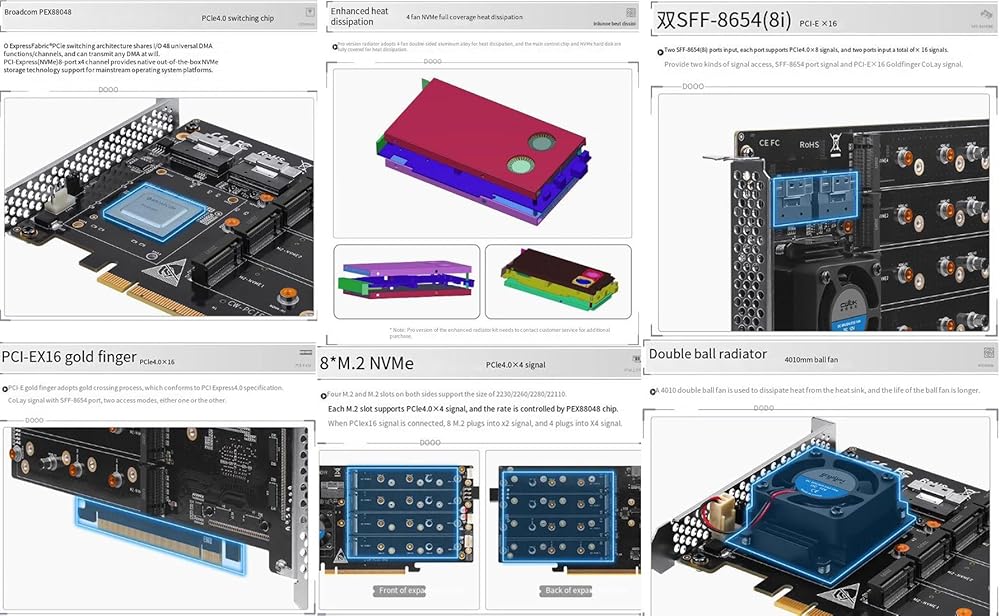

Main control cooling: active cooling 4010 ball fan /(Pro version supports integrated aluminum profile four fans cooling)
The system supports compatible mainstream operating systems, and provides native out-of-the-box NVMe without driving.
Working temperature+5℃ ~+55℃
Storage temperature -20℃~+80℃
