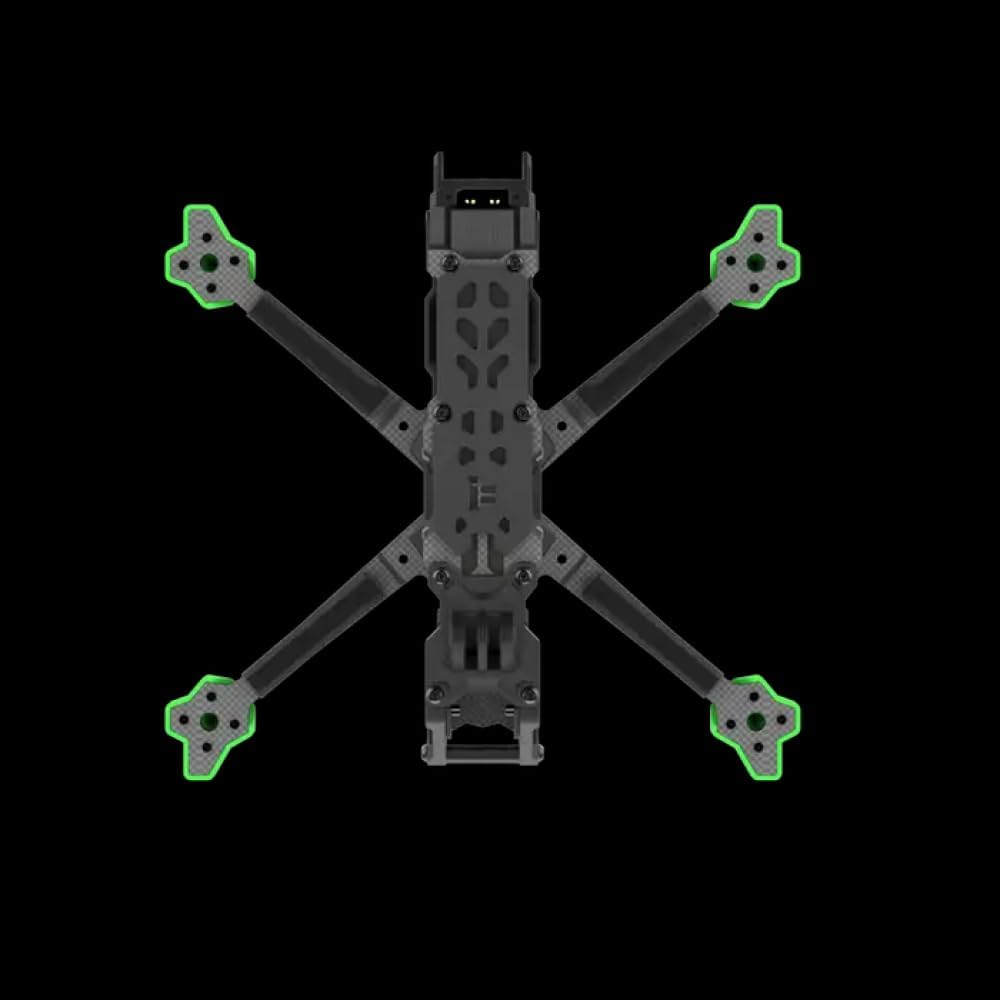

This frame kit supports both DeadCat and Squashed-X configurations, providing flexibility for different flying styles and preferences
Built for 5-inch drones, the frame is compatible with a wide range of standard components and motors
The lightweight yet robust construction ensures performance in both freestyle and racing scenarios
Its modular design allows for easy assembly and customization, making it ideal for both beginners and experienced pilots
The DeadCat and Squashed-X options help reduce prop visibility in camera feeds, improving flight control and video quality
وصف
Specifications:
- Frame wheelbase: 225mm (Squashed X) / 223mm (DeadCat)
- Frame dimension: L258*W199*H25mm (Squashed X) / L190*W136*H36mm (DeadCat)
- Frame body dimension: 36mm
- Arm thickness: 6mm
- Bottom plate thickness: 3mm
- plate thickness: 2mm
- Upper plate thickness: 3mm
- Camera plate thickness: 3mm
- Motor mounting: 16x16mm
- mounting: 25.
5*25.
5/Φ1.
6mm
- Weight: 150g (excluding TPU parts)
Packing List:
- 1 x Evoque F5 V2 Frame Kit
- 1 x O3 Air Unit Heatsink
- 2 x O3 IPEX to RP-SMA pigtails
- 1 x O3 Dual TPU
- 1 x TPU Base Mount
- 1 x Screw Bag
- 4 x TPU Armguard
- 1 x Front Bumper TPU
- 1 x Rear Bumper TPU
- 2 x Anti-slip pad
- 2 x strap (20*250mm)
Compatibility Disclaimer: This is an aftermarket replacement part.Any brand names or model designations mentioned are used solely for the purpose of demonstrating compatibility.
