Specification:

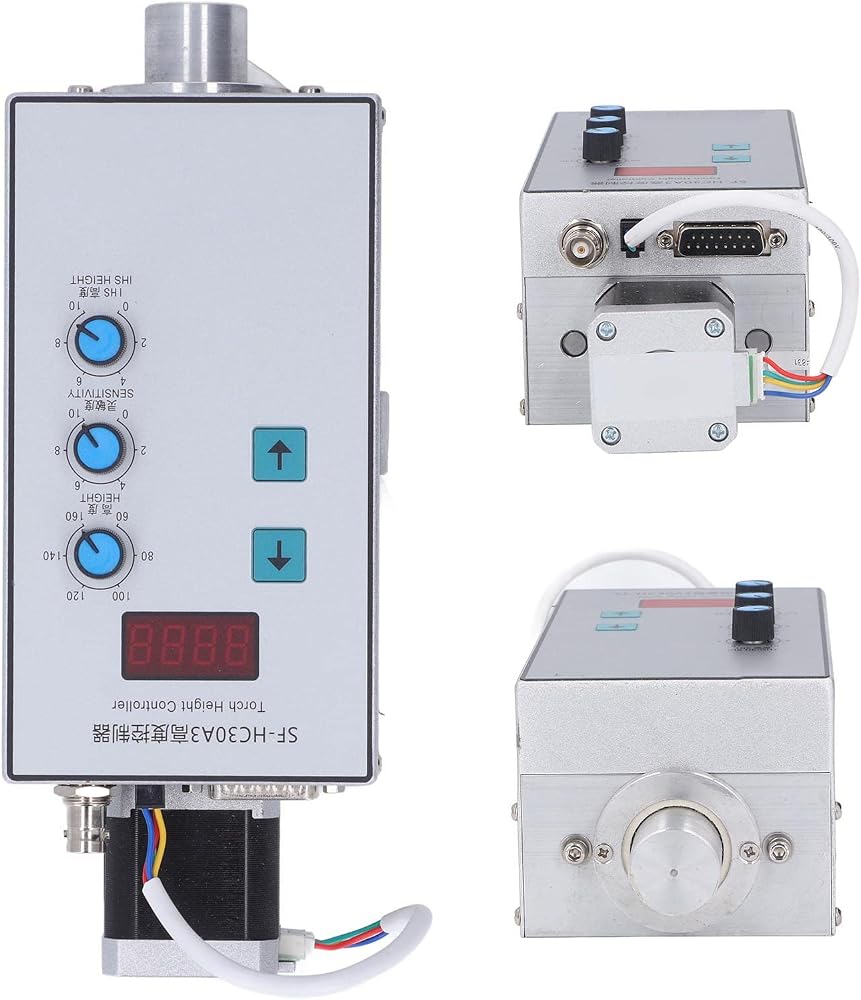

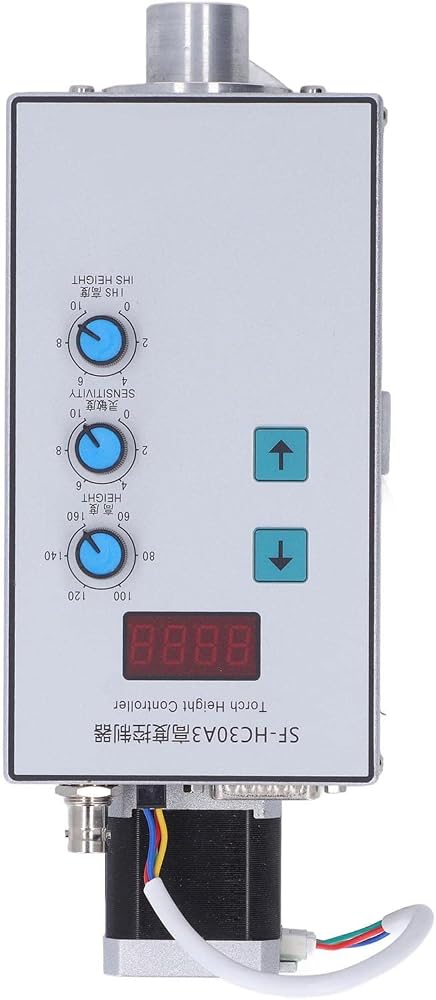

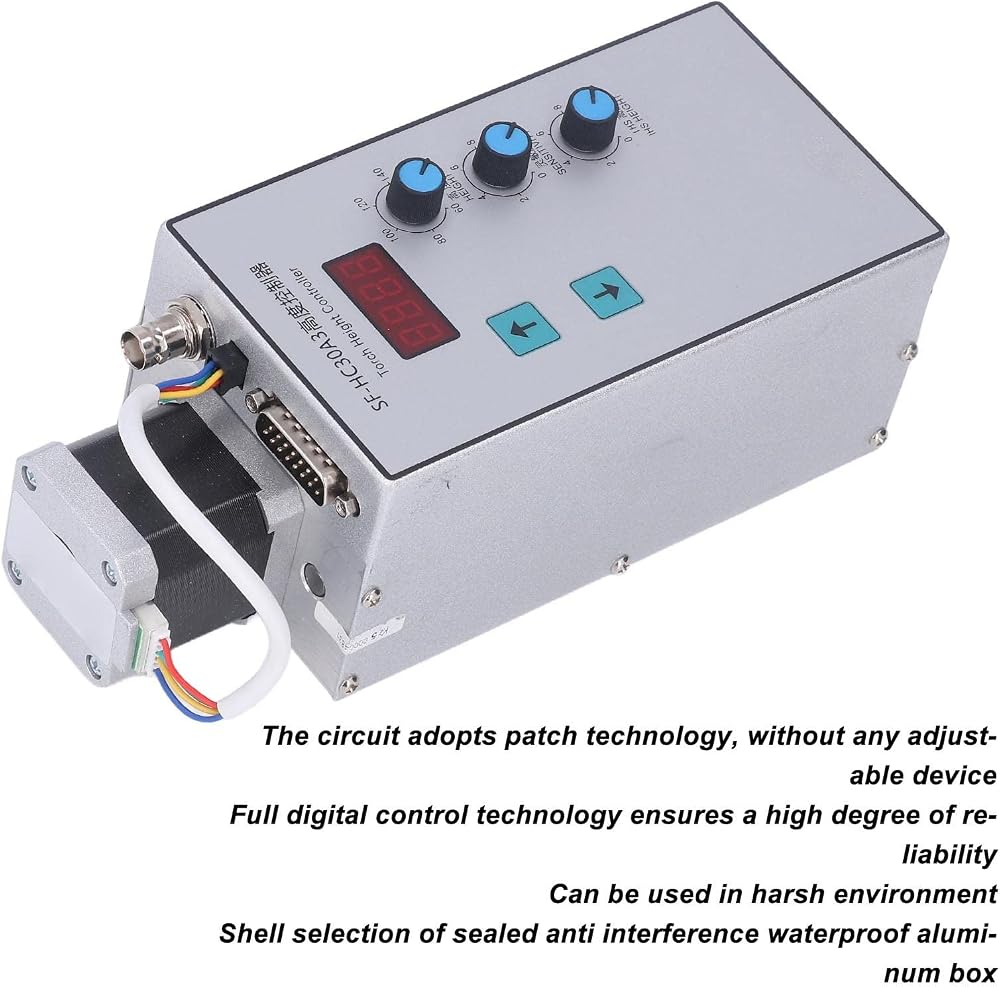

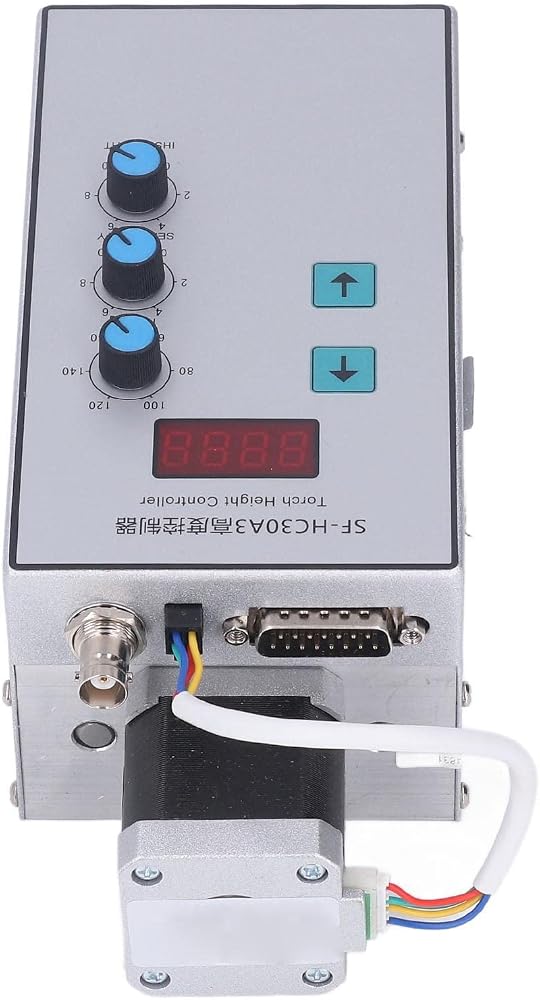

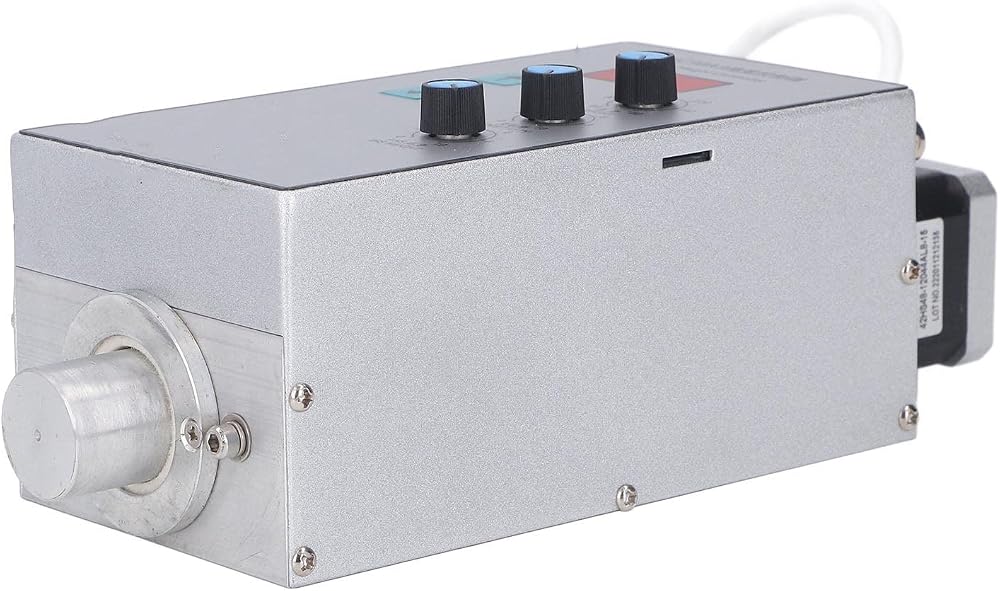

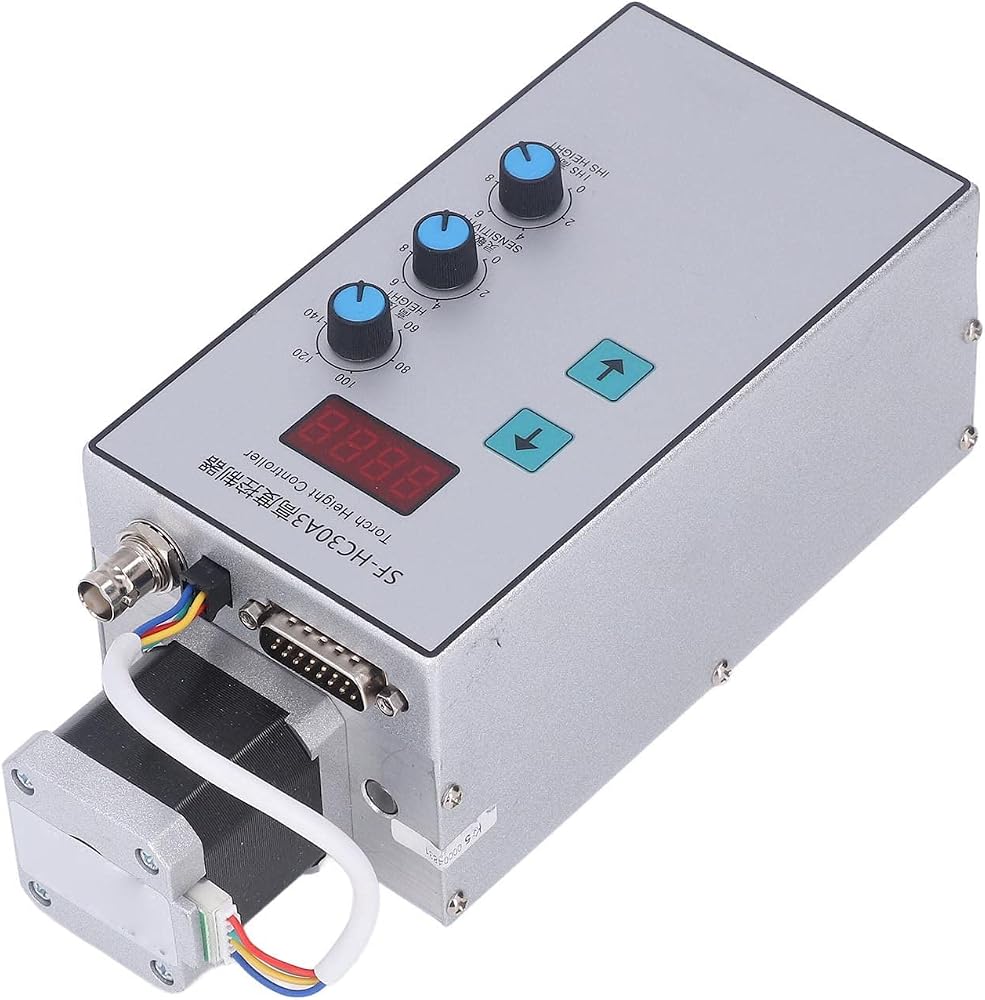

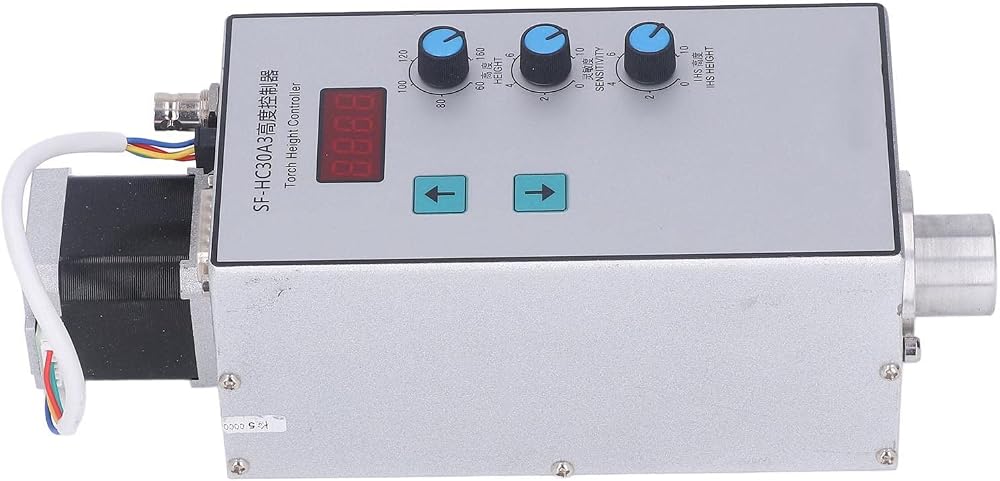

Item Type: Flame Plasma Torch Height Controller
Material: Aluminum Alloy
Power requirements: DC 24 V ± 2 V 3 A
Applicable motor: 17hs(42) series stepper motor
Manual adjustment range: approx. 0-100 mm / 0-3.9 inches

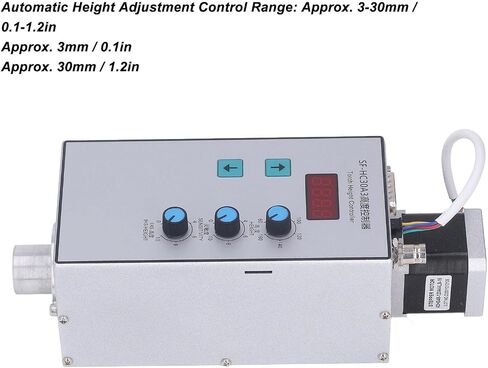

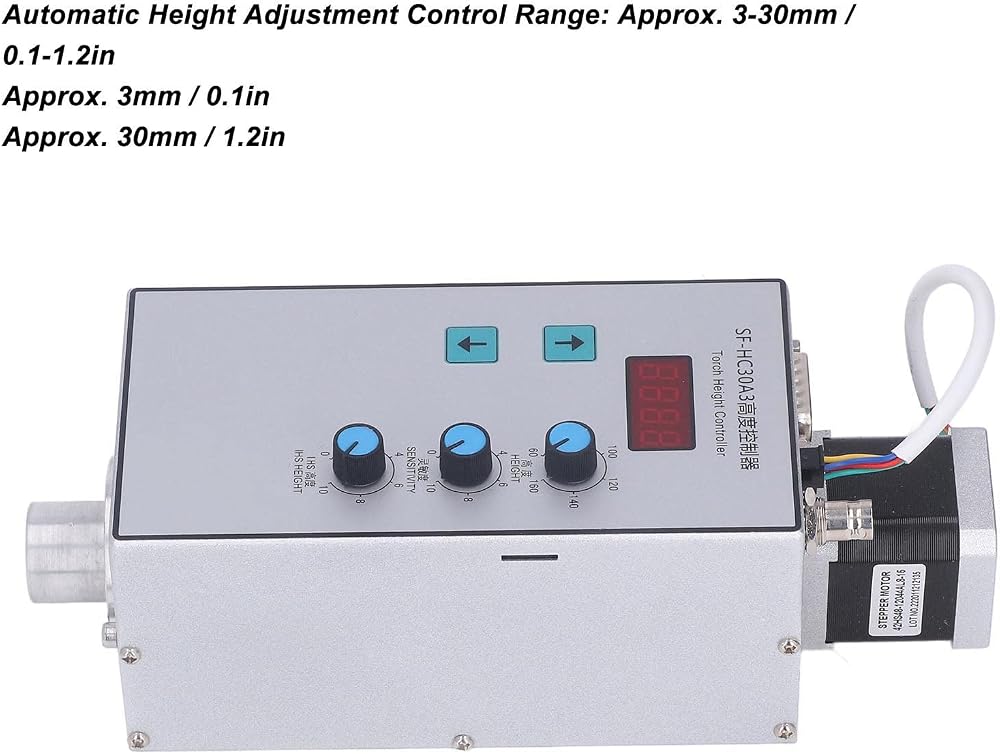

Automatic height adjustment control range: approx. 3-30mm/0.1-1.2inch
Automatic height adjustment speed: 2400mm/minute
Control accuracy: ±0.5mm
Working ambient temperature: -10℃-50℃
Detection System: Capacitive Detector, Arc Voltage Height Detector

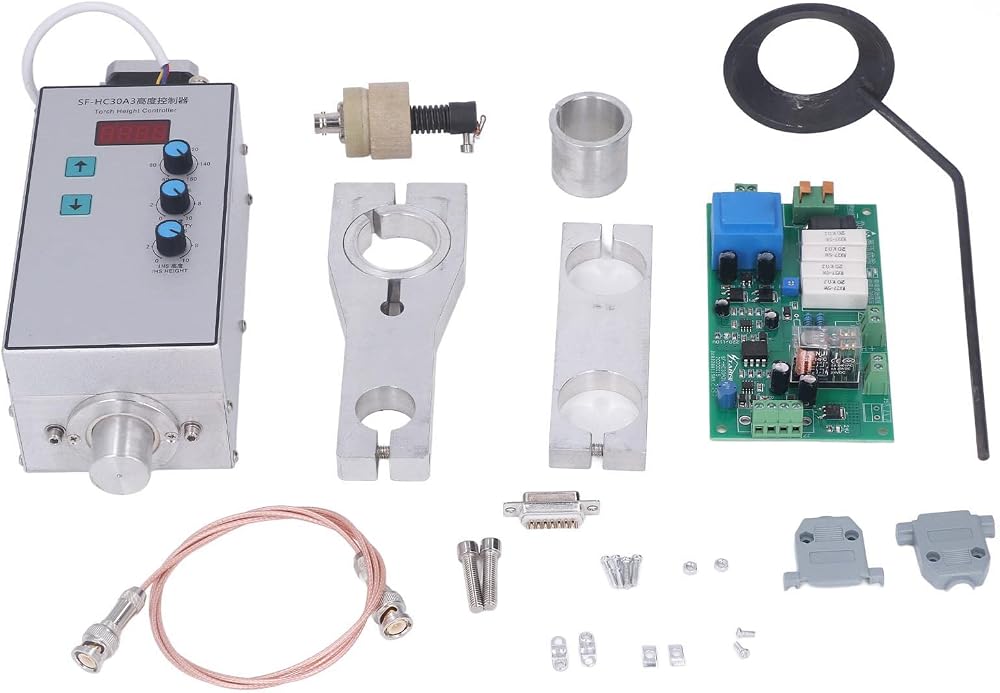

Package List:
1 x Host1 x Torch Holder
1 x Detection Ring Holder
1 x Detection Ring Anti-Collision Device
1 x Detection Ring Fixed Ring
1 x Detection Ring
1 x Cable
1 x Voltage Splitter
8 screws
2 nuts
1 x Interface Accessory
4 x Clamping accessory
2 x Plug Housings

Note:
1.The installer must be a technician in the relevant industry or with relevant experience.
2.This manual should be read carefully before installation.
3.Verify that the selected power supply matches the required specifications.
4. It is strictly forbidden to install, insert or disconnect the plug while it is turned on.
5. Install as far as possible from heat sources.
6. The controller housing must be well grounded to prevent electric shock or affect the operation of the controller.
7. The cut steel plate should be well grounded and maintain a good connection with the controller housing to ensure the accuracy of height control.
