RADI FANS below 8KW ( If you choose this, it means that only fans and radiators below 8KW are included, and modules are not included )
RADI FANS below 12KW( If you choose this, it means that only fans and radiators below 12KW are included, and modules are not included )
Radiators below 4KW( If you choose this, it means that only the heat sink used below 4KW does not include modules and fans)

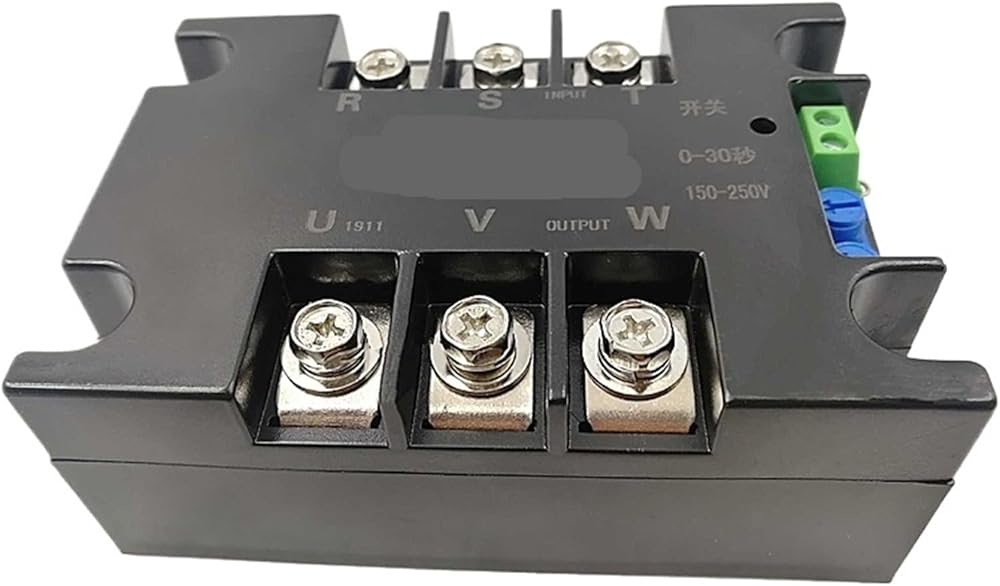

Three-phase motor soft start module
Soft start time is adjustable in 30 seconds (time rise refers to 0-380V)
The starting voltage is adjustable from 150-240V to the rated voltage (380V)
There are two ways to use
1. When the switch is closed, the main power is energized, and the soft start starts.
2. Use the switch to control, close the soft start to start, disconnect the stop
The soft start module has three programs
1. R1 has soft start but no soft stop
2. R2 has soft start and soft stop (stop from how much V starts)
3. R2 has soft start and soft stop (soft stop to 0)
Note:
1. No voltage can be applied to the switch
2. No default R1 required
3. Please install the heat sink to use this module
4. Please explain if there is a need for power-in phase loss protection (no default by default)
Uses:water pump, fan, aircraft, ordinary motor soft start, substitute for inverter soft start, substitute for star-delta soft start, etc. The wiring is super simple, no bypass contactor is required, and the function is powerful.
When the starting potentiometer is set halfway, it starts at 200V
The maximum time for the soft start potentiometer is 30 seconds, corresponding to a full range of 380V
For example, when fully adjusted to the minimum, the starting voltage of 150V takes 0 seconds
When fully adjusted to half: starting at 200V, the soft start time is about 7 seconds
When fully adjusted to maximum: it takes 10 seconds for the starting voltage from 250V to 380V
==========
Voltage : 380V
is_customized : Yes
Model Number : Three-phase motor soft starter module
380V Three-Phase Intelligent Motor Soft Starter Soft Start Module Soft Start Cabinet Slow Start 1KW-20KW For Water Pumps
