مميزات خاصة

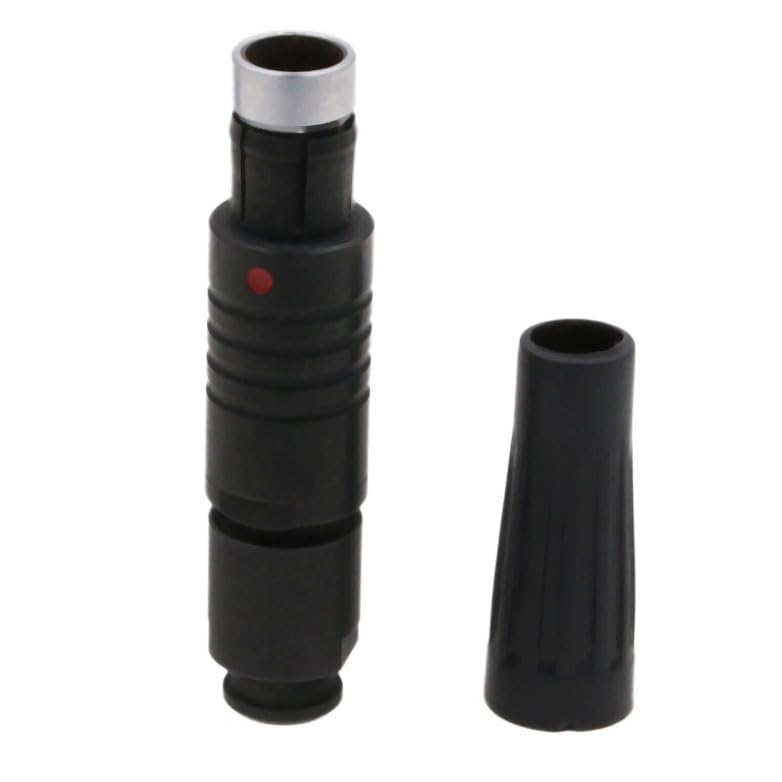

6 pin female connector, compatible for LEMO-type 1B.FGJ.306.CWLD72Z, Reverse Gender
[Keying] 2 keys, gamma=45. Rated current: 7 Amps. AWG wire size: 22-30, cable diameter: 2.5mm-7.9mm. Contact diameter: 0.7 mm, stranded conductor section AWG 22 max
Power connector 9-24V for RED DSMC3 V-Raptor, Komodo-X, EPIC-W, SCARLET-W, RAVEN, EPIC/SCARLET DRAGON / M-X, DSMC2 MONSTRO HELIUM GEMINI, WEAPON 8K / S35 / 6K. for DJI Ronin 4D camera, video transmitter receiver system, Master Wheel
It is widely used in area of audio video, energy and industrial, medical, semiconductor, specialties and other, test and measurement, transportation, aerospace and UAV
Circular, push-pull self-latching, cable mounting, solder termination, IP50 rating. Reliable, 360 degree complete EMC shielding, shock / vibration / corrosion resistance

وصف

Compatible for LEMO-type connectors. Contacts 6
Wire diameter max: 6pin: 22AWG. Cable Outer Diameter Range: 3mm-8mm
Protection Rating: IP50
Shell Material: Brass chrome plated
Contact Material: Brass gold plated
Termination: Solder
Mating Cycle: >4000 times
Temperature Range: -45~+125â
We also supply all kinds of circular connectors( plug, panel mount socket, free socket, male or female contact, straight or right angle style, / blue / golden / white anodized).
