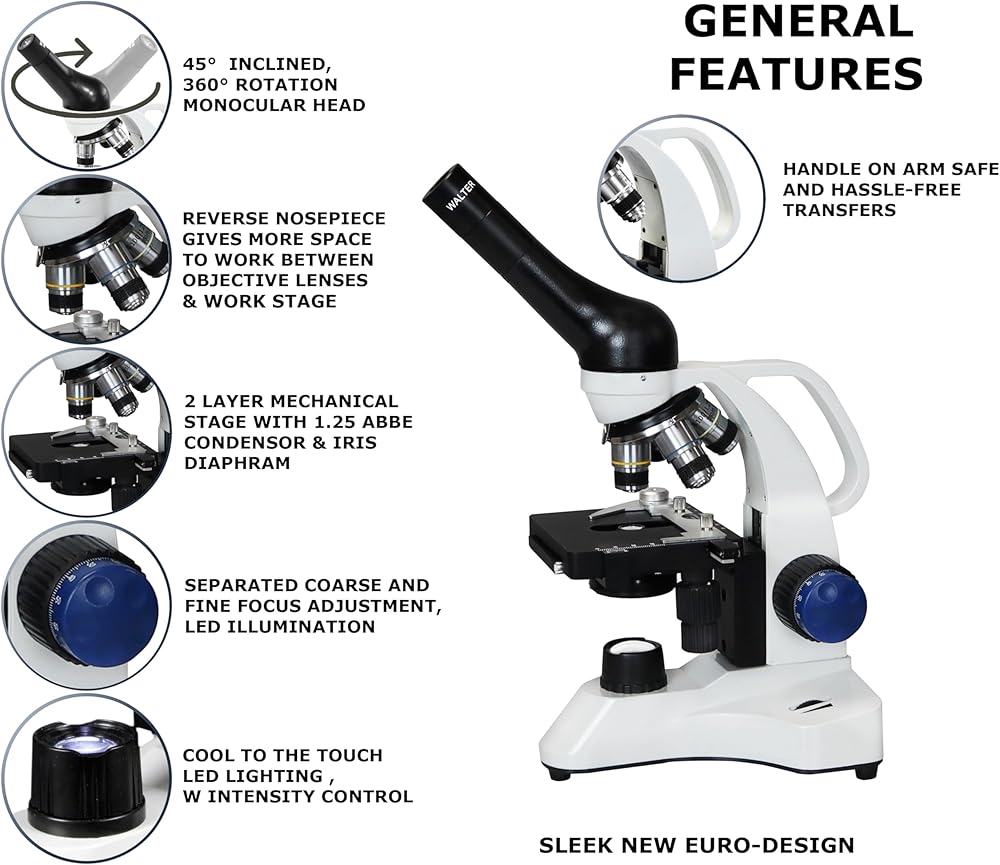

This Parco Scientific 3050 monocular compound microscope has a 45° inclined head that rotates 360°, and comes with a 10x Widefield eyepiece with a pointer. The eyepiece pointer ensures that definite points on the slide can be easily and quickly identified.
The 40xR and 100xR objectives are retractable and spring-loaded to prevent damage to slides and objectives when focusing. It is also sealed to protect against further damage that can be caused from contact with liquid or oils.

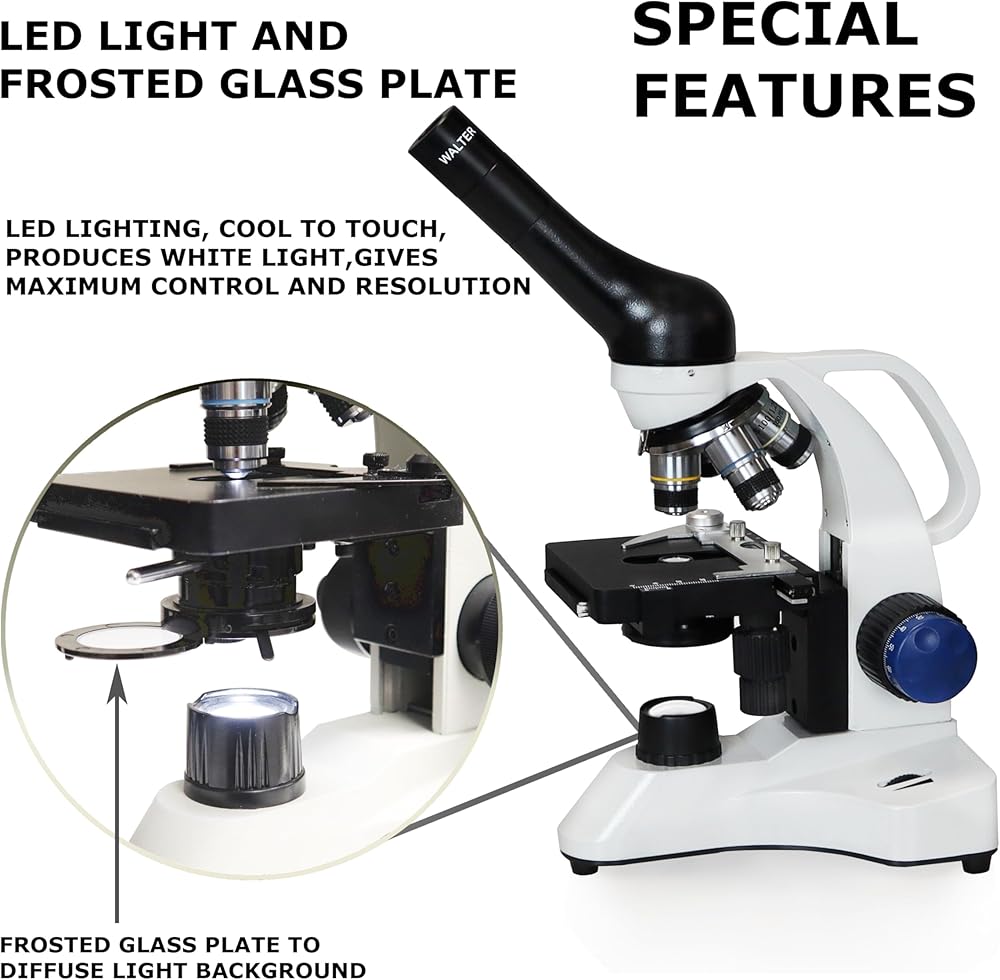

Brightfield LED illumination illuminates the specimen from below, making the specimen appear bright, but much darker than the bright background. This allows the darker specimen to be contrasted by the surrounding bright viewing field.
Specifications

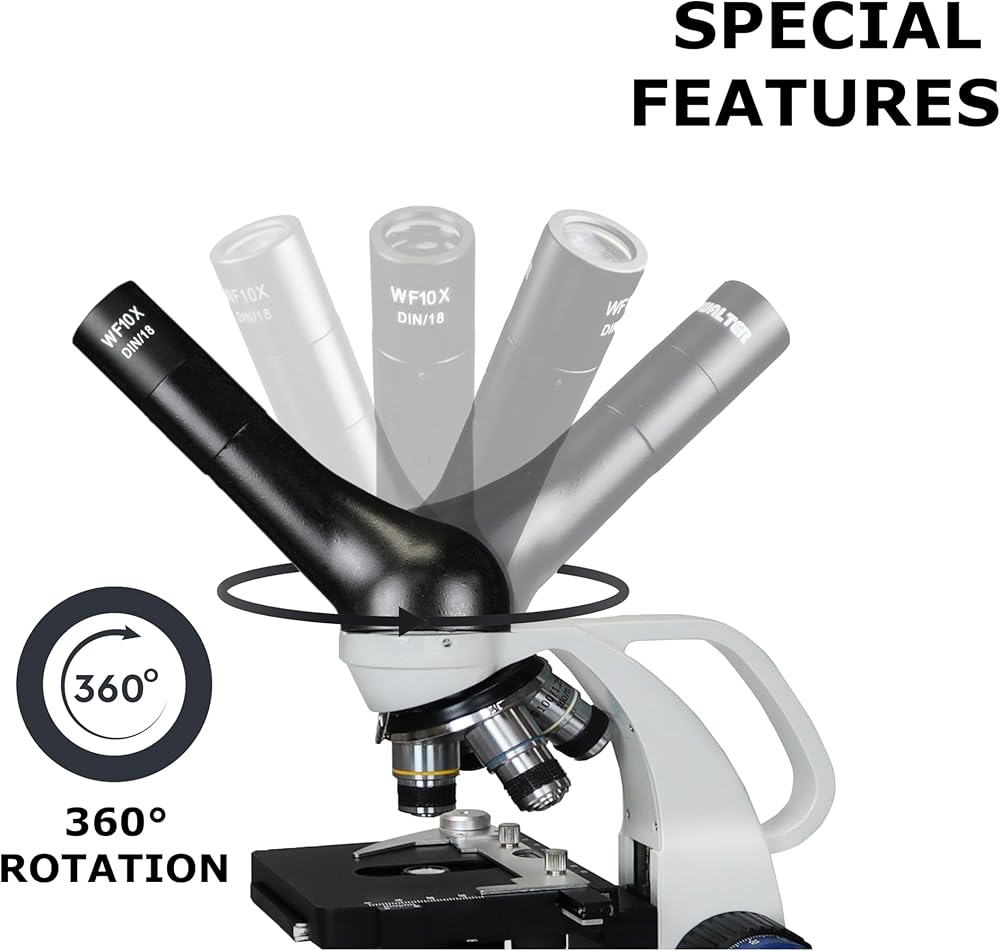

Head: Monocular, 45° inclined, rotates 360°

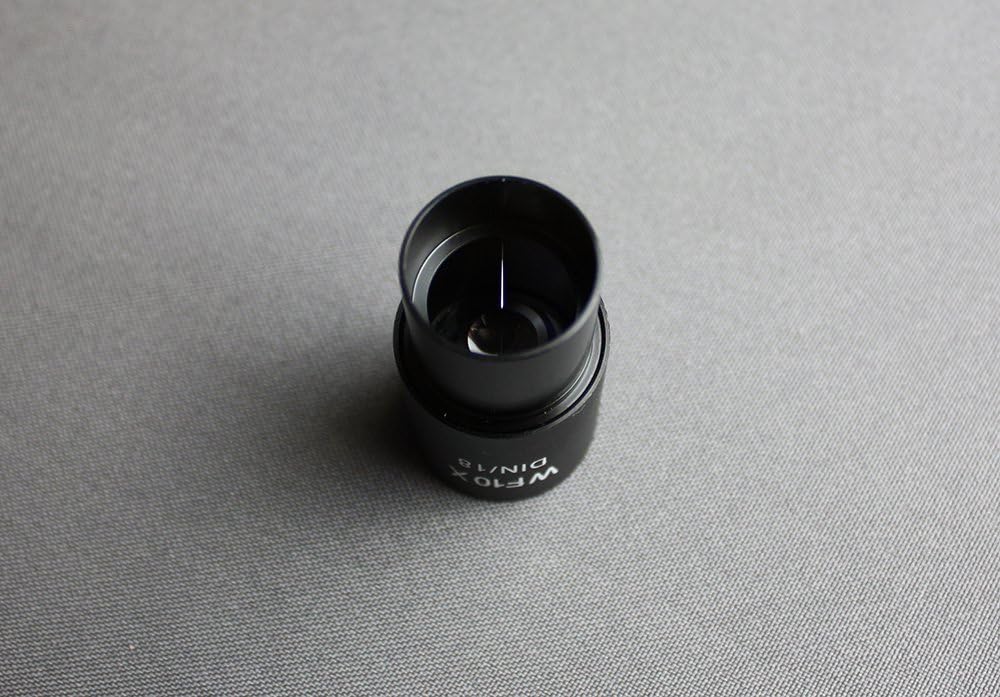

Eyepiece: WF 10x with pointer
Magnification: 40x, 100x, 400x, 1000x
Nosepiece: 4 hole objective turret; reverse position with click stops
Objective Lens: 4x, 10x, 40xR, 100xR oil DIN achromatic

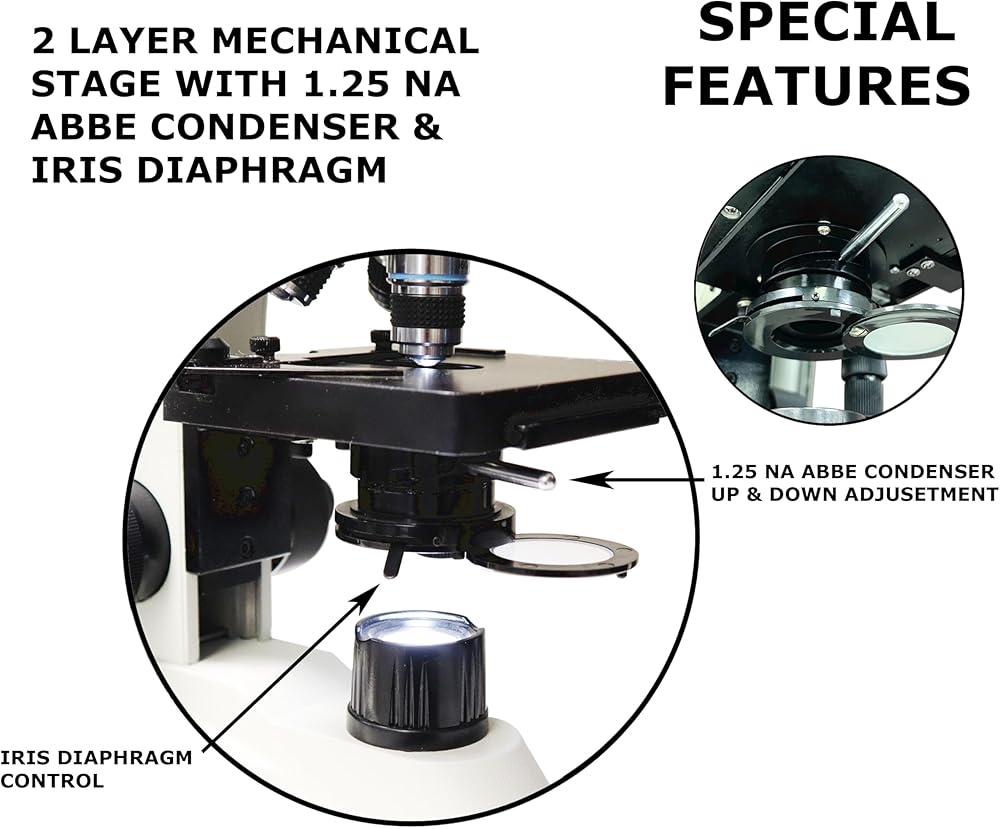

Stage: Built in, double layer mechanical stage 4” x 3 ½ “ (W x D)

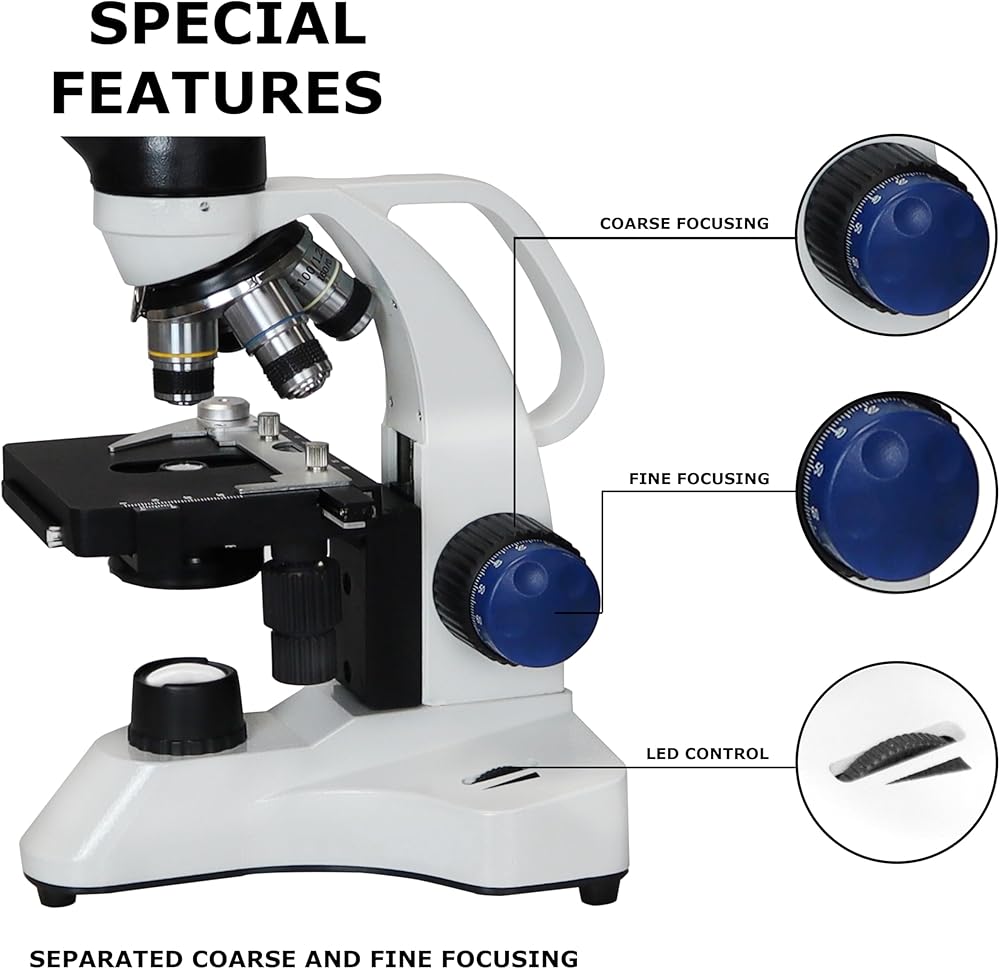

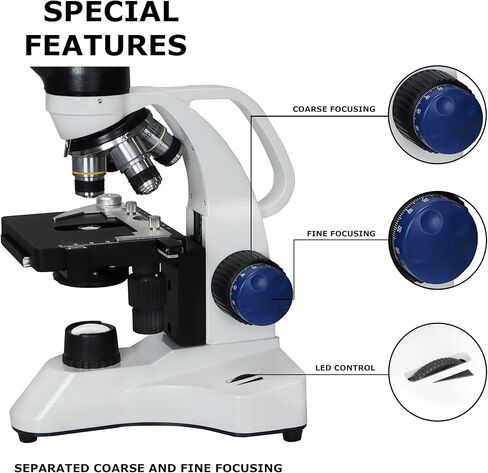

Focusing: Coaxial coarse and fine focusing
Condenser: 1.25 NA Abbe condenser
Diaphragm: Iris diaphragm with swing out filter holder
Light Source: LED illumination with intensity control
Power: 110V or Rechargeable (Cordless)
Overall Dimensions: 13” X 6” X 7” / Weight: 5 lbs

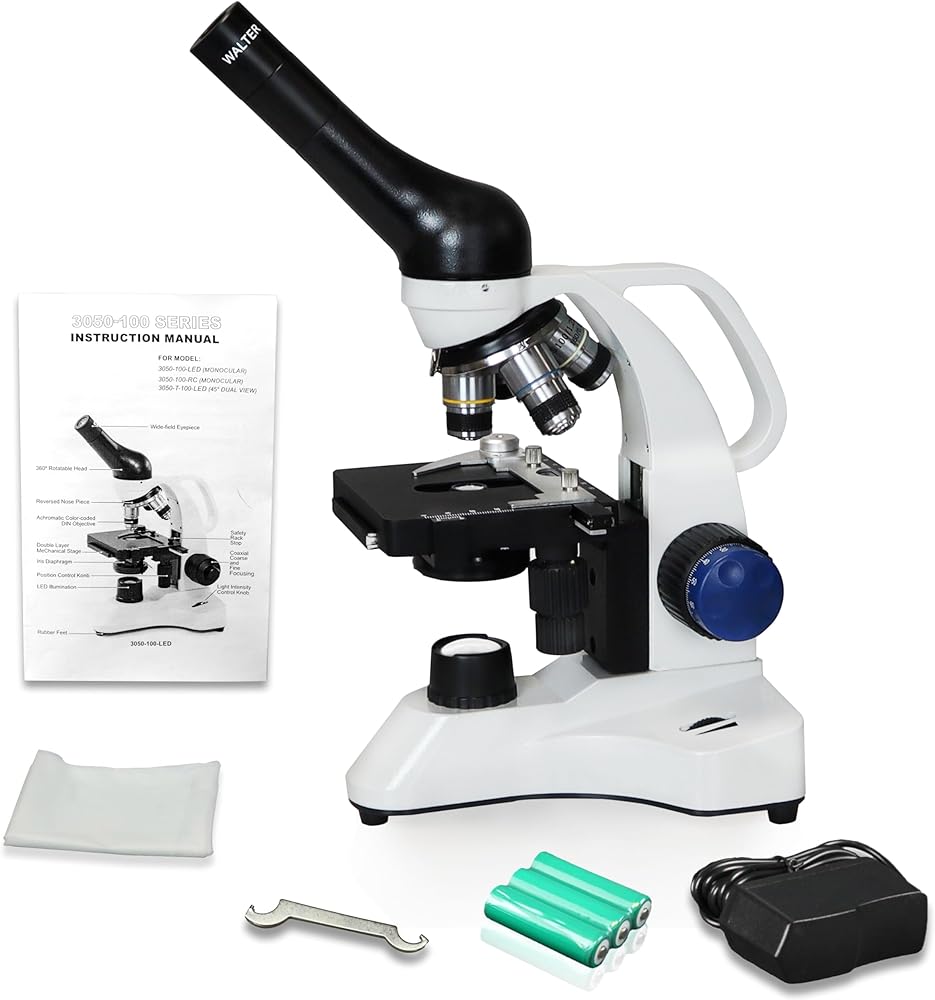

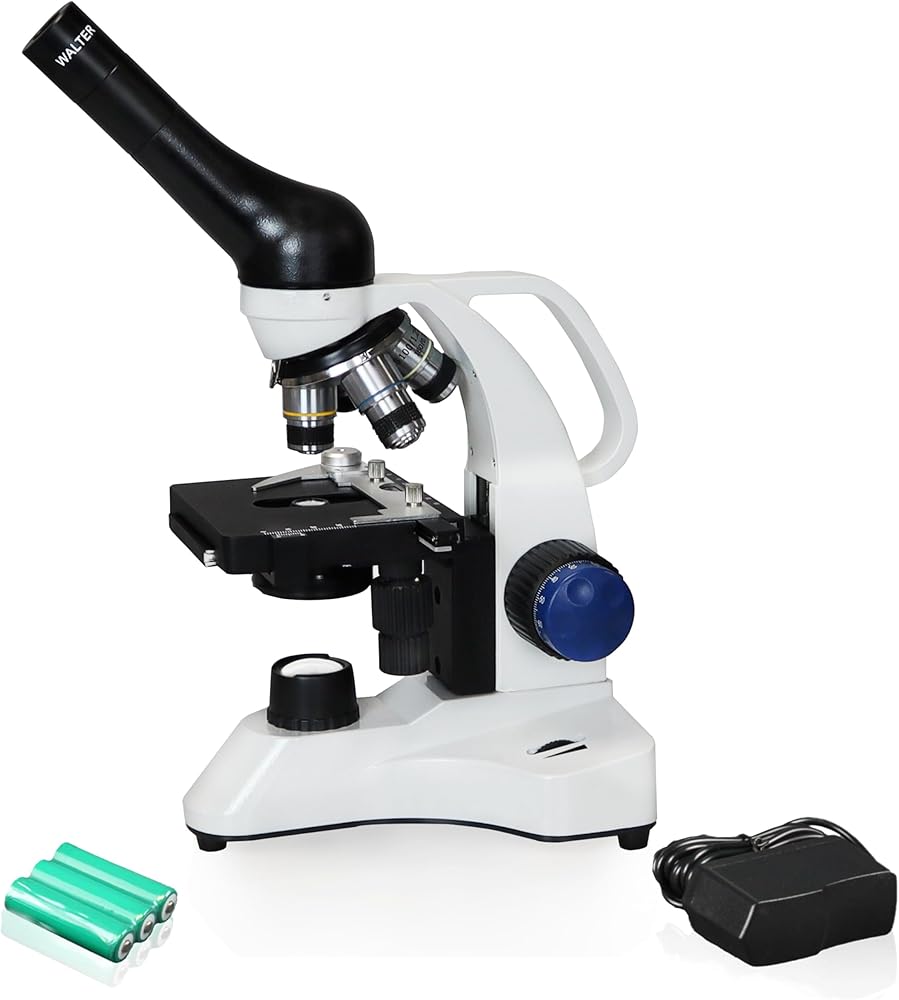

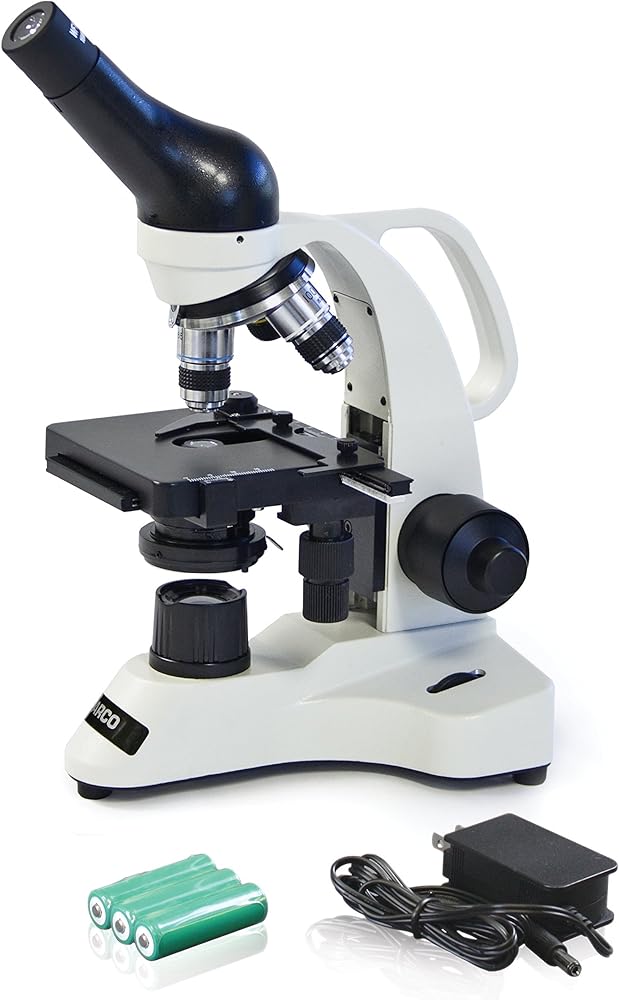

Packing List
Monocular biological microscope with LED illumination
One 10x widefield eyepiece with pointer
4x, 10x, 40xR, 100xR objectives
Double layer, built-in mechanical stage with 2 Stage clips
Three rechargeable batteries
One dust cover
User manual
