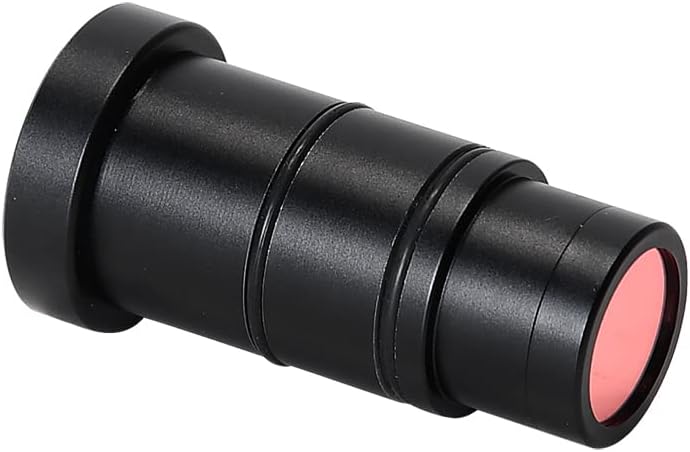

This microscope digital eyepiece has Type-C USB2.0 interface, high-speed design, up to 480Mb/s. Adopts large area array CMOS progressive scan imaging sensor. port for static and dynamic imaging ture. High compatibility, port Wins 2000, XP, WIN7 operating system. Wide applications, it can be widely used in pattern recognition, industrial testing, microscopy and traffic management, and other fields.

Specifications:
Name: Digital Eyepiece
Material: plastics+glass
Resolution: 640*480, 1280*1024, 1600*1200, 1920*1080, 2048*1536, 2592*1944 @30fps
Shutter: Digital Shutter
SNR: 39dB
Pixel size: 2.2μm * 2.2μm
Shutter type: Rolling shutter
Scan: progressive scan
White Balance: Auto/Manual
Working temperature: 0°C~50°C
Interface: USB 2.0 (480 Mbit/s)
Depth of pixel bit: 10bit
Exposure time s (ms): 0.02~155.5ms
Filter: Standard 650nm infrared cut-off filter
Software function: Imaging display, Imaging shoots, video records, measurement, etc.
Working current: ≈200mA
Application: Microscope imaging, general imaging acquisition, ro imaging, etc.
port OTG to Android cellphone (OTG Cable is not included)
Package size: 160 * 80 * 100mm / 6.30 * 3.15 * 3.94in
Package weight: 180g / 9.35ounce

Packing List:

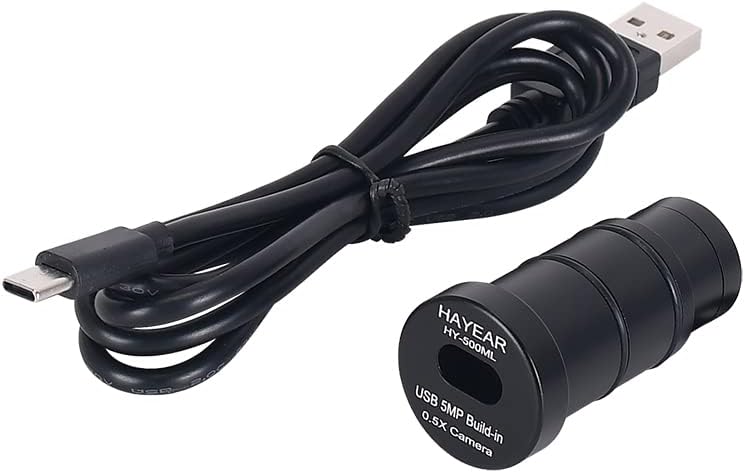

1 * 5MP Digital Eyepiece
1 * TYPE-C Cable
1 * Measurement Software (Online Download)

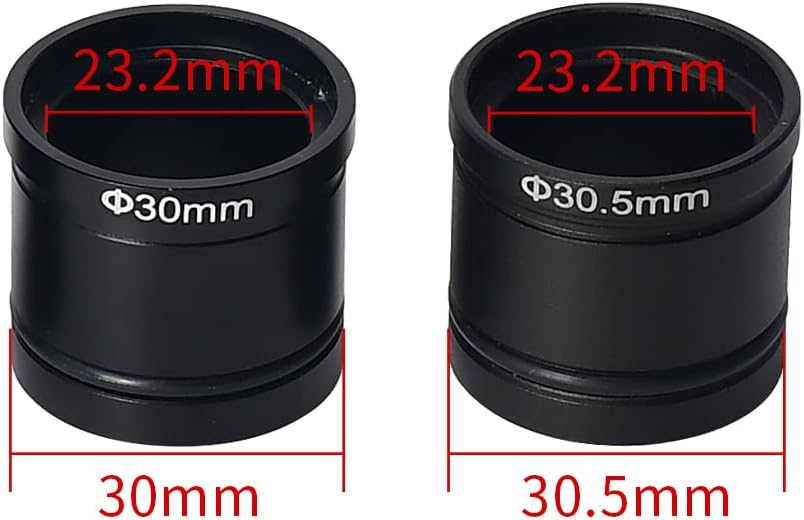

1 * 30/30.5mm Adapter
