Specification:

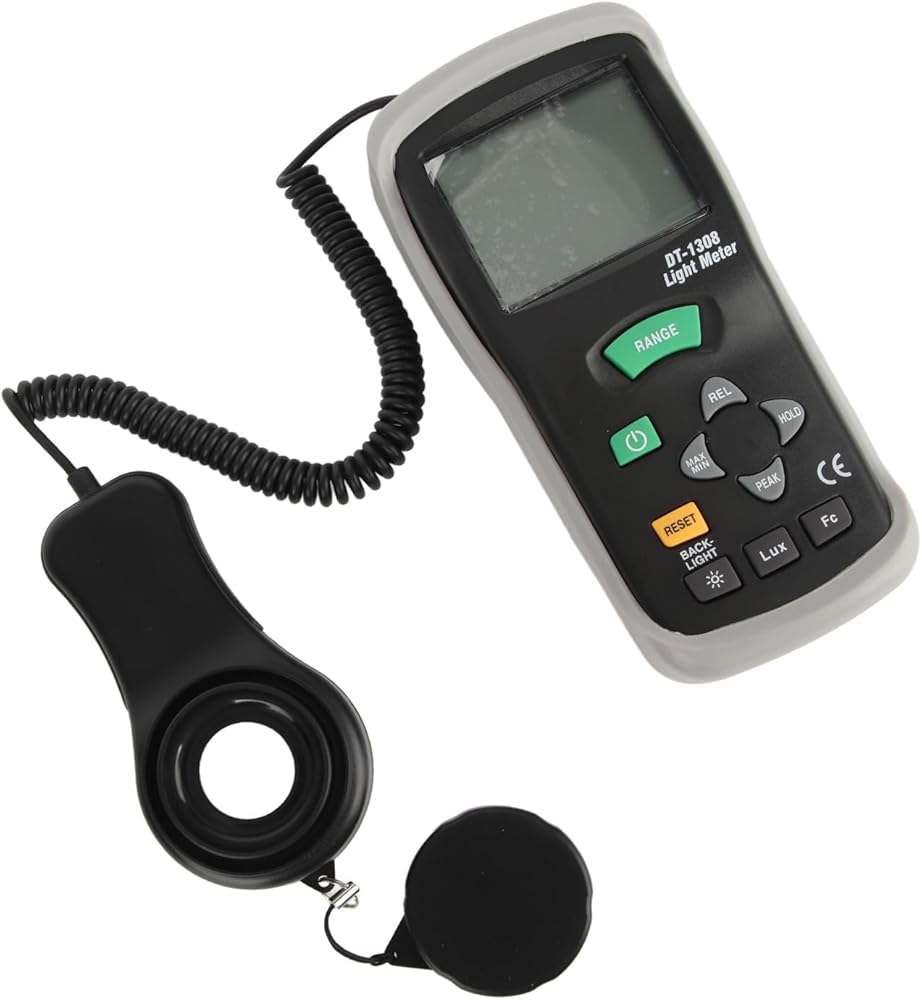

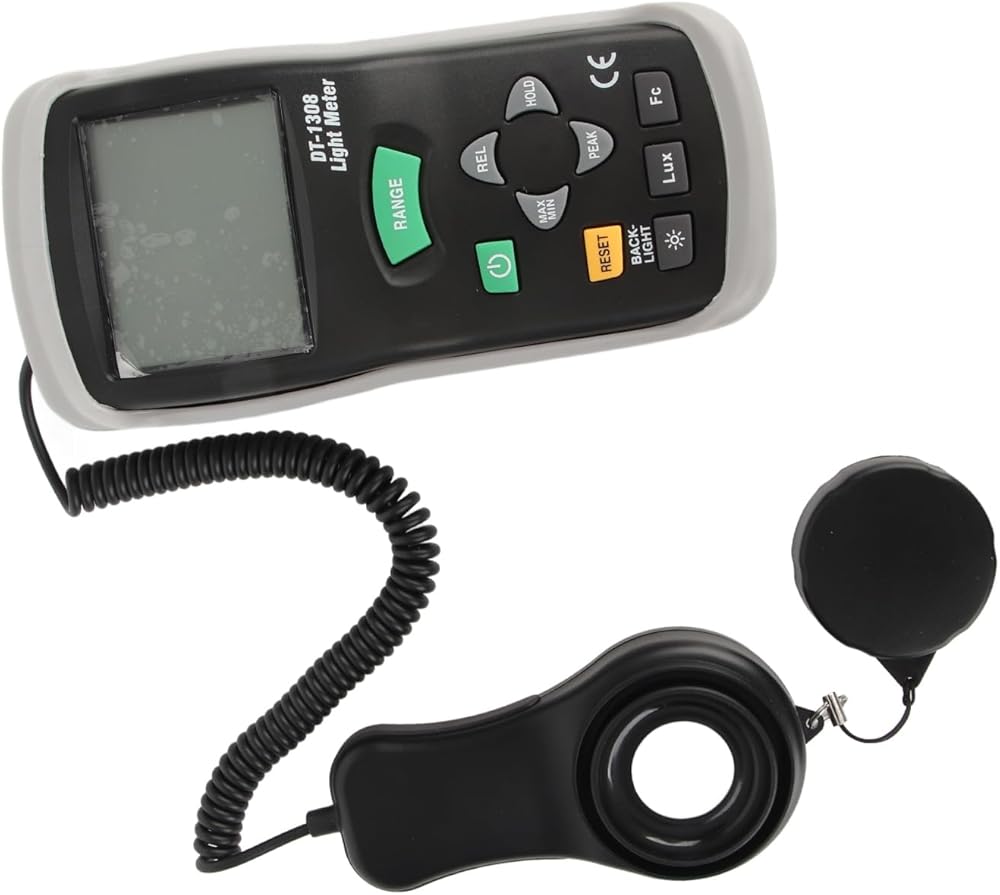

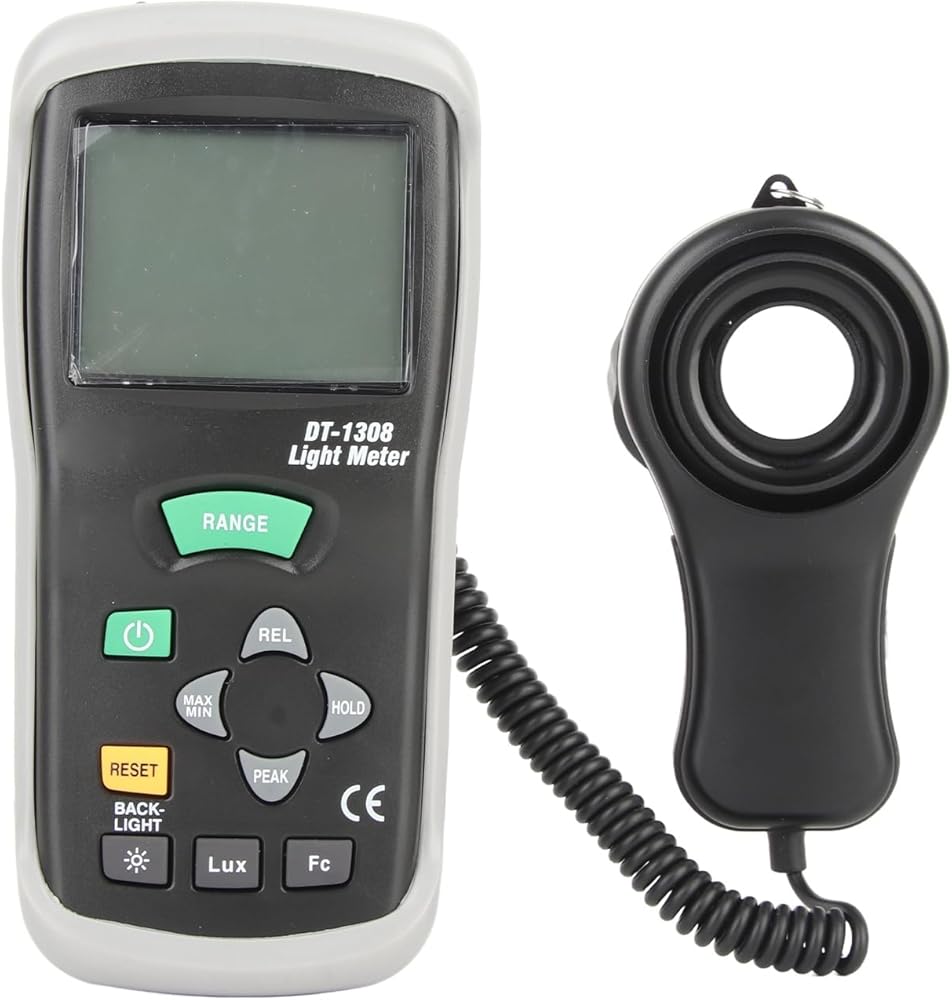

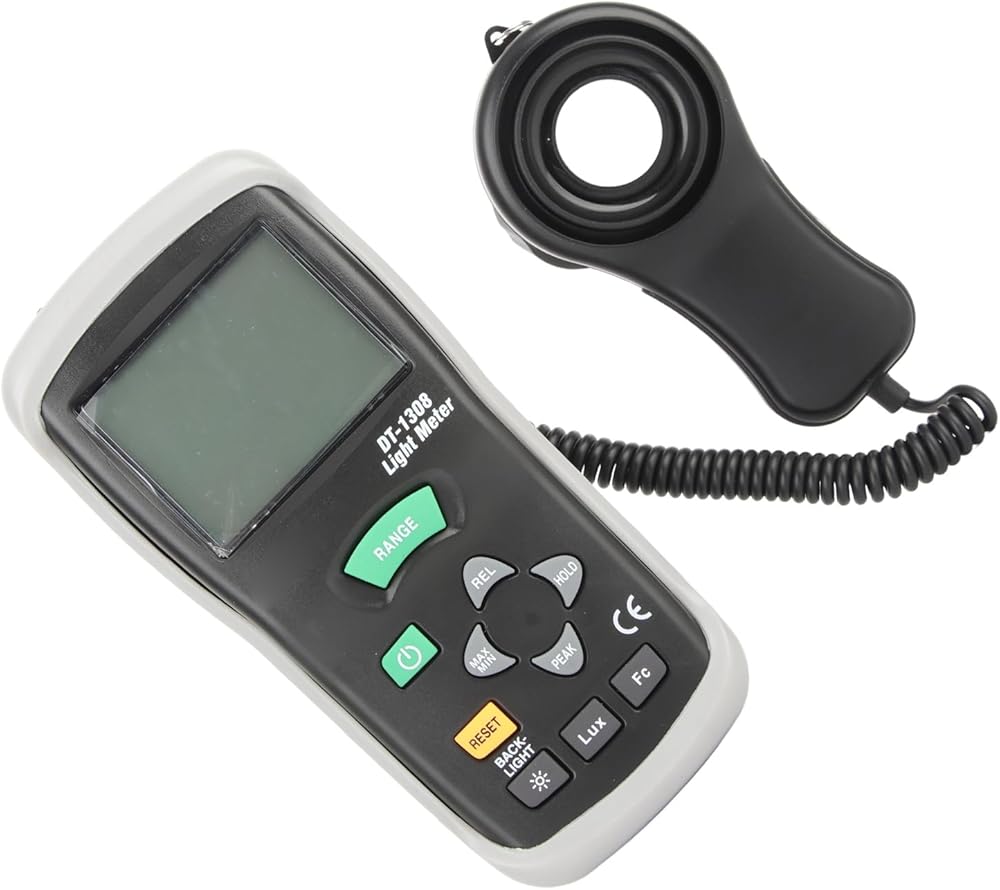

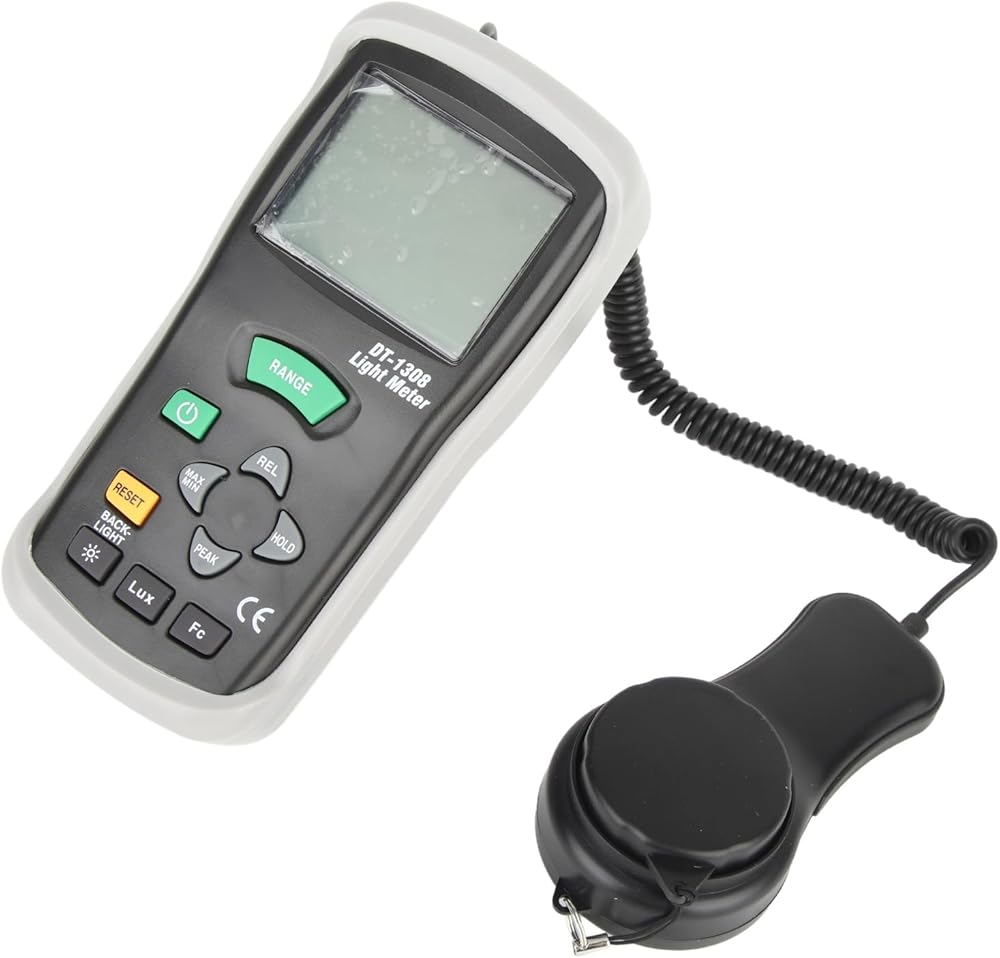

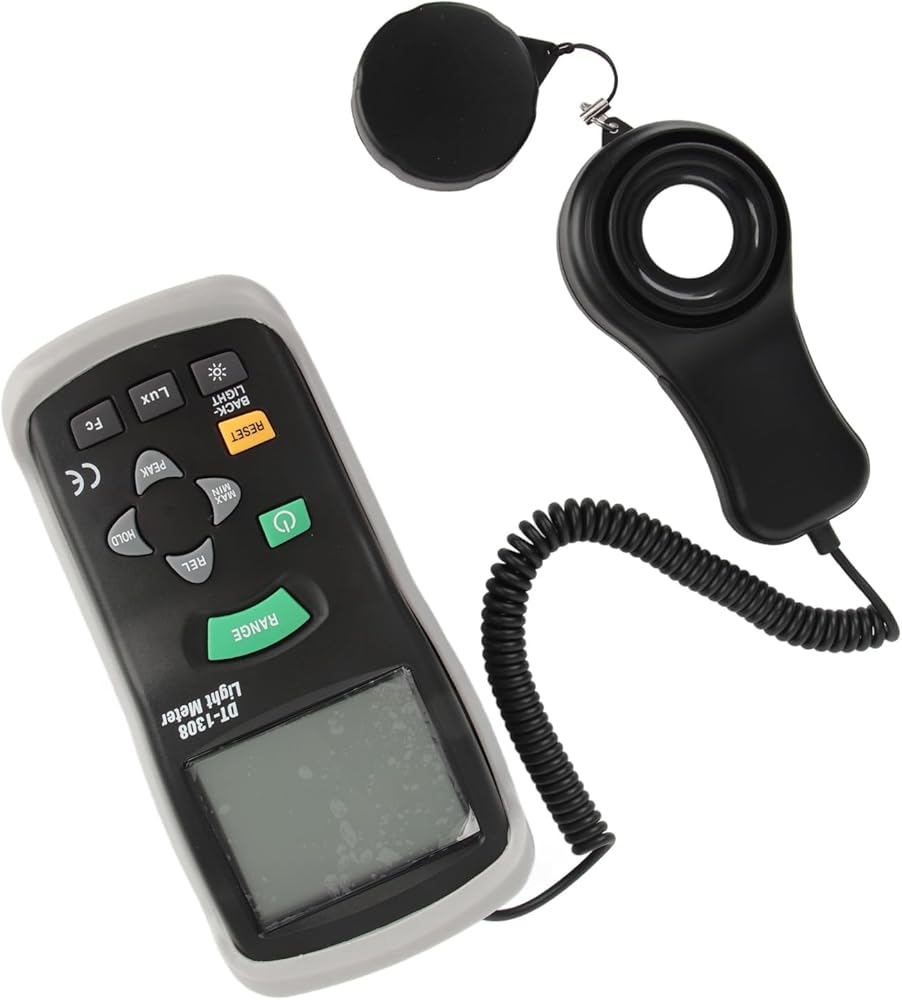

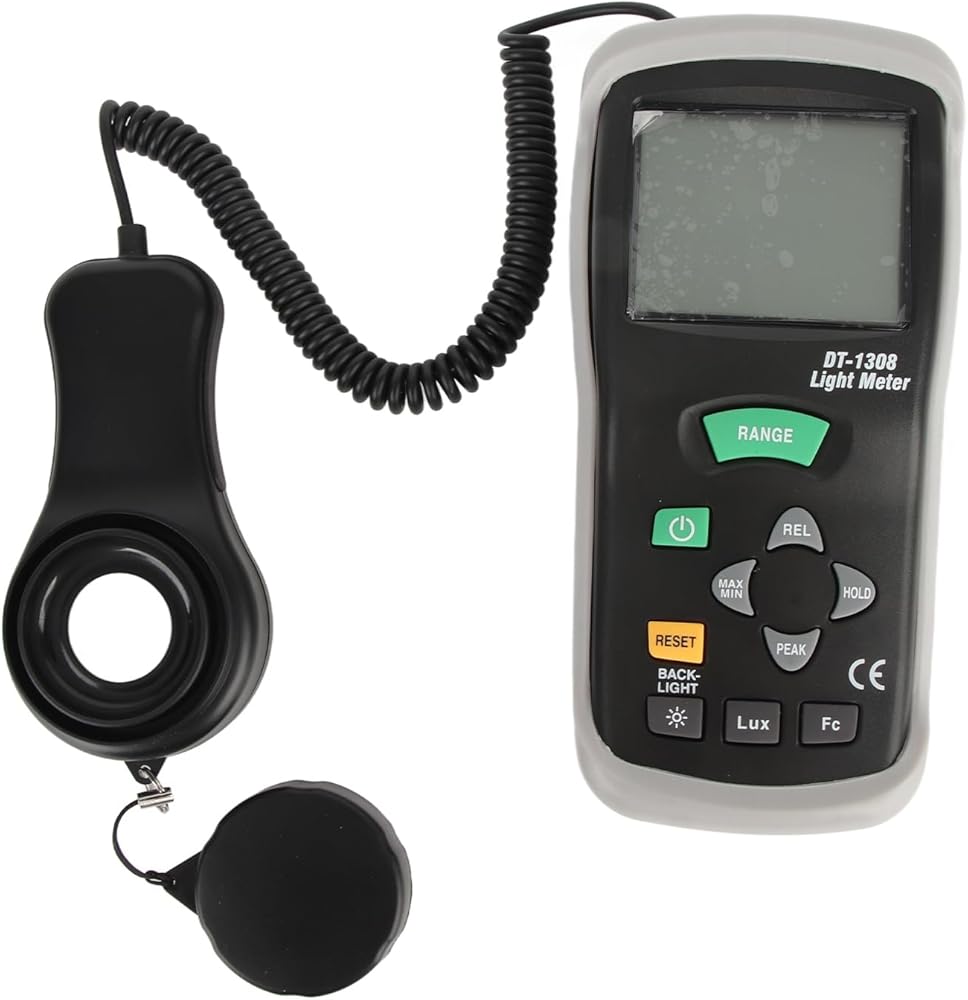

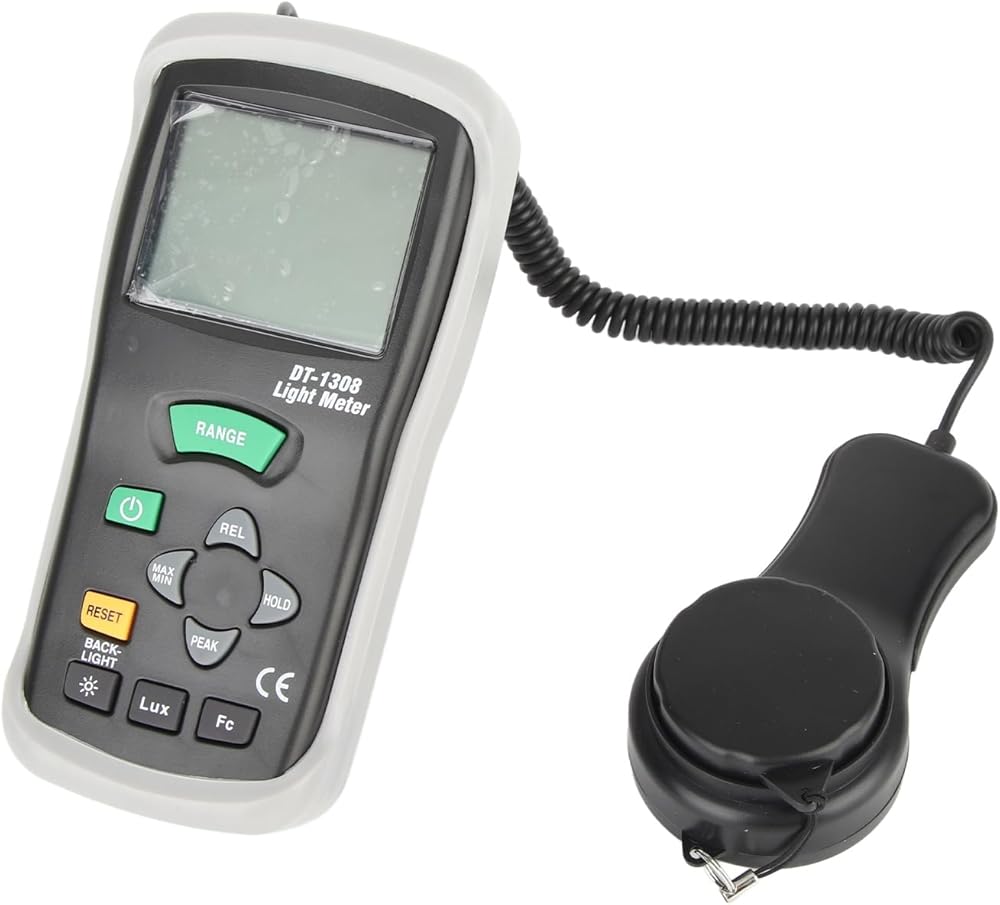

Item Type: Illuminance Meter
Material: ABS
Model: DT-1308

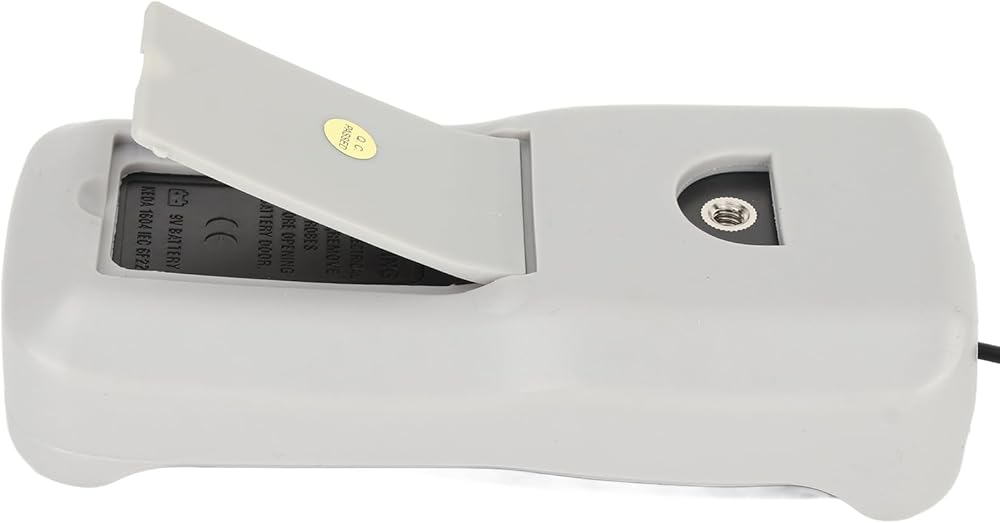

Battery: 6F22 1x9V (not included)
Purpose: Illumination measurement
Liquid Crystal Display: With 42-segment high speed analog bar and 3-3/4digit digital liquid crystal display
Measuring Range: 40.00lx, 400.0lx, 4000lx, 40.00klx and 3000klx/40.00fc, 400.0fc, 4000fc, 30.00kfc
Over Range Display: LCD will display OL sign
spectroscopic Response: CIE (curve range that CIE human eye responds to) adapted to light, color temperature
Digital Display Sampling Rate: 2~3 times/sec
Sensor: Silicon photodiode and spectroscopic filter
Working Temperature and humidity: 0℃~40℃(32℉to104℉)&0%RH~80%RH
Features: Current value hold, peak value lock, relative value measurement, unit interchange, range selection

How to Use:
1. Turn off the power: press the power control key to the meter on
or off.
2. Select LX (lx) or FC (footcandle) unit range
3. Remove the cover of the photometric probe in a horizontal position and it face the light source vertically.
4. Read the value from the LCD screen. TD
5. Over range range: If only OL is displayed, the input is too strong, so a larger range should be selected.

PackageList:
1 Illuminance Meter(Battery Not Included)
1 Tool Bag
1 Manual

Notice:
Do not store in places where humidity and temperature are too high.
