Industrial 8-Channel ESP32-S3 WiFi Relay Module, Built-in Xtensa 32-bit LX7 Dual-core Processor, Onboard Isolated CAN Interface, PoE Ethernet Port @XYGStudy (ESP32-S3-POE-ETH-8DI-8RO-C) in Saudi Arabia

Industrial 8-Channel ESP32-S3 WiFi Relay Module, Built-in Xtensa 32-bit LX7 Dual-core Processor, Onboard Isolated RS485 Interface @XYGStudy (ESP32-S3-ETH-8DI-8RO)

SAR 306
Brand
XYGStudy
Category
– 1 +

Special Features

  • Part Number: ESP32-S3-POE-ETH-8DI-8RO-C
  • Onboard Digital input, CAN, and ethernet port interfaces. Built-in protection circuits such as power isolation and optocoupler isolation, Safe & Stable & Reliable
  • Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz. Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance. High quality relay, contact rating: ≤10A 250V AC / 30V DC
  • Supports passive and active digital input, with bi-directional optocoupler isolation. The relay supports digital input linkage control. Onboard isolated CAN interface, for connecting to various CAN devices. Onboard pin header, allowing access to other devices. Onboard USB Type-C port for power supply, firmware downloading and debugging
  • Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications. Onboard RTC chip, supports scheduled tasks. Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface. Optional for PoE network port version, with built-in PoE module for PoE capability (compliant with IEEE 802.3af standard)

Description

Overview
Industrial 8-Channel ESP32-S3 WiFi Relay Module, Onboard isolated CAN interface, Built-in Xtensa 32-bit LX7 Dual-core Processor, Up To 240MHz, With Multiple Isolation Protection Circuits

Package Contains :

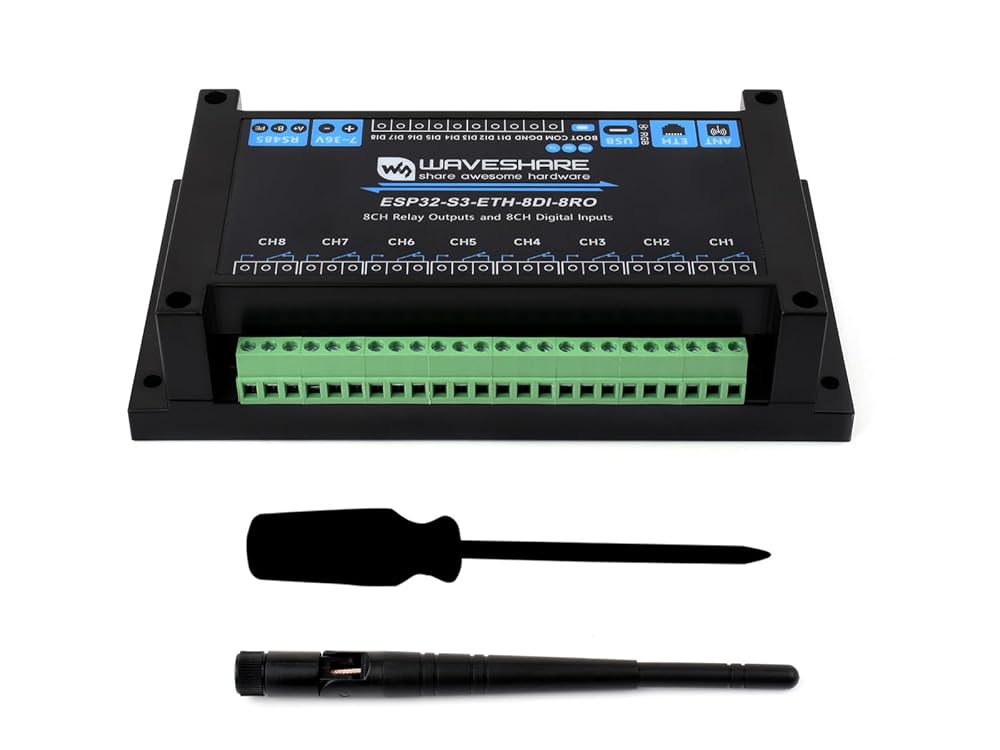

ESP32-S3-POE-ETH-8DI-8RO-C × 1
2.4G 4DB SMA antenna × 1
Screwdriver × 1

For more resources you may need, pls contact me via Amazon message, i will send you then via attachment.
