مميزات خاصة

For Cortex‑M3 MCU with 2MB flash memory and 128KB , using for FreeRTOS operating system

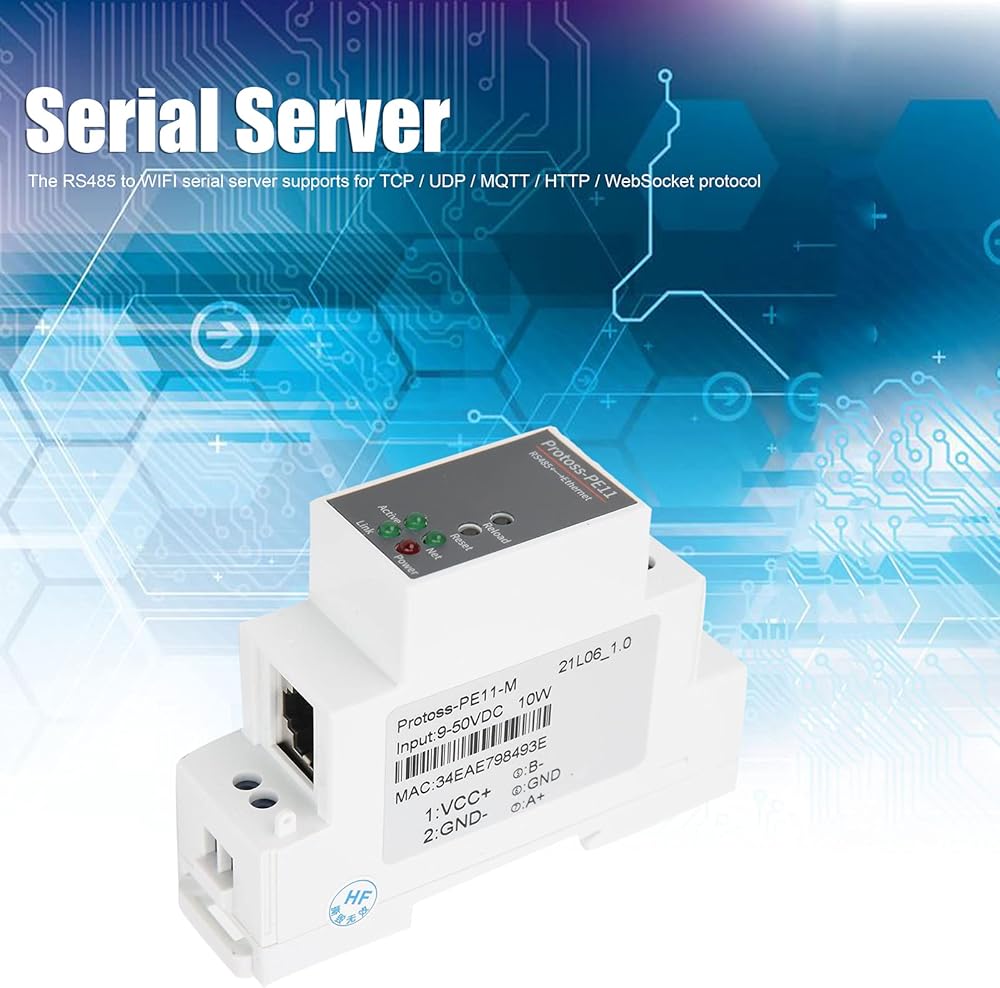

The RS485 to WIFI serial server supports for / UDP / MQTT / HTTP / WebSocket protocol
Support RS485 to 10/100M Ethernet conversion, the serial speed up to 460800 bps
Adopted of high quality electronic components, and accuracy process, support 10/100M Ethernet auto‑negotiation
Support heartbeat and relay packet function and web OTA wireless upgrade function

وصف

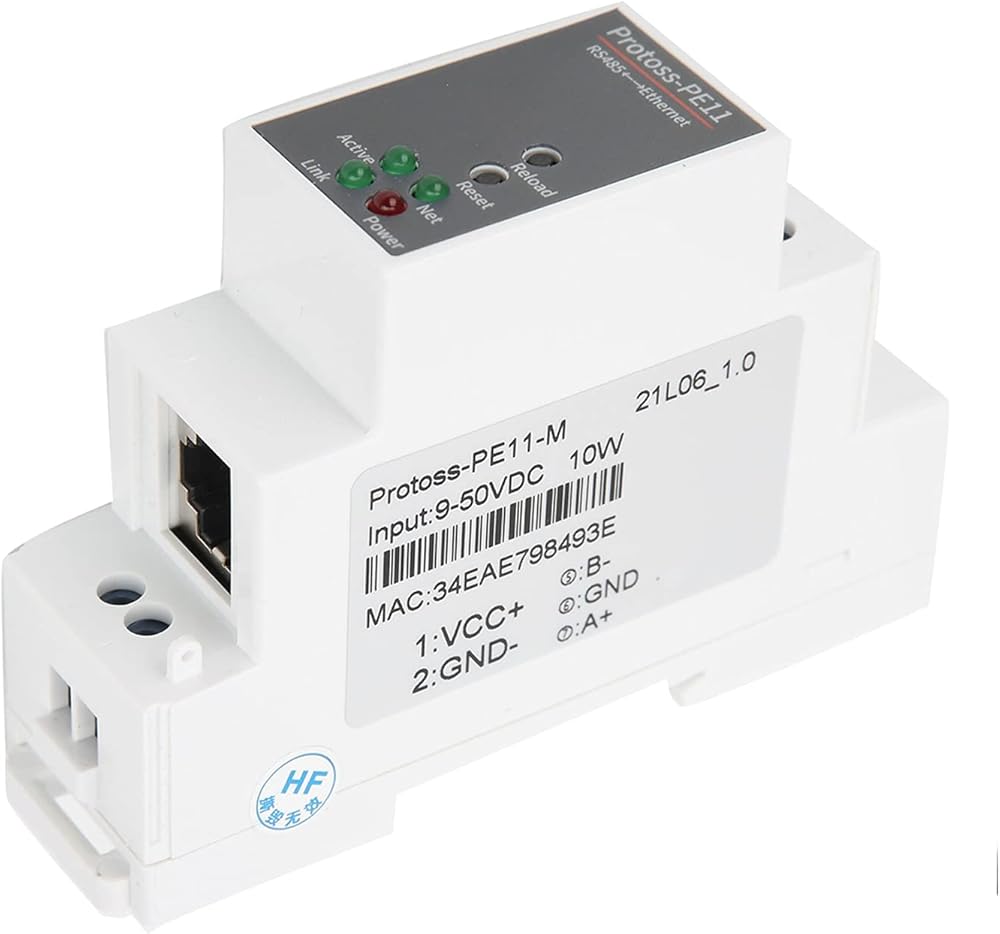

Item Type: RS485 to WIFI Serial Server
Material: PC + ABS
Voltage Input: 9-50VDC
Power: 10W
Processor/Frequency: For Cortex-M3 / 96MHz
Flash/SDRAM: 2MB/128KB
Operating System: For FreeRTOS
Ethernet Port:
Port Number: 1
Interface Standard: 10/100 Base-T auto-negotiation
Transformer Integration:
Network Protocols: IP, , UDP, DHCP, DNS, HTTP server/client, ARP, AutoIP, ICMP, Telnet, NTP
Security Protocol: AES 128Bit DES3
Serial Port:
Port Number: 1 RS485
Data Bits: 5, 6, 7, 8
Stop Bit: 1,2
Parity: None, even, odd
Baud Rate: TTL: 600 bps~460800 bps
Flow Control: No flow control software for Xon/Xoff flow control
Software:
Web Page: Http Web configuration
Customization: HTTP web page
Configure Website: Web page, command line interface, import

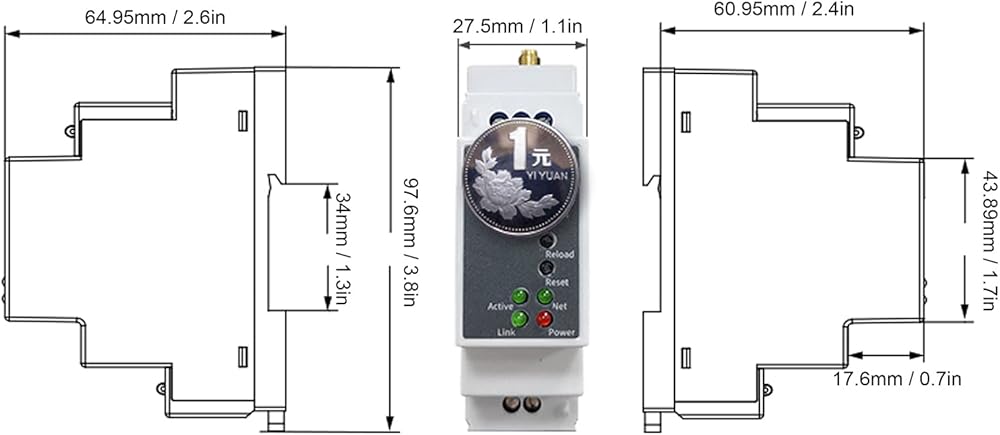

Width: Approx. 27.5mm / 1.1in
Hole Height: Approx. 43.89mm / 1.7in
Depth: Approx. 60.95mm / 2.4in

Package List：
1 x RS485 to WIFI Serial Server
1 x English User Manual

منتجات شبيهه

{"error":"\u062e\u0637\u0623","cart_limit":"\u0644\u062f\u064a\u0643 \u0627\u0644\u0643\u062b\u064a\u0631 \u0645\u0646 \u0627\u0644\u0645\u0646\u062a\u062c\u0627\u062a \u0641\u064a \u0633\u0644\u0629 \u0627\u0644\u062a\u0633\u0648\u0642 \u0627\u0644\u062e\u0627\u0635\u0629 \u0628\u0643.","prod_limit":"\u0644\u0627 \u064a\u0645\u0643\u0646\u0643 \u0625\u0636\u0627\u0641\u0629 \u0627\u0644\u0645\u0632\u064a\u062f \u0645\u0646 \u0647\u0630\u0627 \u0627\u0644\u0645\u0646\u062a\u062c"}

مرحبًا،

بحث

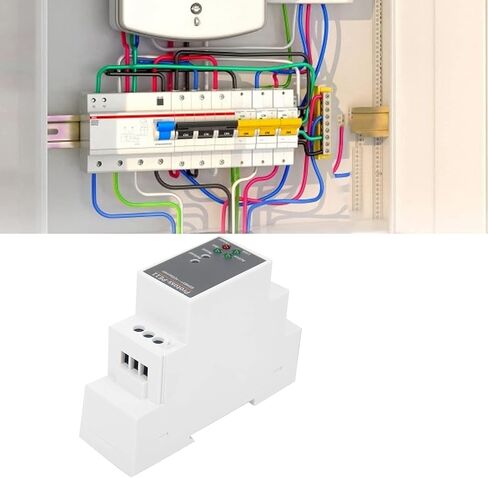

Tyenaza RS485 إلى خادم تسلسلي WiFi، وحدة شبكة إيثرنت مثبتة على السكك الحديدية 9-50VDC 10W PE11-M
