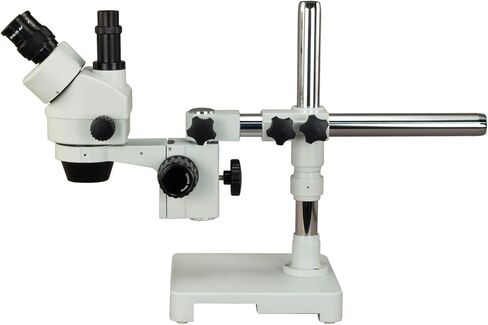

OMAX 3.5X-90X 18MP USB3.0 Zoom Trinocular Stereo Microscope on Boom Stand with 64 LED Ring Light

SAR 4,639

Brand
OMAX
Category
Microscopes
Weight
7.4 kg
1 +

Special Features

  • Total zoom range: 3.5X-90X; Eyepieces: high eyepoint widefield WF10X/20, high eyepoint widefield WF20X/10; Objectives: zoom 0.7X-4.5X; Barlow lens: 0.5X; 45 degrees inclined 360 degrees rotatable trinocular head; Ocular diopter adjustment on both eyepiece tubes; Adjustable interpupillary distance: 1-3/4inch ~ 2-3/4inch(47~73mm)
  • Total zoom range: 3.5X-90X; Eyepieces: high eyepoint widefield WF10X/20, high eyepoint widefield WF20X/10; Objectives: zoom 0.7X-4.5X; Barlow lens: 0.5X; 45 degrees inclined 360 degrees rotatable trinocular head; Ocular diopter adjustment on both eyepiece tubes; Adjustable interpupillary distance: 1-3/4inch ~ 2-3/4inch(47~73mm)
  • Total zoom range: 3.5X-90X; Eyepieces: high eyepoint widefield WF10X/20, high eyepoint widefield WF20X/10; Objectives: zoom 0.7X-4.5X; Barlow lens: 0.5X; 45 degrees inclined 360 degrees rotatable trinocular head; Ocular diopter adjustment on both eyepiece tubes; Adjustable interpupillary distance: 1-3/4inch ~ 2-3/4inch(47~73mm)
  • Adjustable photo tube; Light path selection lever to switch between photo tube and left ocular tube; Auxiliary objective mount: 48mm female thread; Working distance: 100mm (3-15/16inch) without barlow lens, 165mm (6-1/2inch) with 0.5X barlow lens; Field of view: max 30mm (1-3/16inch) without barlow lens, 60mm (2-3/8inch) with 0.5X barlow lens; Illumination: 64 LED ring light (100V~240V, 50Hz/60Hz); Focusing rack vertical stroke: 50mm (2inch); Metal rack and pinion focusing mechanism
  • Boom stand length: 22-7/8inch (58cm); Height of boom stand: 16-3/4inch (42.5 cm); Boom horizontal travel stroke: 9-1/4inch (23.4cm); Boom vertical travel stroke: 7-1/2inch (19cm); Base dimensions: 9inch x 9inch (23 cm x 23 cm)
  • Digital camera: - true color 4912x3684 pixels (18M pixels) - Super speed USB 3.0 connection - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 5.6fps at 4912x3684, 18.1fps at 2456x1842, 32.2fps at 1228x922 - Software compatible with Windows, Mac OS X and Linux operating systems - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB3 cable included
  • 5-year warranty against manufacturing defects

Description

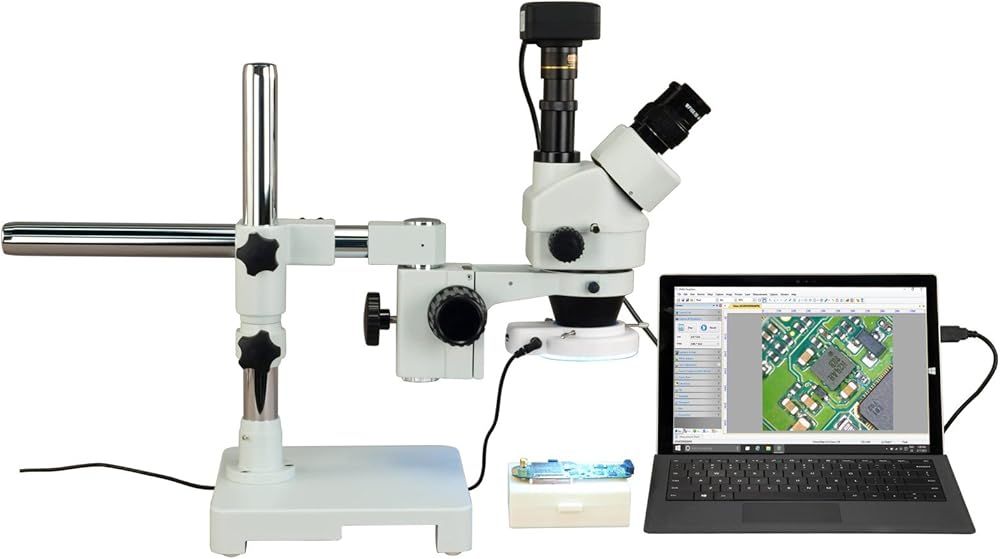

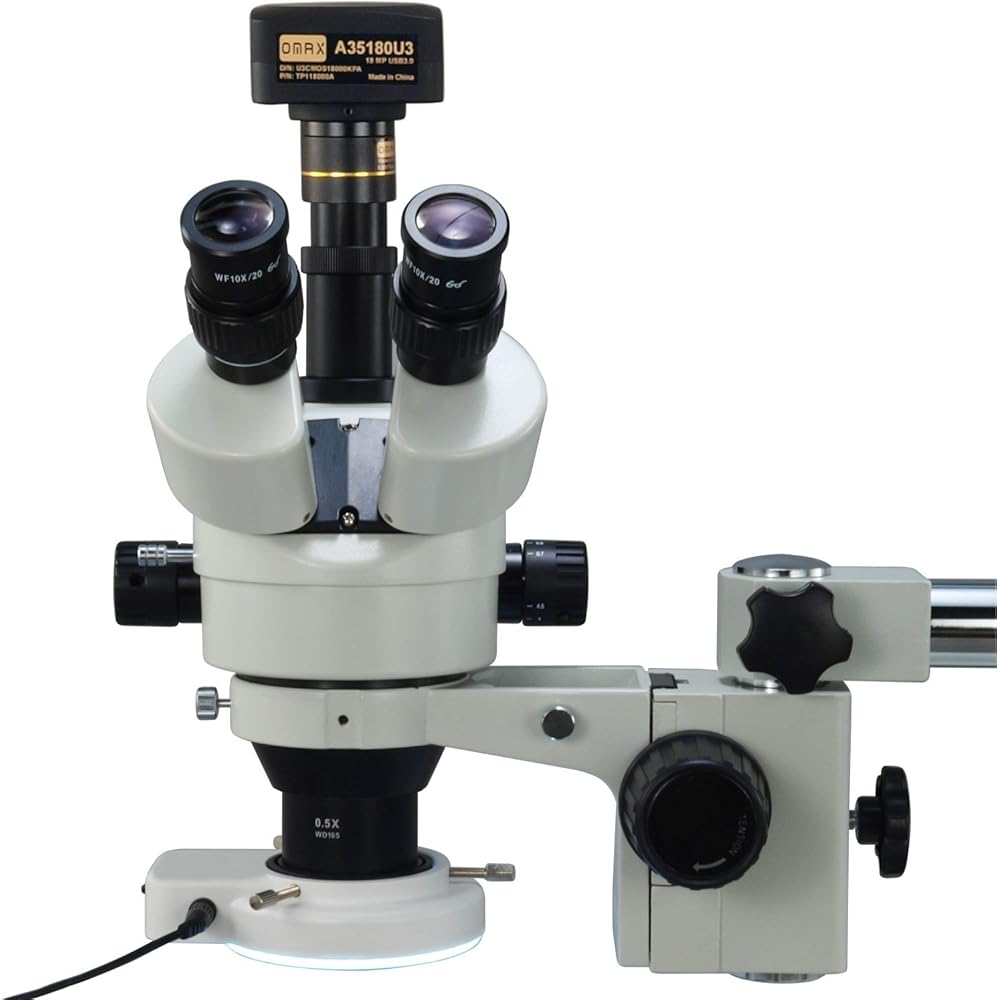

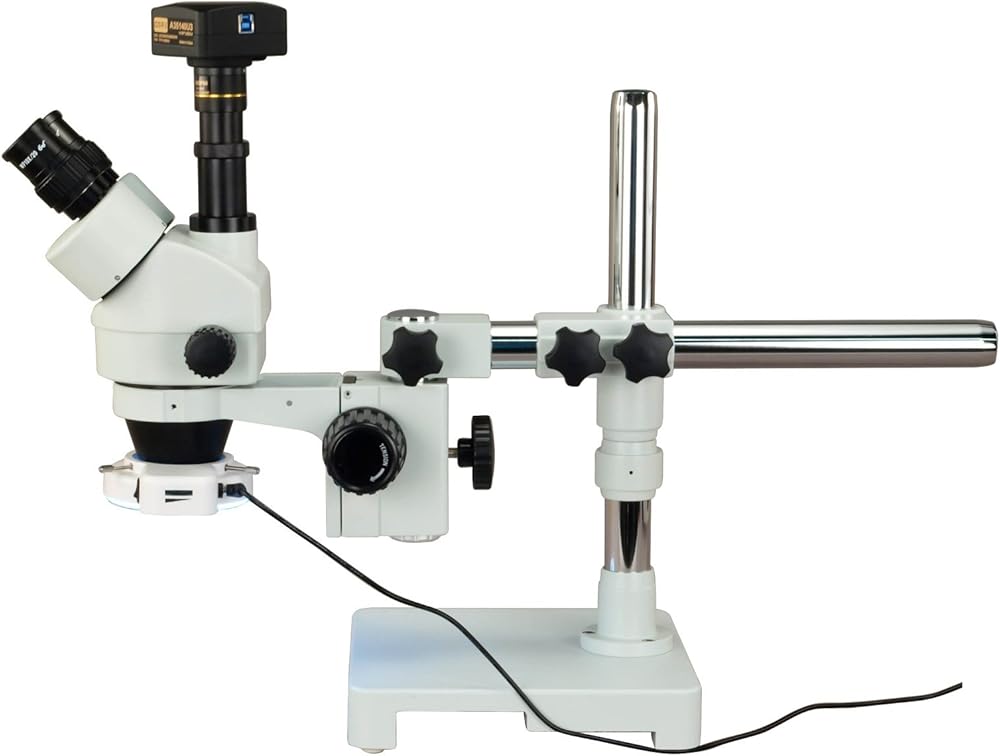

This is a trinocular 3.5X-90X zoom stereo microscope on a single-arm boom stand with a super speed 18MP USB 3.0 digital microscope camera. It comes with a trinocular head with super widefield optics, a sturdy single-arm boom stand, a 0.5X barlow lens, and a 64 LED ring light with adjustable light intensity. The trinocular port makes it easy to use the included microscope camera. Its 45 degree inclined trinocular oculars and high-eyepoint eyepieces (WF10X/20 and WF20X/10) ensure a comfortable observation for all kinds of users including eyeglass wearers. The single-arm boom stand allows to turn the microscope head around two different axes, letting you point microscope head in various directions. This microscope offers high resolution, super widefield of view, large 6.4:1 magnifying zoom range and a 165mm (6-1/2") long working distance with the included 0.5X barlow lens mounted. The digital camera captures still microscope images, streams live video preview to your computer, and is compatible with Windows, Mac OS X, and Linux (see version information below). The 0.50X reduction lens included gives your computer screen a wider field of view. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), video recording, and measurement functions. Live video and still image capture can be set in different resolutions simultaneously. It is an ideal instrument for researchers, gemologists, engravers, and anyone in semiconductor or electronics industries.
