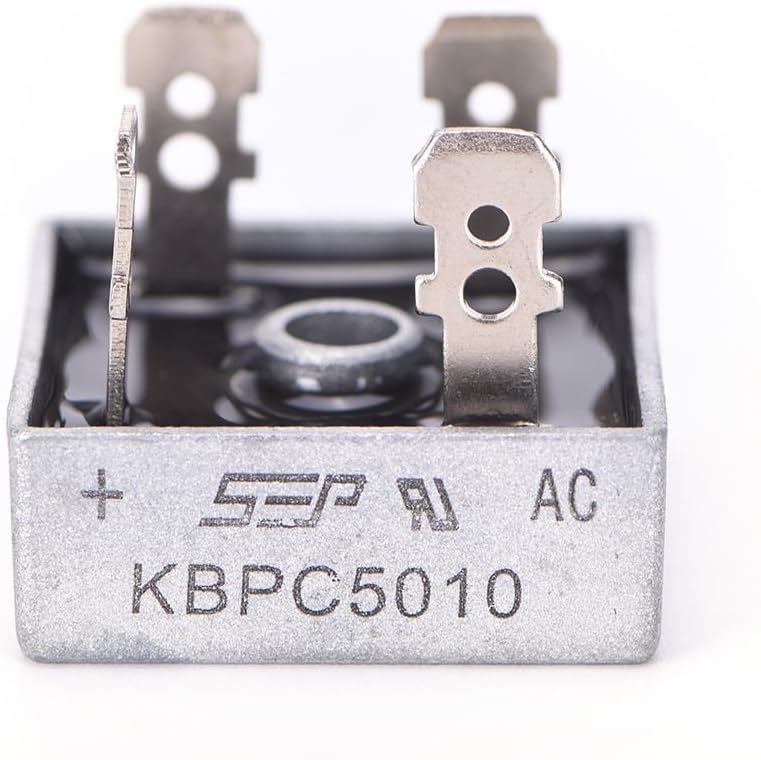

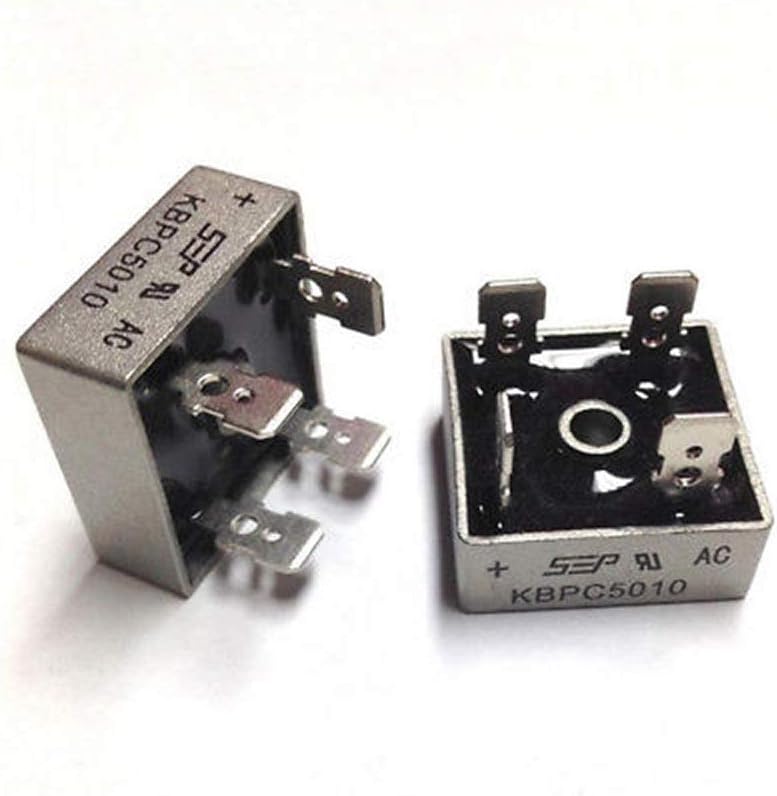

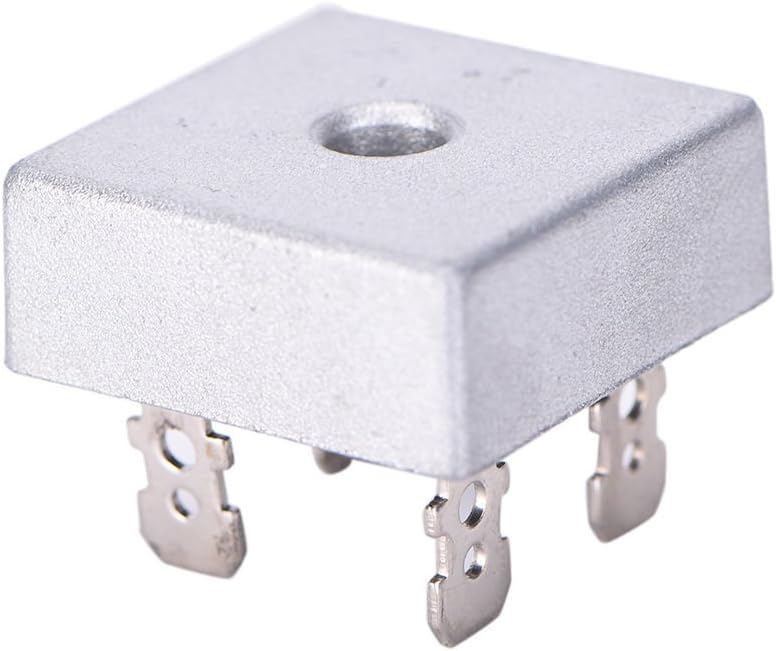

This KBPC5010 50A 1000V silicon bridge rectifier features an electrically-isolated metal case for maximum heat dissipation, surge overload rating of 400A, and low voltage drop.
Specifications:
Maximum repetitive peak reverse voltage (VRRM): 1000V
Maximum RMS bridge input voltage (VRMS): 700V
Maximum DC blocking voltage (VDC): 1000V
Maximum average forward rectified output current at TA=40 C (IF(AV)): 50A
Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) (IFSM): 400A
Typical thermal resistance per element (ReJA): 2.5 degrees C/W
Operating junction and storage temperature range: -55 to +150 C
Maximum instantaneous forward voltage drop per leg at 25A (VF): 1.0V
Maximum DC reverse current at rated TA=25 C (IR): 10uA
DC blocking voltage per element TA=125 C (IR): 500uA
Weight: 32 grams (approx)
