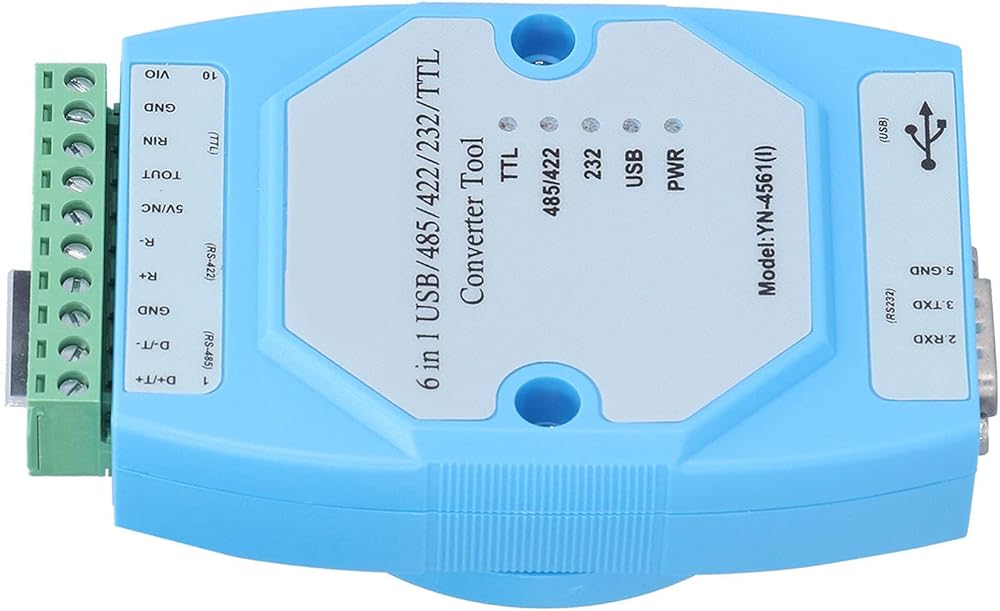

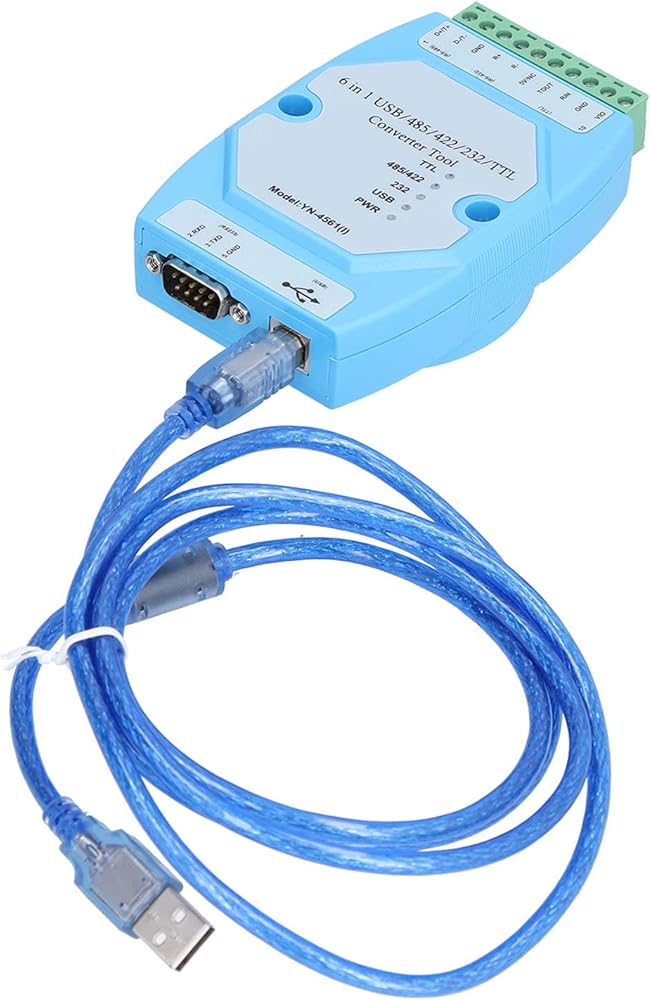

[VERSATILE 6IN1 ISOLATED CONVERTER] This serial port module offers seamless isolation conversion between USB RS232 RS485 RS422 and TTL interfaces without the need for jumpers or DIP switches. Its design simplifies complex debugging tasks while ensuring signal integrity across multiple protocols.
[WIDEST COMPATIBILITY] Supporting OS Linux and Android systems with USB 2.0 standard compatibility the YN4561I delivers plugandplay functionality. Just connect via USB install drivers and immediately enable communication between diverse industrial devices and modern computers.
[INDUSTRYSTANDARD ISOLATION] Featuring 1kV electrical isolation between all interfaces this module safely handles conversions between USB to RS232 USB to RS485/422 USB to TTL TTL to RS232 and RS232 to RS485/422 while protecting sensitive equipment from voltage spikes and ground loops.
[SELF POWERED DESIGN] Eliminating the need for external power sources this converter draws energy directly from the USB port while supporting transmission rates from 1200bps to 115.2kbps. It maintains stable operation across XP through 10 and various other operating systems.

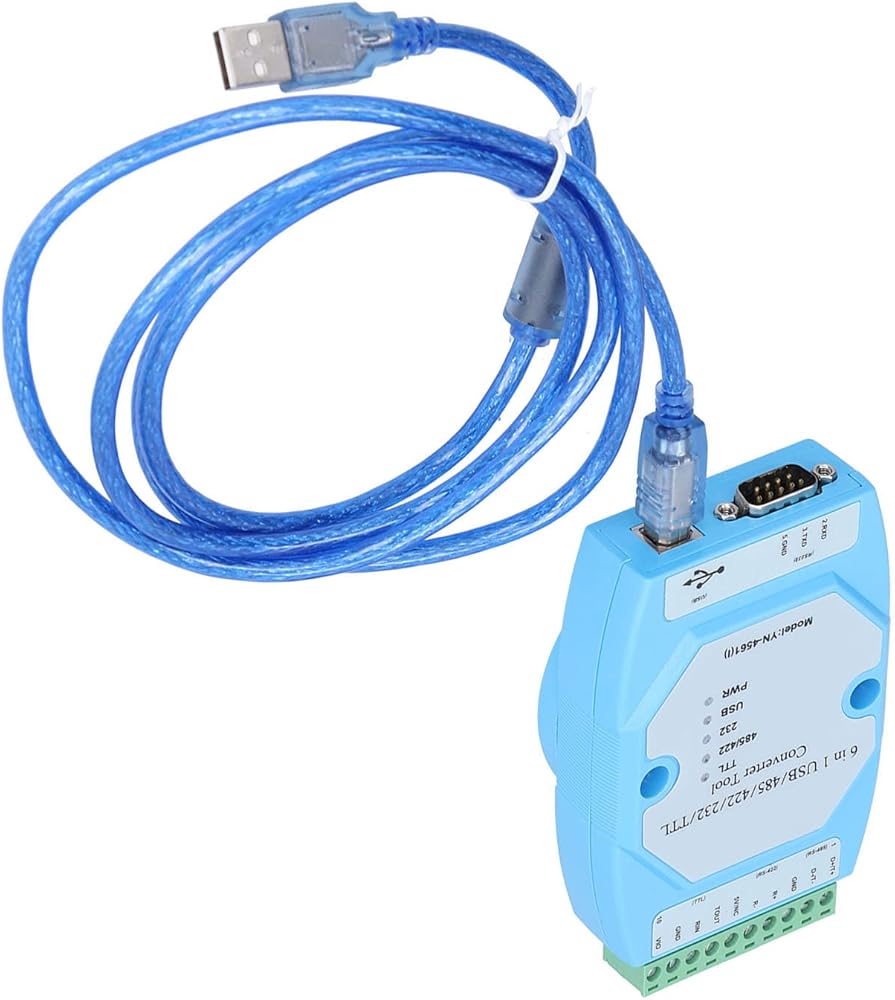

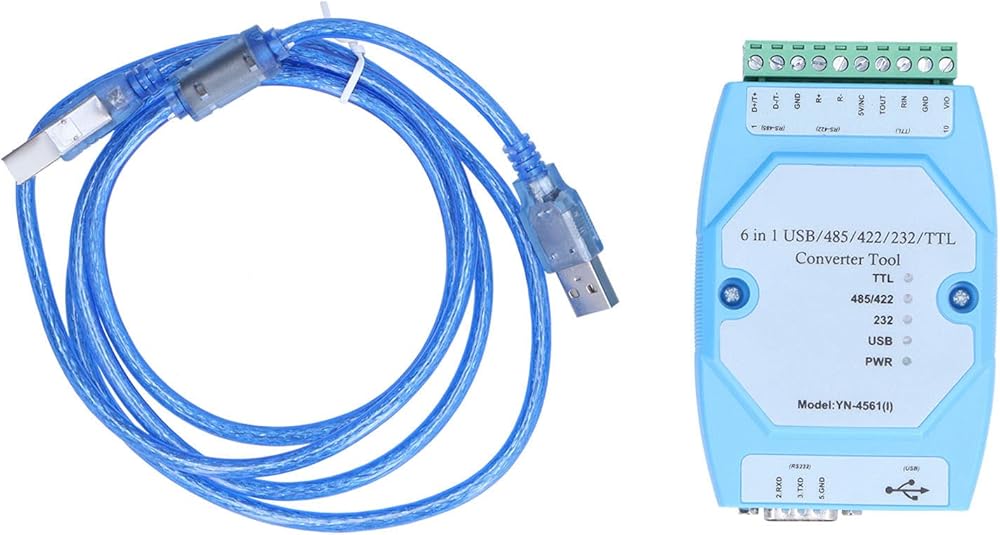

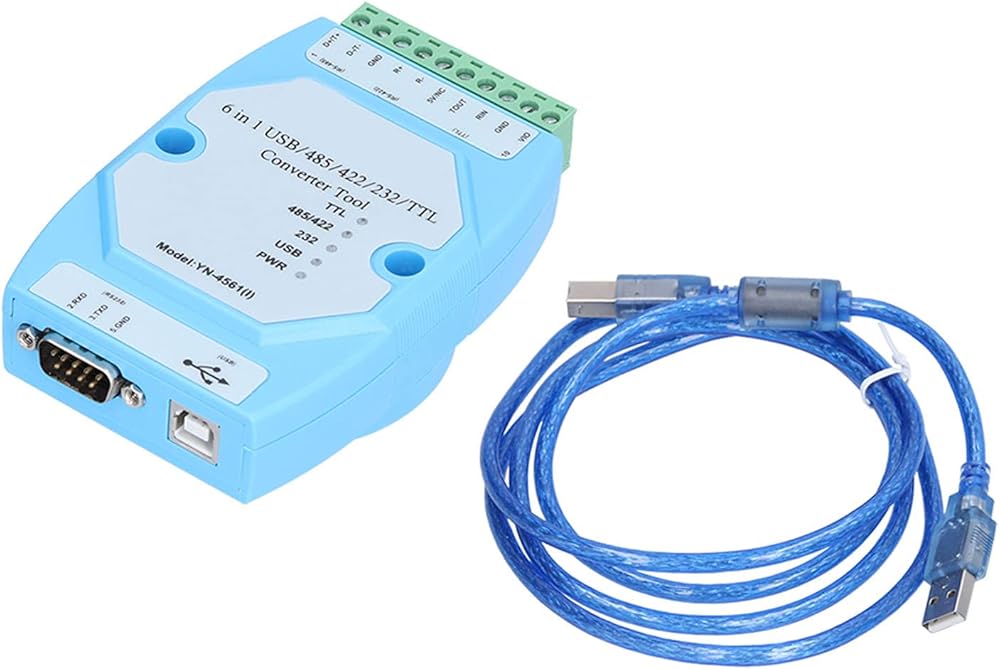

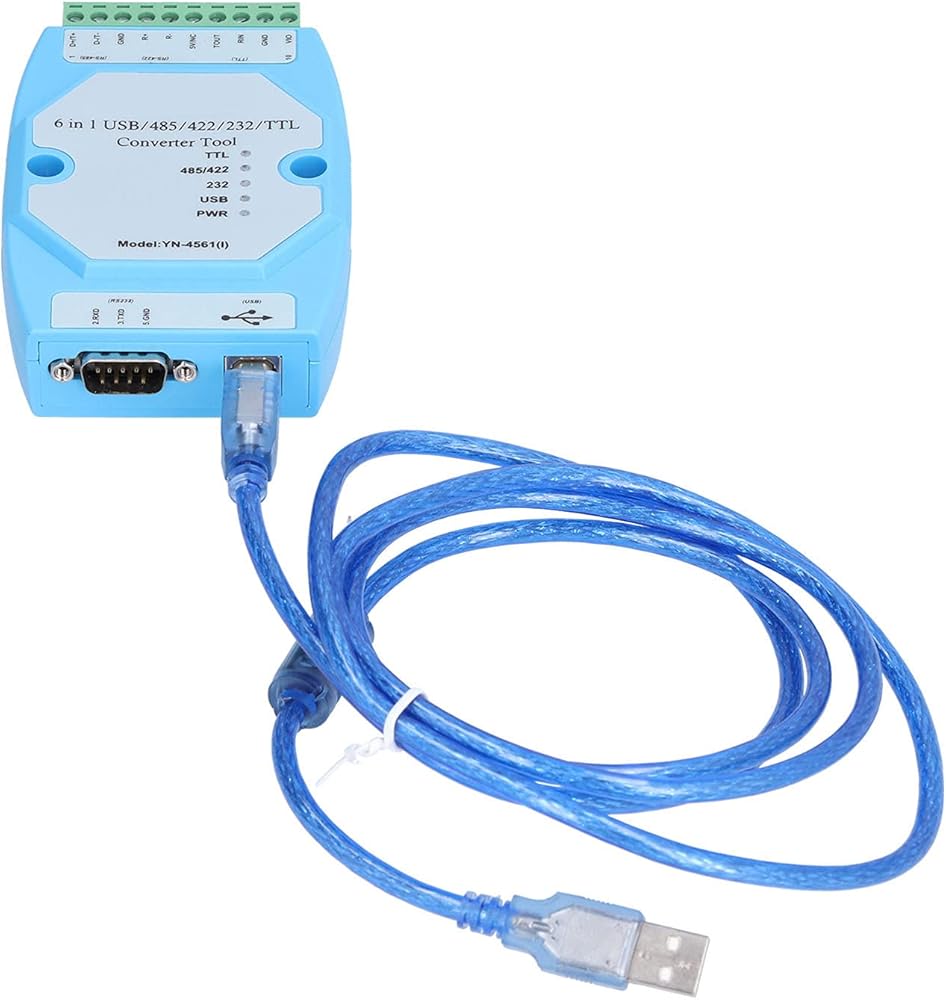

[PROFESSIONAL INTERFACE CONFIGURATION] Equipped with standard USB B square port DB9 male serial port and plugin terminals for RS485/422 connections this module includes all necessary cables for immediate setup. The rugged ABS construction ensures durability in demanding industrial environments.

Spec:
Item Type: Serial Port Module
Material: ABS
Model: YN4561I
USB Compatibility: Compliance with USB 2.0 standards, support hot swap plug-and-play

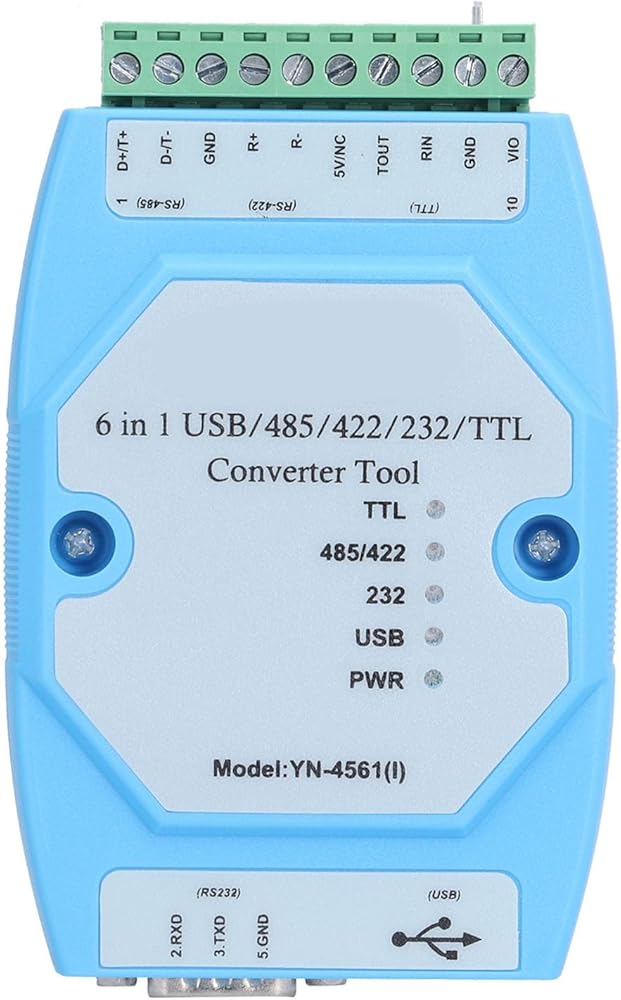

Port Design

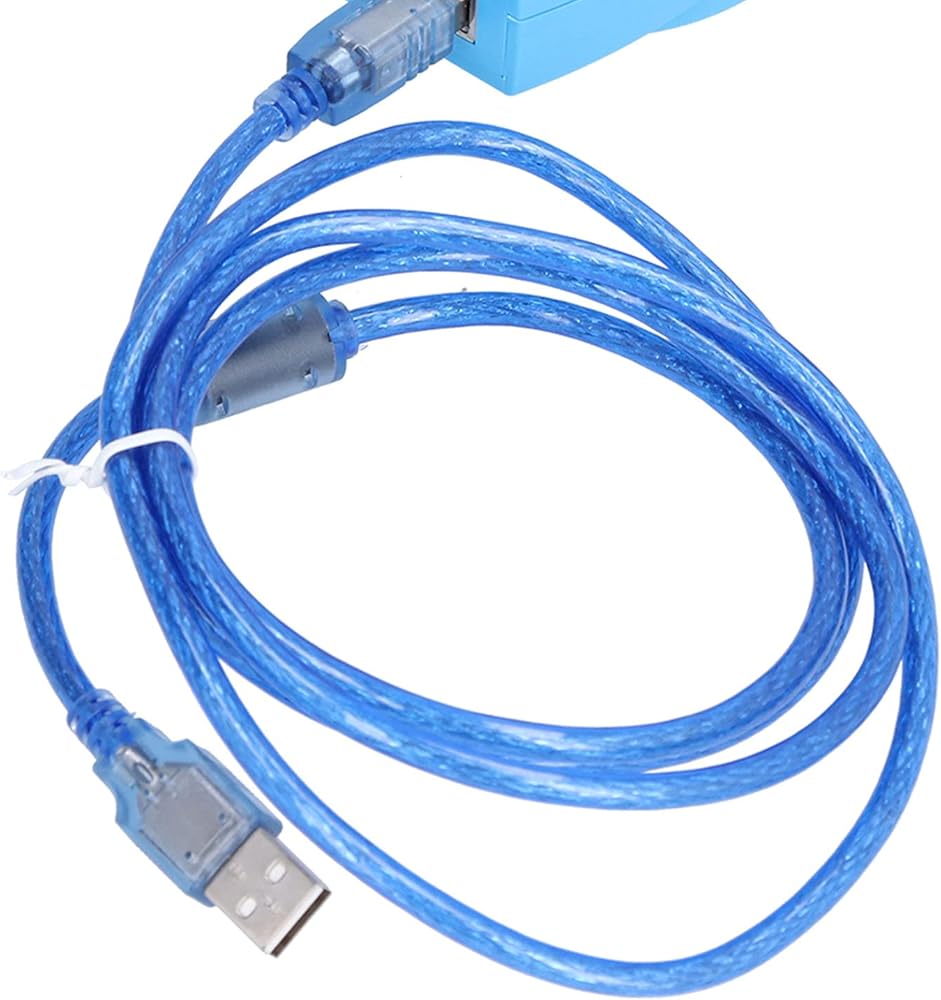

USB: Standard b square port, equipment comes with a turn b wire
RS232: Standard DB9 serial port male
RS485 / 422: Plug-in terminal
TTL: Insert terminal
Transmission Rate: 1200bps - 115.2kbps
Check Bit: Odd check, even check, no check
Data Bit: 5, 6, 7, 8
Stop Bit: 1, 1.5, 2
RS232: TX, RX, GND, conforms to TIA /
