Acouto YN-4561I Isolated Serial Port Module 6-in Converter USB RS232 RS485 TTL Debugging Tool for MacOS

SAR 175
Brand
Acouto
Category
Internal Cards
Weight
222 g
– 1 +

Special Features

  • Versatile Connectivity - The YN-4561I Isolation Debugging Tool offers unparalleled versatility, allowing users to effortlessly switch between multiple protocols like USB, RS-232, RS-485/422, and TTL. This -in-one tool eliminates the need for jumpers, DIP switches, or other complicated configurations, making it incredibly user-friendly. Just plug it in, install the necessary driver, and experience seamless isolation conversion, streamlining your debugging and data transmission tasks like never
  • Robust Isolation - Featuring a remarkable 1kV isolation rating, this module protects your devices from electrical interference and voltage spikes. Whether you're working in or a field setting, the robust isolation ensures that your data remains secure and accurate, safeguarding sensitive equipment and extending the longevity of your circuits. Experience peace of mind with this reliable debugging tool at your side.
  • Plug-and-Play Design - Say goodbye to complicated setups! The YN-4561I's plug-and-play functionality allows it to work instantly upon connection to your device's USB port. It draws power directly from the USB interface, eliminating the need for an external power supply. Compatible with various operating systems, including , macOS, , and , this device is to work with whatever tech you have in your .
  • Compact and Convenient - Crafted with practicality in mind, this modular tool is compact, lightweight, and easy to transport. for engineers, hobbyists, and DIY enthusiasts, you can take it anywhere your projects you. Its engaging design also ensures that it won't clutter your , making it a functional yet stylish addition to your toolkit.
  • Construction - Built to withstand the rigors of daily use, the YN-4561I is made from materials that support -term reliability. The construction of this serial port module not only enhances performance but also ensures that it remains in working order even with usage over time—making it an essential component for anyone working with serial .

Description

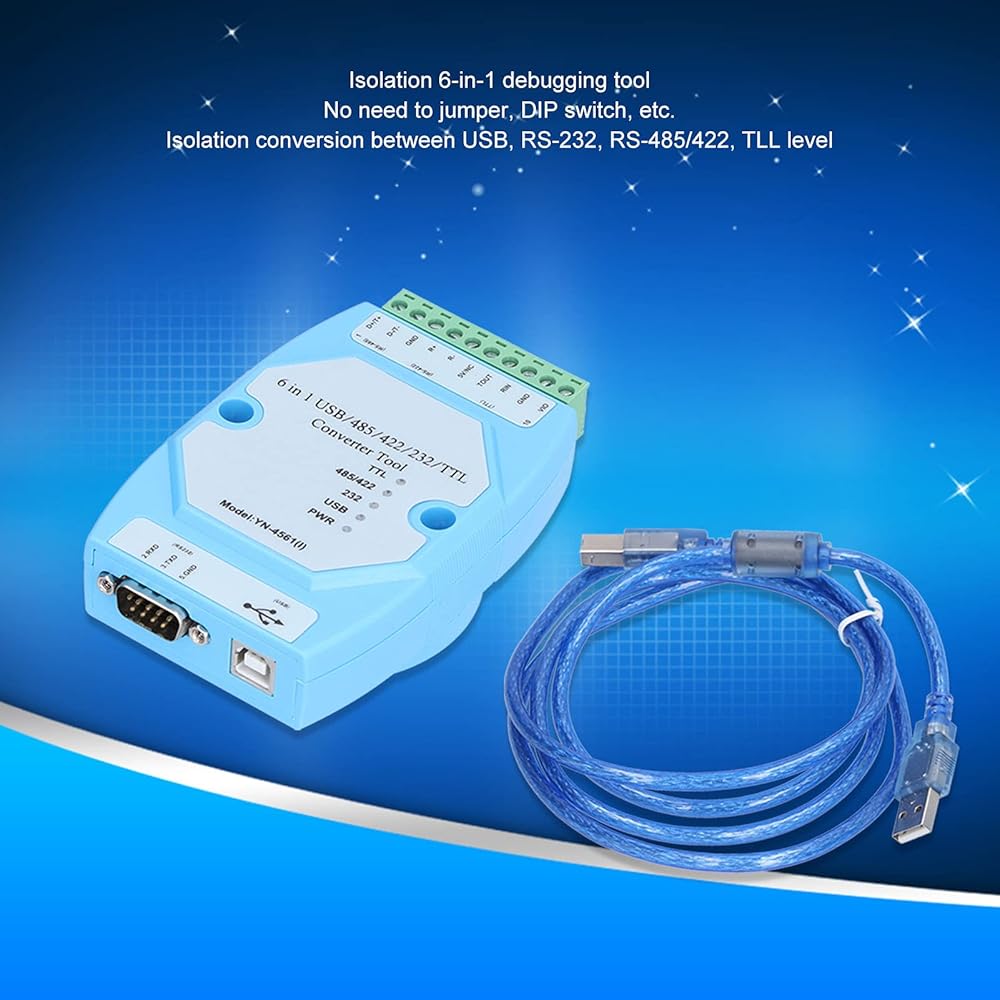

1. Isolation 6‑in‑1 debugging tool, no need to jumper, DIP switch, etc., can implement isolation conversion between USB, RS‑232, RS‑485/422, TLL level
2. YN‑4561I is compatible with USB 2.0 standard, supports for , for OS X , for Linux , for Android operating system. Simply connect your device via USB interface, install the driver to use immediately

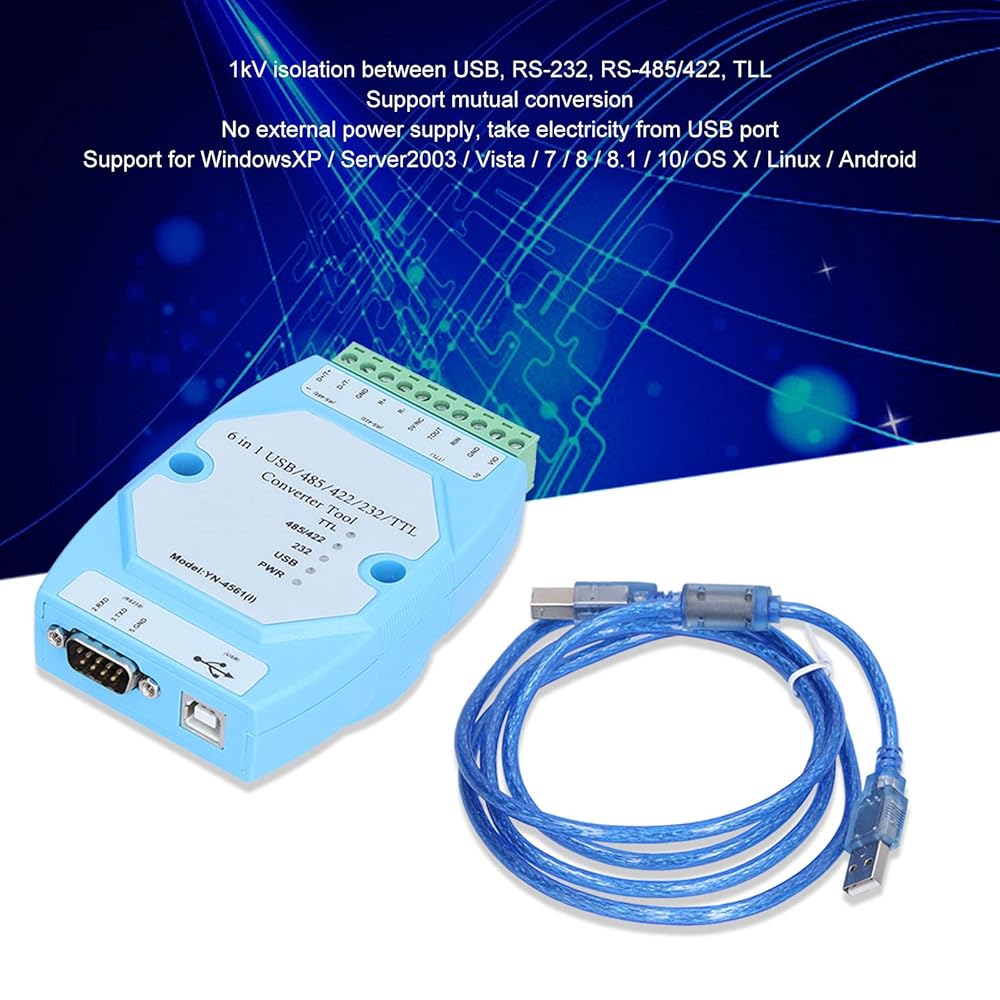

3. 1kV isolation between USB, RS‑232, RS‑485/422, TLL, support mutual conversion between USB and RS‑232, USB and RS‑422/485, USB and TTL, TTL and RS‑S232, TTL and RS‑422/485, RS232 and RS‑422/485
4. No external power supply, take electricity from USB port, support for WindowsXP / Server2003 / Vista / 7 / 8 / 8.1 / 10/ OS X , for Linux , for Android
5. Standard USB b square port, equipment comes with a turn b wire, RS232 adopt the standard DB9 serial port male, RS485 / 422 is a plug‑in terminal

Spec:
Item Type: Serial Port Module
Material: ABS
Model: YN4561I
USB Compatibility: Compliance with USB 2.0 standards, support hot swap plug-and-play

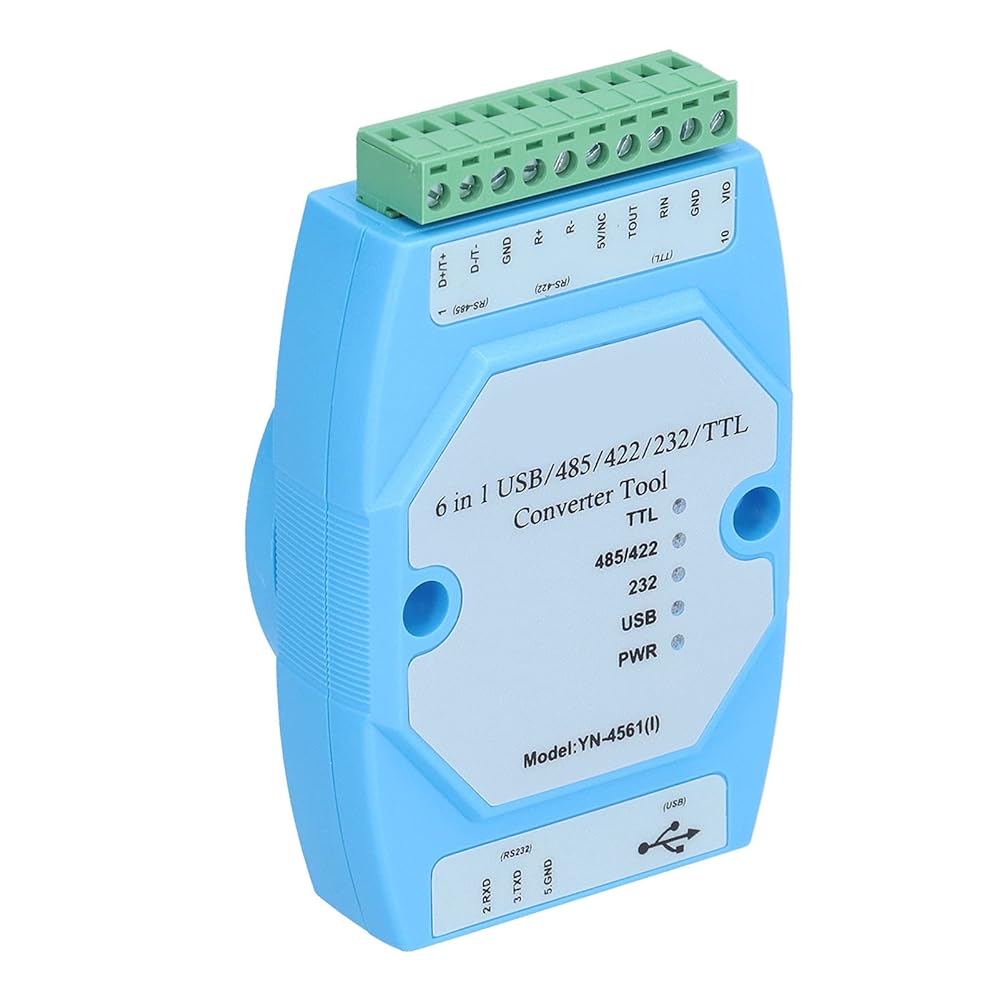

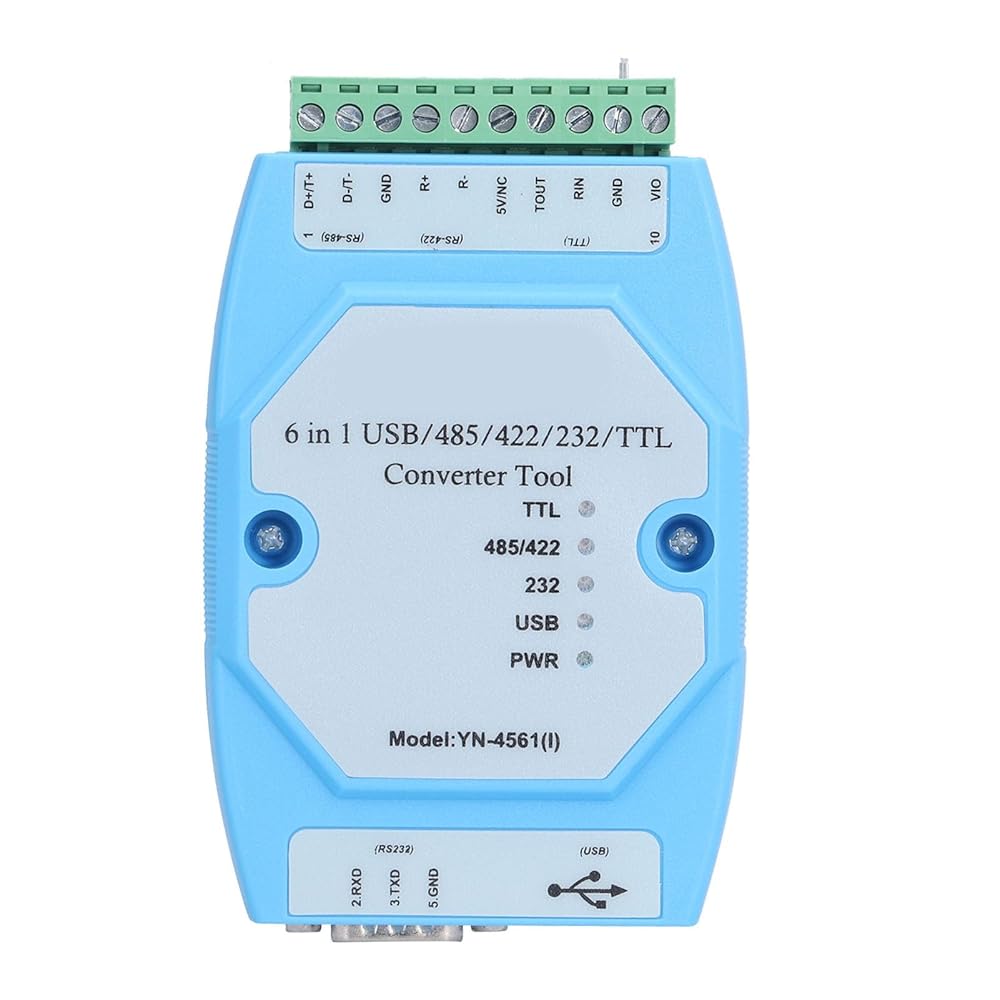

Port Design
USB: Standard b square port, equipment comes with a turn b wire
RS232: Standard DB9 serial port male
RS485 / 422: Plug-in terminal
TTL: Insert terminal
Transmission Rate: 1200bps - 115.2kbps
Check Bit: Odd check, even check, no check
Data Bit: 5, 6, 7, 8
Stop Bit: 1, 1.5, 2
RS232: TX, RX, GND, conforms to TIA / EIA-232
RS485: D +, D- balance difference half duplex, in line with TIA / EIA-485 standard
RS422: T +, T-, R +, R- balance differences full duplex, in accordance with TIA / EIA-422
32 x RS-422 or RS-485 devices can be connected
TTL: , RXIN, TXOUT, GND support 5V or 3V level
Work Distance: RS-232: 50ft(15 meters) at 9.6kbps

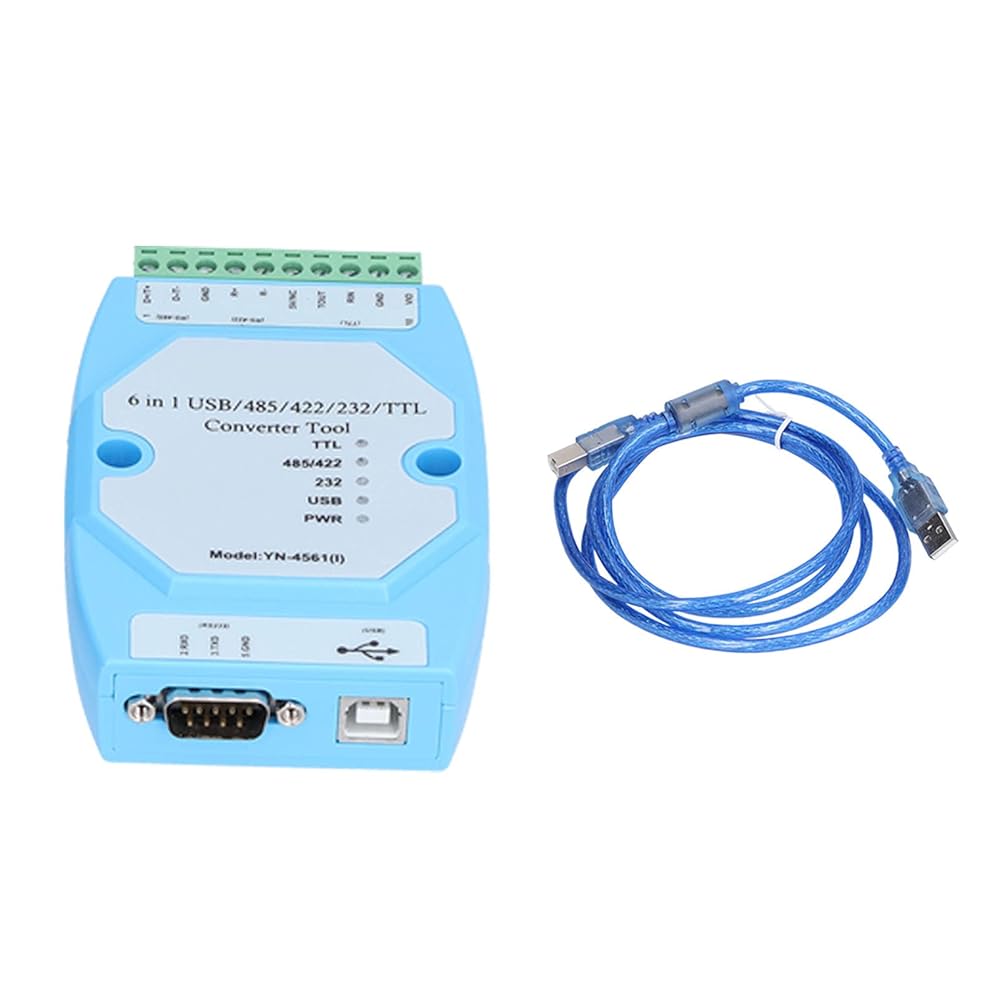

packing list:
1 x Serial Port Module
1 x Cable
1 x User Manual

Notice:
Do not use outside the parameter voltage range.
