Combines 8-port KVM switch, 19” LCD screen, keyboard and touchpad in a 1U rack-mountable drawer
Cat5e/6/6a cabling lets you locate servers up to 100 ft. from the switch
Use a plug-and-play Server Interface Unit, B078-101-USB-1(for USB) with each server that will be connected with Cat5 cable
Control your servers from anywhere in the world over LAN, WAN or the Internet by adding a Tripp Lite B051-000 IP Remote Access Unit
1-Year Limited Warranty & TAA-Compliant. Mounts into 19”-wide rack, 27”-42” deep; can be mounted in 2-post rack with Tripp Lite's B019-000
8-port Cat5 KVM Switch with built-in 19 Monitor, Keyboard, and Mouse
Connect and control up to 128 computers locally or remotely
Supports resolutions up to 1280 x 1024 (60Hz)
Standard EIA 19 rackmounting
USB and PS/2 mouse/keyboard support
Uses readily availabe Cat5/5e/6 patch cables (Tripp Lite N01- and N02- series) to locate computers up to 100 ft. from the KVM
Compatible with all major operating systems
Constructed of heavy-duty steel housing
وصف

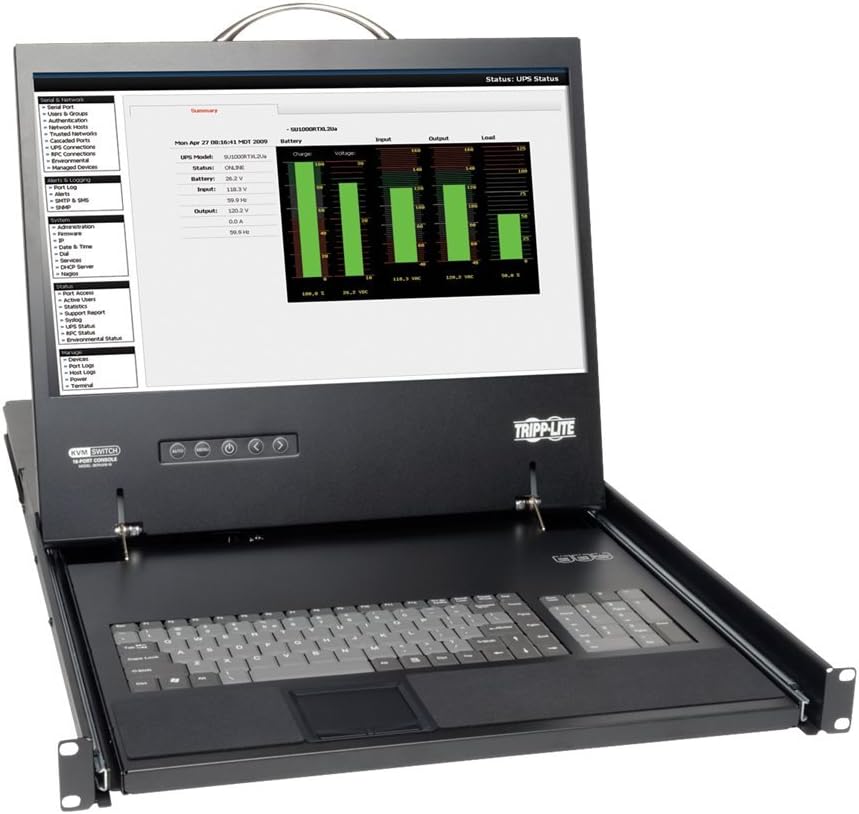

Tripp Lite's B070-008-19 NetCommander Rackmount Console KVM switch is a cost effective and highly flexible system for controlling up to 128 computers from a single 19" display console. This console can be cascaded with Tripp Lite's stand-alone B072 NetCommander series KVM switches. Switching between attached servers can be accomplished via the On Screen Display (OSD) menu or Hotkey commands.Utilizing Tripp Lite's B078-101-Series server interface units, KVM cabling is kept to a minimum via inexpensive Cat5/5e/6 patch cables. Servers can be located up to 100 ft. away from the switch. Add Remote access over IP by connecting Tripp Lite B051-000 Remote IP Access Unit. Password feature provides additional security to prevent unauthorized access to attached computers. All rackmount hardware is included, and is designed for easy, one person installation. Fits into any rack from 27" to 42" deep. 2-post rackmounting available using Tripp Lite's B019-000. Compatible with all major operating systems. Constructed of heavy-duty steel housing. 1 year limited warranty.
