EASY POWER SUPPLY, PEACE OF MIND RECORDING, TYPE C DASH CAM HARDWIRE KIT, A MUST-HAVE FOR YOUR CAR
Product Attributes
Colors: Black

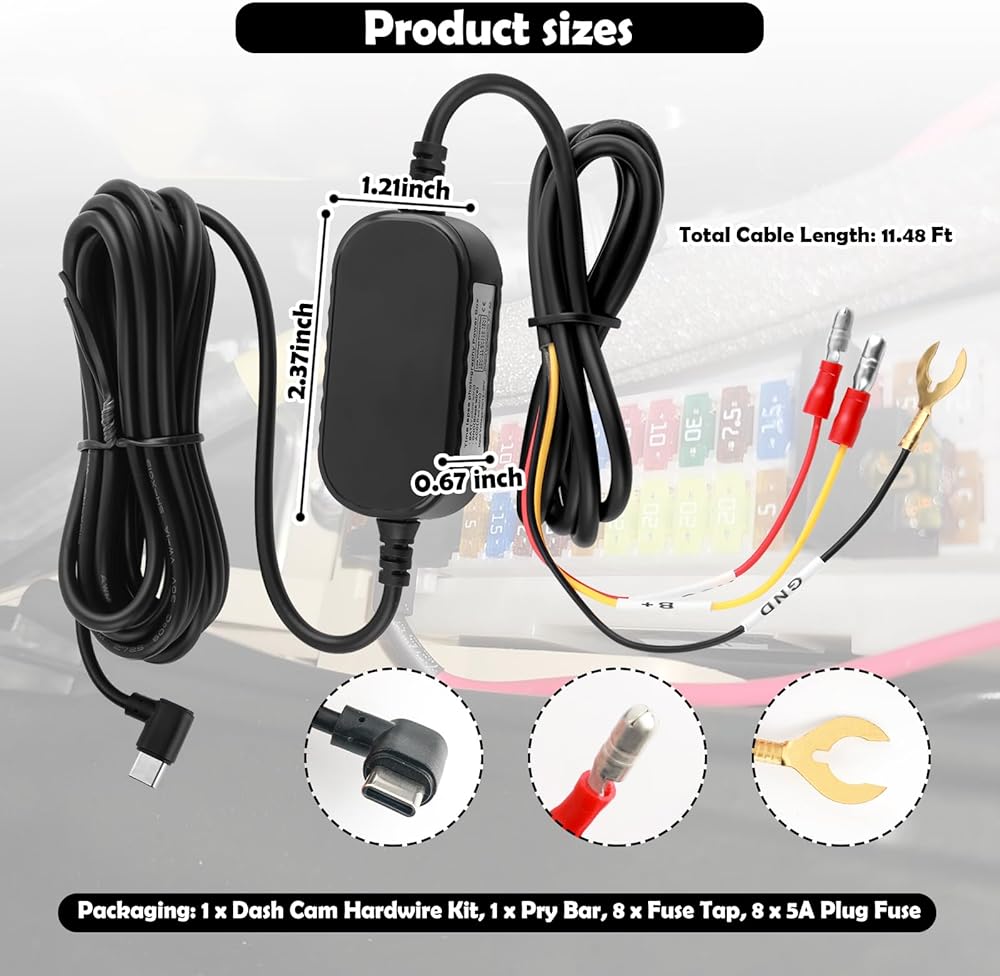

Sizes: 2.37*1.21*0.67 inch
Total Cable Length: 11.48 Ft
Weight: 6.16 oz
Material: ABS + Copper Wire + PC

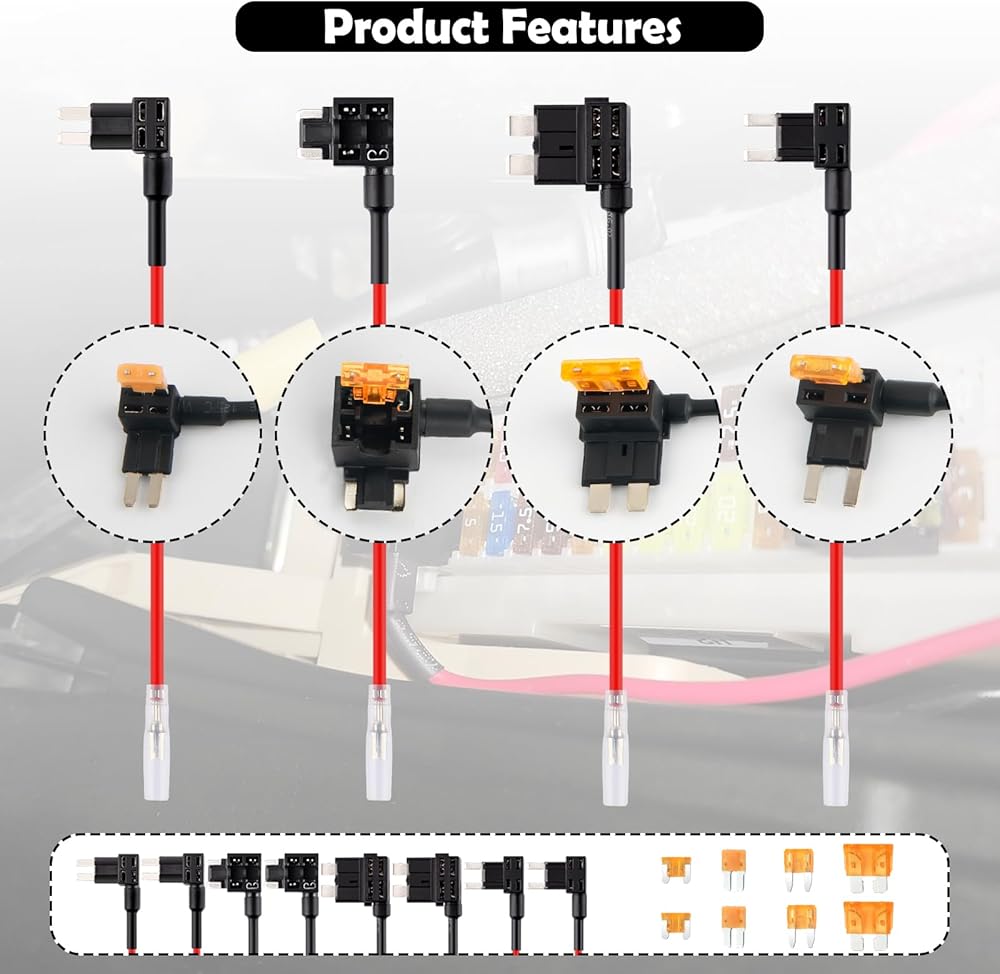

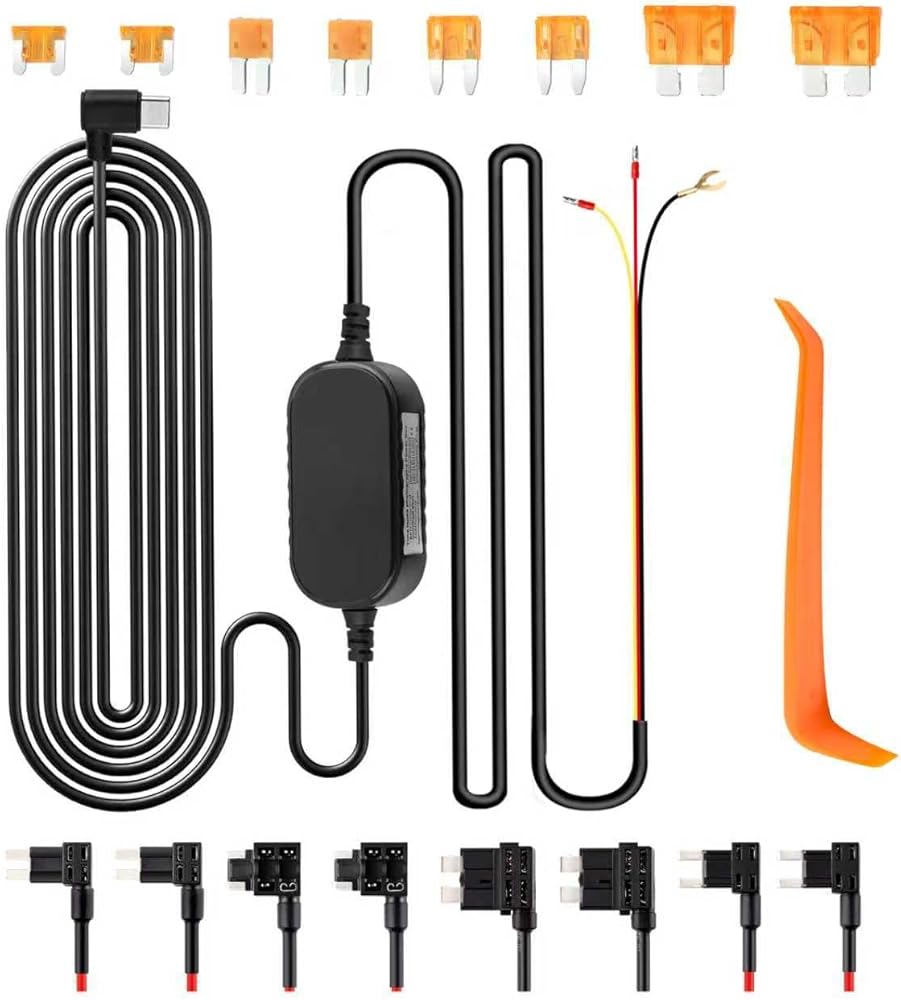

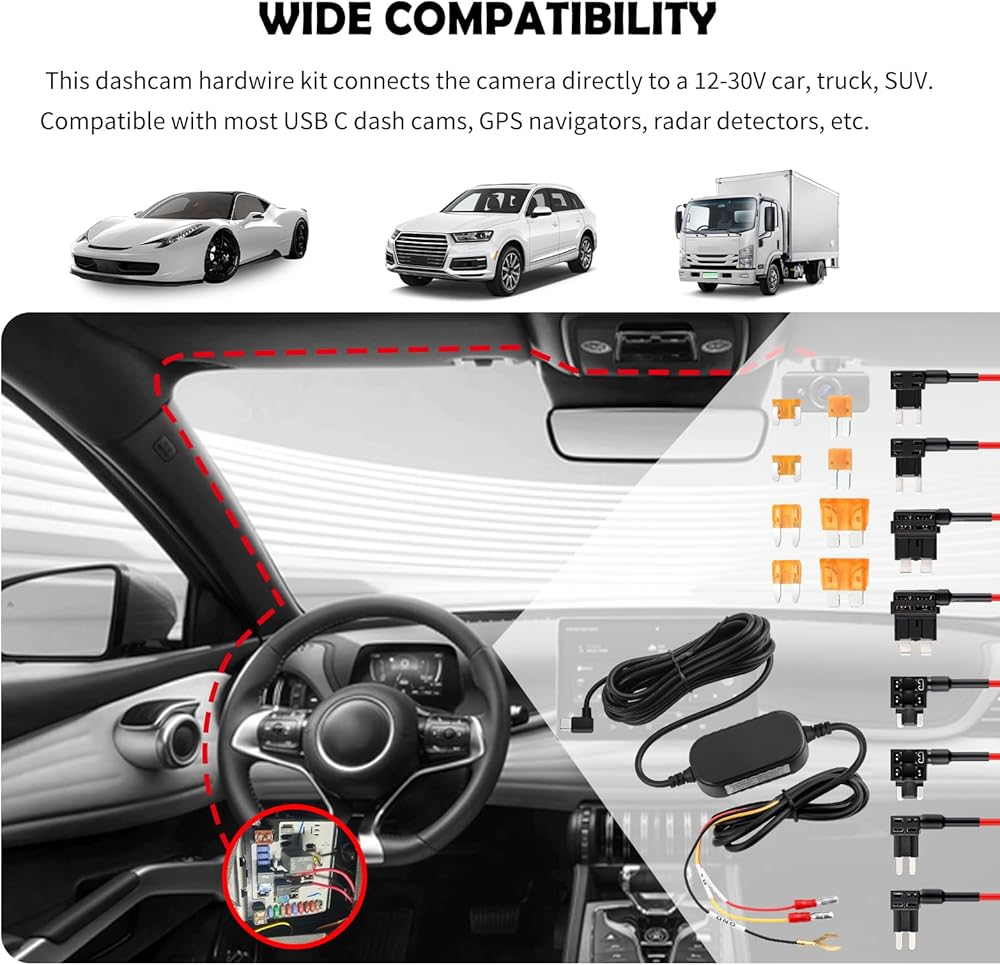

Packaging: 1 x Dash Cam Hardwire Kit, 1 x Pry Bar, 8 x Fuse Tap, 8 x 5A Plug Fuse
Product Parameters
Input Voltage: 12-30V
Output Current: 0.5-2.5A
Output Voltage: 5V/12V
Standby Power Consumption: ≤0.01W
Installation Instructions
1. This buck cable is 12-30V to 5V power supply to the car recorder, at the same time, the buck cable has a low-voltage protection function, the battery voltage of 11.6V or so, the buck cable will automatically cut off the power supply

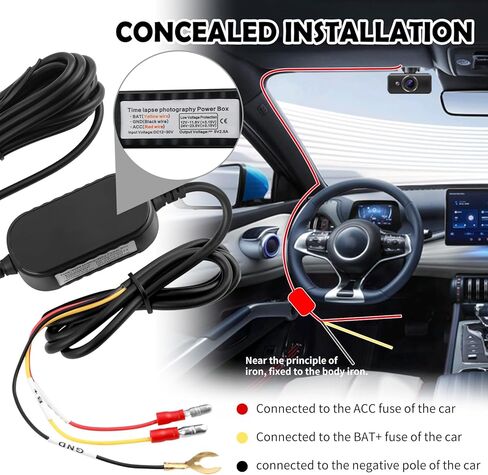

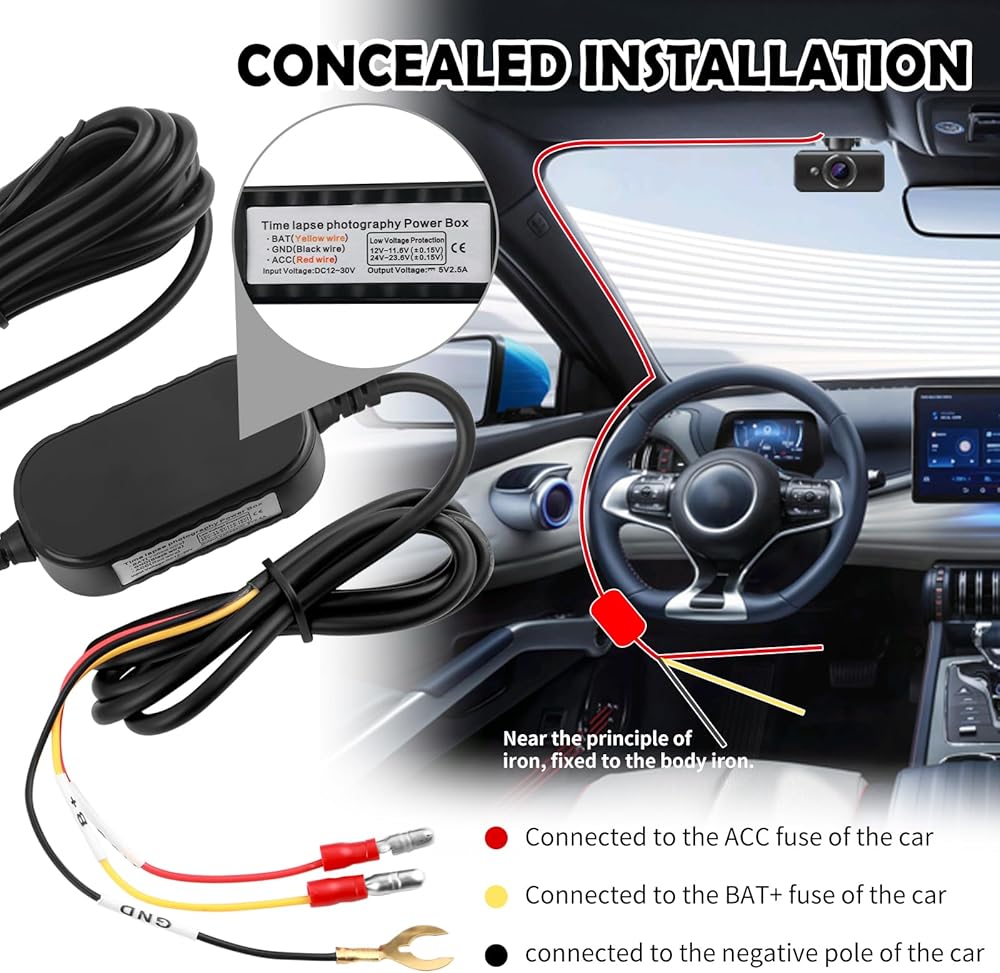

2. The input side of the step-down cable has three wires: red wire, yellow wire and black wire, the red wire is connected to the ACC fuse of the car, the yellow wire is connected to the BAT+ fuse of the car, and the black wire is connected to the negative pole of the car
Wiring Precautions
1. The red and yellow wires are docked with the extractor (there is a special interface for docking), and then the extractor is plugged into the base of the car fuse
2. Black wire with a U-shaped fork, near the principle of iron, fixed to the body iron. (Must be able to touch the body iron, otherwise there will be poor contact or not energized)
Common Failure Problems
1. After the buck cable is installed, turn on the car key, if the buck cable is not energized, at this time, first check whether the buck cable positive and negative wiring is correct, and whether the fuse taps is inserted full of two fuses, if only one fuse is inserted, you need to distinguish between positive and negative directions of the fuse taps, and try several times for positive plugging and reverse plugging
2. Check whether the black negative wire is firmly installed in the body of the screws on the tin, if in accordance with the body of the plastic screws, the buck line will not be energized to work, the negative wire must be firmly installed in the body of the screws on the tin
Product Feature & Functions

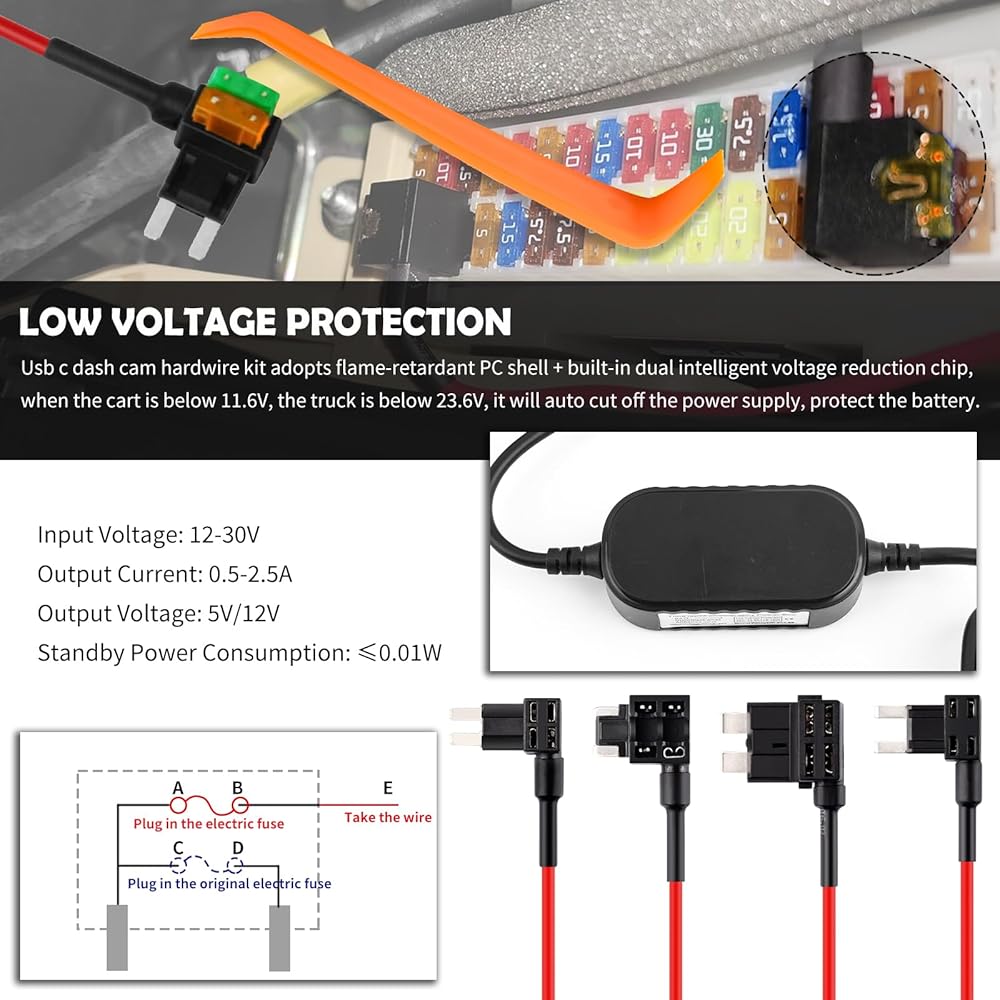

1. Built-in intelligent voltage reduction module, when the battery voltage is lower than 11.6V (cars) or 23.6V (trucks), it will automatically cut off the power supply, retaining enough power to start the vehicle, avoiding battery loss and prolonging the life of the battery.
2. Built-in anti-reverse connection design, even if the positive and negative poles are connected wrongly, it won't damage the buck cable or recorder, safer and more worry-free to use
