JMT ADT-K993G PCIE 5.0 X4 to OCuLink SFF-8611 External Dock Adapter Compatible with NUC STX ITX Motherboard Mini PC

This product supports not only notebooks but also NUC motherboards, STX motherboards, ITX motherboards, mini PCs, and external graphics cards. It includes adapter cards supporting M.2 NVMe interfaces and PCIe x4 interfaces.
The K993G requires pairing with R29Q/F4Q to achieve full PCIe 5.0 speeds. (Motherboard interface must also support 5.0.)

Product Name: OCuLink 5.0 External Graphics Card Dock

Transfer Speed: PCIe 5.0 x4, Effective Bandwidth 128Gbps

Product Purpose: For external graphics cards or other PCIe devices. Compared to traditional solutions, OCuLink achieves an effective bandwidth of 128Gbps under PCIe 5.0 x4 conditions.
Power Supply Note: Supports standard ATX power supplies. Prepare the power supply according to the graphics card manufacturer's specifications.

Purchasing Tip: Always purchase 1-2 samples for testing and verification before proceeding with bulk orders.

Connector Specifications:
Support cable to board application
Small size design: pitch 0.5mm connector
Supports 85 ohm impedance applications, 100 ohm is available on request

Model Description:
K993G: OCuLink SFF-8611 to PCIe x16 Graphics Card Adapter, Bandwidth PCIe 5.0 x4
K993G-BK7: OCuLink SFF-8611 to PCIe x16 Graphics Card Adapter with Bracket, Bandwidth PCIe 5.0 x4
R29Q: PCIe 5.0 x4 to OCuLink SFF-8612 Female Connector Adapter Card with Chip, Bandwidth PCIe 5.0 x4

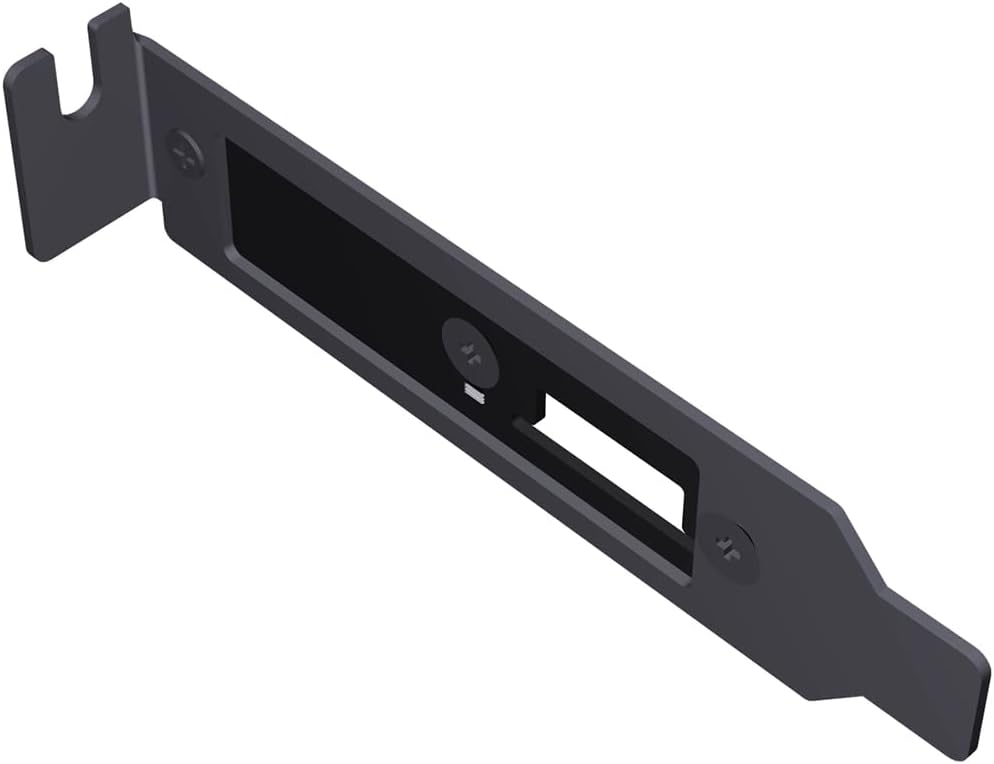

K49-01：Half-Height Bracket， only support model R29Q and R29A. Other Card can`t support.
K49-02：Full-Height Bracket， only support model R29Q and R29A. Other Card can`t support.
