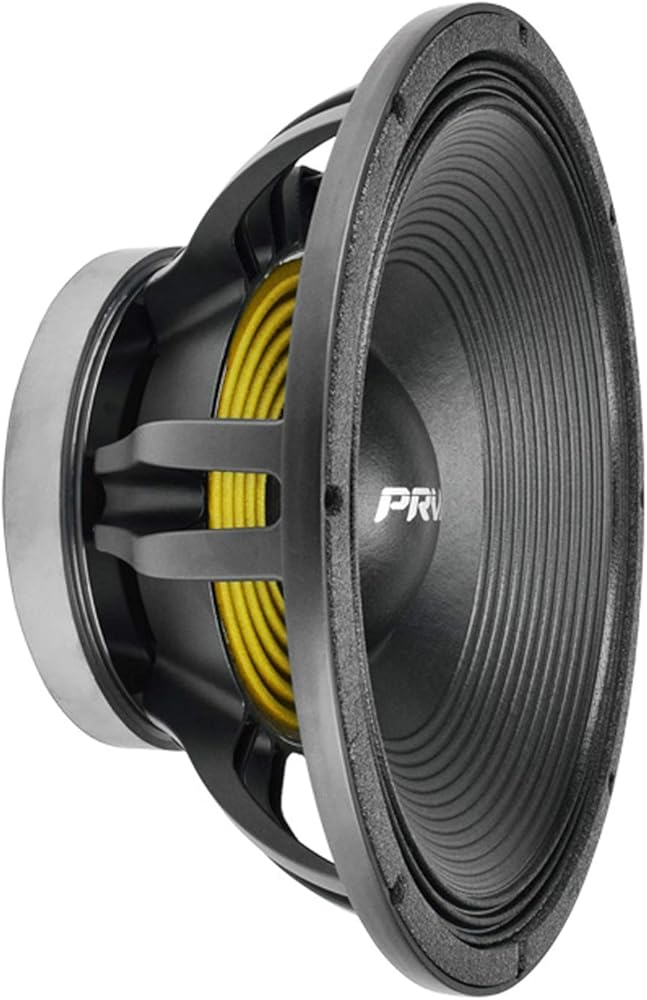

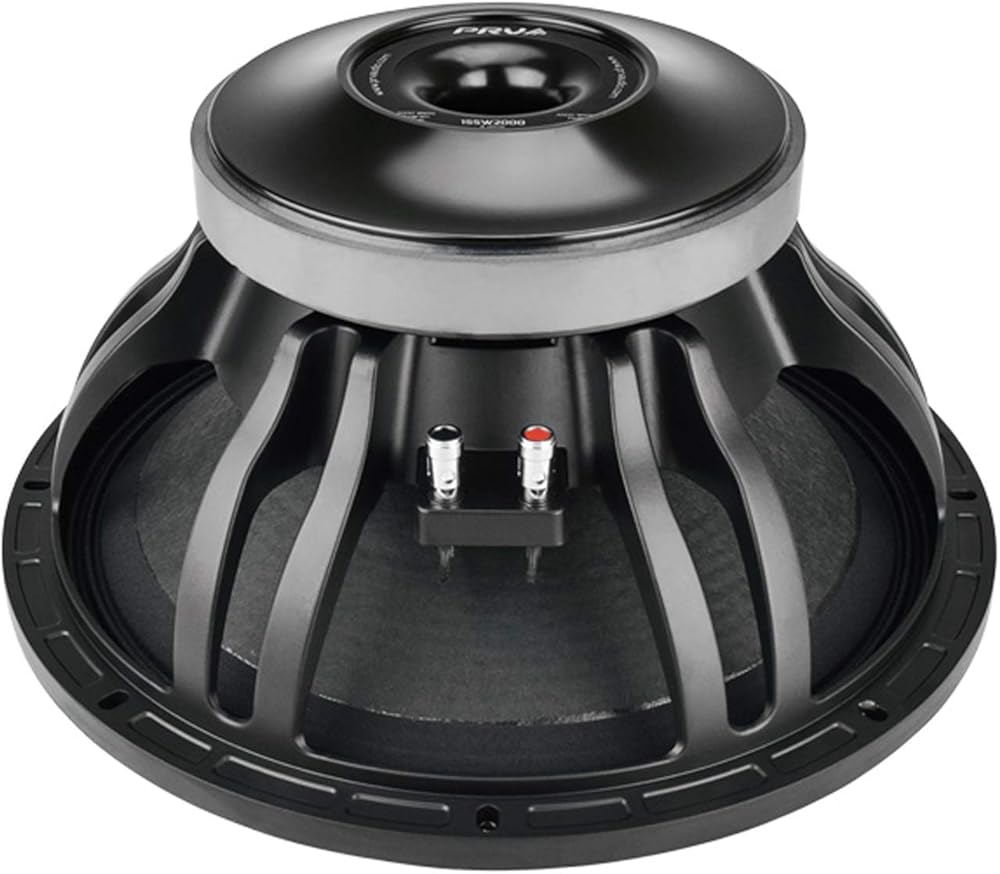

PRV AUDIO 15" SUBWOOFER LOUDSPEAKER

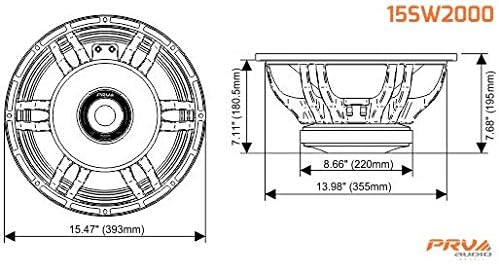

Nominal Diameter: 15″ (310 mm)

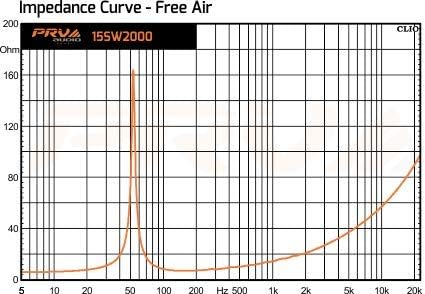

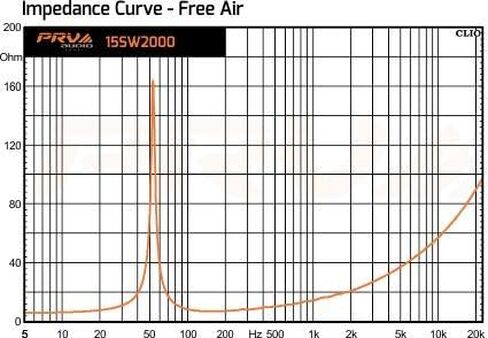

Nominal impedance: 8 Ohms
Rated Power Handling: 1000 Watts
Program Power 2000 Watts
Sensitivity 2.83V at 1m : 96 dB
Recommended Hi-Pass Crossover: 50 Hz

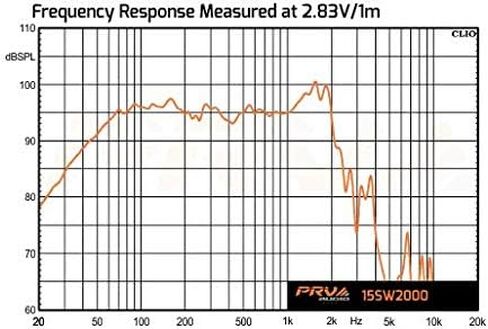

Frequency Response at -10dB : 45 – 2,300 Hz
Voice Coil Diameter: 4″ (100 mm)
Voice Coil Wire: Copper
Voice Coil Winding Depth: 31.0 mm
Former Material: Glass Fiber
Magnetic Gap Depth: 12.0 mm
Frame Material: Die Cast Aluminum
The 15SW2000 pro audio subwoofer features a special 4″ split copper wire voice coil wound on a fiberglass former using proprietary high-temperature adhesives. It features an optimized ceramic ferrite magnet assembly that will guarantee a very good Low dynamic range with a very low distortion figure. This professional low-frequency driver is especially recommended for compact vented enclosures, in which it will deliver solid, deep bass output.

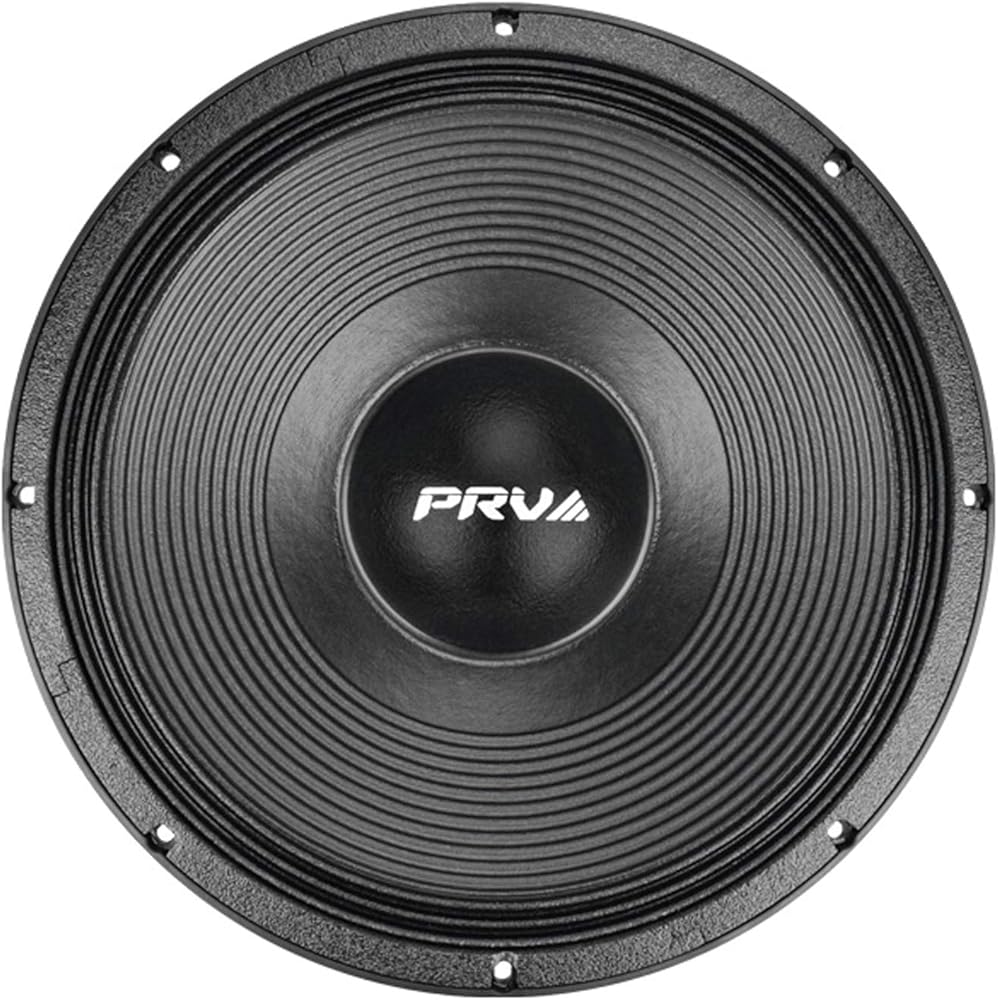

The cone, constructed of thick paper for natural response, includes glass fiber reinforcement and uses a ribbed design offering additional structural support. The woven surround offers precise movement along its impressive 12.5 mm XMAX. The upgraded and advanced voice coil and cone material along with its ability to reproduce extremely low frequencies will ensure this is your subwoofer of choice to replace your existing drivers.
Supporting the cone is a double silicone spider with optimized compliance and triple roll treated cloth surround, both designed for high excursion applications to handle short bursts of excessive power without damage.
To stand up to the use and abuse of the professional sound environment we designed a 4″ spit copper voice coil that is wound inside-outside on a fiberglass former and features a generous 31 mm winding length for extended Xmax and less distortion.
