FAQs

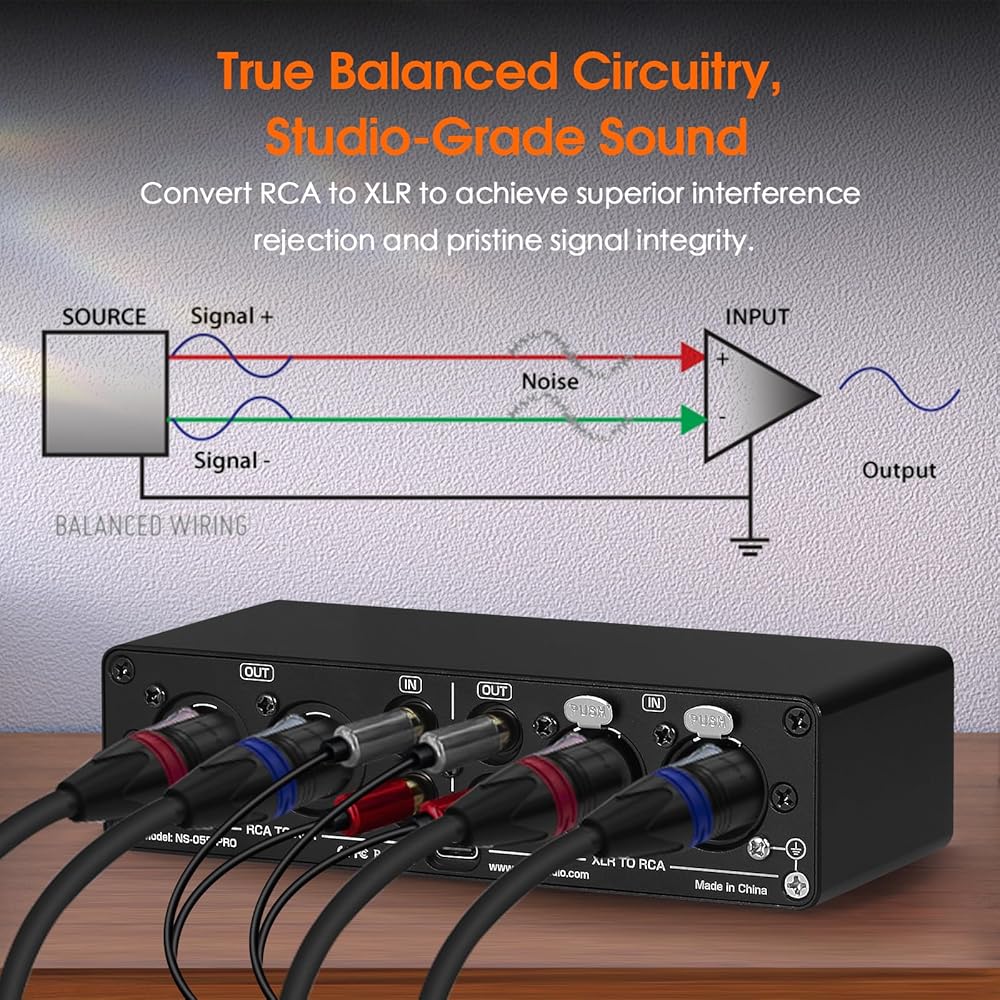

Q: Is the RCA-to-XLR conversion on the NS-05P PRO a true balanced output?
A: Yes. The NS-05P PRO features a fully differential design, delivering a true balanced signal when converting from RCA to XLR.

Q: Can the NS-05P PRO operate both RCA-to-XLR and XLR-to-RCA paths simultaneously?
A: Yes. The two signal paths are fully independent, allowing both conversions to function at the same time without interference.

Q: Why is the NS-05P PRO not working?
A:
1. The NS-05P PRO is an active converter and requires a DC 5V (≥1A) power supply to function properly. Please check if the power supply works well.

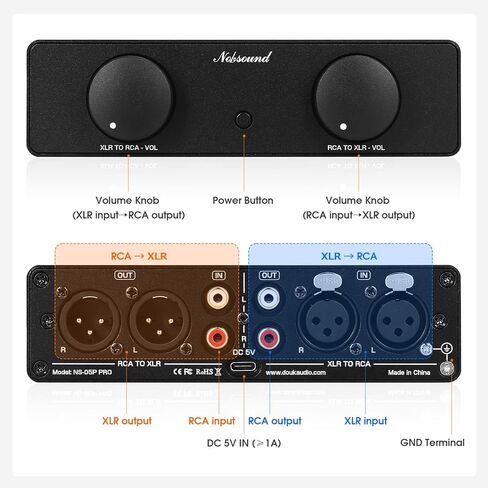

2. Please ensure the RCA and XLR ports are connected correctly:
Left half: RCA input → XLR output; Right half: XLR input → RCA output.
The NS-05P PRO does not support RCA-to-RCA or XLR-to-XLR connections. Incorrect connections will result in no signal output.

Q: Why does the output volume of NS-05P PRO differ in RCA-to-XLR and XLR-to-RCA modes?
A: When the volume knob is turned to maximum, XLR-to-RCA mode provides the maximum gain of +5dB, resulting in a louder output. In RCA-to-XLR mode, the maximum gain is 0 dB.

Q: What should I do if I hear hum or background noise when using the NS-05P PRO?
A: Please use a wire to connect the GND on the NS-05P PRO to a real earth ground or to the metal chassis of another equipment. If the issue persists, please contact us for further assistance.

Parameters:
* Brand: Nobsound
* Model: NS-05P PRO
* Audio input: RCA / XLR
* Audio output: XLR / RCA
* Work modes: RCA IN → XLR OUT / XLR IN → RCA OUT
* Power required: Yes
* Gain:
XLR → RCA: 5dB
RCA → XLR: 0dB
* THD+N: 0.008%
* THD: 0.00007%
* SNR: ≥89dB
* Channel balance (L/R): ≤0.01dB
* Frequency response: 20Hz-20kHz
* Input impedance: 20kΩ
* Output impedance: 100Ω
* RCA output level: 2Vms (max)
* Separate volume control: Supported
* Input voltage: DC 5V (≥1A)
* Power interface: USB Type-C
* Dimensions (W*D*H): 155*70*42mm / 6.10*2.76*1.65in
* Net weight: 420g / 0.92lb
* Package weight: 600g / 1.32lb

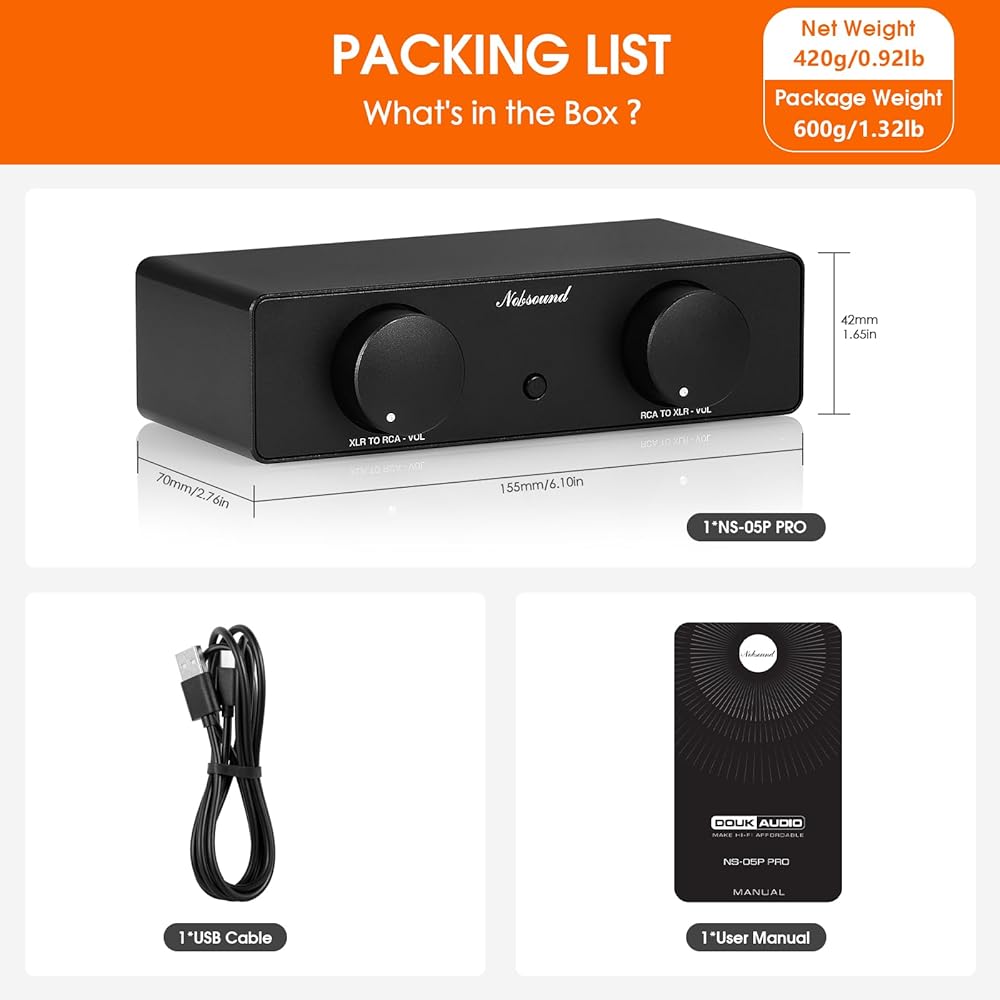

Packing List:
* NS-05P PRO Converter ×1
* USB Cable ×1
* User Manual ×1
