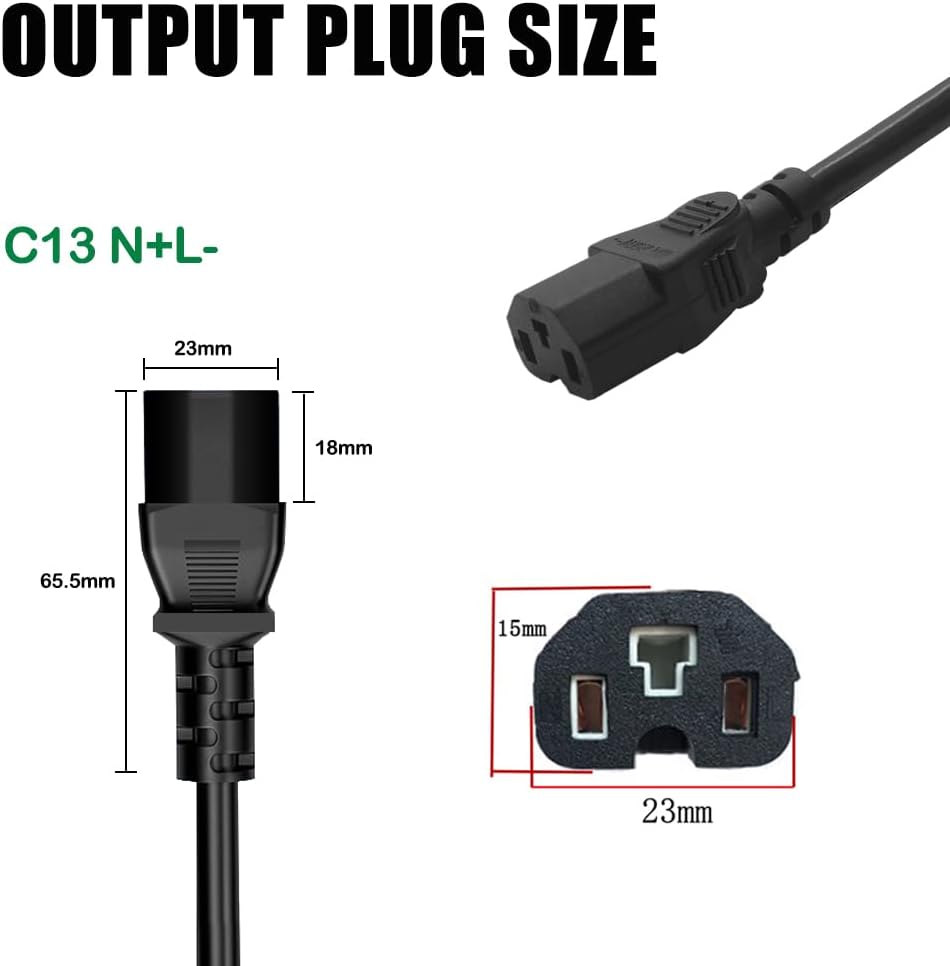

DC Connector by default is sent : C13 N+L- Plug
AC Input: 100~120Vac（Prohibit the use of 200-240Vac charging）, 50~60Hz ; DC Output: 71.4 Volt / 10 Amp, Provide 1* US standard power cable and 2* Fuse Can be Changed By Yourself
Three-stage Intelligent Charging Mode: Constant Current - Constant Voltage - Trickle to Ensure Battery Fully Charged

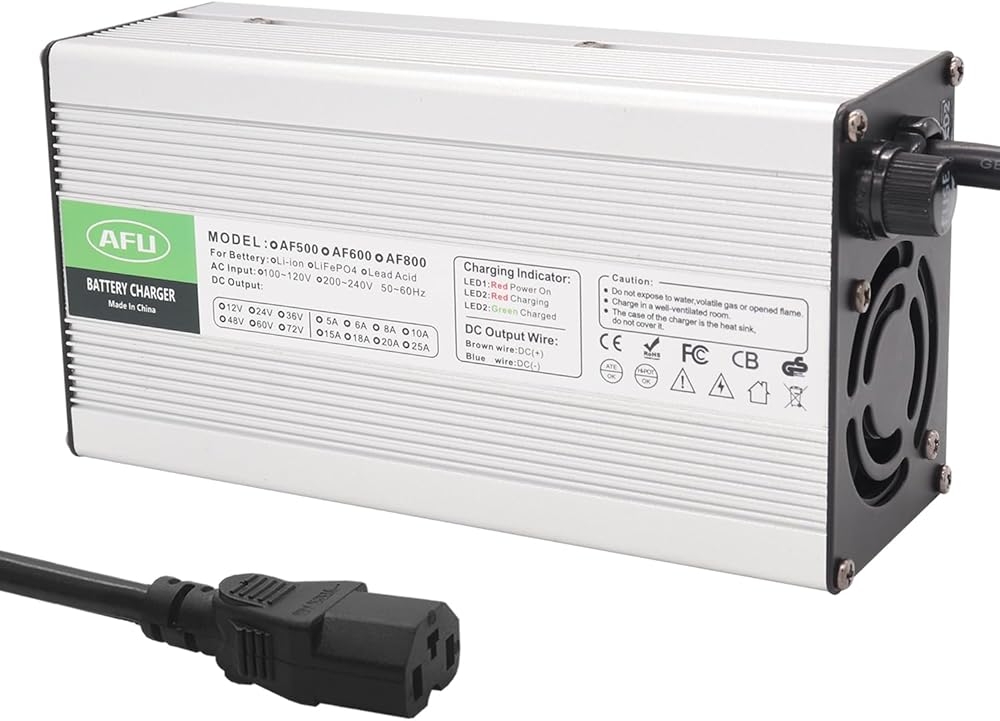

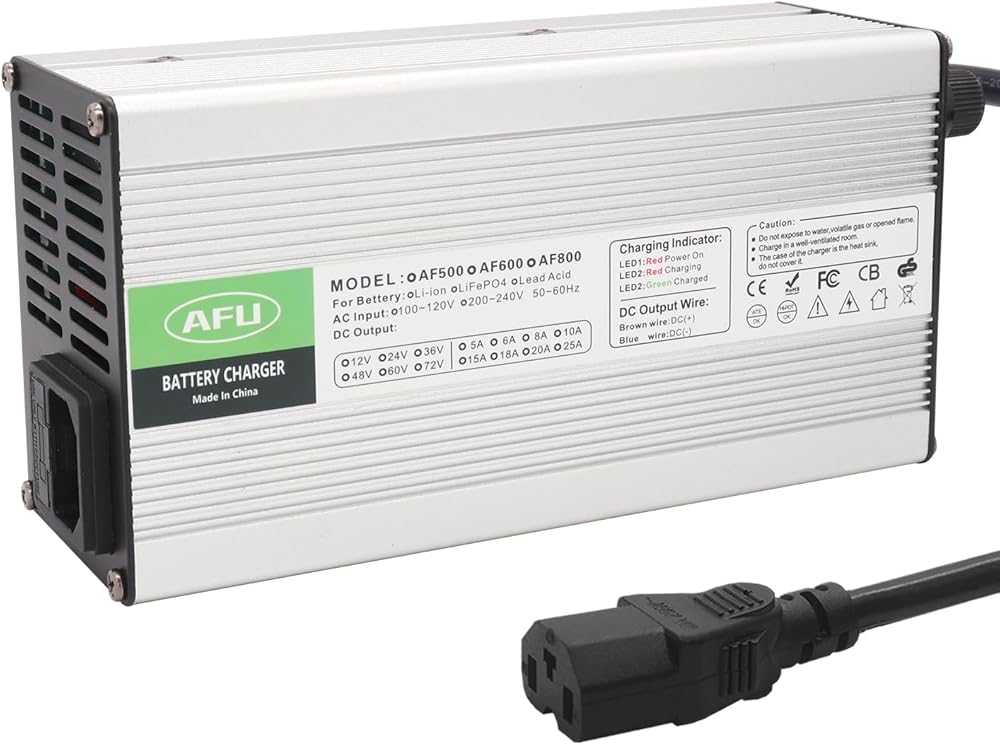

Aluminum shell, beautiful and durable, Designed with cooling fan, better heat dissipation during charging. Safety and longer life span.
With LED indicator, red light means charging, green light means full. Automatically switch to trickle mode after being fully charged to maintain optimal performance of your battery
Overvoltage protection, overcurrent protection, short circuit protection, reverse protection

Specification:

Product Name: 71.4V 10A Charger

Model: AF800-71410S-C13

Dimensions: 170*90*63mm

Color/Material: Silver/Aluminum Case

Suitable for Battery type: 17S 60V Lithium Battery Pack

AC Input:100~120Vac,50~60Hz

Output Voltage:71.4 Volts

Output Current: 8 Amp

Battery Protection: SCP,OVP,OCP,OTP

Charging Mode: Constant current - Constant Voltage - Trickle : three-stage intelligent charging

Charging efficiency: ≥85%

Working temperature: -20 ℃ ~ +40 ℃

Storage temperature: -40 ℃ ~ +70 ℃

AC power cord, DC connector can be customized.

Operating Instruction

1. Before charging, please connect the DC terminal to battery first, and then connect the AC terminal.

2. After charging complete, unplug the AC terminal firstly, and then unplug the DC terminal.

3. No charging or after charging complete, be sure to unplug the DC terminal and AC terminal.

LED Indicator:

LED 1 red: Power on.

LED 2 red: Battery being charged.

LED 2 Flash: Battery will be charged completely soon.

LED 2 green: Battery has been charged completely.

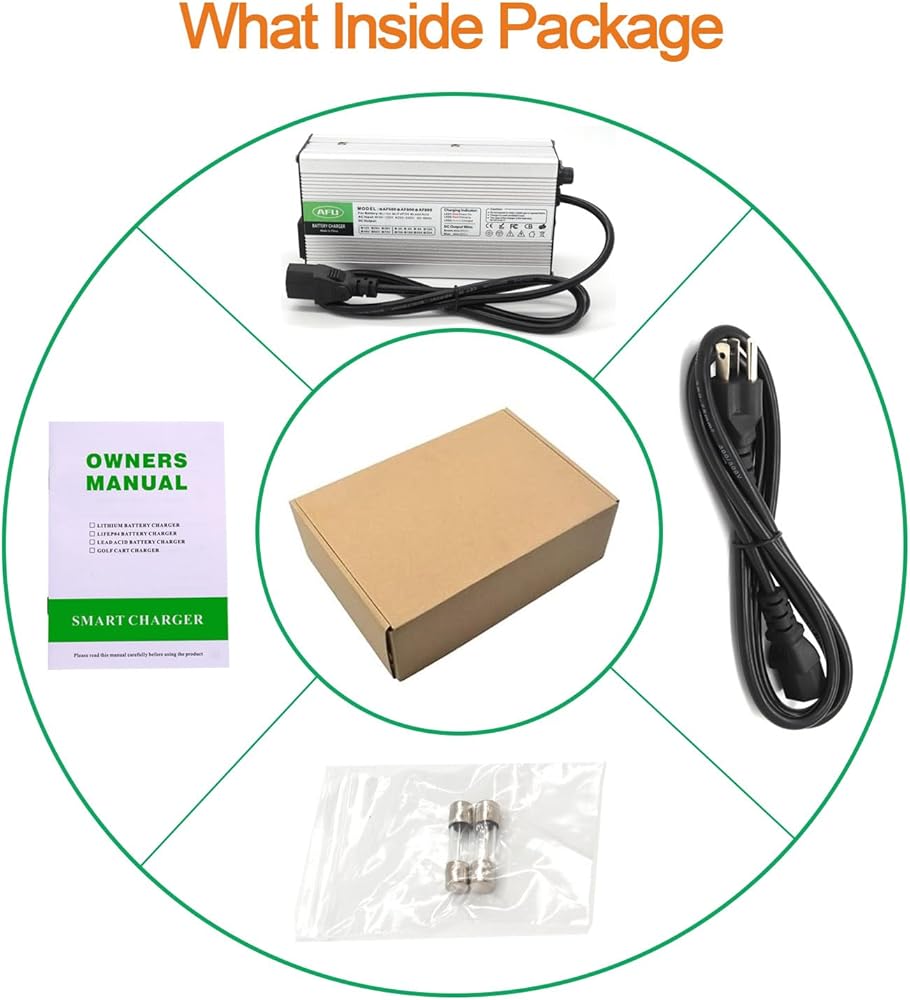

Package:

1* 71.4V 10A charger

1* US standard power cable

1* Operating manual

2* Fuse for replacing
