Specification:
Features:
Scope of application: office automation, home automation, medical equipment, safety equipment, consumer electronics, aircraft , automotive electronics fields.
Use metal gears, smooth transmission, wear resistance, large transmission torque, extend motor life
Built-in magnet, with high remanence, high magnetic energy product, high performance and other characteristics
Adopt pure copper wire coil, larger diameter, higher motor torque
Ball bearing: with hard mechanical characteristics, stability, high efficiency
Specification:

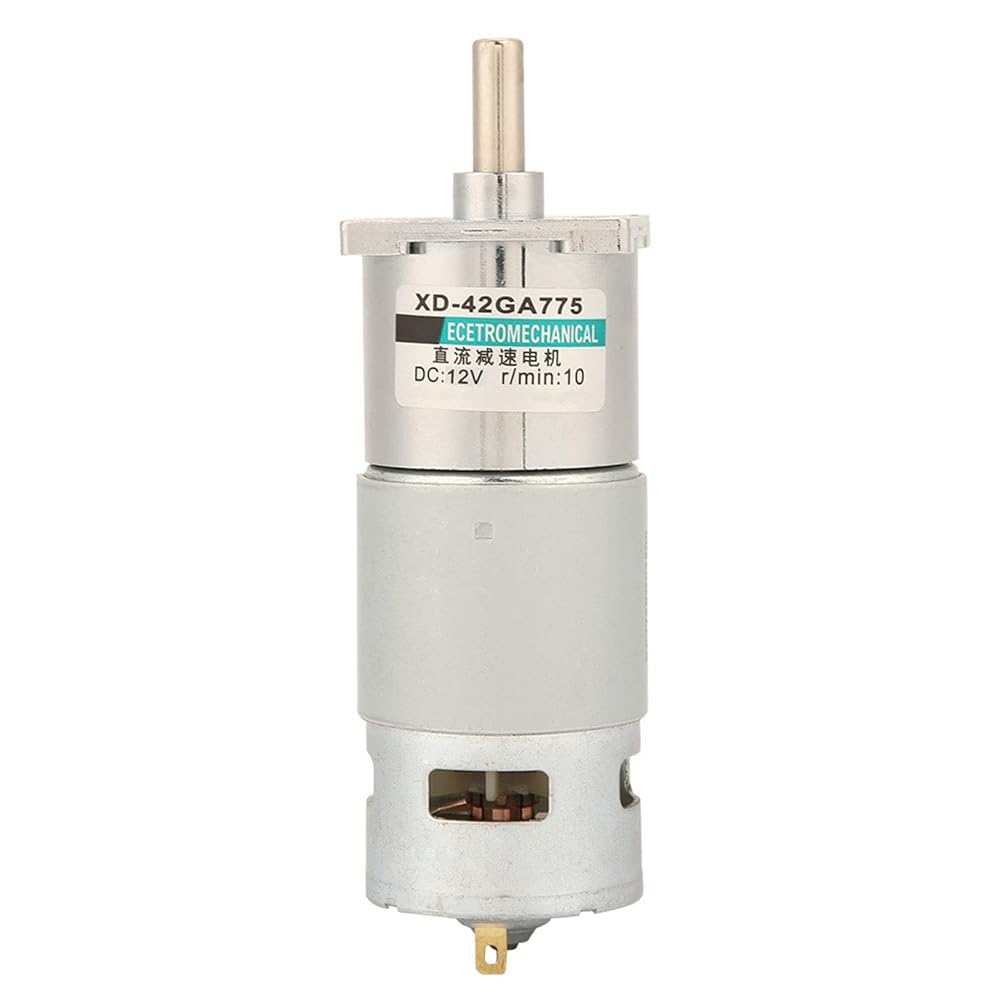

Product type: DC motor with brush with holder
Model No.: XD-42GA775
Number of : 2
Rated power:35W
Rated voltage: DC 12/24 (V)
Type (optional):10RPM12V, 20RPM12V, 30RPM12V, 50RPM12V, 100RPM12V, 150RPM12V, 200RPM12V, 300RPM12V, 400RPM12V, 500RPM12V, 600RPM12V, 10RPM24V V, 20RPM 24v, 30RPM24v, 50RPM24v, , 100RPM24v,150RPM24v, 200RPM24v, 300RPM24v, 400RPM24v, 500RPM24v, 600RPM24v
Shaft size: approx. 8*19mm/0.3*0.8inch
Adjustable speed: Yes
CW CCW: Yes
Weight: about 662g/23.4oz
Voltage (V) 12V
Current(A) 2
Speed(RPM) 10 30 50 100 150 200 300 400 500
Torque(kg.fcm) 76.4 25.47 15.28 7.64 5.09 3.82 2.55 1.9 1.53
Voltage(V) 24V
Current(A) 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8
Speed (RPM) 10 30 50 100 150 200 300 400 500
Torque(kg.fcm) 80 31.83 19.1 9.55 6.37 4.78 3.18 2.39 1.91
Packing List:
1 x DC Gear Motor
1 x Stent.
1 Set x Installation Accessories
