Deaf Bonce 900W 2 ohm RMS Class D 4 Channel Machete Power Amplifier MLA-160.4
This Listing Includes:
(1) MLA-160.4 4 Channel Amplifier

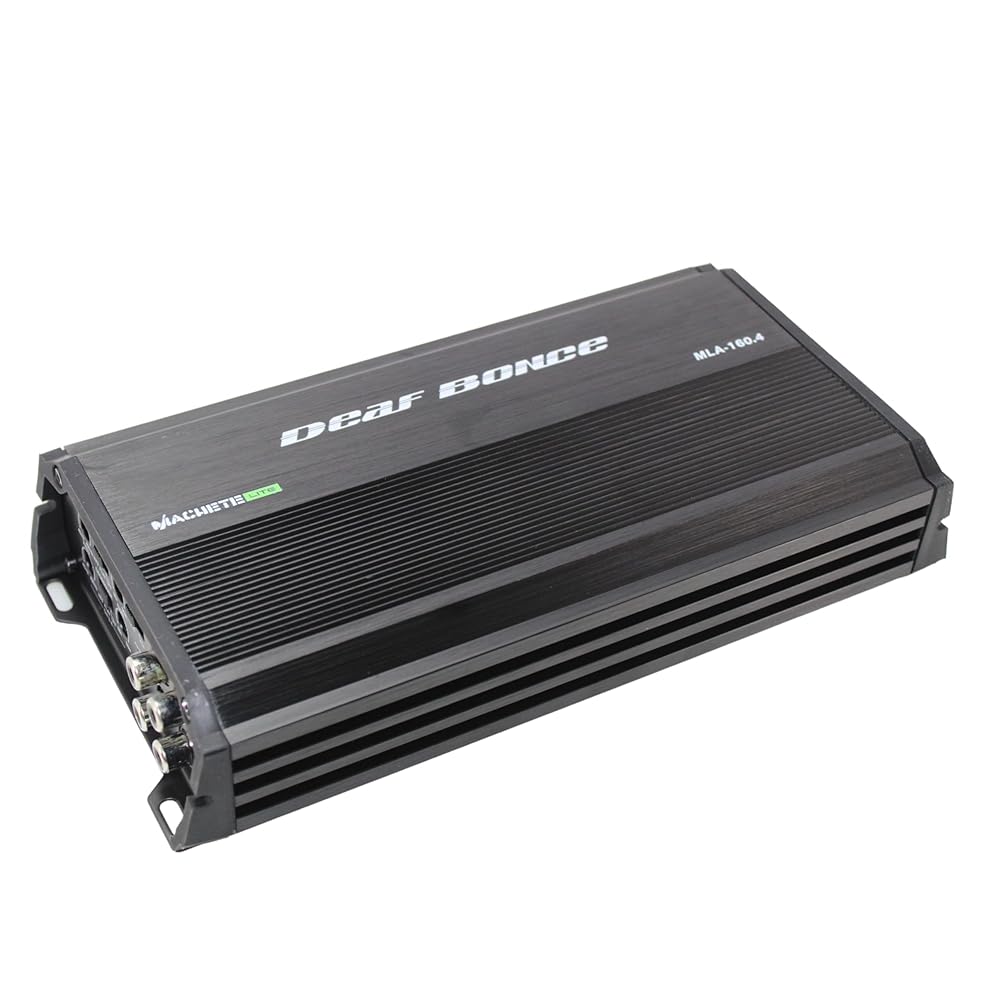

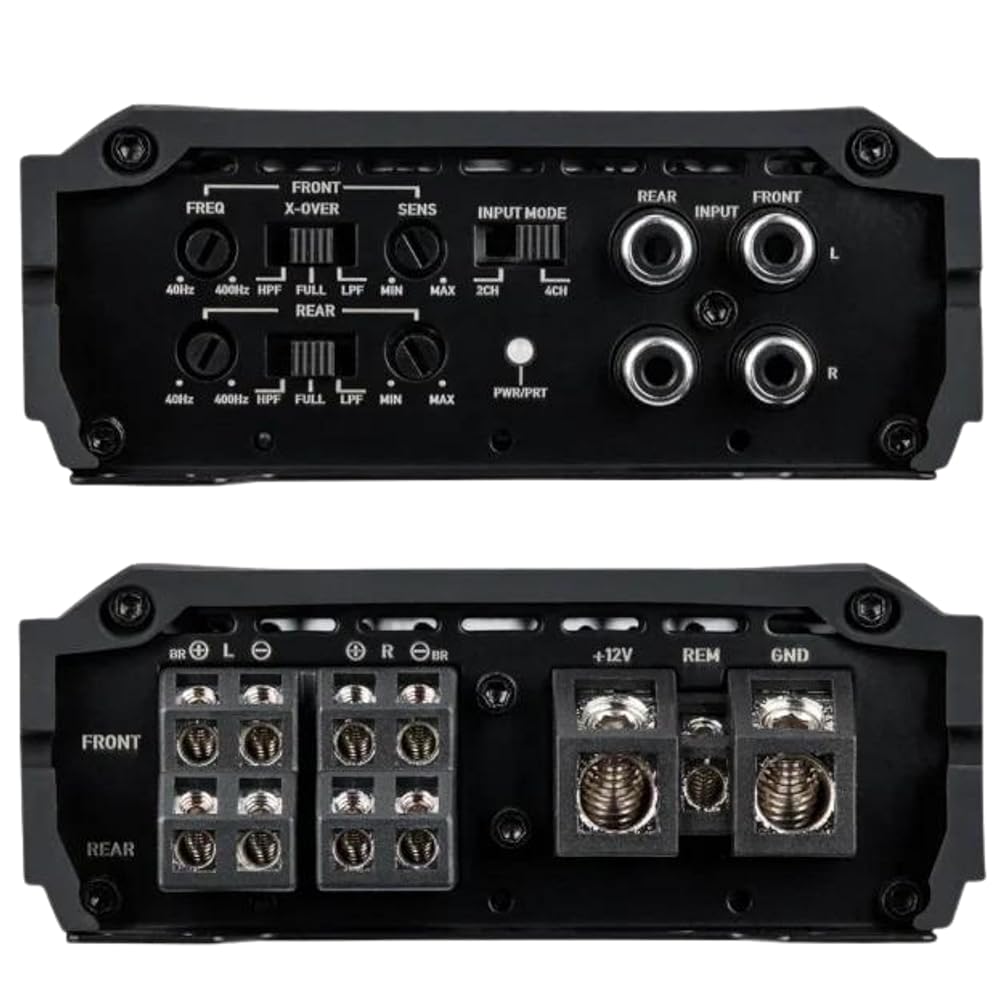

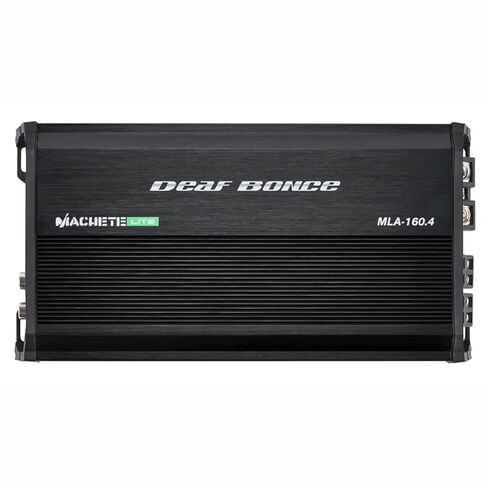

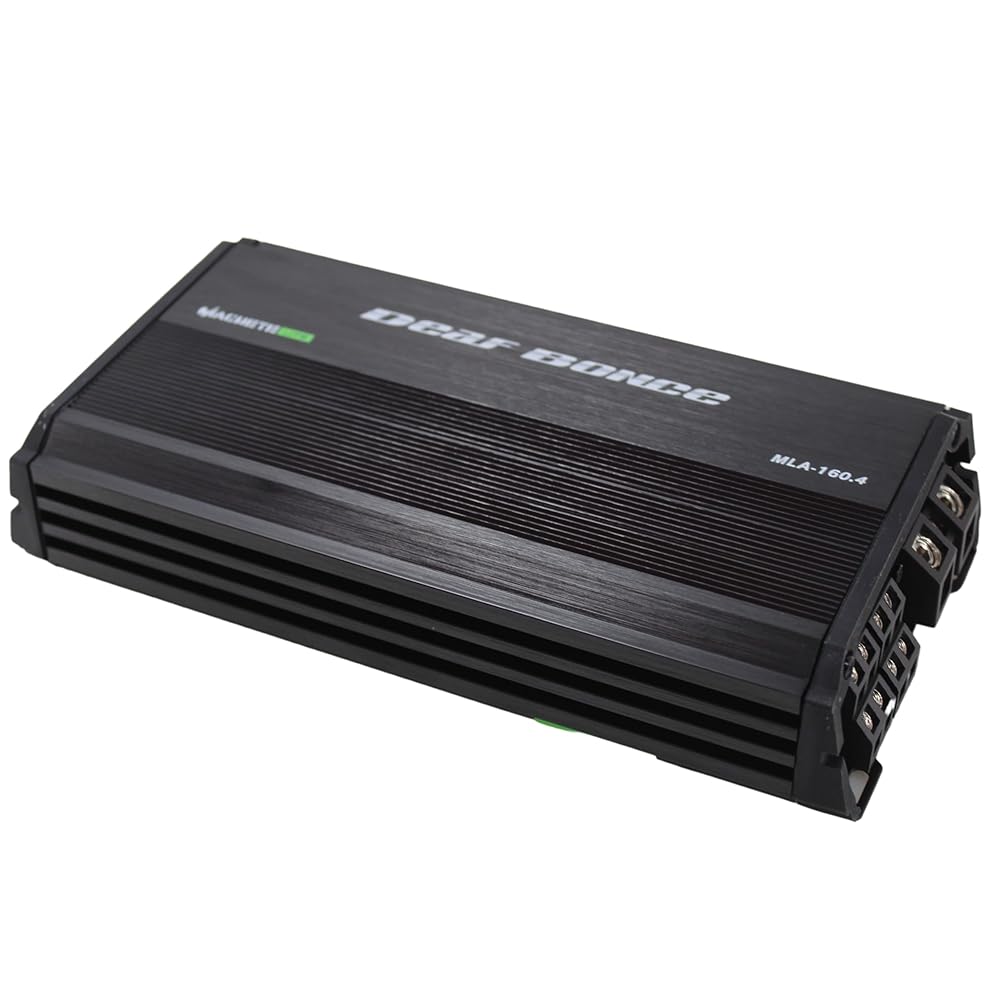

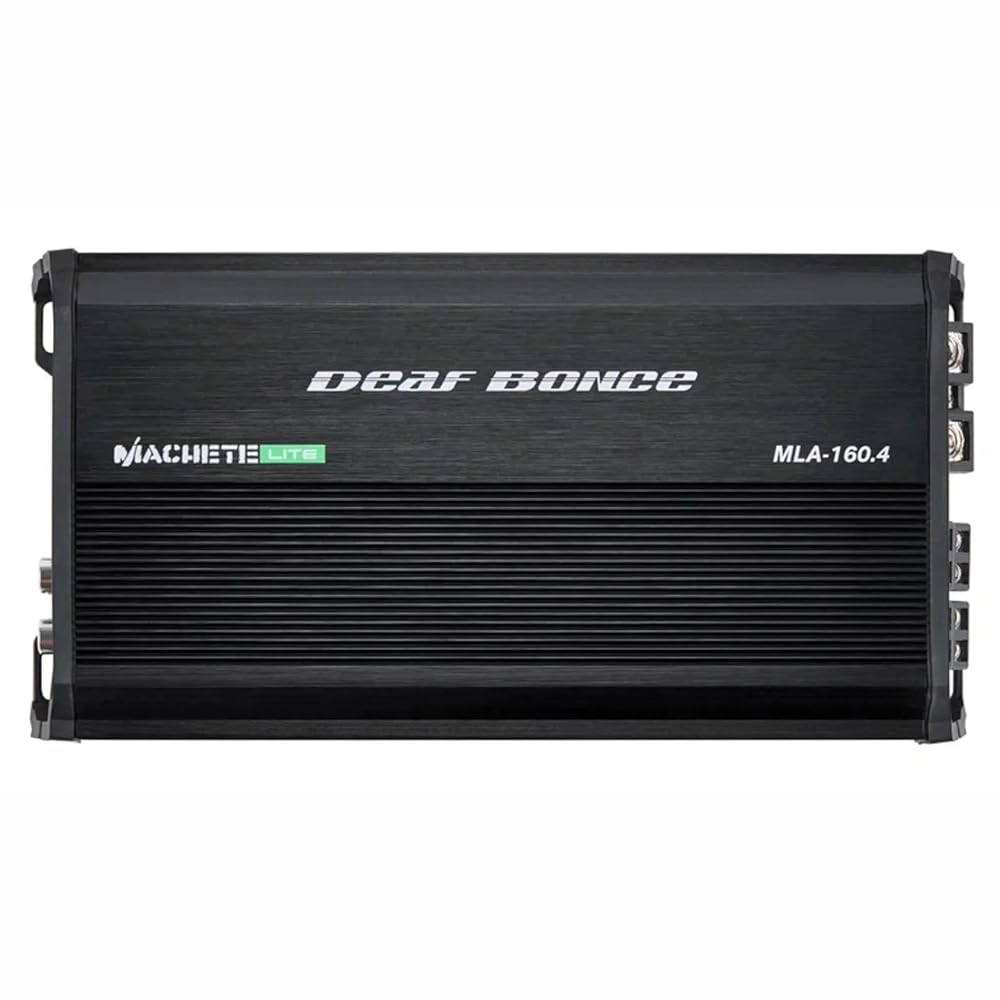

Meet the Deaf Bonce Machete MLA-160.4, a versatile Class D 4-channel power amplifier delivering 160 Watts RMS for dynamic car audio. With a broad 20-20000 Hz frequency response, it ensures high-quality sound. Operating at 2 Ohms, it delivers 225 Watts RMS per channel, and when bridged, achieves an impressive 450 Watts RMS at 4 Ohms. The MLA-160.4 features a 40-400 Hz low pass and high pass filter with a 12 dB/Oct crossover for precise audio customization. Equipped with 4 Ga input and 8 Ga output terminals, it provides convenient wiring options. Adaptable with a minimum load of 2 Ohms per channel and 4 Ohms in a bridge connection, this compact amplifier operates on a 9-15V voltage range, efficiently integrating into your car audio setup for a space-saving and powerful enhancement.
Specifications:
Model: MLA-160.4
Class: D
Number of the channels: 4
Frequency response: 20-20000 Hz
2 Ohm RMS Power (14.4 V): 225 W x 4
4 Ohm RMS Power (14.4 V): 160 W x 4
4 Ohm RMS Power (Bridge): 450 W x 1
Minimum permissible load on the channel: 2 Ohm
Minimum permissible load in a bridge connection: 4 Ohm
Low pass filter: 40-400 Hz
High pass filter: 40-400 Hz
LPF and HPF simultaneous operation: True
Crossover: 12 dB/Oct
Input terminal: 4 Ga
Output terminal: 8 Ga
Working voltage: 9 - 15V
Size (WxLxH): 8.7 x 4.3 x 1.7 inch
