Front LEDs: PWR, FEF, Fiber Link, TP Link, Duplex, Speed
Power: External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug - included in the box
Temperature: 0 — 60°C (Operating); -10 — 70°C (Storage), Humidity: 10 — 90% non condensing, Consumption: less than 4W, Dimensions(WxDxH): 88mm x 155mm x 23mm, Weight: 340g (without AC adapter), Compliance: FCC part 15, Subpart B, Class A, ANSI C63.4:2003 CE EN55022:2006, Class A EN55024:1998+A1:2001+A2:2003 LVD: EN 60 950-1:2001, MTBF: 65,000 hours
وصف

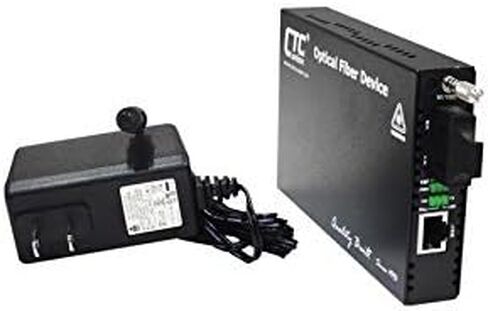

The FRM220-10-100I-SC015 Fast Ethernet fiber media converter is a 10/100Base-TX to 100Base-FX single-mode 1310nm converter reaching up to 15km distance. Unit supports web-based and in-band management including powerful features like Bandwidth Limiting, Dying Gasp, Link-Loss-Forwarding, Remote-Monitoring-Status and Loop-Back-Test. FRM220-10-100I-SC015 can be managed when inserted into an FRM220 series chassis equipped with an FRM220-NMC management card. Remotely connected converters can be managed in-band over the fiber. Up to 8 big FRM220-CH20 chassis can be controlled with a single management card.
