مميزات خاصة

Massive Multi-Channel Power – Unleash 3600W peak output with the DS18 G3600.6D! Delivers 200W RMS x6 @4Ω, 250W RMS x6 @2Ω, or 500W x3 bridged @4Ω, perfect for powering an entire car audio system with precision and clarity
Precision Audio Control – Fine-tune your sound with variable high-pass, band-pass, and full-range crossovers. Adjustable bass boost up to 12dB @45Hz lets you shape your low-end exactly the way you want
Superior Efficiency & Sound Quality – Featuring 75% efficiency @4Ω and a signal-to-noise ratio >90dB, this digital Class D amplifier delivers clean, powerful sound with ultra-low distortion (THD 0.01%) and wide 20Hz–20kHz response
Full Protection Suite – Designed to perform safely under pressure, with built-in thermal, overload, short circuit, DC output, voltage input, and clipping protections, ensuring long-term reliability and durability
Compact & Versatile Design – Matte black finish and slim 12.8" body for easy installation. Includes 4GA power input, remote level control, and switchable input modes (2CH/4CH/6CH) for flexible system configuration

وصف

Power

Total Power (Peak): 3600W
RMS Power @ 4Ω: 6 x 200W
RMS Power @ 2Ω: 6 x 250W
RMS Power @ 4Ω Bridge: 3 x 500W

Audio Specifications

Frequency Response: 20Hz – 20KHz
Signal-to-Noise Ratio: >90dB
Efficiency @ 4Ω: 75%
Damping Factor: 75
Input Impedance: 22KΩ
Channel Separation: 57dB
Total Harmonic Distortion (THD): 0.01%
Low Level Input Range: 0.25V – 6V
High Level Input: No

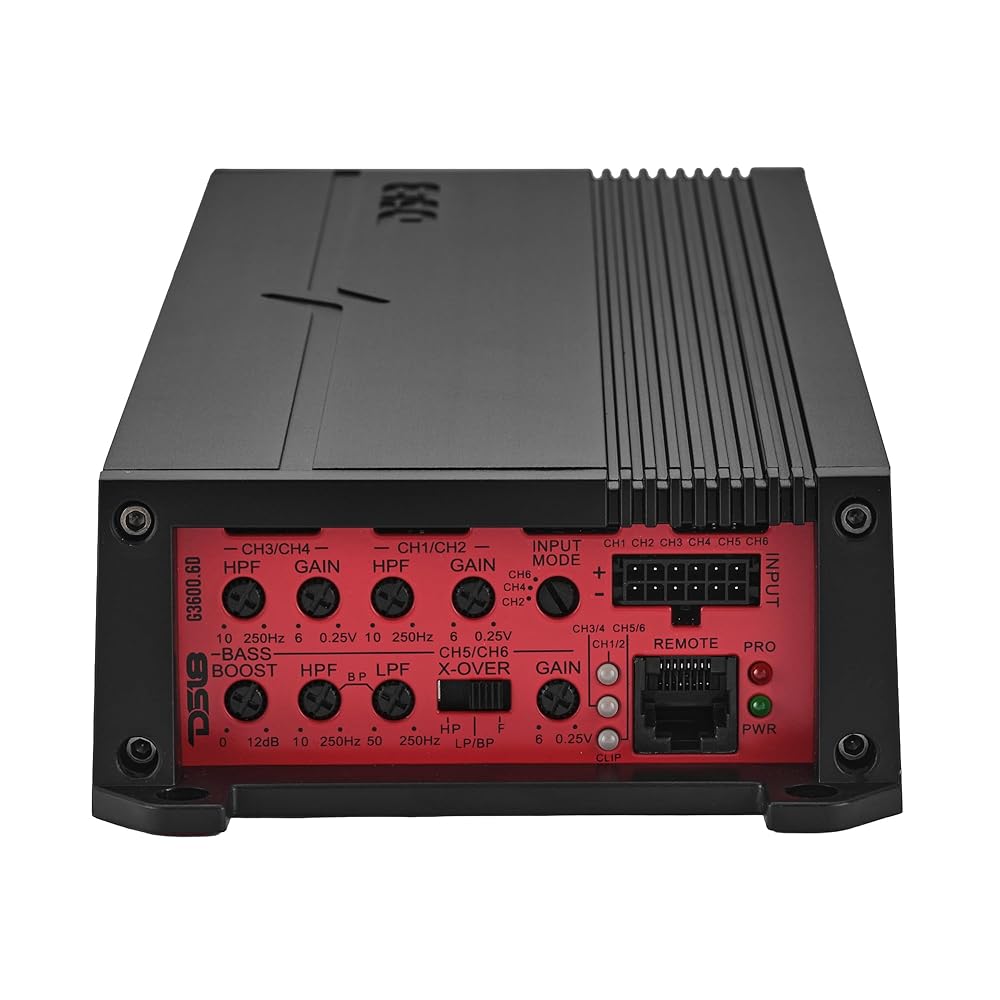

Selectable Crossover: Variable HPF / HPF-BPF-FULL (CH 5/6)
Crossover Filter Range: HPF: 10–250Hz / LPF: 50–250Hz
Bass Boost Range: 0–12dB
Bass Boost Frequency: Fixed @ 45Hz
Infrasonic Filter: N/A
Phase Selector: No

Features

Amplifier Class: Digital (Class D)
Amplifier Type: Full Range
Number of Channels: 6 Channels
Minimum Impedance: 2Ω Stereo / 4Ω Bridge
LED Indicators: Power / Protection / Clip

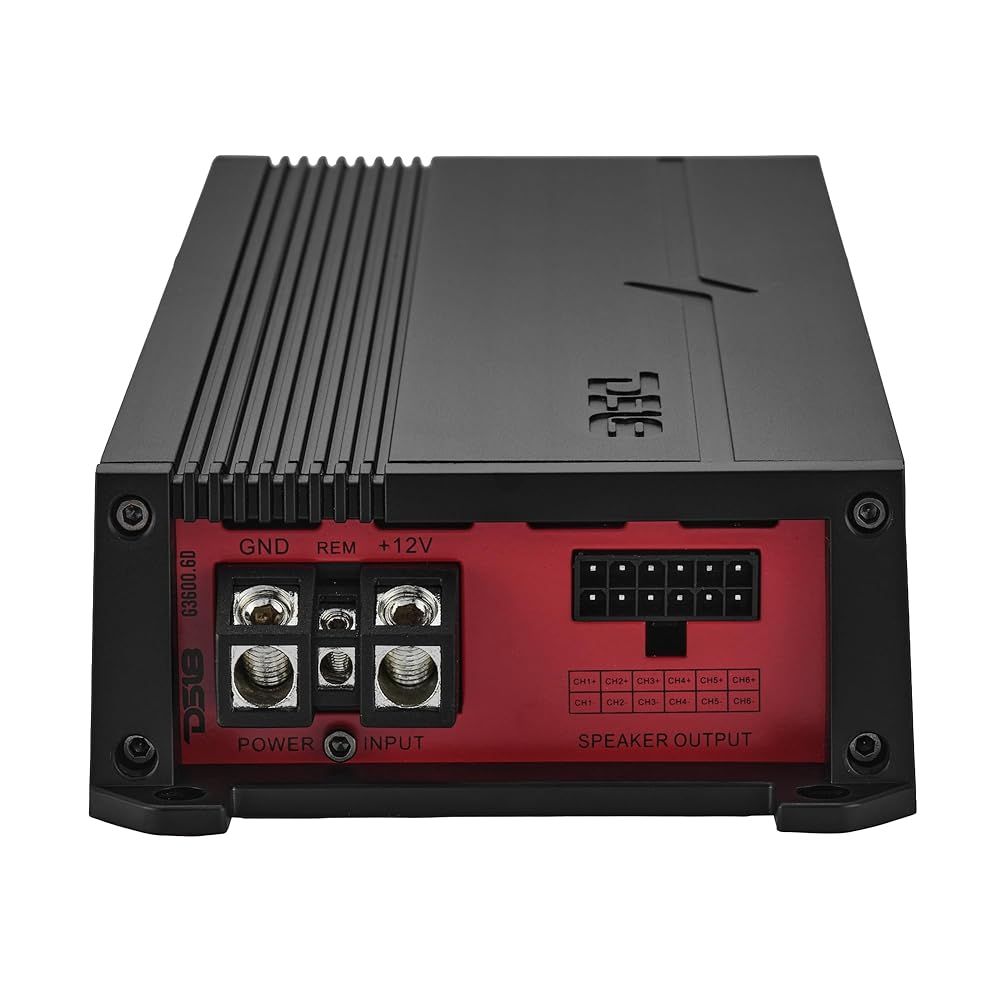

Power Input Terminal Size: 4GA
Fuse Rating: 3 x 40A

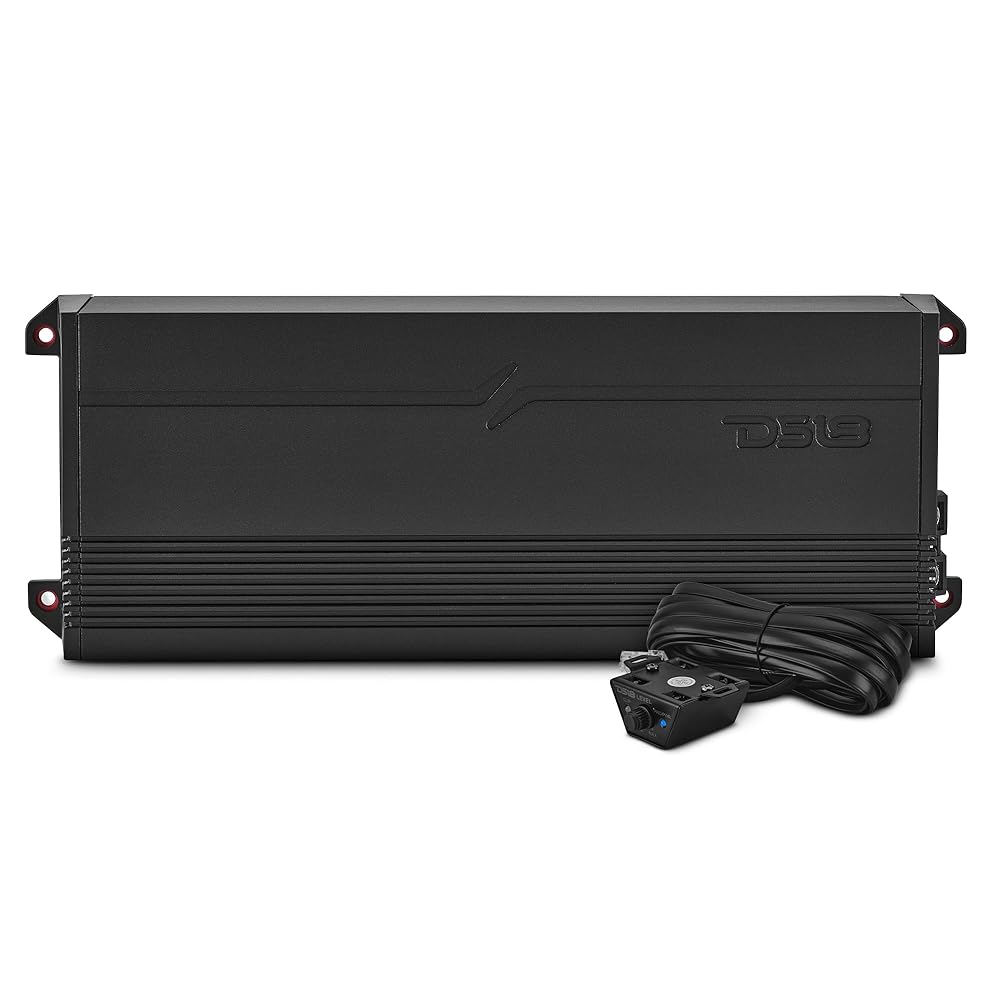

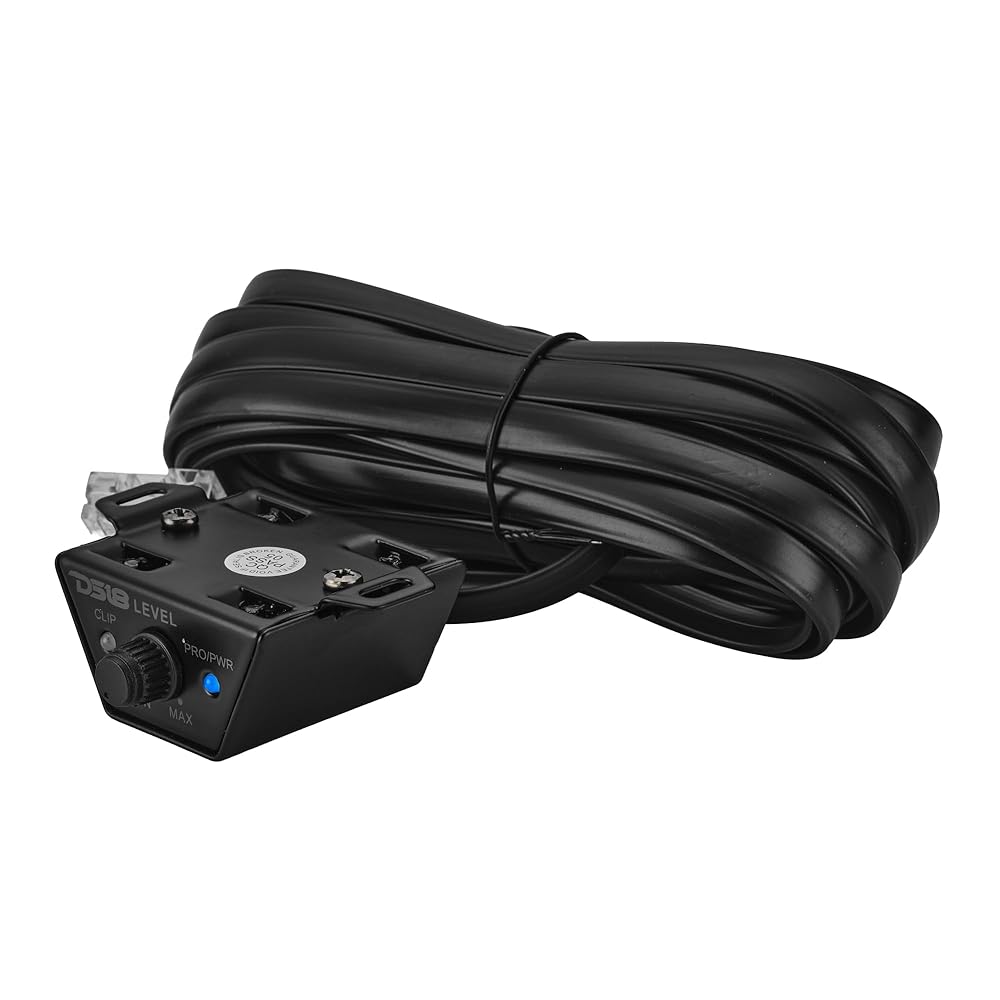

Remote Level Control: Yes
Cooling Fan: No
Voltmeter: No
Thermal Protection: Yes
Overload Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes
Clipping Protection: Yes
Body Color / Finish: Matte Black

Measurements

Overall Length: 12.8" (325mm)
Overall Width: 4.72" (120mm)
Overall Height: 1.96" (50mm)
Heatsink Length: 10.9" (278mm)
Gross Weight (Single Unit): 2.2kg

Extra Features

Input Selector: Yes (2CH / 4CH / 6CH)
Compact Size for Easy Installation: Yes

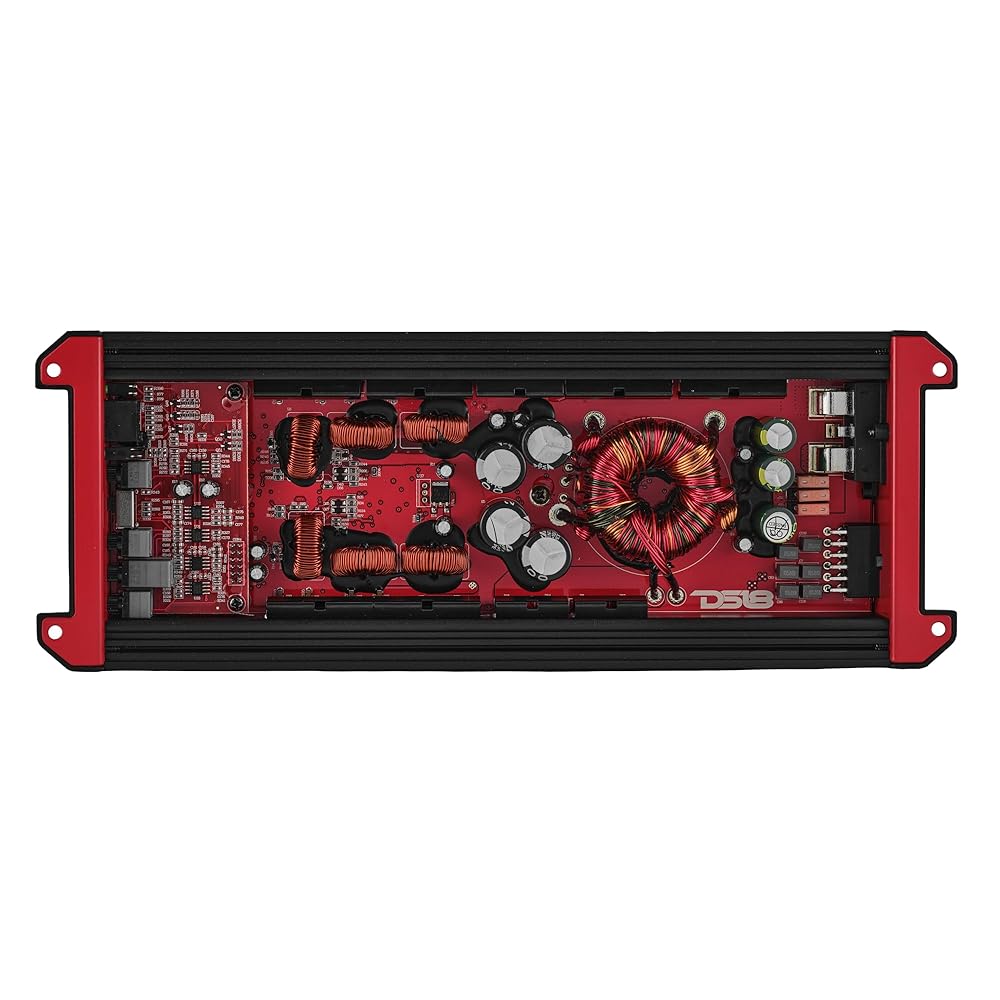

Stable & Reliable Two or Four Layer PCB Design: Yes
Surface Mount Component Technology: Yes
Quality Control Verification using Audio Precision Instruments: Yes
