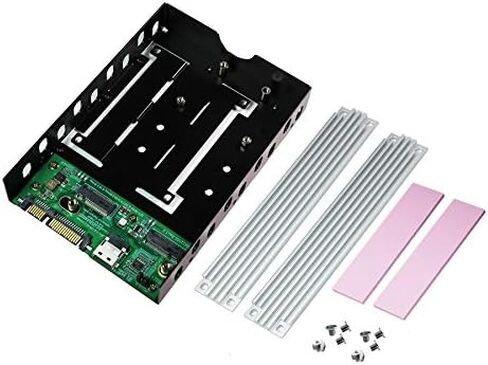

The 3.5 Inch Slimline SAS & SATA to M.2/M.3 NVMe SSD Caddy is designed to be compatible with both SAS and SATA interfaces, making it a versatile solution for data storage.
It is compatible with both M.2 and M.3 NVMe SSDs, which enables users to utilize the latest in storage technology.

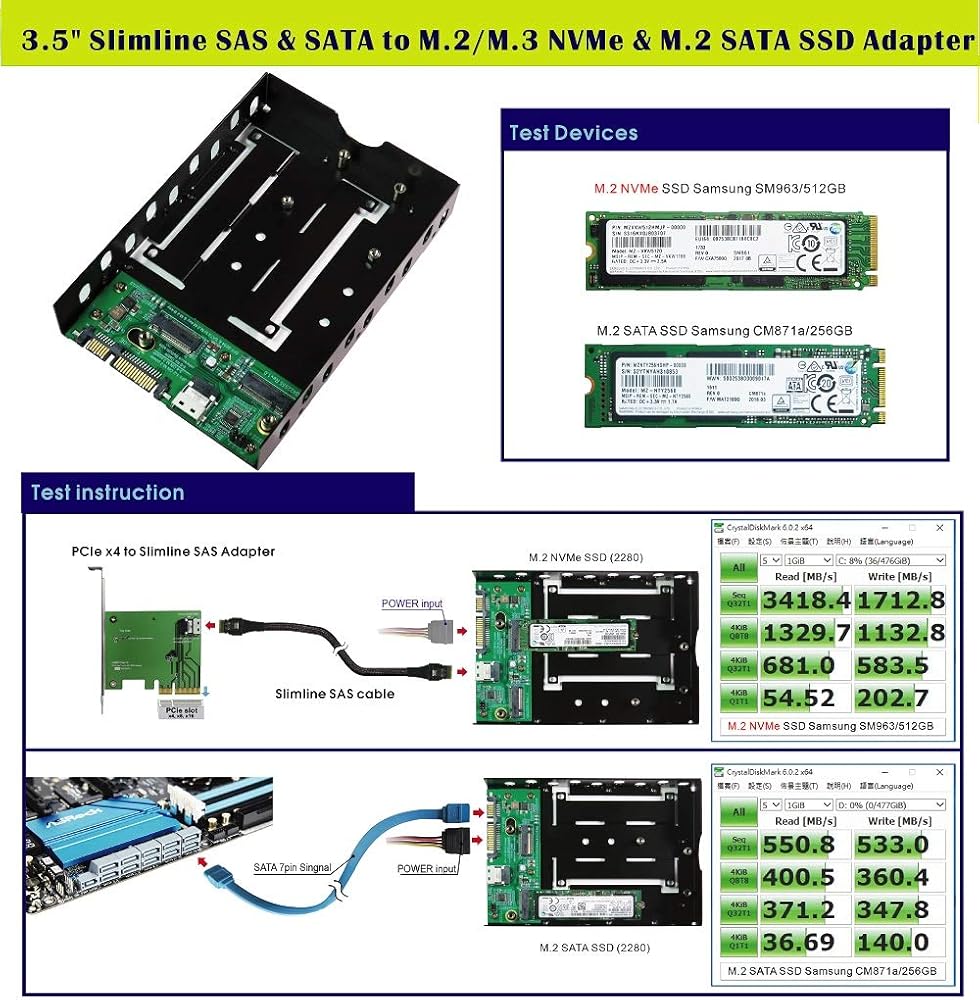

This caddy supports data transfer rates of up to 6 Gbps, ensuring that users can take advantage of the full performance of their NVMe SSD.

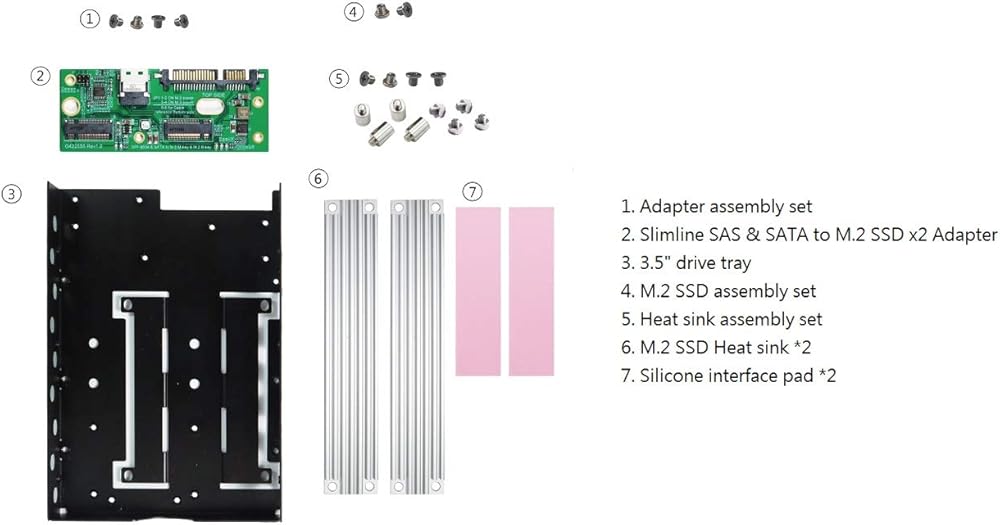

The 3.5 Inch Slimline SAS & SATA to M.2/M.3 NVMe SSD Caddy is designed for easy installation. Users can simply slide their NVMe SSD into the caddy and secure it with the included screws.
Micro SATA Cables Part# SAS-1668-M
وصف
Slimline SAS to M.2 / M.3 NVMe SSD Drive tray SATA 7+15pin to M.2 SATA interface SSD Drive tray. Features
Built-in SFF-8654(Slimline SAS) Female connector
Built-in M.2 M-key Female connector, pin-out defined by PCIe
Built-in M.2 B-key Female connector
D1 Green LED on indicates M.2 NVMe SSD power ready
D2 Green LED on indicates M.3 NVMe SSD power ready
D3 RED LED Blinking indicates M.2 or M.3 NVMe active status
D4 Green LED on indicates M.2 SATA SSD power ready
D5 RED LED Blinking indicates M.2 SATA SSD active status
Specifications Compliant with NVM Express 1.0a
Support PCI Express Base Specification Rev 3.0
Compliant with PCI Express M.2 Specification Version 1.0
Compliant with Samsung M.3 Datasheet_v0.4
Compliant with SFF-8301 Specification for 3.5" Form Factor Drive Dimensions
Support SSD_Form_Factor_Version1_a
Compliant with SFF-9402 Specification Rev 1.0
Compliant with SFF-8654 Rev1.1.1
Compliant with SerialATA_Revision_3_2_Gold

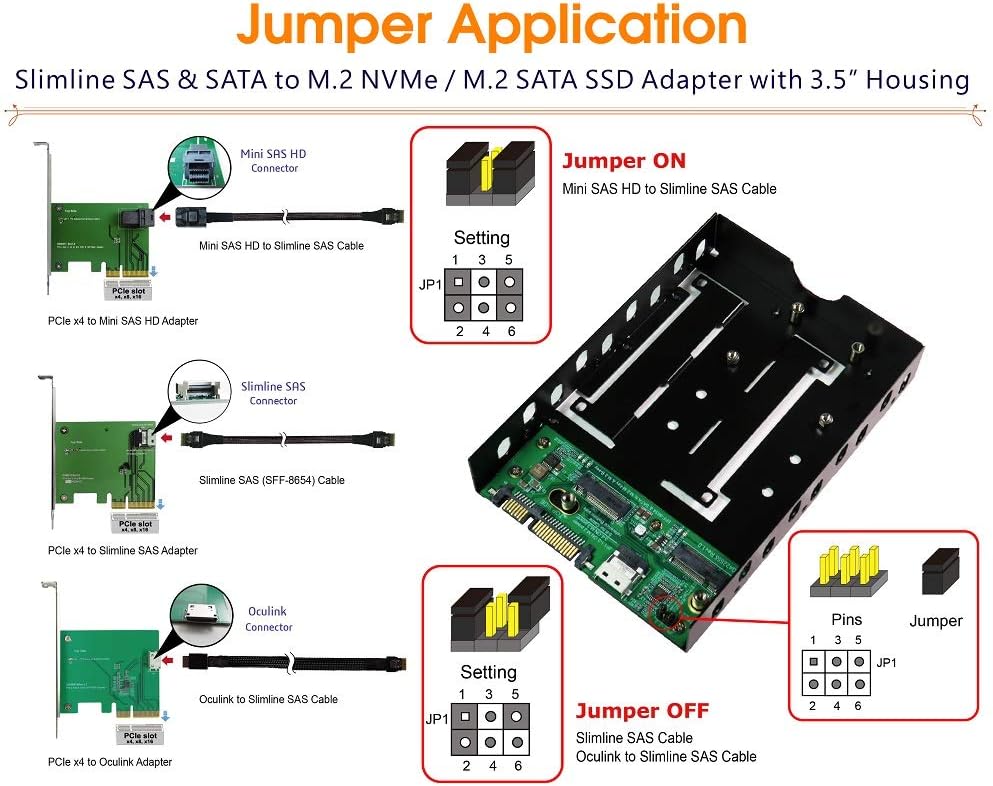

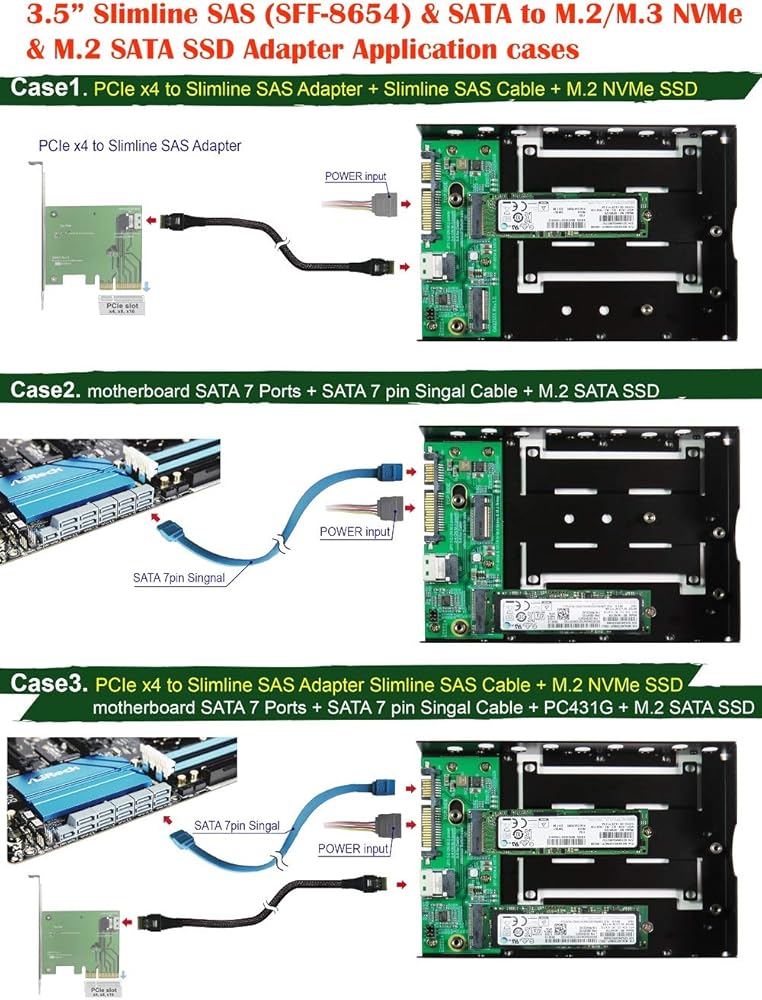

Application SFF-8654 to SFF-8654 Cable for SFF-8654 Slimline SAS Host by SFF-9402 defined PCIe RefClk p,n & Rerst
SFF-8612 to SFF-8654 Cable for SFF-8612 Oculink Host by SFF-9402 defined PCIe RefClk p,n & Rerst#
SFF-8643 to SFF-8654 Cable for SFF-8643 MINI SAS HD by Intel defined PCIe RefClk p,n & Rerst#
Supports the following form factor M.2 SSD Type 2242-D2-B-M: 42mm(L) x 22mm(W)
Type 2260-D2-B-M: 60mm(L) x 22mm(W)
Type 2280-D2-B-M: 80mm(L) x 22mm(W)
Type 22110-D2-B-M: 110mm(L) x 22mm(W)
Micro SATA Cables PN # SAS-1668-M
