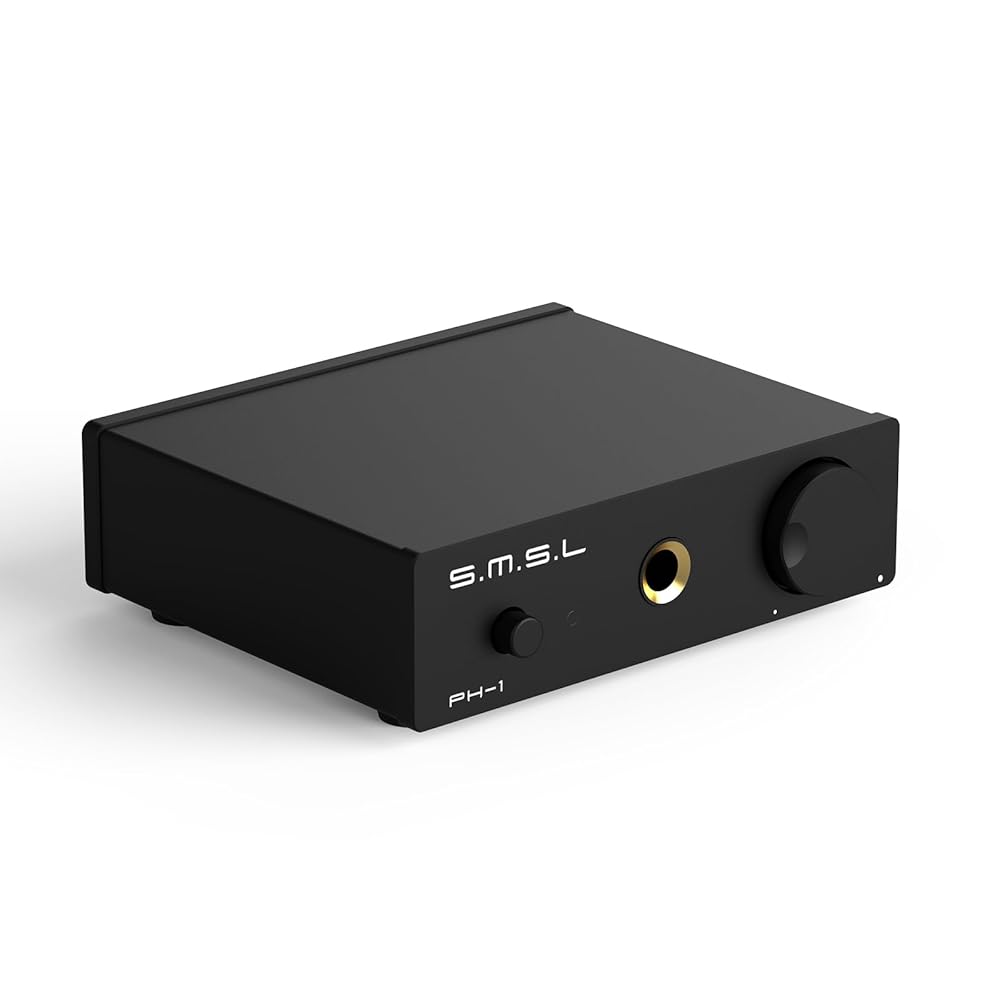

S.M.S.L PH-1 MM Phono Preamplifier for Home Audio System
Features
Using a high-performance MM phono amplifier circuit, with a high gain of 46dB, a distortion level of -81dB is still achieved.
With pop control circuitry, there is no popping sound when switching on and off.
Low-noise power supply ensures a quiet sound background.

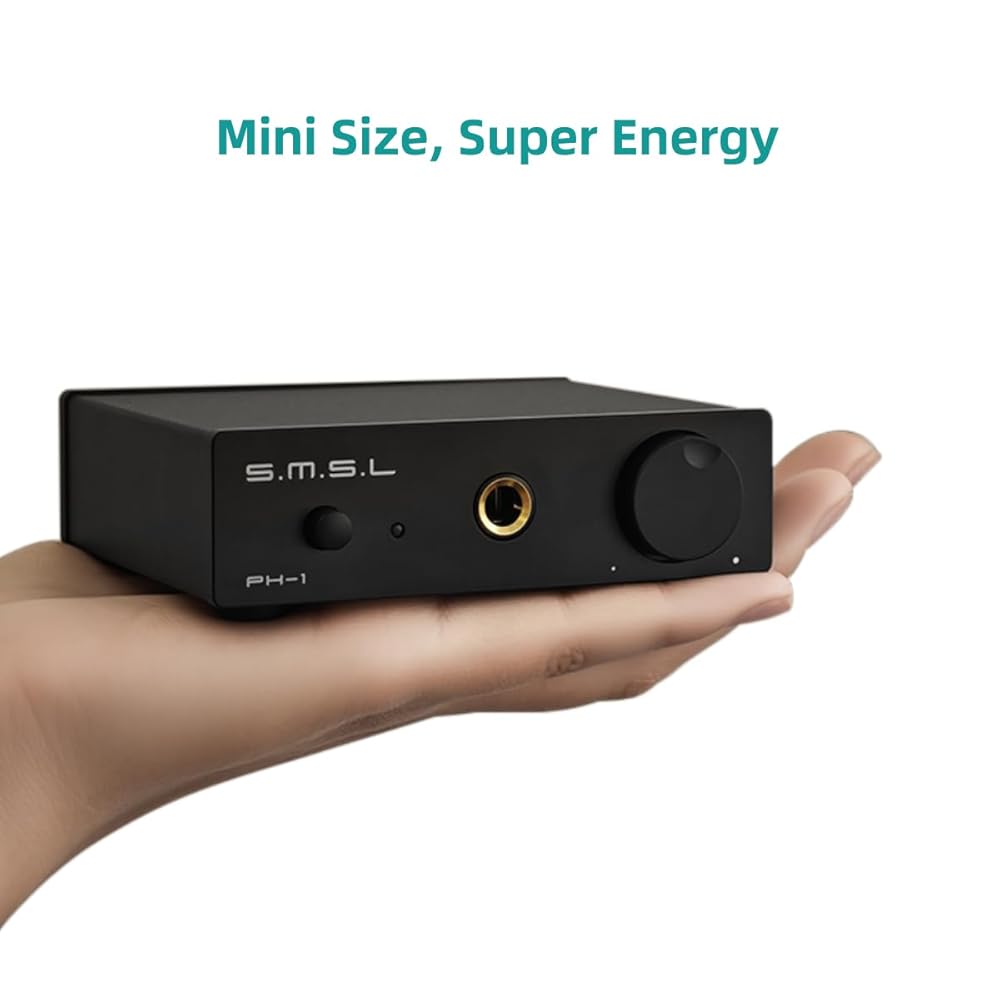

Extremely small size for flexible placement.
Optimized signal path and high sound quality design.

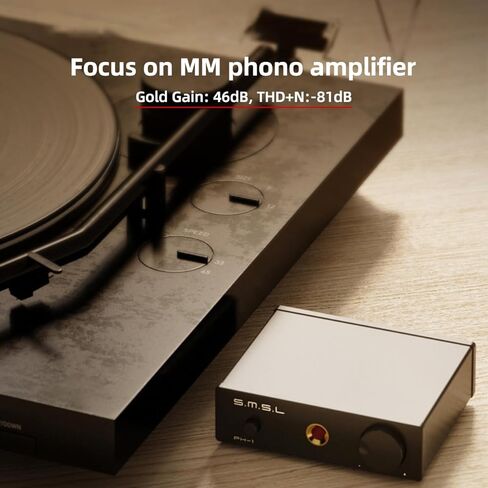

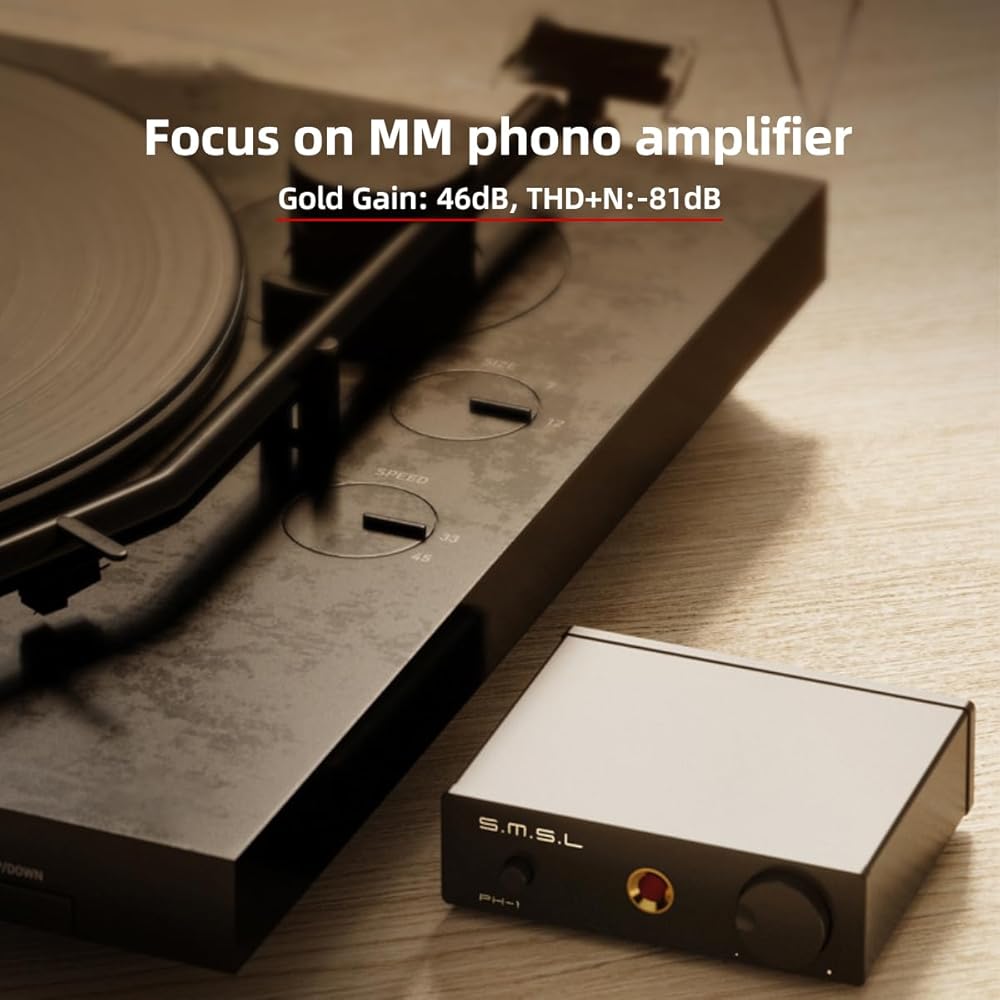

Focus on mm ultra-low distortion
Better be the best single MM than compromise MM+MC.
In the eyes of PH1, there is only MM. Unlike many models with MM/MC switching on the market, we only have MM, and the benefits of doing so are endless:
1. The MC amplifier circuit is removed, and the circuit performance is improved by 50%!
2. 90% of users use MM cartridge!
3. User convenience is improved by 50%!
4. Reduce the cost and the selling price!
Advanced isolated power supply
Ultra low noise: Precision low noise chip.
Tiny design: tiny circuit board, performance is not reduced.

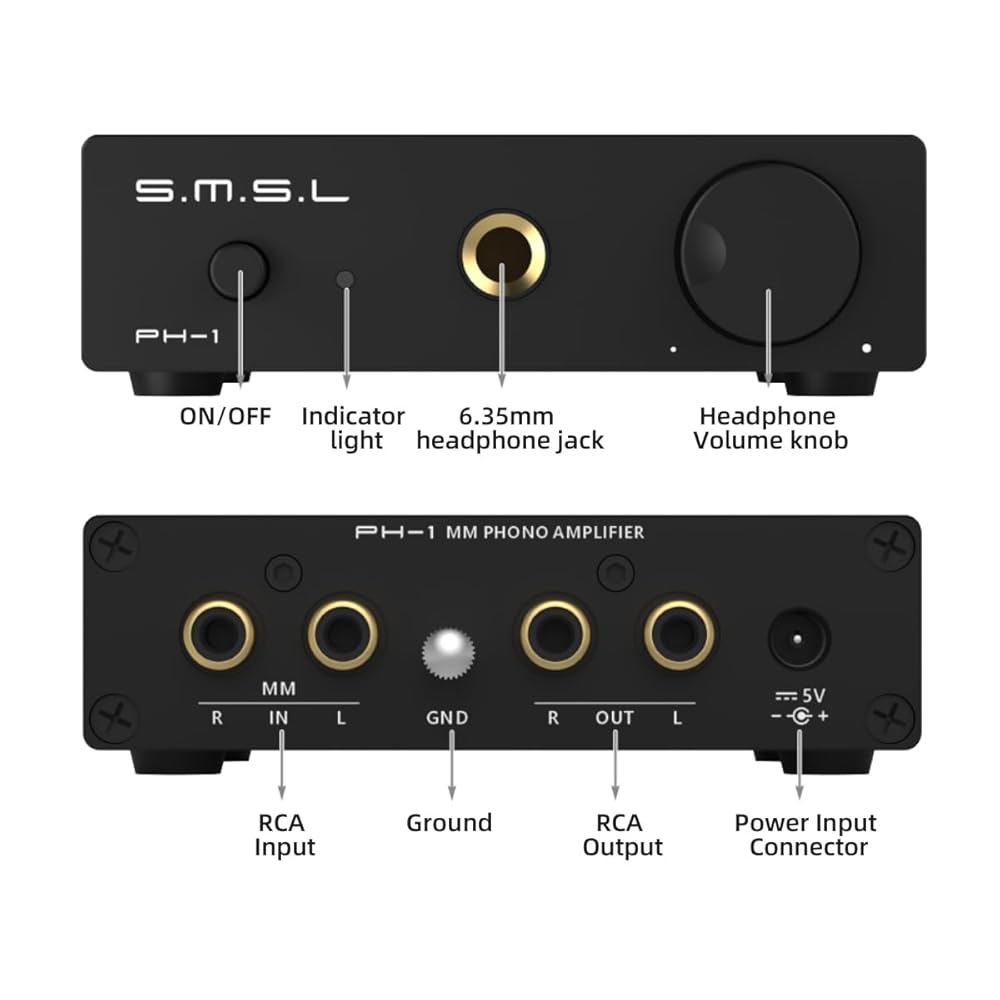

Gold-plated jacks: Oxidation resistance and corrosion resistance, ensuring zero loss of signal transmission.
Short path and good sound: Shortest signal path, high sound quality design.
Product Parameters

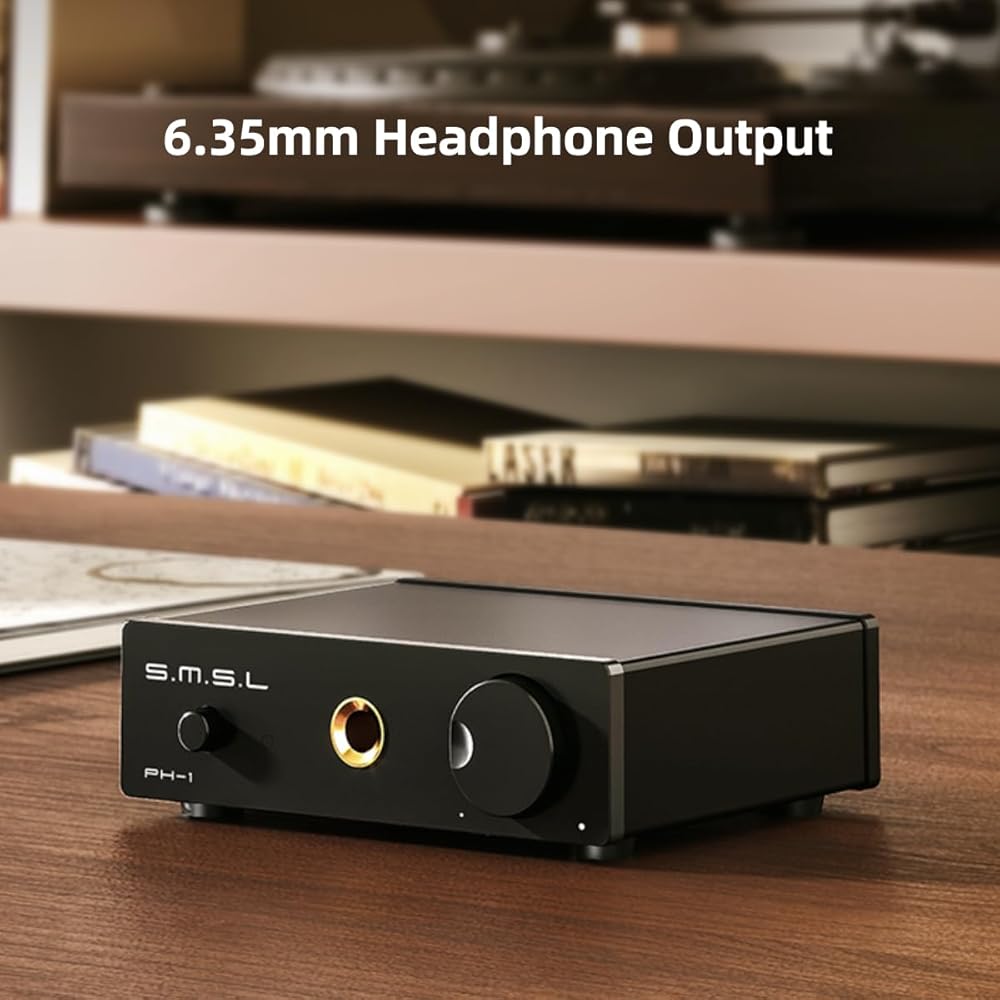

Headphone Output Power: 90mWx2(32Ω)
Frequency Response: 20Hz-20kHz
THD+N(unweighted): 0.008%(-81dB)
Channel Separation: -77dB(1kHz)
Gain: 46dB
SNR: 84dB
Power Consumption: 1W
Power Input: DC 5V 500mA

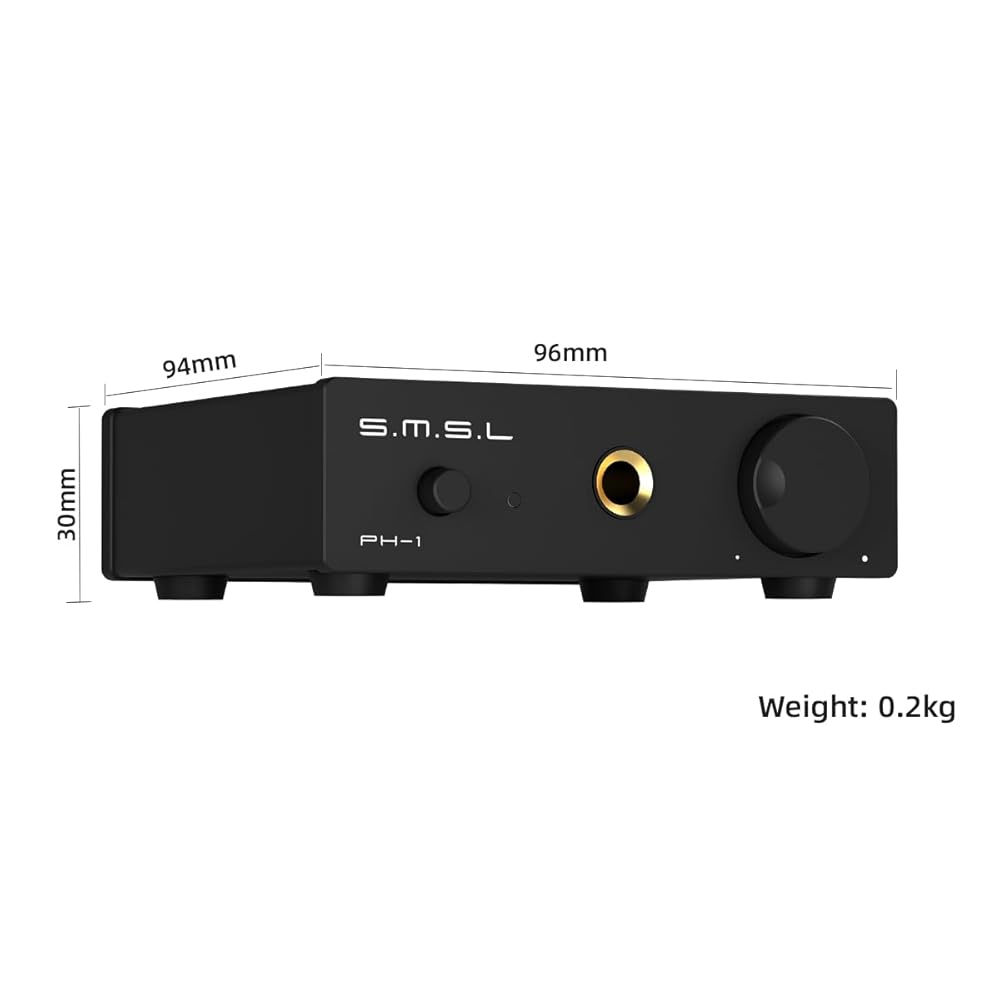

Size: 94x30x96mm(WxHxD)
Weight: 0.205kg
Accessories List:
1x S.M.S.L PH-1
1x USB Power Cable
1x User Manual
1x S.M.S.L Card
