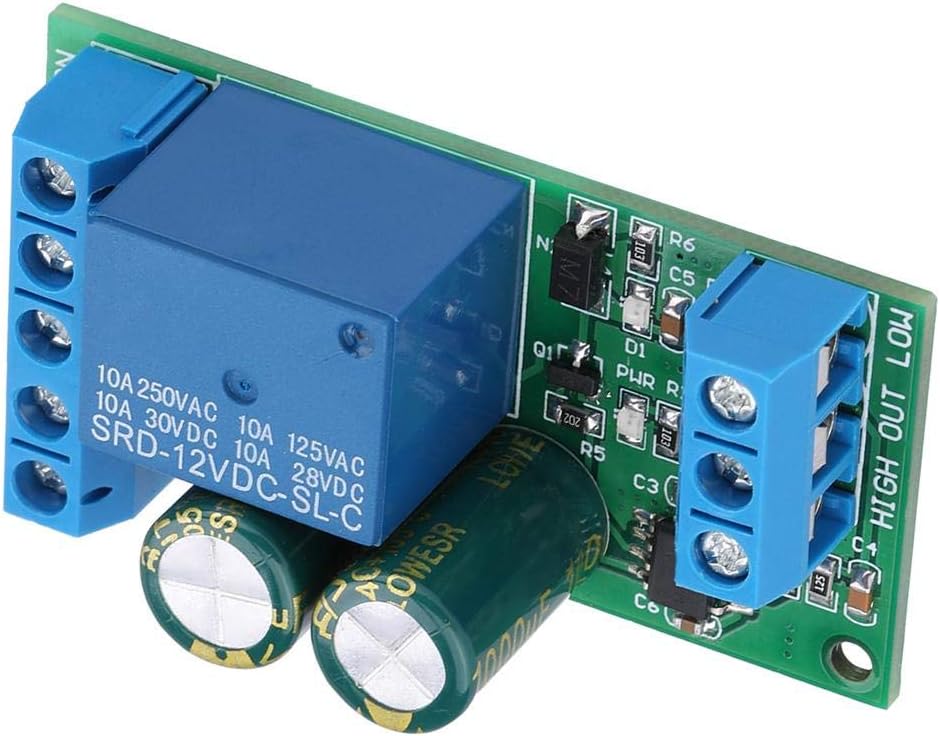

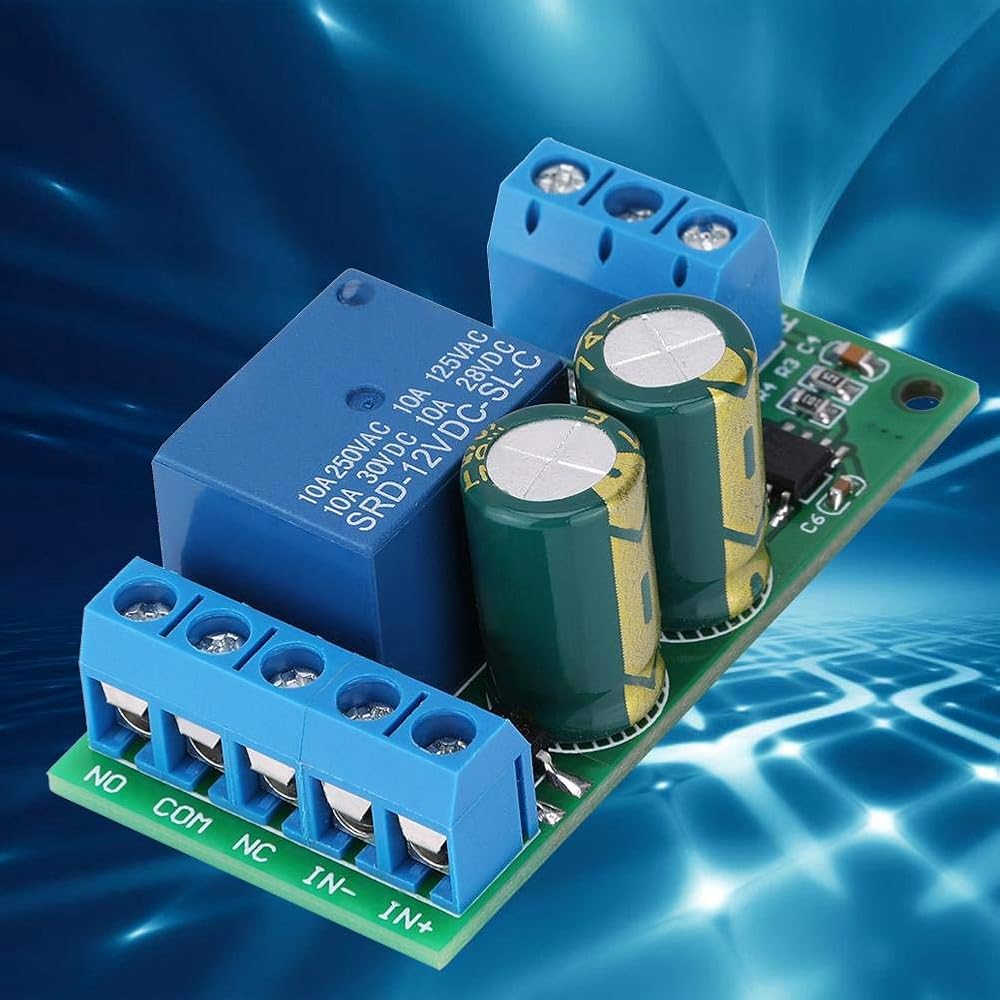

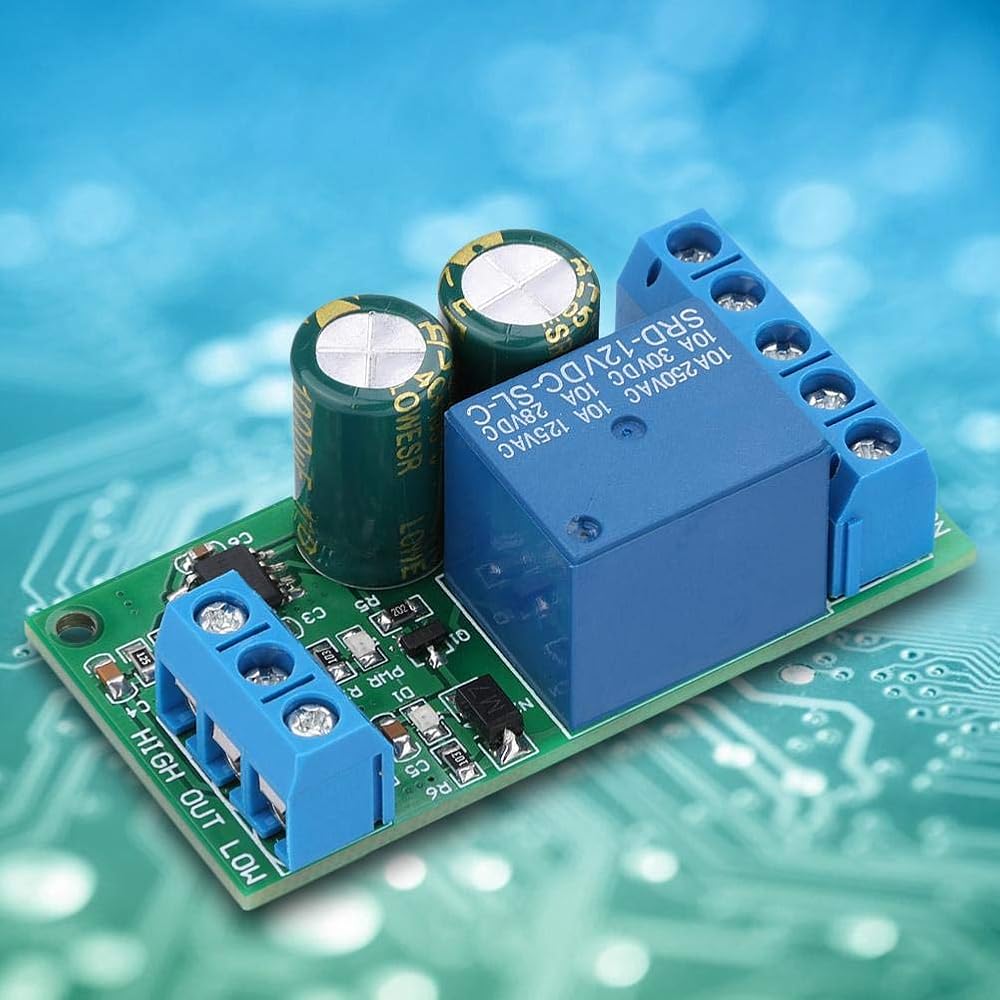

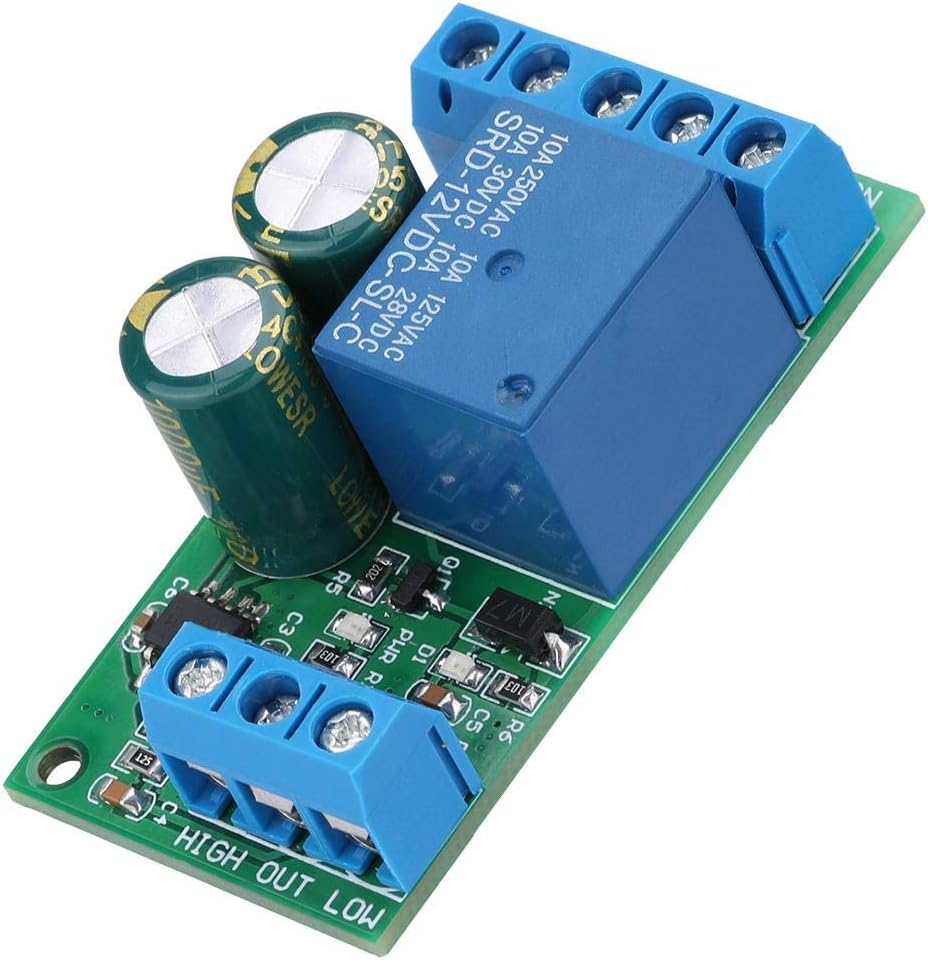

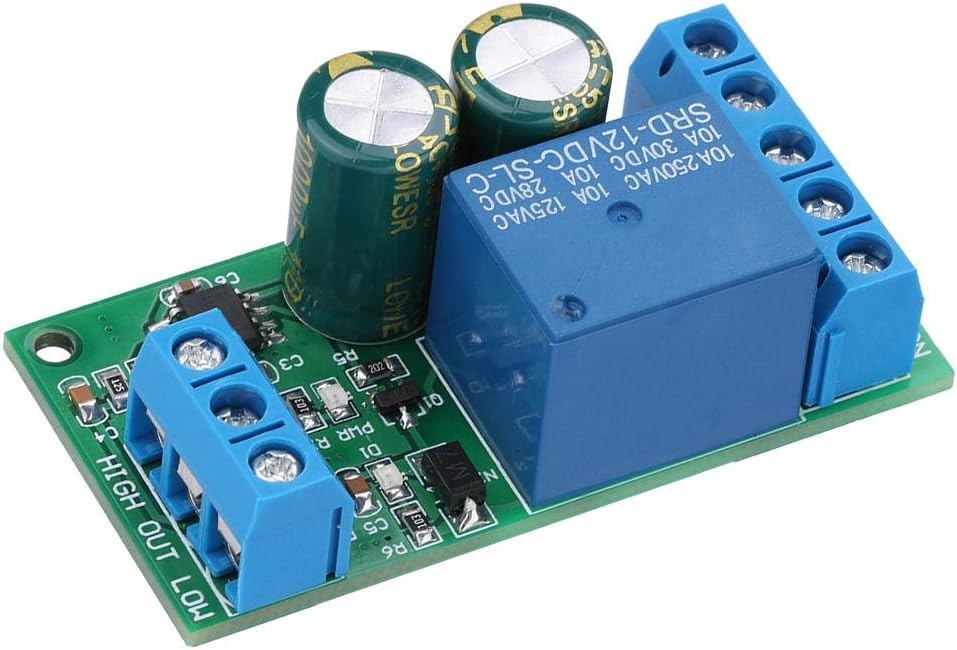

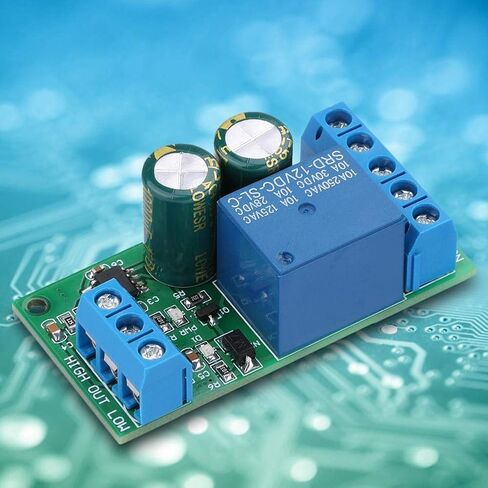

Level Controller Module, 12V DC/AC Water Level Controller Automatic Liquid Level Detection Sensor Module, Water Control Relay Switch Module for Fish Tank Aquarium Home Water Tower

SAR 49
Brand
Thincol
Category
Sensors
– 1 +

Special Features

  • WATER LEVEL AUTOMATIC CONTROLLER: supports manual or automatic mode control of water pump, with relay dry node output, suitable for various load control, simple and convenient installation, screws can be positioned and installed, and electric box rails can also be installed.
  • LIQUID CONTROL SWITCH MODULE: strong compatibility, can be used with a variety of liquid level sensors. Strong protection, with waterproof pump idling protection and water level overflow detection output.
  • WIDE RANGE OF APPLICATIONS: household water tower automatic water supply system, aquarium fish tank water exchange system, conductive liquid automatic control, livestock automatic feeding system, farm automatic water supply system and other occasions that require automatic water supply and water exchange.
  • INTERFACE DESCRIPTION: HIGH: upper limit probe; OUT: output probe; LOW: lower limit probe; IN+: power terminal 1 (regardless of positive and negative); IN-: power terminal 2 (regardless of positive and negative); NC: relay normally closed Contact; COM: relay common contact; NO: relay normally open contact.
  • PARAMETERS: Working voltage: DC 12-15V (AC 9-12V); Standby current 10MA; Working current 40MA; Maximum load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC.

Description

Specification:
Model: LC25A01
Weight: 28g/1oz
Working voltage: DC 12-15V(AC 9-12V)
Standby current 10MA
Working current 40MA
Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
Size: 54*27*19mm/2.1*1.1*0.7inch
Application:
Home water tower automatic water supply system.
Aquarium fish tank water changer system.
Conductive liquid automatic control.
Automatic feeding system for poultry and livestock.
Farm automatic water supply system.
And other occasions that require automatic water supply and water exchange.
Solenoid valve water pump motor automatic control.

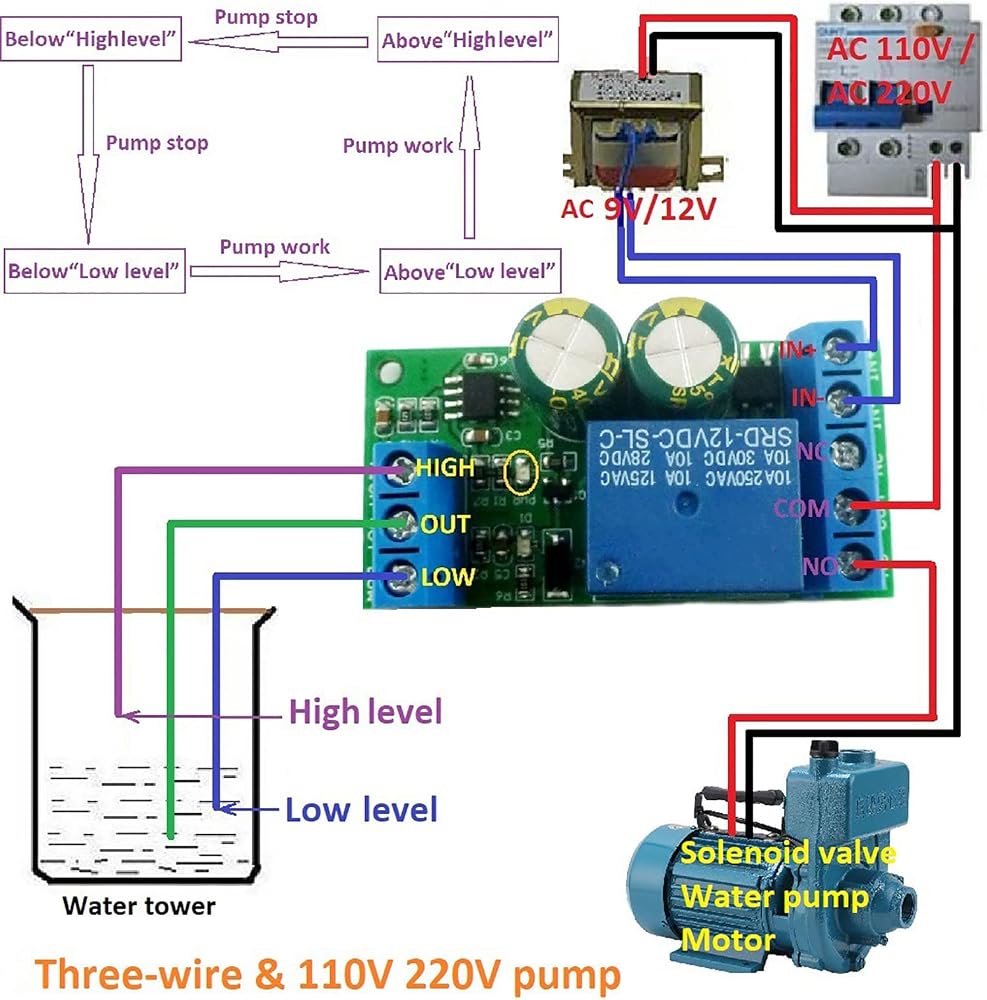

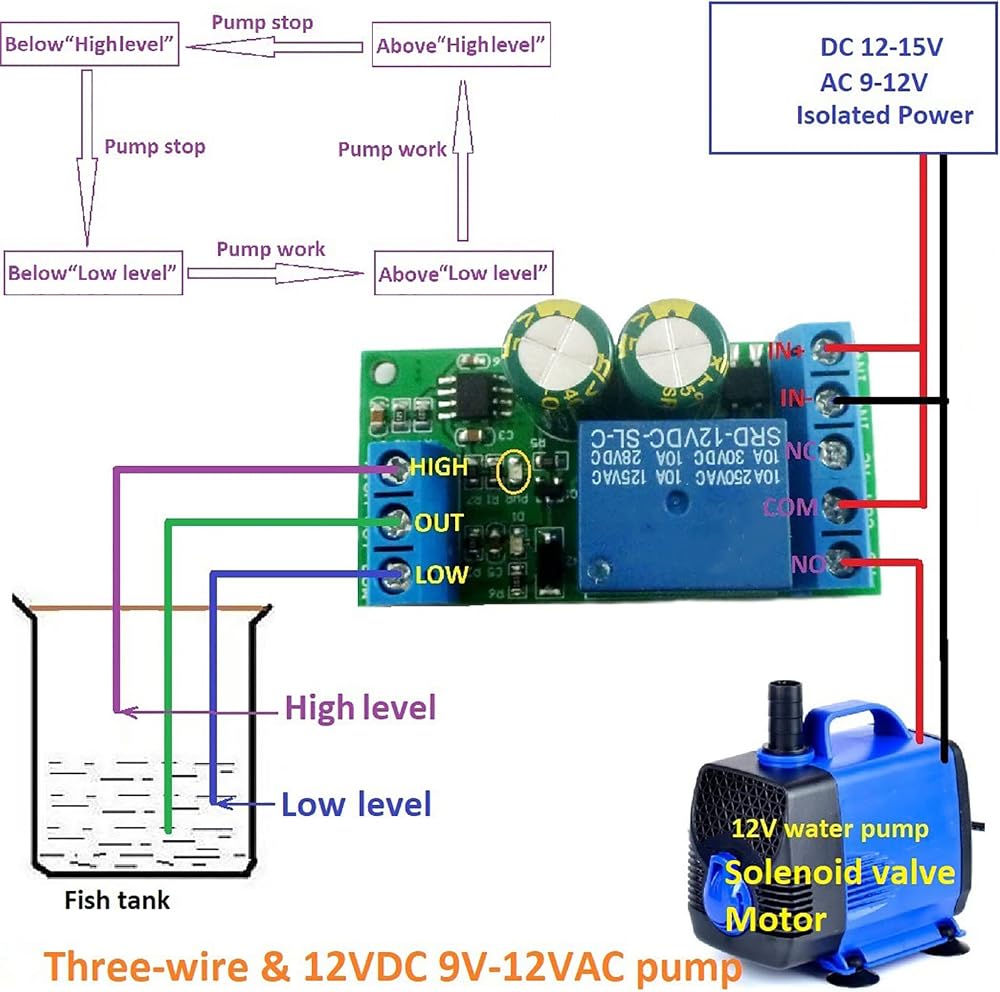

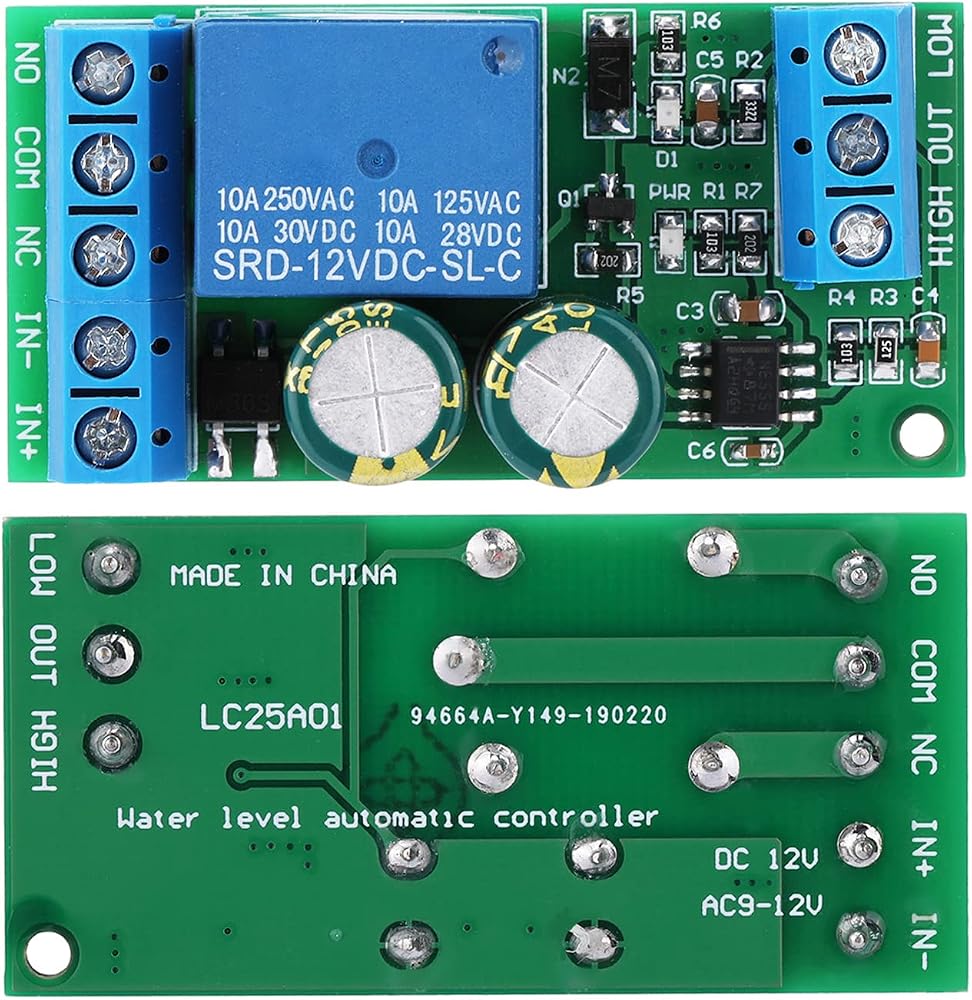

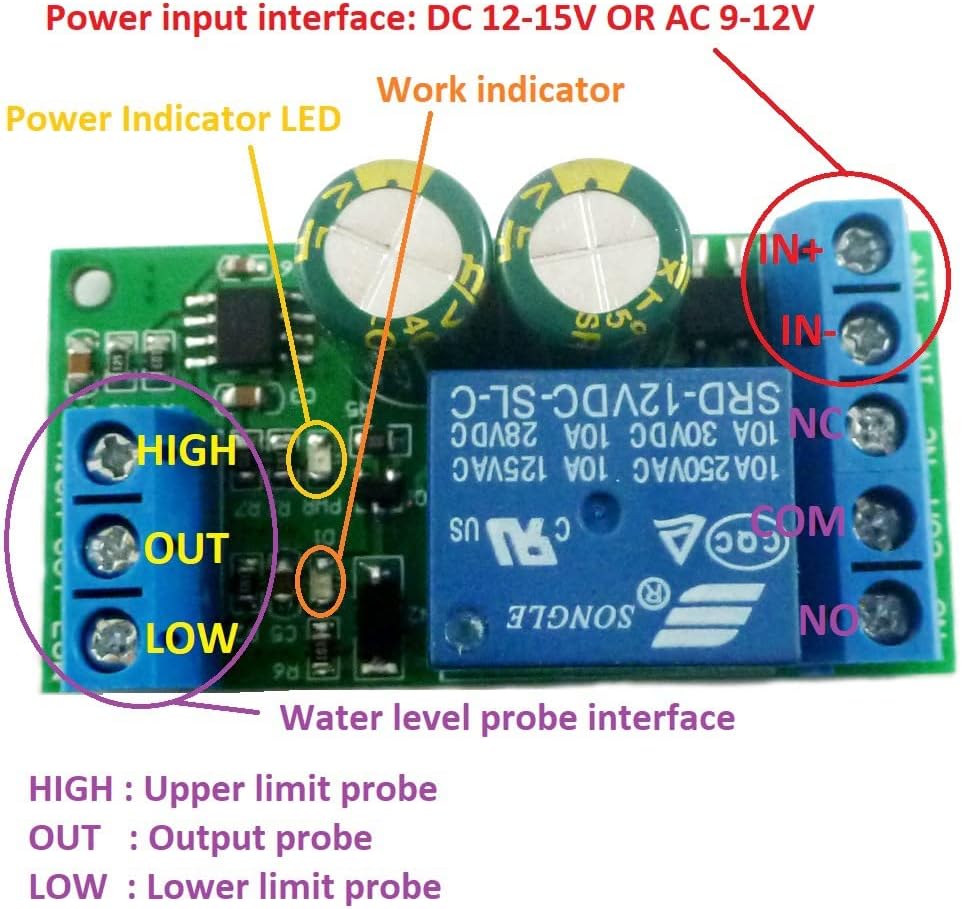

Interface description:
HIGH : Upper limit probe
OUT : Output probe
LOW : Lower limit probe
IN+ : Power terminal 1 (regardless of positive and negative)
IN- : Power terminal 2 (regardless of positive and negative)
NC: Relay normally closed contact
COM: Relay common contact
NO: Relay normally open contact

Package List:
1 x Level Controller Module

Note:
1. Package does not contain probe (wire).No need to use a dedicated probe, the probe can be made using household wires
2. For safety, use an AC/DC power supply with good isolation.
