مميزات خاصة

6-in-1 set can form 6 different functions of machine tools including saw, gong, lathe, milling machine, drilling machine, grinding machine, and one of them can be assembled and used at a time.

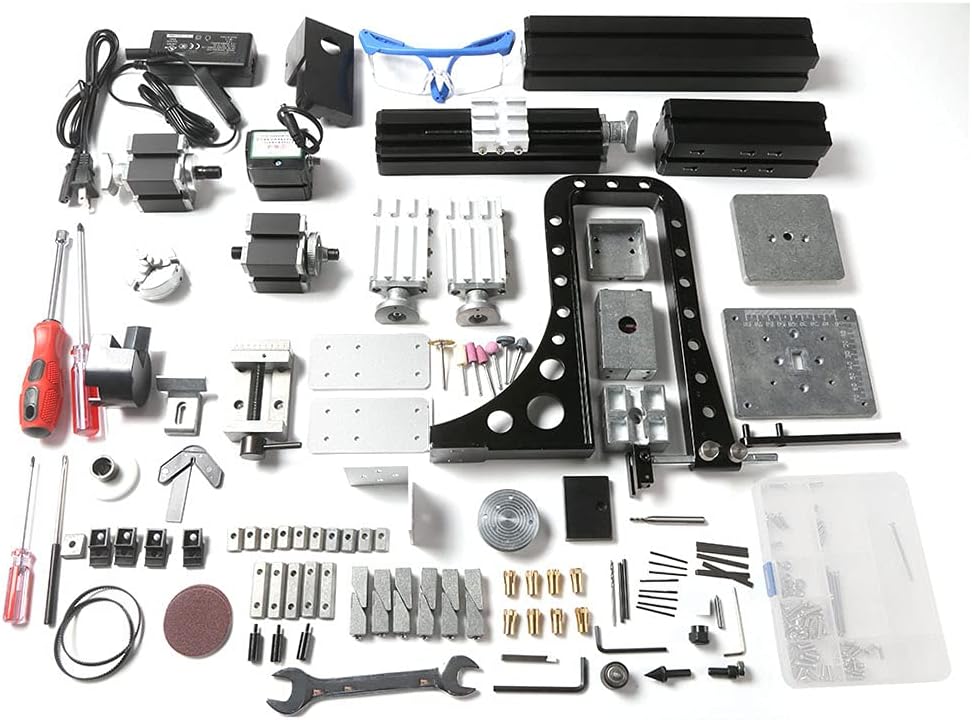

The main parts of the machine include the spindle box, the middle block, the base of the wire saw box, the wire saw box, the motor blades, the gears, the gong bed support, the small slider, the small slider bracket, the large slider, the drilling machine rocker arm, the drill floor The board, wire saw table, connecting block, sandpaper plate, indexing locator, milling machine vise, etc. are all metal structures, also it is with belt cover, small grinding wheel, grinding wheel
A good tool for family and school children to aeromodelling and other carpentry , this kind of lathe is easy to use.
Use it with confidence, this lathe keeps guaranteed quality after many inspections before leaving the factory.
Built to strict quality control standards, milling lathe is improved for more durability.

وصف

Specification:
Item Type: Lathe
Model: Z6000MZG
Motor Speed: 20,000 rpm.
Working Table Area of Jigsaw: Approx. 90 x 90mm / 3.54 x 3.54in
Maximum Diameter of Wood Lathe Processing Material: Approx. 50mm / 1.97in
Processing Material Length of Metal Lathe and Wood Lathe: Approx. 135mm / 5.31in
Slider Stroke:
X-Axis: Approx. 145mm / 5.71in
Y-Axis: Approx. 32mm / 1.26in
Z-Axis: Approx. 32mm / 1.26in
Chuck: Approx. 1 ~ 6mm / 0.04 ~ 0.24in
Drilling Table Area: Approx.123 x 100mm / 4.84 x 3.94in
Maximum Clamping Size of Vise: Approx. 50mm / 1.97in
Maximum Diameter of Three-jaw Chuck Holding Workpiece: Approx. 50mm / 1.97in
Center Height of Metal Lathe: Approx. 25mm / 0.98in
Maximum Cutting Depth of Jigsaw:
Hardwood: Approx. 4mm / 0.16in
Tri-Ply Wood: Approx.7mm / 0.28in
Cork: Approx.18mm / 0.71in
Thin Aluminum Sheet: Approx.0.5mm / 0.02in
Plexiglass: Approx.2mm / 0.08in
Features: Not including the milling machine, children must use the milling machine under the instruction of the parent or teacher, other lathes have a and hands- setting with arched arms and fixed parts and other mai
