3 jawlathe chuck K11-80(3 hole front mount)
Specifications:
Jaws material:Hardened Steel
Model: K11-80
Max RPM: 4000 r/min
Jaw: 3 Jaw
Power: Manual
Features:
1.Short cylindrical center mounting.
2. Model K11 chucks are provided with one- piece jaws(which include a set of internal jaws and a set of external ones ).
3.Model K11 chucks are supplied with traditional two-piece jaws.
Internal Jaw:
Clamping Range A-A1: 2- 22mm
Jamming Range B-B1: 25- 70mm
External Jaw:
Clamping Range C-C1: 22- 63mm
Packaged included:

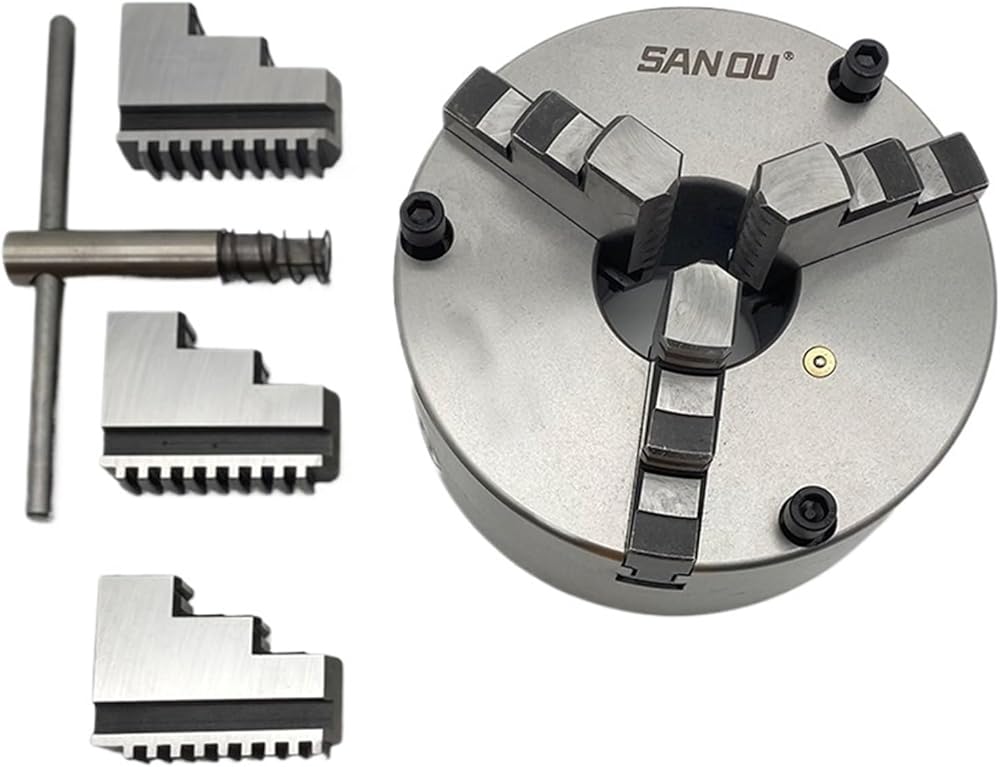

Self-Centering chuck body x1
Internal jawsx 3
External jawsx 3
Safety chuck keyx 1
Mounting boltsx 3
==========
Hign-concerned Chemical : none
Model Number : K11-80(Front Mount)
Number of Jaws : 3
Power : Manual
Size : 80mm
Feature : front 3 hole mount
Packing : Carton
Internal jaw clamp range : 2-22mm
Jamming range : 25-70mm
Name : lathe chuck 80mm
Keywords : Mini lathe chuck
