3 jawlathe chuck K11-125(Bore 38MM)
Specifications:
Jaws material:Hardened Steel
Model: K11-125

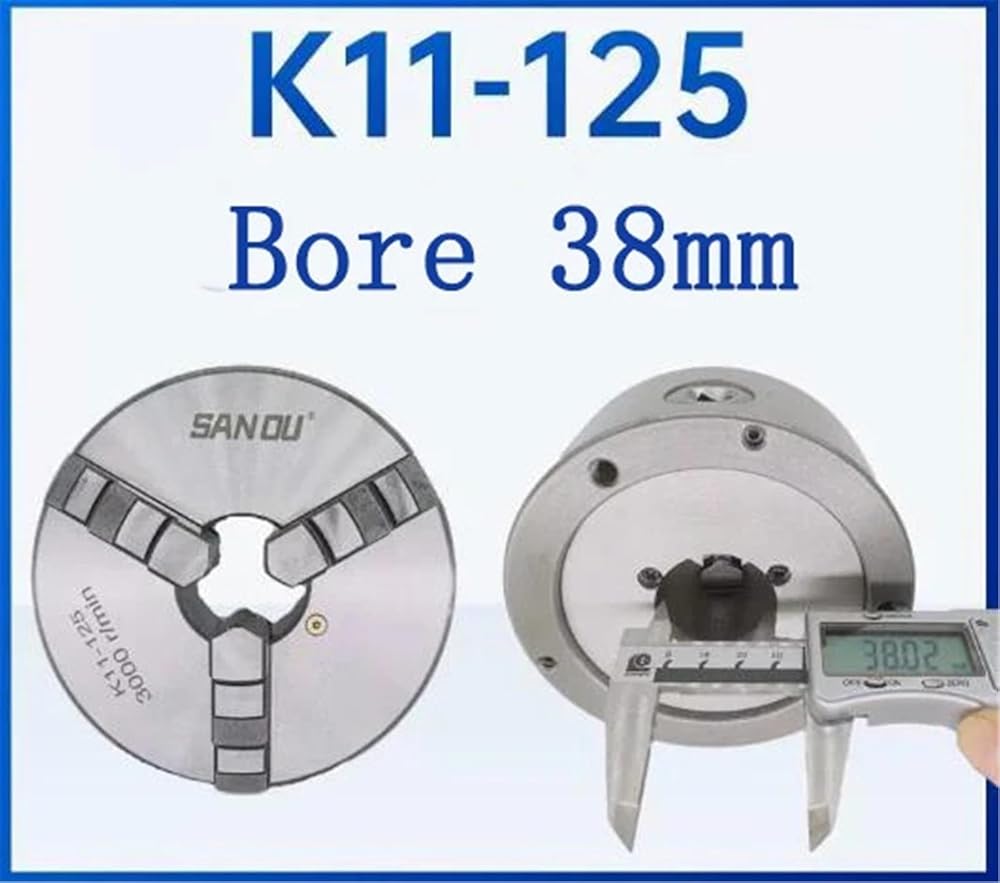

Through hole : 38mmMax RPM: 3000 r/min
Jaw: 3 Jaw
Power: Manual
Features:
1.Short cylindrical center mounting.
2. Model K11 chucks are provided with one- piece jaws(which include a set of internal jaws and a set of external ones ).
3.Model K11 chucks are supplied with traditional two-piece jaws.
Internal Jaw:
Clamping Range A-A1: 2.5- 40mm
Jamming Range B-B1: 38- 125mm
External Jaw:
Clamping Range C-C1: 38- 110mm

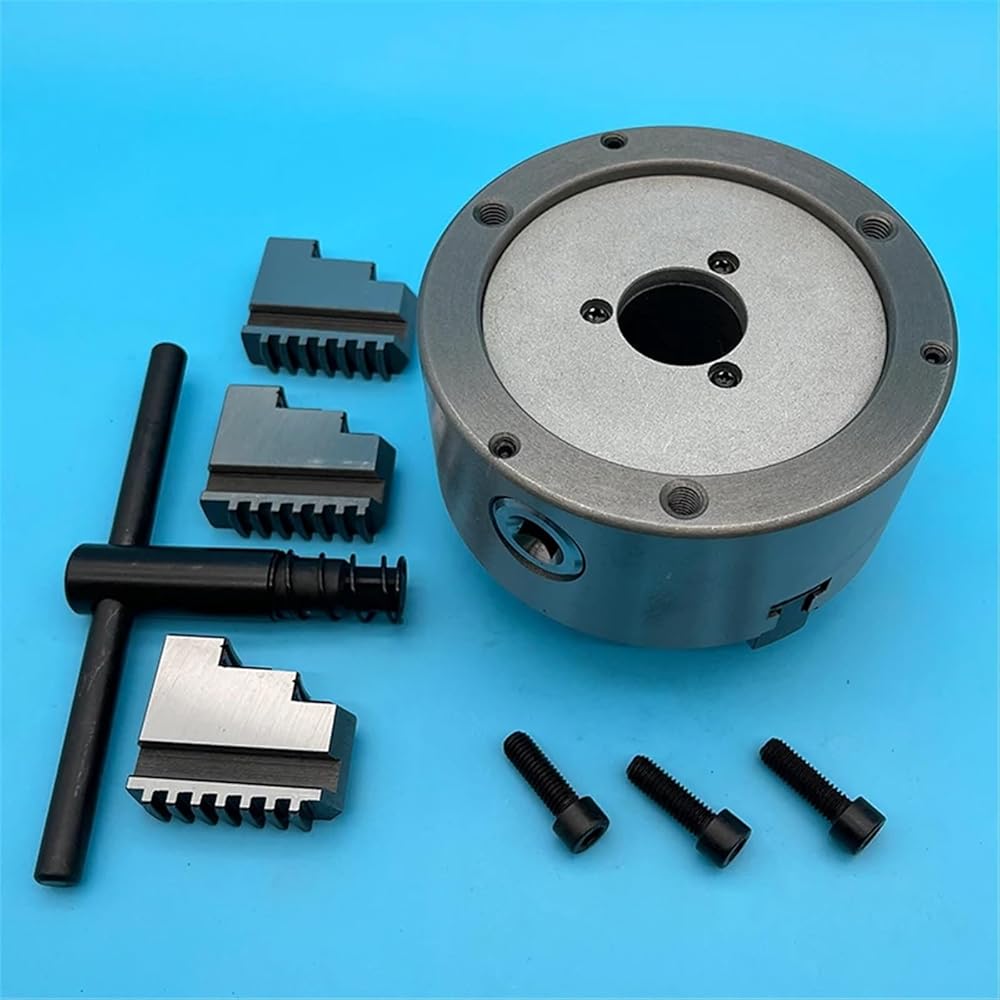

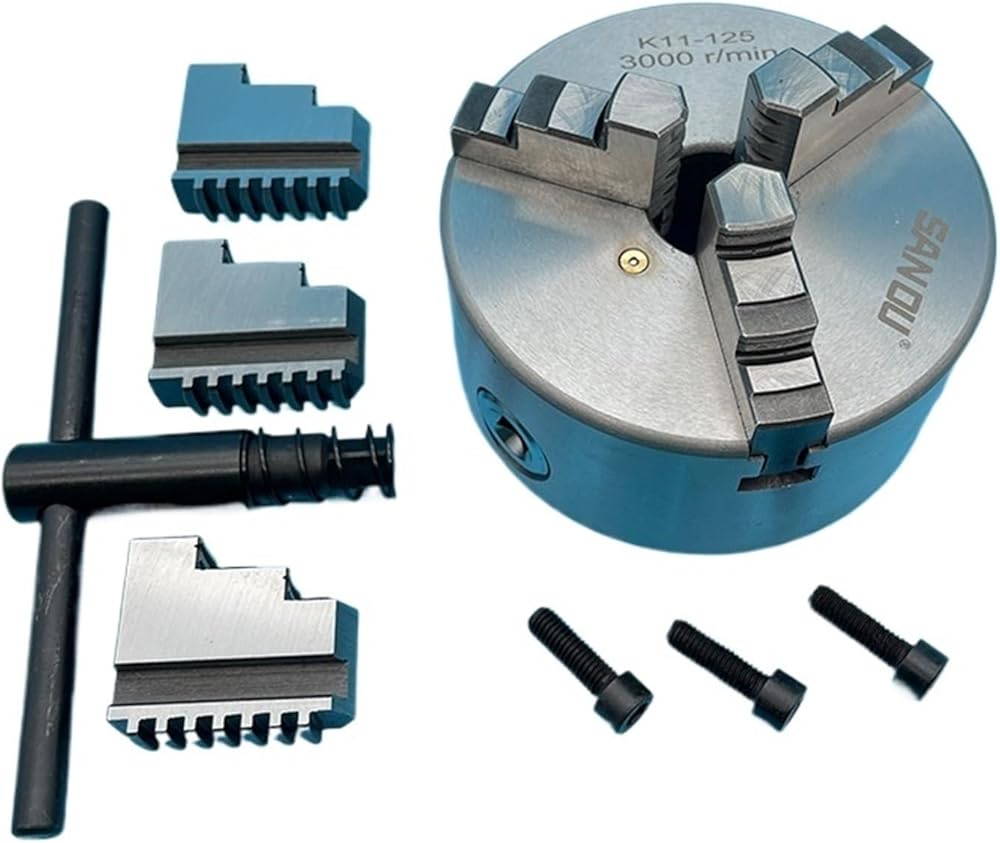

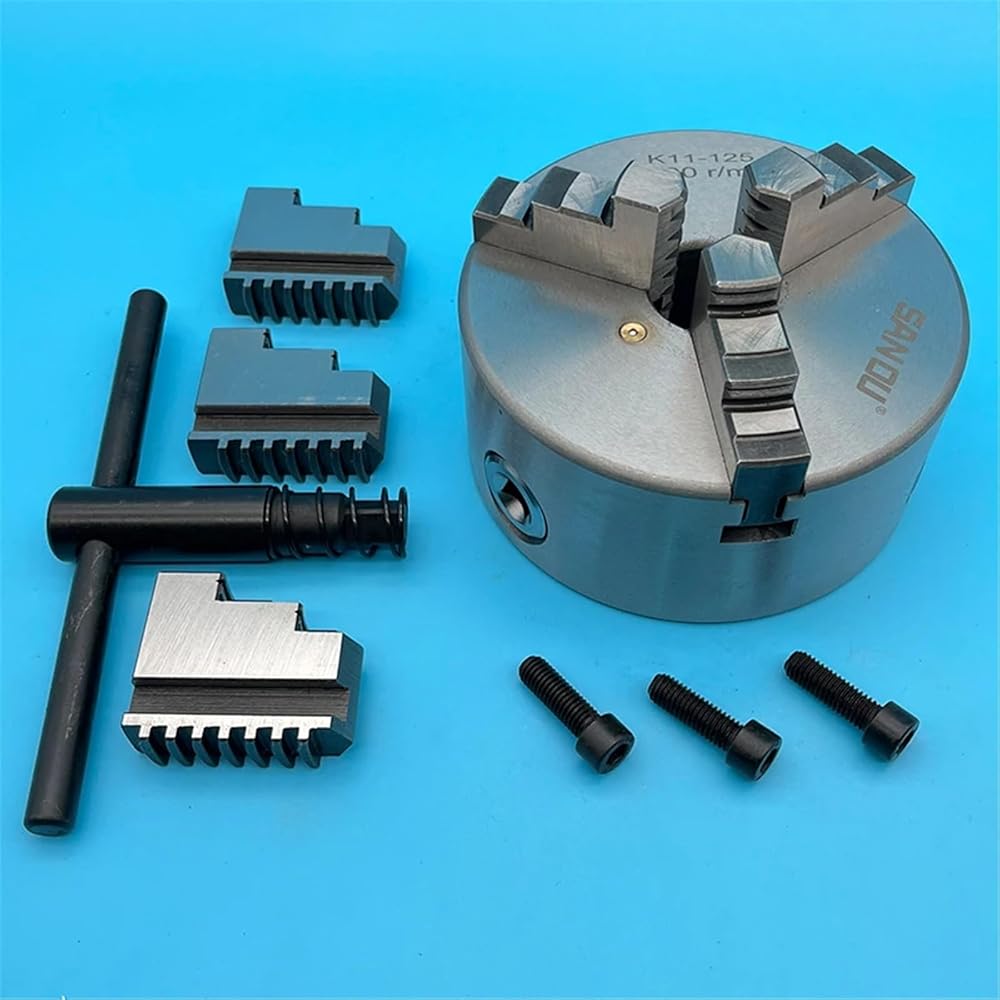

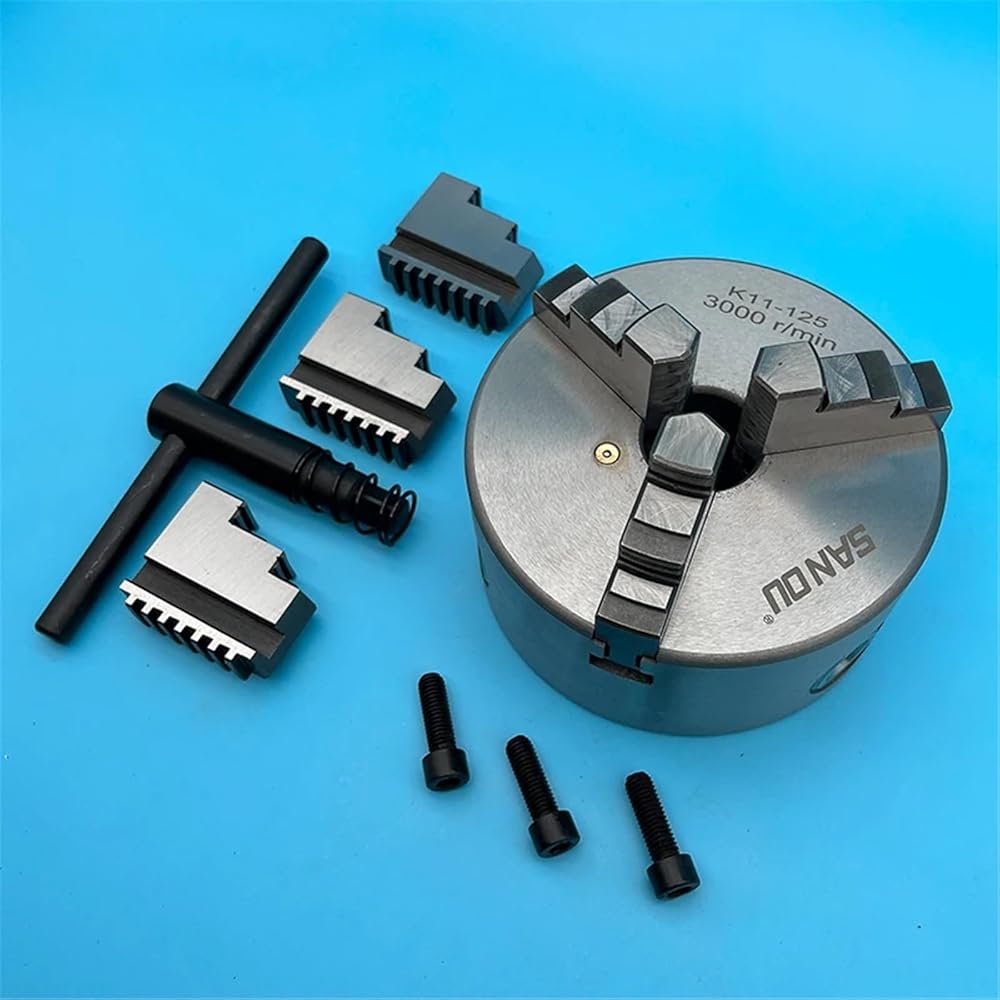

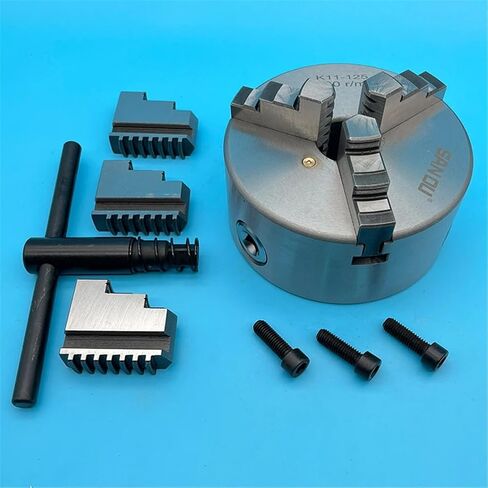

Packaged included:
Self-Centering chuck body x1
Internal jawsx 3
External jawsx 3
Safety chuck keyx 1
Mounting boltsx 3
==========
Hign-concerned Chemical : none
Model Number : K11-125(38MM Bore)
Number of Jaws : 3
Power : Manual
Through hole : 38MM
Size : 125mm
Packing : Carton
Internal jaw clamp range : 2.5-40mm
Jamming range : 38-125mm
Name : 3 Jaw chuck
Keywords : Lathe chuck 125mm
Type : Self-centering
