Spindle Sanders

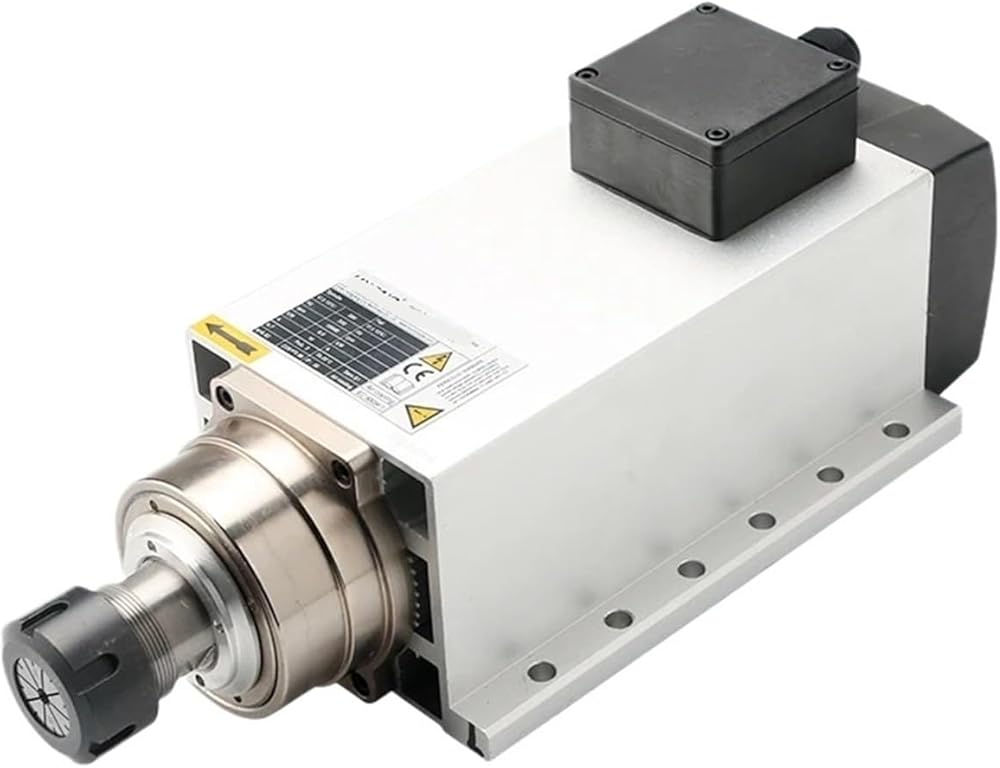

Model: GDF120-102-6.0
Speed regulation method: Change the spindle speed through the three-phase output inverter and adjust the frequency of the inverter.
Cooling method: air cooling
Power interface: An optional 5-pin waterproof aviation connector is marked with "1", "2", "3", "4", "5", and "GND". "1", "2", and "3" are connected to the inverter (U, V, W) respectively, and "GND" is connected to the inverter ground.
(Note! Our spindle "4" is connected to GND for personal safety!!)
Power: 6.0kw (1HP=0.735w)
Voltage: 220V 380V
Current: 16A
Frequency: 0-300Hz
Speed: 0-18000rpm
Jump: less than 0.01mm
Bearing type: 2*7008C P4, 2*7002C P4 (4 ball bearings)
Chuck: ER32
Clamping tool diameter: 1mm, 2mm, 3mm, 3.175mm (1/8), 4mm, 5mm, 6mm, 6.35mm (1/4), 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 12.7mm (1/2), 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 20mm
